Clarion FX109 Manual de usuario
Bluetooth USB/MP3/WMA RECEIVER
User's Manual
FX109
English
2
CONTENTS
1. FUNCTIONS........................................................................................................3
2. ...........................................................................................4GETTING STARTED
3. ...............................................................................5LISTENING TO THE RADIO
4. ................................................................................................6USB PLAYBACK
USB PLAYBACK.................................................................................................7
Functions of the Buttons on the Head Unit...........................................................3
Home Screen Descriptions..................................................................................3
5. BLUETOOTH......................................................................................................8
6. BLUETOOTH PHONE........................................................................................9
7. 24BIT DSP AUDIO OPERATION.....................................................................10
8. WIRING DIAGRAM...........................................................................................12
24BIT DSP AUDIO OPERATION......................................................................11
9. SPECIFICATION...............................................................................................13
English
3
Functions of the Buttons on the Head Unit
Volume Up/Down
Microphone
USB Jack
Hold:
Press:
Power
Mute
Hold: Press:
Voice Assistant
Home
1. FUNCTIONS
Tuner Radio
Setting Menu
Phone
Mirroring
Audio Setting
Bluetooth Phone
Home Screen Descriptions
USB Playback
Bluetooth
Audio
AV IN
English
2. GETTING STARTED
1. Press the [ ] button on front panel to
turn on the unit. 4. Press the [ ] button on the front panel
to mute or restore volume.
5. Press the [ / ] buttons on the front panel to
increase / decrease the volume.
6. Tap to view the Clock.
2. Tap [ ]
3. Tap the corresponding key and set the value.
Activates or deactivates the key-touch tone.
To adjust the LCD display backlight
Select the language used for the control screen
and setting items.
To automatically demo this unit’s major features
cyclic on LCD display.
Adjust the clock time.
Sets the desired function in the steering remote controller.
Select the time display format.
Turn On/Off the parking mode.
The voice recognition function of the cell-phone.
[Beep Tone]
[Dimmer]
[Language]
[Demo]
[Time/Date]
[SWC Leari ng]n
[Clock Mode]
[ ]Parking Mode
[Voice Control]
[ ] Parking Assist Guide
[ ] Parking Guide Adjust
[Rear AV In]
[Camera In]
[Information]
[Default]
[Factory Mode]
System Mode
Display parking guidelines to enable easier parking
when you shift the gear to the reverse position.
If you select [ON] for [Parking Guidelines], you
can adjust the parking guidelines.
Set up the input device of the AV-IN terminal.
Set the camera to be displayed when you shift
the gear to the reverse (R) position.
To view all detailed information of the system.
Restores the default settings.
Reset back to factory default settings.
Bluetooth Mode
Phone Mirror
Displays the Bluetooth Settings screen.
Displays the Phone Mirror Settings screen.
AV-IN
10:30AM10:30AM
01-01-2020
4
1
English
3. LISTENING TO THE RADIO
Recalling a Preset Station
A total of 6 preset positions exists to store
individual radio stations in memory.
Auto Seek
Selecting The Radio Band
Manual Seek
Tap on [ / ] buttons to automatically
search for the next radio station.
Tap on buttons to select
one radio band among FM/AM.
[ / ]
Tap and hold buttons to Manual
search for the next radio station.
[ / ]
Radio Setup
Tap on [ ] button to access the
Radio Setup Menu.
Auto Store
Local Seek
RDS Clock Sync
Automatically searches and stores the
6 stations with the strongest signals for
the selected band.
To receive more radio stations or only
stations with strong signal, you can
adjust the tuner sensitivity.
Synchronizing the Radio Data System
station timedata and this unit’s clock.
Presets
Tap and hold
to select the preset position to save the
current frequency.
[ ]
Tap on to
select the desired preset station.
[ ]
Area
This option allows you to select the
appropriatefrequency spacing for your
area.
2 3 4 5 6
1 2 3 4 5 6
FM3 AM3
5
English
4. USB PLAYBACK
Play / Pause
Selecting a Track
1. Tap on buttons to move to
the beginning of the previous/next track.
[ / ]
2. Tap and hold the buttons
to Fast forward/backford.
[ / ]
Music Function Setup
Tap on buttons to Play or Pause
audio playback.
[ / ]
Tap on [ ] button to access the Music
playback Function Setup Menu.
Repeat
Shuffle
Off:Normal playback
On:Shuffling plays all files
1
All:Repeats all files
One:Repeats current file
Folder:Repeat all files in current
folder
Alblum Art Wallpaper
You can set the Album Art to the
background image.
Tap [ON] or [OFF] to enable/disable this
function.
Video Playback
Searches file
[ ]:Reset to the factory settings
[ ]:
1. to display the
Playback List.
Tap on [ ] button
2. Tap on [ ], and then tap desired
item from the content list.
[ / ]:Searches the previous/
next content. Tap and hold to fast
forward or fast backward
[NORMAL]/[16:9]/[4:3]:Select a
screen mode
[ ]:Adjust image quality in video
screen
[ / ]:Play/Pause
6
English
4. USB PLAYBACK
Selecting a Track In a List
1. to display the
Playback List.
Tap on [ ] button
2. Select whether you search by audio
files [ ] / video files [ ].
3. Tap [ / ] to moves to the upper
hierarchy
4. Touch the desired folder. When you
tap a folder its contents are displayed.
5. Tap desired item from the content list,
the playback starts.
7
English

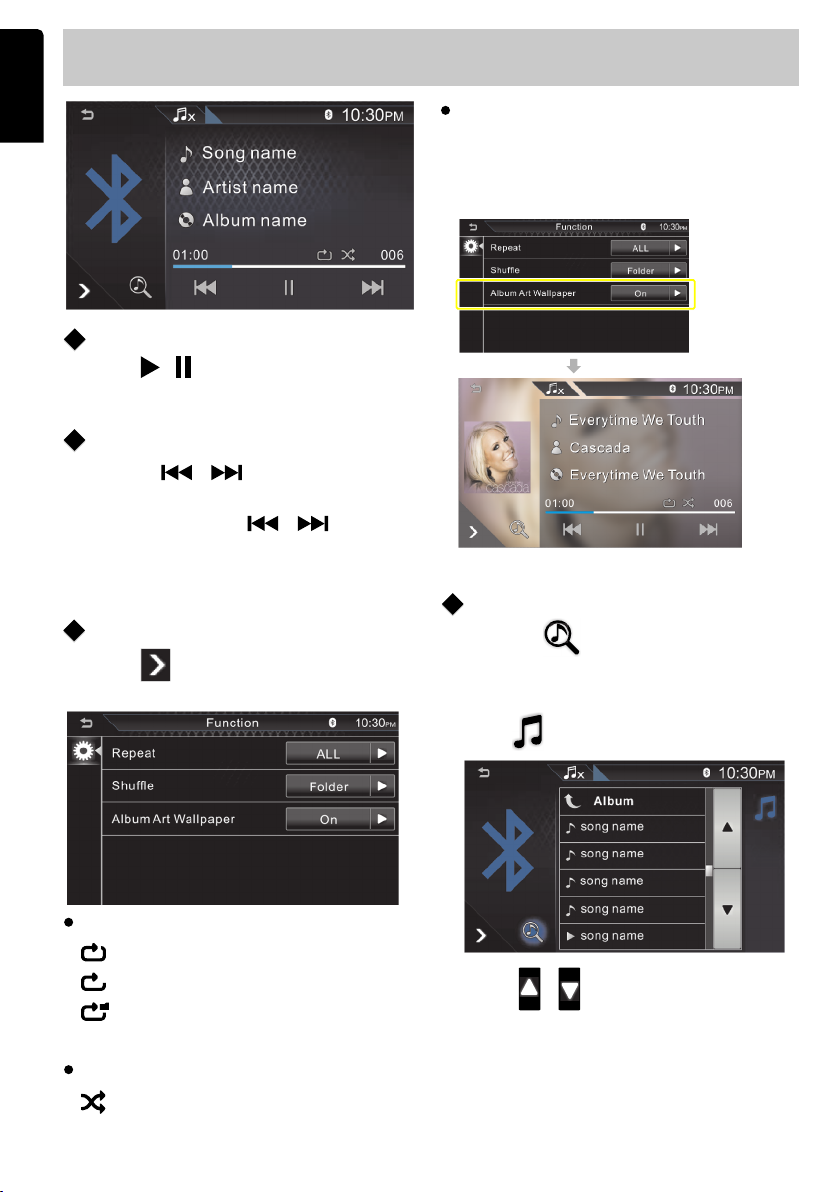

5. BLUETOOTH
Play / Pause
Selecting a Track
1. Tap on buttons to move to
the beginning of the previous/next track.
[ / ]
2. Tap and hold the buttons
to Fast forward/backford.
[ / ]
Music Function Setup
Tap on buttons to Play or Pause
audio playback.
[ / ]
Tap on [ ] button to access the Music
playback Function Setup Menu.
Repeat
Shuffle
Off:Normal playback
On:Shuffling plays all files
1
All:Repeats all files
One:Repeats current file
Folder:Repeat all files in current
folder
Alblum Art Wallpaper
You can set the Album Art to the
background image.
Tap [ON] or [OFF] to enable/disable this
function.
Selecting a Track In a List
1. to display the
Playback List.
Tap on [ ] button
2. Select whether you search by audio
files [ ].
3. Tap [ / ] to moves to the upper
hierarchy
4. Touch the desired folder. When you
tap a folder its contents are displayed.
5. Tap desired item from the content list,
the playback starts.
8
English

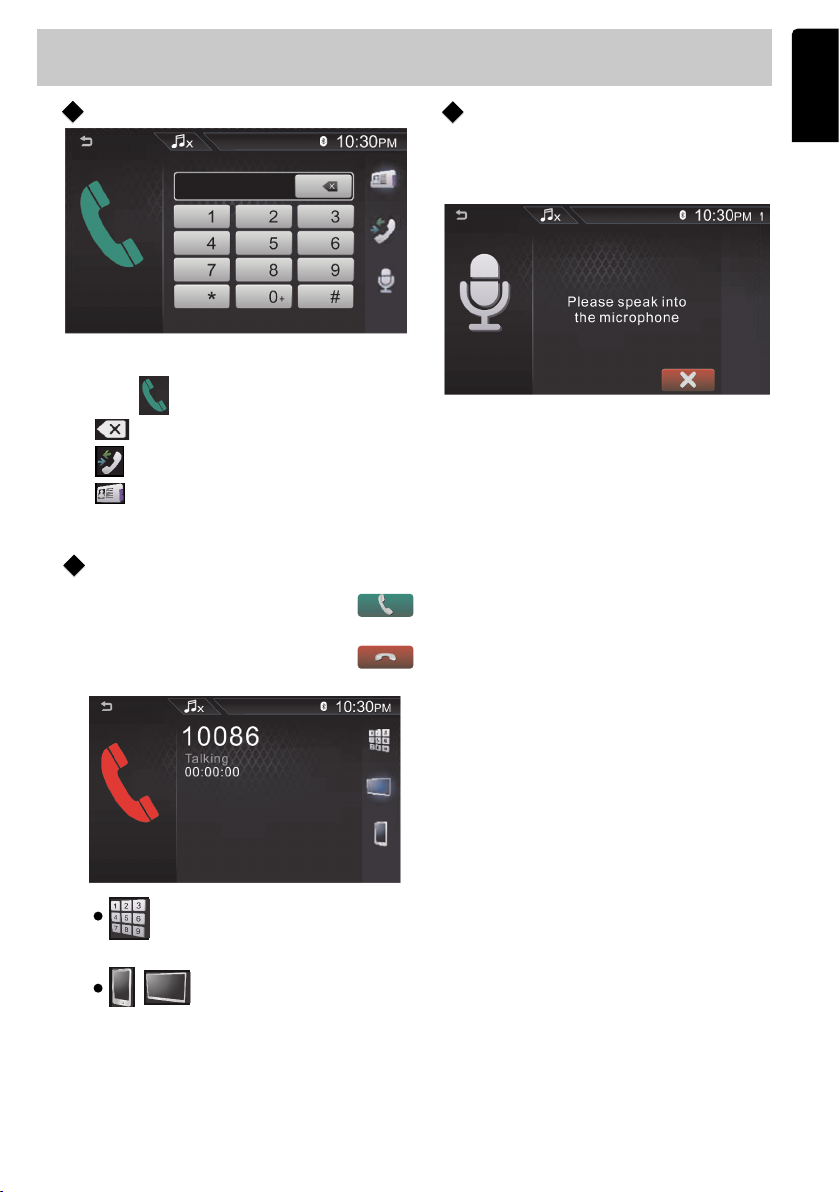

6. BLUETOOTH PHONE
Making a Call
1. Enter a phone number with number keys.
2. Tap [ ] to make a call.
• : To delete the last entry
• : Call using call records
• : Phonebook
0123456789
1.
to answer/accept the call.
If there is an incoming call, tap
2. When conversation ends, tap
to terminate the call.
Switches the speaking
voice output between
smartphone/cell-phone
and speaker.
Receiving a Call
You can send tones by
touching desired keys
on the screen.
You can access the voice recognition
function of the phone connected to
this Car AV System.
Voice Assistant
9
English
7. 24BIT DSP AUDIO OPERATION
Tap to access into the Audio Settings
Mode adjustthe various settings.
13 Band Equalizer
Time Alignment
You can customize the equalizer, tap
to stored.
Tap to adjust the delay time of the
selected speaker
Tap to adjust the sound level of
the selected speaker.
Cross Over
Tap to set the virtual tweeter
when you are selecting front speakers.
Tap to switch Front/Rear
high pass filter function
Tap to switch Subwoofer
low pass filter transfer function
Rear Speaker
Subwoofer
Front Speaker
Fader/Balance
[Fader]: Adjust the front and rear
volume balance.15(front) to -15(rear)
[Balance]: Adjust the left and right
volume balance.15(right) to -15(left)
User 1 User 2
10
