Cisco Small Business

WAP200 Wireless-G Access Point with Power Over

Ethernet and Rangebooster

ADMINISTRATION

GUIDE

CCDE, CCENT, CCSI, Cisco Eos, Cisco HealthPresence, Cisco Ironport, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco Nurse Connect, Cisco Stackpower,

Cisco StadiumVision, Cisco TelePresence, Cisco Unified Computing System, Cisco WebEx, DCE, Flip Channels, Flip for Good, Flip Mino, Flip Video, Flip Video

(Design), Flipshare (Design), Flip Ultra, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn, Cisco Store, and

Flip Gift Card are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP,

CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity,

Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS,

iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking

Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to

Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States

and certain other countries.

All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a

partnership relationship between Cisco and any other company. (0907R)

Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster iii

Contents

Chapter 1: Introduction 1

Chapter 2: Planning Your Wireless Network 2

Network Topology 2

Roaming 3

Network Layout 3

Example of a Simple Wireless Network 4

Chapter 3: Product Overview 5

Front Panel 6

Back Panel 7

Antennas and Positions 8

Chapter 4: Installing the Access Point 9

Placement Tips 9

Stand Option 10

Wall-Mount Option 11

Connecting the Equipment 12

Using a PoE Switch to Connect the WAP200 to the Network 12

Using a Standard Switch to Connect the WAP200 to the Network 13

Verifying the Hardware Installation 14

Chapter 5: Getting Started 15

Before You Begin 15

Accessing the Web-Based Configuration Utility 15

Navigating the Web-Based Utility 16

Setup 16

Wireless 17

AP Mode 17

Administration 17

Status 18

Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster iv

Contents

Chapter 6: Configuring the WAP200 Access Point 19

Setting Up Your Access Point 20

Configuring Basic Setup Settings 20

Configuring Basic Setup Settings 21

Configuring Network Setup Settings 22

Configuring Time Settings 23

Configuring Wireless Settings 24

Configuring Basic Settings 25

Configuring Security 27

Configuring WPA-Personal 29

Configuring WPA2-Personal 30

Configuring WPA2-Personal Mixed 31

Configuring WPA-Enterprise 33

Configuring WPA2-Enterprise 35

Configuring WPA2-Enterprise Mixed 37

Configuring RADIUS 39

Configuring WEP 41

Configuring Connection Control 43

Disabling Wireless Connection Control 43

Allowing Specified MAC Addresses to Connect to the Wireless Network 44

Preventing MAC Addresses from Connecting to the Wireless Network 44

Configuring Advanced Settings 45

Configuring VLAN & QoS 48

Configuring the Access Point’s Modes of Operation 50

Configuring Security Monitor Settings 55

Configuring the Security Monitor Client Settings 55

Disabling the Wireless Security Monitor 55

Creating Security Monitor Accounts 56

Configuring Intrusion Alarm Event Log Settings 57

Configuring E-mail Notification Settings 57

Configuring SYSLOG Notification Settings 59

Configuring Administration Settings 59

Configuring Management Settings 60

Configuring the Administration Log 63

Restoring Factory Default Settings 65

Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster v

Contents

Upgrading the Firmware 66

Rebooting the Access Point 67

Managing the Access Point’s Configuration 68

Verifying Access Point Status 69

Checking Local Network Status 69

Checking Wireless Status 71

Checking System Performance 72

Using Windows Help Menus 74

TCP/IP 74

Shared Resources 74

Network Neighborhood/My Network Places 74

Appendix A: Troubleshooting 75

Appendix B: Wireless Security Checklist 80

Security Checklist 80

Change the Default Wireless Network Name or SSID 81

Disable SSID Broadcast 81

Change the Default Password 81

Change the Administrator’s Password Regularly 81

Enable MAC Address Filtering 82

Change the SSID Periodically 82

Enable Encryption 82

General Network Security Guidelines 84

Additional Security Tips 84

Appendix C: Specifications 85

Specifications 85

Setup/Configuration 85

Management 86

Operating Modes 86

Wireless 86

Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster vi

Contents

Security 87

Wireless Security 87

Quality of Service 87

General 88

Environmental 88

Appendix D: Where to Go From Here 89

Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster 1

Introduction

Thank you for choosing the Cisco WAP200 Wireless-G Access Point with Power

Over Ethernet and Rangebooster.

This access point lets you connect Wireless-G (802.11g) or Wireless-B (802.11b)

devices to your wired network so you can add computers to the network

wirelessly.

The WAP200 also offers the convenience of Power over Ethernet (PoE) capability,

so it can receive data and power over a single Ethernet network cable. You can

even connect wired networks in two different buildings, by using two access

points set to Wireless Bridge mode.

Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster 2

Planning Your Wireless Network

Before deploying your Cisco WAP200 Wireless-G Access Point with Power Over

Ethernet and Rangebooster, take some time to plan your wireless network.

This chapter includes the following topics:

•Network Topology, page 2

•Roaming, page 3

•Network Layout, page 3

•Example of a Simple Wireless Network, page 4

Network Topology

A wireless network is a group of computers, each equipped with one or more

wireless adapters. Computers in a wireless network must be configured to share

the same radio channel to talk to each other. Several computers equipped with

wireless cards or adapters can communicate with each other to form an ad-hoc

network without the use of an access point.

Cisco wireless adapters also provide access to a wired network when using an

access point or wireless router. An integrated wireless and wired network is

called an infrastructure network. Each wireless computer in an infrastructure

network can talk to any computer in a wired or wireless network via the access

point or wireless router.

An infrastructure configuration extends the accessibility of a wireless computer to

a wired network, and may double the effective wireless transmission range for

two wireless adapter computers.

Because an access point can forward data within a network, the effective

transmission range in an infrastructure network may be doubled (depending on

antenna characteristics).

Planning Your Wireless Network

Roaming

Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster 3

Roaming

An infrastructure configuration also supports roaming capabilities for mobile

users. Roaming means that you can move your wireless computer within your

network and the access points will pick up the wireless computer’s signal,

providing that they both share the same wireless channel, SSID, and wireless

security settings.

This access point has 802.11F Inter-Access Point Protocol (IAPP) to complete the

roaming process in seconds. If your wireless networks share the same IP subnet,

this does not disrupt your data connection while moving around.

Before you consider roaming, choose a feasible radio channel and optimum

access point position. Proper access point positioning combined with a clear radio

signal will greatly enhance performance.

Network Layout

The WAP200 Access Point supports 802.11g and 802.11b products such as the

notebook adapters for your laptop computers, PCI adapters for your desktop

computers, and USB adapters.

These wireless products can also communicate with a 802.11g or 802.11b

wireless print server.

To link your wired network to your wireless network, connect the access point’s

Ethernet network port to any switch or router with PoE.

For more information about wireless products, visit the Cisco website at

www.cisco.com.

Planning Your Wireless Network

Example of a Simple Wireless Network

Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster 4

Example of a Simple Wireless Network

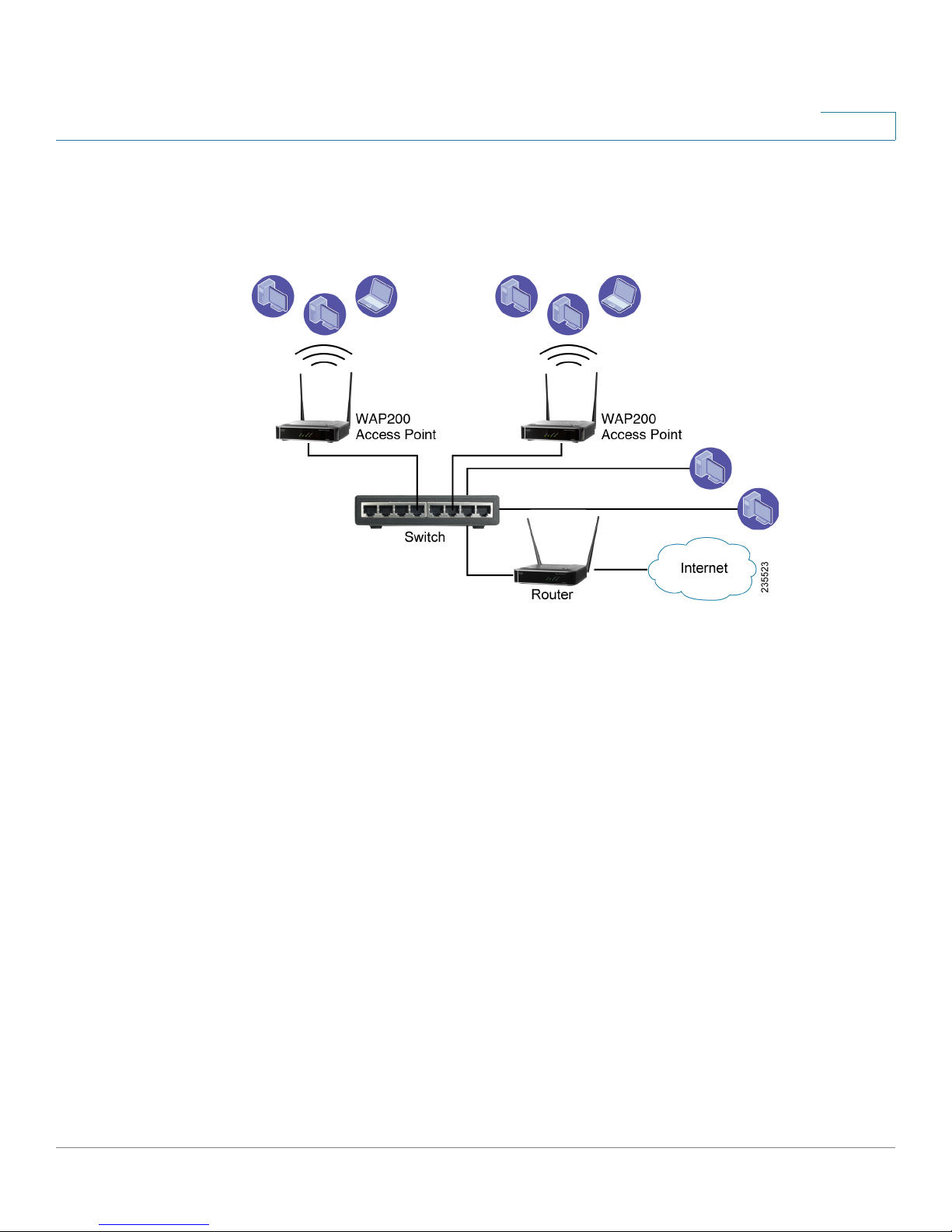

The following diagram shows a typical infrastructure wireless network setup.

In this example, the wireless access points connect to and receive power from a

PoE Cisco switch. Each access point can connect multiple wireless devices to the

network.

This network provides connectivity among wireless network devices and

computers that have a wired connection to the switch.

The switch connects to a router that connects to the Internet.
