Cisco MR74 Manual

Meraki MR74

Hardware Installation Guide

Trademarks

Cisco, Cisco Meraki, Meraki, Meraki MR74, and Meraki Cloud Controller

are trademarks of Cisco Systems, Inc.Other brand and product names

are registered trademarks or trademarks of their respective holders.

Warranty

Cisco Systems, Inc. provides a one year warranty on this product. Warranty

details may be found at www.meraki.cisco.com/support.

Table of Contents

. 1 Scope of Document and Related Publications

. 2 MR74 Overview

. 3 Pre-Install Preparation

. 4 Installation Instructions

. 5 Troubleshooting

. 6 Regulatory

Scope of Document and Related Publications

The MR74 Hardware Installation Guide describes the installation

procedure for the MR74 access point.

Additional reference documents are available online at

meraki.cisco.com/support

MR74 Overview

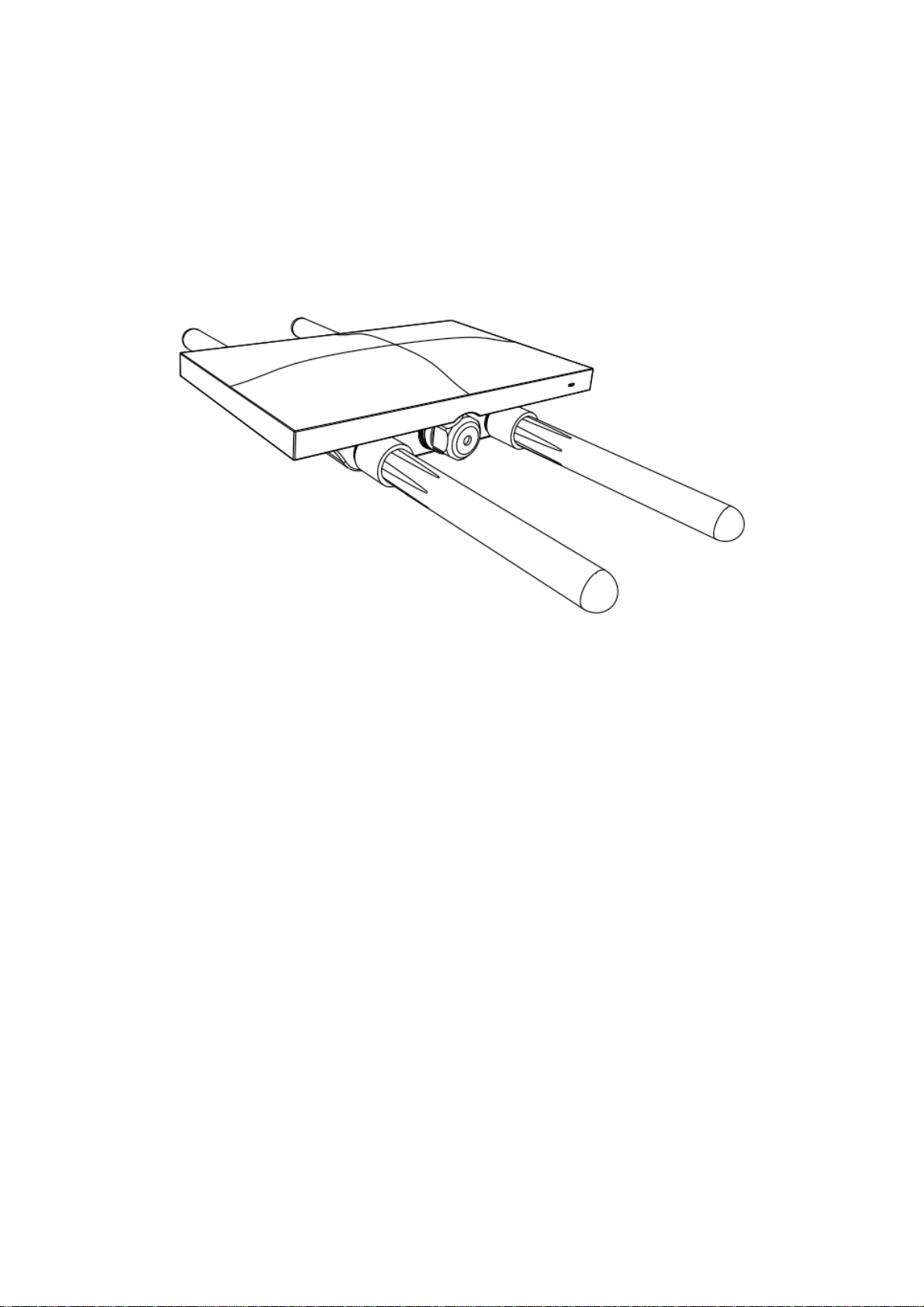

The Meraki MR74 is an enterprise-class, 802.11abgn/ac AP outdoor

designed for rugged environments. When connected to the Meraki Cloud

Controller, the MR74 enables the creation of high-speed and reliable

networks that cover large outdoor and industrial areas quickly, easily, and

cost-effectively.

The Meraki MR74 has an operating temperature of -40o to 60o C.

2.1

Package Contents

The MR74 package contains the following:

- MR74 access point

-Wall screws & anchors

-Mounting plate

-Cable gland

-Mounting straps

2.2

Antennas and Ports

The Meraki MR74 has two radios. Each radio has two external antenna

connectors; both connectors for a particular radio should be attached to

the same type of antenna. The 5 GHz radio is used for mesh or client

communication. The 2.4 GHz radio is primarily used for client

communication. However, it can also communicate with Meraki 2.4 GHz

access points.

Meraki offers a number of different antennas for use with the MR74: MA-

ANT-20, MA-ANT-21, MA-ANT-23, MA-ANT-25, MA-ANT-27, and Cisco

AIR-ANT2513P4M-N.

The Meraki MA-ANT-20 omni-directional antennas must be installed

vertically.

The Meraki MA-ANT-21, MA-ANT-23, MA-ANT-25, MA-ANT-27, and

Cisco AIR-ANT2513P4M-N antennas must be installed facing downward,

at least 30 degrees from the horizon line.

2.3

Power Source Options

The MR74 access point can be powered using either an 802.3af capable

PoE switch or the Meraki 802.3af PoE injector (sold separately).

2.4

LED Indicators and Run Dark Mode

Your MR74 uses a single LED to inform the user of the device’s status.

Function

LED Status

Meaning

Power Up/

Boot

Solid Orange

Power is applied

Connecting

Rainbow

Device in process of connecting to the

Meraki Dashboard

Connected

Solid White

Fully operational

Upgrading

Flashing

White

During boot or no WAN link

The MR74 may be operated in “Run Dark” mode for additional security

and to reduce the visibility of the access point. In this mode, the LED will

not be illuminated. This mode may be enabled through Meraki Dashboard.

Pre-Install Preparation

You should complete the following steps before going on-site to perform an

installation.

3.1

Configure Your Network in Dashboard

Meraki recommends that you add your MR74 to a network in Dashboard

before mounting it in the field. The following is a brief overview only of the

steps required to add an MR74 to your network. For detailed instructions

about creating, configuring and managing Meraki wireless networks, refer

to the Meraki Cloud Controller Manual

(cisco.meraki.com/support/#documentation).

1. Login to http://dashboard.meraki.com. If this is your first time, create a

new account.

2.Find the network to which you plan to add your nodes or create a new

network.

3.Add your nodes to your network. You will need your Meraki order

number (found on your invoice if you ordered directly from Meraki)

or the serial number of each node, which looks like Qxxx-xxxx-xxxx,

and is found on the bottom of the unit.

4.Finally, go to the map / floor plan view and place each node on the map

by clicking and dragging it to the location where you plan to mount it.

You can always modify the location later.

3.2

Check and Upgrade Firmware

To ensure your MR74 performs optimally immediately following

installation, Meraki recommends that you facilitate a firmware upgrade

prior to mounting your MR74.

1. Attach your MR74 to power and a wired Internet connection.

2.The MR74 will turn on and the LED will glow solid orange. If the unit

does not require a firmware upgrade, the LED will turn solid white

within 30 seconds.

* If the unit requires an upgrade, the LED will cycle rainbow until the

upgrade is complete, at which point the Power LED will turn solid white.

You should allow about an hour for the firmware upgrade to complete,

depending on the speed of your internet connection.

3.3

Check and Configure Firewall Settings

If your network will be located behind a firewall, it must allow outgoing

connections on particular ports to particular IP addresses in order for the

MR74 to be able to seamlessly communicate with the Cloud Controller. The

most current list of outbound ports and IP addresses can be found here:

https://documentation.meraki.com/zGeneral_Administration/Other_Top

ics/Firewall_Rules_for_Cloud_Connectivity

3.4

Assigning IP Addresses to MR74s

All gateway MR74s (MR74s with Ethernet connections to the LAN) must

be assigned routable IP addresses. These IP addresses can be dynamically

assigned via DHCP or statically assigned.

3.4.1 Dynamic Assignment

When using DHCP, the DHCP server should be configured to assign a

static IP address for each MAC address belonging to a Meraki AP. Other

features of the wireless network, such as 802.1X authentication, may rely

on the property that the APs have static IP addresses.

3.4.2 Static Assignment

Static IPs are assigned using the local web server on each AP. The following

procedure describes how to set the static IP:

1. Using a client machine (e.g., a laptop), connect to the AP either wirelessly

(by associating to any SSID broadcast by the AP) or over a wired

connection. If using a wired connection, connect the client machine

to the MR74 either through a PoE switch or a Meraki PoE Injector. If

using a PoE switch, plug an Ethernet cable into the MR74’s Ethernet

jack, and the other end into a PoE switch. Then connect the client

machine over Ethernet cable to the PoE switch. If

using a Meraki PoE Injector, connect the MR74 to the “PoE” port of

the Injector, and the client machine to the “LAN” port.

2.Using a web browser on the client machine, access the AP’s built-in web

server by browsing to http://ap.meraki.com. Alternatively, browse to

http://10.128.128.128.

3.Click on the “Static IP Configuration” tab. Log in. The default user name

is the AP’s serial number, with hyphens included (e.g., Q2BD-551C-

ZYW3), and the default password is blank.

4.Configure the static IP address, net mask, gateway IP address and DNS

servers that this AP will use on its wired connection.

5.If necessary, reconnect the AP to the LAN.

3.5

Collect Tools

You will need the following tools to perform an installation:

-Flat-head screwdriver

-Drill with appropriate bits for mounting wall anchors (if mounting to a

wall)

-Phillips screwdriver

- Tin snips(if mounting with hose clamps)

-Power screwdriver with 5/16”(8 mm) nut driver, Phillips & flat heads

(recommended)

3.6

Collect Additional Hardware for Installation

-Network cables with RJ45 connectors long enough for your particular

mounting location

-802.3af PoE power source (either PoE switch or Meraki 802.3af PoE

Injector)

-Connection to the internet (if you are setting up your MR74 as a gateway

to the internet)

-Appropriately sized metal straps (if mounting to a pole larger than 3.9” in

diameter)

-Specialized mounting hardware if mounting to surface other than wood,

stucco or stone

-Laptop with wireless to verify setup (recommended)

InstallationInstructions

4.1

Choose Your Mounting Location

A good mounting location is important to getting the best performance out

of your MR74 access point. Keep the following in mind:

1. The device should have unobstructed line of sight to most coverage areas.

For example, if installing in an office filled with workspaces divided

by mid-height cubicle walls, installing on the ceiling or high on a wall

would be ideal.

2.Power over Ethernet supports a maximum cable length of 300 ft (100 m).

3.If being used in a mesh deployment, the MR74 should have line of sight

to at least two other Meraki devices. For more detailed instructions

regarding access point location selection, reference the Meraki

Network Design Guide (cisco.meraki.com/support/#documentation).

4.The antennas should be as unobstructed as possible. Make sure that

there is clearance around the MR74 for installation of all of your

chosen antennas.

Safety note on mounting locations:

It is recommended that the MR74 be mounted to at a minimum, a 13 mm

thick plywood/concrete wall or ceiling using the mount plate with 6.35

mm in diameter of screws for physical security reasons.

4.2

Install the MR74

For most mounting scenarios, the MR74 mount plate provides a quick,

simple, and flexible means of mounting your device. The installation

should be done in two steps. First, install the mount plate to your selected

location. Then attach the MR74 to the mount plate.

4.2.1 Remove the Mount Plate from the Access Point

Before installing the mount plate, you must remove it from the back of the

access point.

1. Unscrew the mount plate attachment screw.

2. Lift the mount plate release tab upwards.

3. While holding the mount plate release tab up, slide the mount plate off

the access point.

4.2.2 Attach the Mount Plate

The MR74 mount plate can be used to install your access point in a wide

range of scenarios.

4.2.2.1 Wall or Solid Ceiling Mount Using Mount Plate

Using included wall anchors and screws, attach the mount plate to your

mounting wall or ceiling.

It is recommended that the MR74 be mounted to a wall or solid ceiling

using the mount plate for physical security reasons.

4.2.2.2 Pole Mount Using Mount Plate

Use the included mounting straps to mount the AP to a pole less than 3.9”

in diameter. Thread the mounting straps through the mounting strap slots

to secure the mount plate in a horizontal or vertical orientation.

4.2.3 Mount the MR74

Insert the posts on the mount plate into the attachment slots on the access

point.

4.2.3.1 Attach Antennas

Remove protective plastic covers from all four N-type RF connectors.

Attach appropriate antennas (and protective boots if included).

4.2.3.2 Aim Antennas

If you are using directional antennas, aim them appropriately to ensure

optimal performance for yourspecific network topography.

Omnidirectional antennas perform best in a mesh network when oriented

vertically.

4.2.3.3 Powering the MR74 with the Meraki 802.3at Power over Ethernet

Injector (sold separately)

1. Plug the power cord into the PoE Injector and the other end into

wall power.

2. Plug an Ethernet cable that is connected to an active Ethernet

connection into the “IN” port on the injector.

3. Route Ethernet cable from the “OUT” port on the injector to the

Ethernet port in the bay of the MR74.

For more details, see Meraki 802.3at Power Over Ethernet Injector

datasheet.

4.2.3.4 Powering the MR74 with an 802.3at Power over Ethernet Switch

Route Ethernet cable from a port on an active 802.3at PoE switch to the

Ethernet port in the bay of the MR74.

The MR74 is Gigabit Ethernet-capable. To maximize device performance, a

Gigabit Ethernet-capable switch should be used.

4.2.3.5 Attach Power over Ethernet to the MR74

1. Remove the dust cover from the Ethernet port of the MR74.

Unscrew it with a coin or flathead screwdriver.

2. Route the Ethernet cable from the PoE Injector “OUT” port to the

MR74.

3. Install a cable gland on the MR74 end of the cable.

4. Plug the Ethernet cable into the Ethernet port of the Meraki MR74.

a. Connect the cable to the Ethernet port on the MR74.

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Cisco

Cisco

Cisco Meraki MR20 Manual de usuario

Cisco

Cisco WAP125 Manual de usuario

Cisco

Cisco Aironet 1240AG Series Manual

Cisco

Cisco Aironet 1700 Guía de referencia rápida

Cisco

Cisco WAP4410N - Small Business Wireless-N Access... Manual de usuario

Cisco

Cisco Aironet 1520 Series Manual de usuario

Cisco

Cisco AT&T U-VERSE VEN401 Manual de usuario

Cisco

Cisco Aironet 1850 Series Guía de referencia rápida

Cisco

Cisco Meraki MR55 Manual de usuario

Cisco

Cisco Aironet 1200 Series Manual

Cisco

Cisco Meraki Go GR12 Manual de usuario

Cisco

Cisco Small Business WAP551 Manual de usuario

Cisco

Cisco Aironet 1815i Manual de usuario

Cisco

Cisco 1522AG - Aironet Lightweight Outdoor Mesh Access... Manual de usuario

Cisco

Cisco AIR-AP1120B-A-K9 - Aironet 1100 Series Access... Manual

Cisco

Cisco Linksys WAP610N Manual de usuario

Cisco

Cisco Small Business WAP44 Manual de instrucciones

Cisco

Cisco ASA 5506W-X Manual de usuario

Cisco

Cisco Small Business WAP551 Manual de instrucciones

Cisco

Cisco IW3702 Manual de usuario

Cisco

Cisco AIR-LAP1310G Manual de usuario

Cisco

Cisco AIR-CAP1552H-x-K9 Manual de usuario

Cisco

Cisco Small Business AP541N Manual de usuario

Cisco

Cisco Aironet AIR-AP1252AG-A-K9 Manual

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario

Draytek

Draytek VIGORAP 902 Manual de usuario
