Cisco UCS 6100 Series Fabric Interconnect

Overview

The Cisco®UCS 6100 Series Fabric Interconnects are low-latency, lossless, 10-Gbps Ethernet interconnect

switches that consolidate I/O within the system. The UCS 6100 Series accommodates expansion modules that

provide Fibre Channel and 10 Gigabit Ethernet connectivity.

Figure 1. Cisco UCS 6120XP 20-Port Fabric Interconnect (1RU)

Contents: Overview Detailed Views Base Unit Features Configuring Services

Expansion Module Notes Accessory Kit Notes Console Cable Notes Physical Specs

Power Specs Environmental Specs Transceiver Specs

Figure 2. Cisco UCS 6140XP 40-Port Fabric Interconnect (2RU)

Contents: Overview Detailed Views Base Unit Features Configuring Services

Expansion Module Notes Accessory Kit Notes Console Cable Notes Physical Specs

Power Specs Environmental Specs Transceiver Specs

Detailed Views

Figure 3. Front View of the Cisco UCS 6120XP Fabric Interconnect

Front Panel Features

Two power supplies

Two fan modules

System status LED

Contents: Overview Detailed Views Base Unit Features Configuring Services

Expansion Module Notes Accessory Kit Notes Console Cable Notes Physical Specs

Power Specs Environmental Specs Transceiver Specs

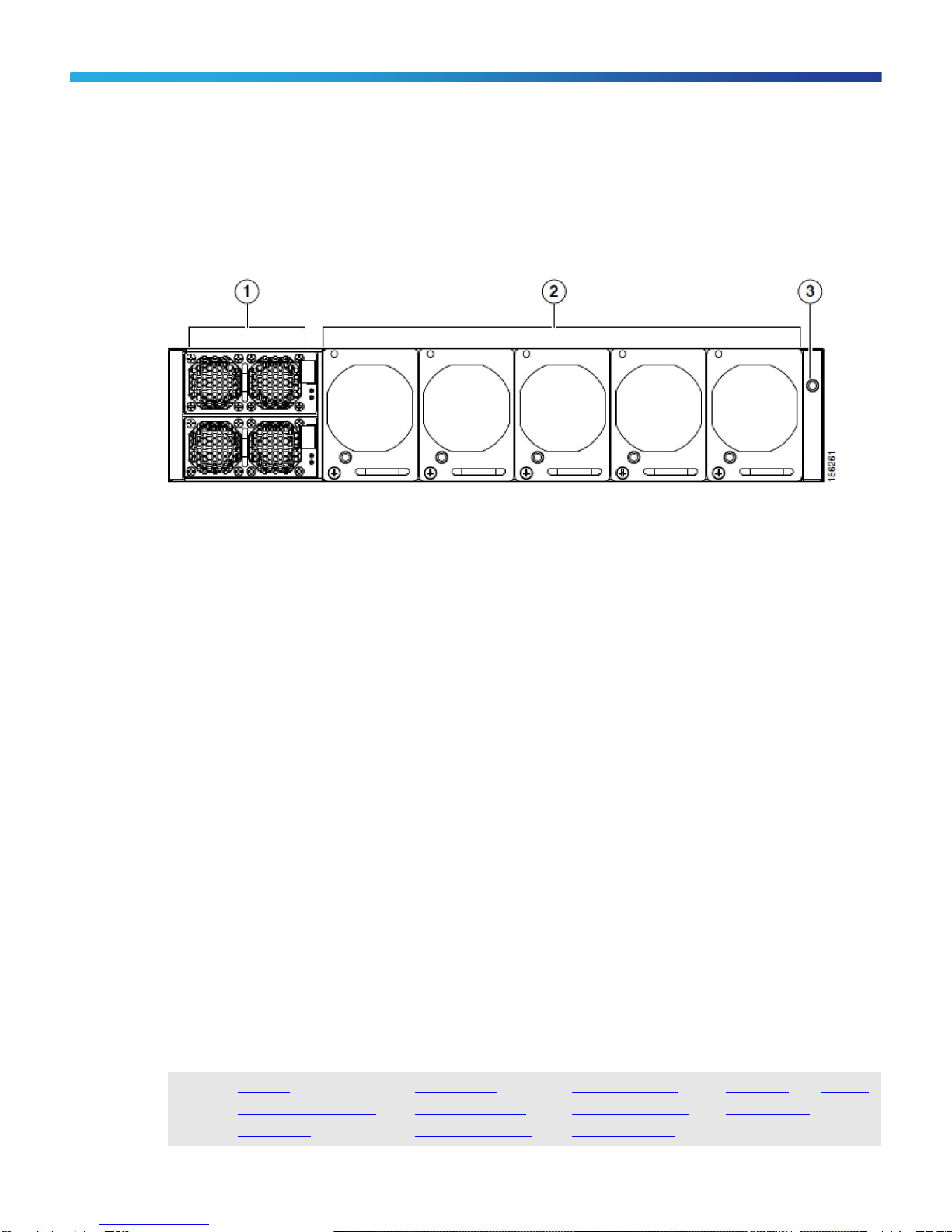

Figure 4. Front View of the Cisco 6140XP Fabric Interconnect

Contents: Overview Detailed Views Base Unit Features Configuring Services

Expansion Module Notes Accessory Kit Notes Console Cable Notes Physical Specs

Power Specs Environmental Specs Transceiver Specs

Figure 5. Rear View of the Cisco UCS 6120XP Fabric Interconnect

Rear Panel Features

System status LED

Ethernet connector with two cross-connect ports on the left (top

and bottom) and two network management ports on the right (top

and bottom)

Console connector port

20 fixed Small Form-Factor Pluggable (SFP+) 10 Gigabit Ethernet

ports (up to 8 can be 1 Gigabit Ethernet SFP)

Expansion module bay

2 x AC power connectors

Contents: Overview Detailed Views Base Unit Features Configuring Services

Expansion Module Notes Accessory Kit Notes Console Cable Notes Physical Specs

Power Specs Environmental Specs Transceiver Specs

Figure 6. Rear View of the Cisco UCS 6140XP Fabric Interconnect

Contents: Overview Detailed Views Base Unit Features Configuring Services

Expansion Module Notes Accessory Kit Notes Console Cable Notes Physical Specs

Power Specs Environmental Specs Transceiver Specs

Rear Panel Features

System status LED

Ethernet connector with two cross-connect ports on the left (top and bottom)

and two network management ports on the right (top and bottom)

Console connector port

40 fixed SFP+ 10 Gigabit Ethernet ports (up to 16 can be 1 Gigabit Ethernet

SFP)

2 x expansion module bays

2 x AC power connectors

Base Unit Features

Table 1. Feature Specifications for the Cisco UCS 6120XP and 6140XP Fabric Interconnects

Feature

Specification

Ports

6120XP Base system has 20 ports and with expansion modules has capacity for 28 ports.

6140XP Base system has 40 ports and with expansion modules has capacity for 56 ports.

Expansion module bay

6120XP has one expansion bay. 6140XP has two expansion bays.

Console port

Asynchronous RS-232 serial port with an RJ-45 connector

Throughput

UCS 6120 XP: 520 Gbs ; UCS 6140XP: 1040 Gbs

Transceiver

SFP+ Ethernet transceivers, SFP transceivers, and SFP Fibre Channel transceiver.

Power subsystem

Up to two 550W (6120XP) or 750W(6140XP) power supplies, hot swappable

(N+1 or no redundancy)

Fans

6120XP: Two fan modules. Each fan module contains six fans for a total of 12 fans per chassis.

6140XP: Five fan modules. Each fan module contains six fans for a total of 30 fans per chassis.

Contents: Overview Detailed Views Base Unit Features Configuring Services

Expansion Module Notes Accessory Kit Notes Console Cable Notes Physical Specs

Power Specs Environmental Specs Transceiver Specs

Configuring the Cisco UCS 6100 Series Fabric Interconnect

Select the Cisco UCS 6120XP Fabric Interconnect or the 6140XP Fabric Interconnect.

You must select either the 6120XP or 6140XP:

●UCS 6120XP Fabric Interconnect N10-S6100

●UCS 6140XP Fabric Interconnect N10-S6200

STEP 1: Select the Expansion Model Type.

Select one or two expansion modules from this list:

●4- Ports 10GbE SFP+, 4 Fibre Channel 1/2/4G SFP based uplink connections N10-E0440

●6-Ports 10GbE SFP+ based uplink connections N10-E0600

●8- Ports 4/2/1 G Fibre Channel, SFP-based uplink connections N10-E0080

●6- Ports 8/4/2/1 G Fibre Channel uplink connections N10-E0060

STEP 2: Select the Transceiver and Cable Type. (optional)

Select a transceiver and or cables from these lists.

SFP+ Transceivers

Bidirectional device with transmitter and receiver in same physical package:

●10 Gigabit Ethernet - short-range SFP+ module (MMF) SFP-10GB-SR

●10 Gigabit Ethernet - long-range SFP+ module (SMF) SFP-10GB-LR

●10 Gigabit Ethernet-FET SFP+ module (MMF) FET-10G

Contents: Overview Detailed Views Base Unit Features Configuring Services

Expansion Module Notes Accessory Kit Notes Console Cable Notes Physical Specs

Power Specs Environmental Specs Transceiver Specs

SFP Transceivers

Bidirectional transmitter and receiver within the same physical package:

●1 GbE copper SFP Module GLC-T

●1 GbE short-range (550m max) SFP Module GLC-SX-MM

●1 GbE long-range (10 km max) SFP Module GLC-LH-SM

●1 GbE SFP, extended temperature range module SFP-GE-T

●1 GbE SFP, LC connector SX transceiver (MMF), ext. temp. range and DOM SFP-GE-S

●1 GbE SFP, LC connector LX/LH transceiver (SMF), ext. temp. range and DOM SFP-GE-L

SFP+ Copper Cables

Copper cables are available for use with the 10 Gigabit Ethernet SFP+ modules:

●10 GbE Base-CU SFP+, 1 meter (Twinax cable) SFP-H10GB-CU1M

●10 GbE Base-CU SFP+, 3 meter (Twinax cable) SFP-H10GB-CU3M

●10 GbE Base-CU SFP+, 5 meter (Twinax cable) SFP-H10GB-CU5M

●10 GbE Base-CU SFP+, 7 meter (Twinax cable) SFP-H10GB-ACU7M

●10 GbE Base-CU SFP+, 10 meter (Twinax cable) SFP-H10GB-ACU10M

SFP Fibre Channel Transceivers

Support for multimode 850nm 4-Gbs SFPs with 150m reach:

●4-Gbs Fibre Channel-SW SFP, LC DS-SFP-FC4G-SW

●4-Gbs Fibre Channel-SW SFP, LC DS-SFP-FC4G-LW

●8-Gbs Fibre Channel-SW SFP+, LC DS-SFP-FC8G-SW

●8-Gbs Fibre Channel-SW SFP+, LC DS-SFP-FC8G-LW

Contents: Overview Detailed Views Base Unit Features Configuring Services

Expansion Module Notes Accessory Kit Notes Console Cable Notes Physical Specs

Power Specs Environmental Specs Transceiver Specs

STEP 3: Select a Software License Option.

There are eight pre-licensed ports (out of 20) included with the Cisco UCS 6120XP. Sixteen pre-licensed ports (out

of 40) are included with the UCS 6140XP. All additional ports require a license.

Module ports are pre-licensed and included with each module.

●UCS 6100 Series Fabric Interconnect, one 10GbE port license N10-L001

Note: A software license is required for each and every 10 GbE port on the Cisco UCS 6120XP and Cisco UCS

6140XP Fabric Interconnects.

STEP 4: Select a Software Image Option.

A software image is required. Please inquire for the latest version.

●Cisco UCS Manager v1.3 N10-MGT005

●Cisco UCS Manager v1.4 N10-MGT006

STEP 5: Select a Power Supply.

One power supply is required. A redundant power supply may be ordered.

●6120XP 550W Power supply unit 100-240 VAC N10-PAC1-550W

●6140XP 750W Power supply unit 100-240 VAC N10-PAC2-750W

Contents: Overview Detailed Views Base Unit Features Configuring Services

Expansion Module Notes Accessory Kit Notes Console Cable Notes Physical Specs

Power Specs Environmental Specs Transceiver Specs
