Cisco ISDN Link Manual de usuario

78-20749-02 | JANUARY 2013.

Cisco TelePresence ISDN Link

Installation guide

Package contents:

• ISDN Link

• Power Adapter

• LAN Cable

• Foot bumpers

• Installation Guide

Cisco TelePresence ISDN Link

Installation guide

Front panel

The LED indicators are located on the front panel of the unit.

Power The LED lights up and remains lit when the ISDN Link is powered up.

When the ISDN Link is not congured correctly this LED will be red. This will

typically happen when you power up the unit for the rst time.

The LED typically turns red when there is an error with the selected interface

(BRI/PRI/NET), or possibly other system errors that require attendance. Check

the ISDN Link status information for errors:

• When used in automatic pairing mode the ISDN Link status information is

available from the TelePresence system’s web interface.

• When used in manual pairing mode, see the user documentation for further

details.

BRI/PRI/NET The BRI/PRI/NET LED indicates the activated network interface type. The LED

blinks while there is call activity on the selected interface type.

LAN The LED ickers when there is activity on the LAN network.

Endpoint The LED ickers when there is activity between the ISDN Link and the

endpoint (codec / video system).

Power BRI PRI NET LAN Endpoint

Cisco TelePresence ISDN Link

Installation guide

Rear panel

The connectors are located on the rear panel.

Select one of the three options

• ISDN BRI S/T (RJ45) 512 kbps (4 × 128 kbps)

• ISDN PRI (RJ45) 1920 kbps (E1) / 1472 kbps (T1)

• NET (External Network, V.35/RS449/RS366/RS530) 1920 kbps

LAN (Ethernet 10/100/1000 Mbps, RJ45)

Connect to the IP network.

Endpoint (Ethernet 10/100/1000 Mbps, RJ45)

Connect to the endpoint (codec / video system).

COM/Serial port (RS-232)

Connect to a PC/laptop for conguration. Use: 115200 bps, 8 data bits, 1 stop bit, no parity.

Power

External power adapter with 12 V/1.25 A DC output supports 100/240 VAC and 50/60 Hz

inputs.

ISDN BRI ISDN PRI NET LAN Endpoint COM Power

1-4

Cisco TelePresence ISDN Link

Installation guide

Installation

Connect the cables as described in step 1 to 4.

1. Select one of the three options for the

ISDN line connection:

A. Connect the ISDN cable(s) between

the ISDN BRI port(s) and the ISDN

line(s),

B. or, connect the ISDN cable between

the ISDN PRI port and the ISDN line,

C. or, connect the V.35 cable between

the NET port and the external

network line.

2. For system conguration, connect a

Category 5e Ethernet cable between the

Ethernet port on the ISDN Link and the

LAN network.

3. Connect a Category 5e Ethernet cable

between the Endpoint port on the

ISDN Link and the Ethernet port on the

endpoint.

4. Connect the supplied power adapter

between the power connector and an

electrical outlet.

CAUTION: Always use the AC-DC adapter

shipped with the product.

1A 2 3 41B 1C

Cisco TelePresence ISDN Link

Installation guide

Automatic pairing mode

Pairing is a process in which the ISDN Link and endpoint communicate with each other in

order to establish a connection. The ISDN Link is shipped with pairing mode set to Auto,

which enables the ISDN Link to be discovered by an endpoint. When pairing is completed the

ISDN Link is dedicated to the endpoint it has been paired with. The automatic pairing mode

provides an improved user experience, but requires that the endpoint supports this feature.

Supported versions

Automatic pairing mode is supported in software version IL1.1, and later, for Cisco

TelePresence MX-, SX-, EX-, and C-Series running TC6.0, and later. If using software earlier

than TC6/IL1.1 see the About manual pairing mode section.

NOTE: The endpoint and ISDN Link must be on the same subnet. The Ethernet cable should

be directly connected between the Endpoint port, on the ISDN Link, and the Ethernet 1 port,

on the endpoint.

Start pairing

1. Open a web browser, enter the address of the endpoint, and login.

2. From the top menu, go to Conguration > Peripherals.

3. Click the Manage ISDN Link button. This will open the ISDN Link page.

4. Click the Search for devices button.

5. Choose your ISDN Link from the list and Click the Pair! button.

During the pairing process a message will display: Pairing with device: <MAC address>.

The ISDN Link is identied by the MAC Address, which is found on a label

underneath the unit.

6. When sucessfully paired the following text will appear on the ISDN Link page:

This TelePresence device is paired with an ISDN Link.

Checking the status of the ISDN Link

Navigate to Conguration > Peripherals > Manage ISDN Link > ISDN Link Conguration.

After having congured the

ISDN Link, check this area to

see the status of the pairing.

Cisco TelePresence ISDN Link

Installation guide

Conguring the ISDN Link

Navigate to Conguration > Peripherals > Manage ISDN Link > ISDN Link Conguration.

Click ISDN Link

Conguration

to open the

conguration

menu.

Cisco TelePresence ISDN Link

Installation guide

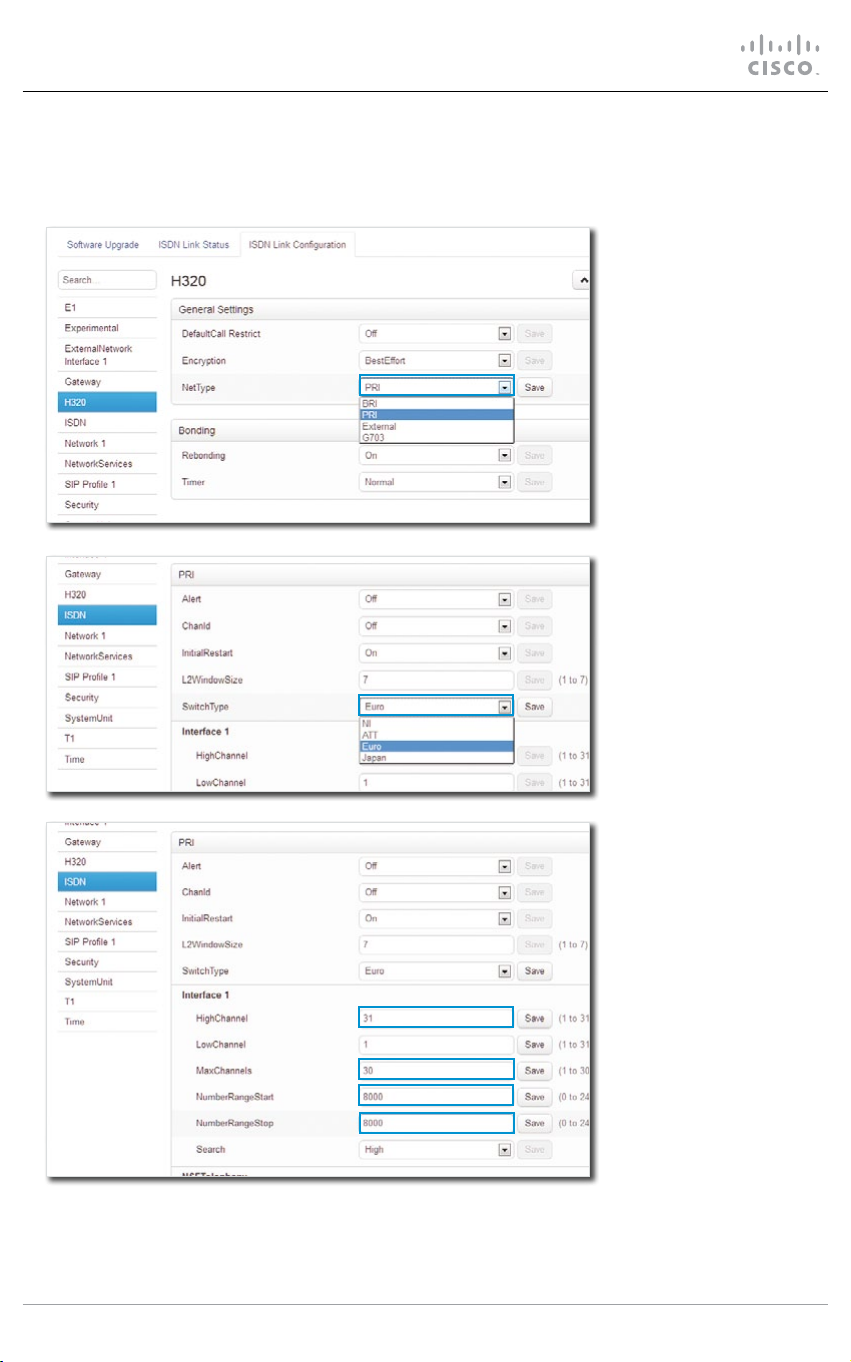

Conguration example with PRI E1 mode

First choose from the list of menus to the left, then congure the parameters.

Navigate to H320 > General

Settings > NetType.

In this example the H320 Net

Type is:

• PRI

Click the Save button.

Navigate to ISDN > PRI >

SwitchType.

In this example the ISDN PRI

Switch Type is:

• Euro

Click the Save button.

Navigate to ISDN > PRI >

Interface 1.

Enter the number of high and

maximum channels for the

PRI Euro switch:

• HighChannel: 31

• MaxChannels: 30

Enter your ISDN PRI number:

• NumberRangeStart: xxx

• NumberRangeStop: xxx

Click the Save buttons.

Go to Conguration > Peripherals and check the ISDN status information to conrm there are no

errors before proceeding. If any errors, or if the power LED is red, please check your conguration.

Cisco TelePresence ISDN Link

Installation guide

A few more conguration examples for the ISDN Link

You can skip this page if you already have congured the ISDN Link.

On this page you can see a few more conguration examples for the ISDN Link. The ISDN

Link is congured from the TelePresence system’s web interface. Navigate to Conguration

> Peripherals > Manage ISDN Link > ISDN Link Conguration. See the previous pages for

guideance on how to access the menus.

The examples on this page are from the web interface of the TelePresence endpoint.

Example with PRI T1 mode

H320 > General Settings > NetType: PRI (Set the net type)

ISDN > PRI > SwitchType: NI (Set the PRI switch type)

ISDN > PRI Interface 1 > MaxChannels: 23 (Set the number of PRI channels)

ISDN > PRI Interface 1 > HighChannel: 23 (Set the number of the high PRI channel)

ISDN > PRI Interface 1 > NumberRangeStart: xxx (Enter your PRI number)

ISDN > PRI Interface 1 > NumberRangeStop: xxx (Enter your PRI number)

Example with BRI Euro type

H320 > General Settings > NetType: BRI (Set the net type)

ISDN > BRI > SwitchType: Euro (Set the BRI switch type)

ISDN > BRI Interface [1 to 4] > Mode: On (Enable the BRI interfaces in use)

ISDN > BRI Interface [1 to 4] > DirectoryNumber Number [1 and 2]: xxx (Enter the BRI numbers

according to assigned numbers for each interface in use.)

Example with External Network

H320 > General Settings > NetType: External (Set the net type)

ExternalNetwork > Interface 1 > CallControl: RS366 (Set call control protocol)

ExternalNetwork > Interface 1 > Clocking: Dual (Set clocking mode)

ExternalNetwork > Interface 1 > DtrPulse: On (If using RS530, set DTRPulse to On; else set to O).

See the ISDN Link Administrator Guide for further details. Go to: http://www.cisco.com/go/

isdnlink-docs and navigate to the Maintain and Operate > Maintain and Operate Guides section.

Cisco TelePresence ISDN Link

Installation guide

Conguring the endpoint for ISDN (H320)

When paired to ISDN Link, the default call setttings for the TelePresence endpoint can be

congured for ISDN (H320), or you can set the call protocol and call rate each time you make

a call.

Conguring the default call settings to ISDN (H320)

1. Open a web browser and log in to the TelePresence endpoint.

2. Navigate to Conguration > System conguration > Conference 1 > DefaultCall and set

the Protocol to H320, and click the Save button.

Conguring the call settings to ISDN (H320) by each call

• If using a Touch device, see the section: Making a call using the Touch controller.

• If using a remote control, see the section: Making a call using the remote control.

Cisco TelePresence ISDN Link

Installation guide

Making a call using the Touch controller

Touch the panel gently to wake

up the system.

1. Tap DialPad or Contacts and

enter the ISDN number you

want to call.

If your the default call

protocol is set to ISDN

(H320), proceed to Step 6,

else proceed to Step 2.

Navigate to Call settings:

2. Tap the right arrow button to

open the call dialog.

3. Tap Call settings button to

open the ISDN call settings.

4. In the Call settings menu,

move the call protocol slider

and choose ISDN.

5. In the Call settings menu,

move the bandwidth slider to

set the appropriate call rate.

If dialing a telephone number,

use the slider to choose

Audio Only.

6. Tap the green Call button to

make the call.

Connecting the call may take

up to 30 seconds.
