Cisco MSE 3365 Installation Guide

Overview

This guide provides step-by-step instructions on how to physically install and power up the Cisco 3365

Mobility Services Engine (MSE). Details on running the automatic installation script is also provided.

This chapter contains the following sections:

•External Features Overview, page 1-1

•Status LEDs and Buttons, page 1-3

•General Warnings, Regulatory and Safety, page 1-8

External Features Overview

The Cisco MSE 3365 comes with four Small form factor (SFF) drives. See Figure 1-1.

1-2

Cisco MSE 3365 Installation Guide

Chapter 1 Overview

External Features Overview

Figure 1-1 shows the front panel of the Cisco MSE 3365.

Figure 1-1 Cisco MSE 3365 Front Panel

1Drive bays 1–8 support SAS/SATA

drives) 7System status LED

2Drive bays 1 and 2 support

SAS/SATA and NVMe PCIe solid

state drives (SSDs)

8Fan status LED

3Pull-out asset tag 9Temperature status LED

4Operations panel buttons and LEDs 10 Power supply status LED

5Power button/power status LED 11 Network link activity LED

6Unit identification button/LED 12 KVM connector (used with KVM cable that provides

two USB 2.0, one VGA, and one serial connector)

1197

5 6 8 10

352973

HDD 02

HDD 01 HDD 03

HDD 04 HDD 05 HDD 06 HDD 08

HDD 07

1-3

Cisco MSE 3365 Installation Guide

Chapter 1 Overview Status LEDs and Buttons

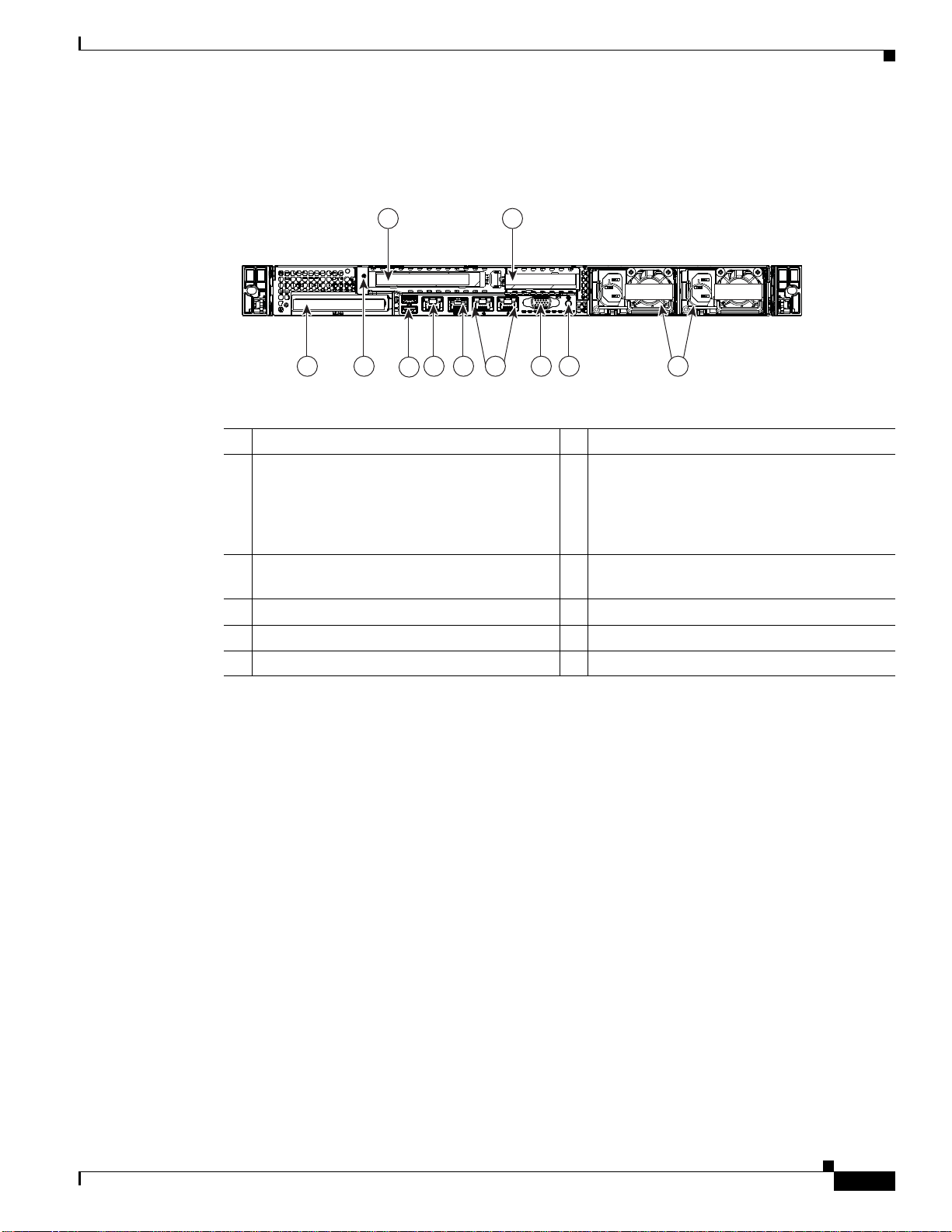

Figure 1-2 shows the rear panel of the Cisco MSE 3365.

Figure 1-2 Cisco MSE 3365 Rear Panel

Status LEDs and Buttons

This section describes the location and meaning of LEDs and buttons and includes the following topics

•Front Panel LEDs, page 1-3

•Rear Panel LEDs and Buttons, page 1-6

Front Panel LEDs

Figure 1-3 shows the front panel LEDs. Table 1-1 defines the LED states.

1PCIe riser 1/slot 1 (not used) 7Serial port (RJ-45 connector)

2PCIe riser 2/slot 2 (not used) 8Dual 1-Gb Ethernet ports (LAN1 and LAN2).

Port 1 is normally used by the Cisco MSE

(eth0) for communication with the Cisco

Wireless LAN Controllers and Cisco Prime

Infrastructure.

3Modular LAN-on-motherboard (mLOM) card

slot (not used) 9VGA video port (DB-15)

4Grounding-lug hole (for DC power supplies) 10 Rear unit identification button/LED

5USB 3.0 ports (two) 11 Power supplies (two, redundant as 1+1)

61-Gb Ethernet dedicated management port

352977

mLOM

PCIe 01 PCIe 02

PSU 01 PSU 02

1 2

3 6 7 9 108 11

1-4

Cisco MSE 3365 Installation Guide

Chapter 1 Overview

Status LEDs and Buttons

Figure 1-3 Front Panel LEDs

1Hard drive fault LED 6Fan status LED

2Hard drive activity LED 7Temperature status LED

3Power button/power status LED 8Power supply status LED

4Identification button/LED 9Network link activity LED

5System status LED

Table 1-1 Front Panel LEDs, Definitions of States

LED Name State

1Hard drive fault •Off—The hard drive is operating properly.

•Amber—Drive fault detected.

•Amber, blinking—The device is rebuilding.

•Amber, blinking with one-second interval—Drive locate function activated.

2Hard drive activity •Off—There is no hard drive in the hard drive tray (no access, no fault).

•Green—The hard drive is ready.

•Green, blinking—The hard drive is reading or writing data.

3Power button/LED •Off—There is no AC power to the Cisco MSE 3365.

•Amber—Cisco MSE 3365 is in standby power mode. Power is supplied only to the

Cisco IMC and some motherboard functions.

•Green—Cisco MSE 3365 is in main power mode. Power is supplied to all the MSE

3365 components.

4Unit identification •Off—The unit identification function is not in use.

•Blue—The unit identification function is activated.

353088

975

3 4 6 8

BAY 02

BAY 01 BAY 03

BAY 04 BAY 05 BAY 06 BAY 08

BAY 07

1-5

Cisco MSE 3365 Installation Guide

Chapter 1 Overview Status LEDs and Buttons

5System status •Green—Cisco MSE 3365 is running in normal operating condition.

•Green, blinking—Cisco MSE 3365 is performing system initialization and memory

check.

•Amber, steady—Cisco MSE 3365 is in a degraded operational state. For example:

–

Power supply redundancy is lost.

–

CPUs are mismatched.

–

At least one CPU is faulty.

–

At least one DIMM is faulty.

–

At least one drive in a RAID configuration failed.

•Amber, blinking—Cisco MSE 3365 is in a critical fault state. For example:

–

Boot failed.

–

Fatal CPU and/or bus error is detected.

–

Cisco MSE 3365 is in an over-temperature condition.

6Fan status •Green—All fan modules are operating properly.

•Amber, steady—One or more fan modules breached the critical threshold.

•Amber, blinking—One or more fan modules breached the non-recoverable

threshold.

7Temperature status •Green—Cisco MSE 3365 is operating at normal temperature.

•Amber, steady—One or more temperature sensors breached the critical threshold.

•Amber, blinking—One or more temperature sensors breached the non-recoverable

threshold.

8Power supply status •Green—All power supplies are operating normally.

•Amber, steady—One or more power supplies are in a degraded operational state.

•Amber, blinking—One or more power supplies are in a critical fault state.

9Network link activity •Off—The Ethernet link is idle.

•Green—One or more Ethernet LOM ports are link-active, but there is no activity.

•Green, blinking—One or more Ethernet LOM ports are link-active, with activity.

Table 1-1 Front Panel LEDs, Definitions of States (continued)

LED Name State

1-6

Cisco MSE 3365 Installation Guide

Chapter 1 Overview

Status LEDs and Buttons

Rear Panel LEDs and Buttons

Figure 1-4 shows the rear panel LEDs and buttons. Table 1-2 defines the LED states.

Figure 1-4 Rear Panel LEDs and Buttons

1Optional mLOM card LEDs.

Note This LED is not applicable for Cisco

MSE 3365.

51-Gb Ethernet link status LED

21-Gb Ethernet dedicated management link

status LED 6Rear unit identification button/LED

31-Gb Ethernet dedicated management link

speed LED 7Power supply status LED

41-Gb Ethernet link speed LED

Table 1-2 Rear Panel LEDs, Definitions of States

LED Name State

21-Gb Ethernet dedicated

management link speed •Off—Link speed is 10 Mbps.

•Amber—Link speed is 100 Mbps.

•Green—Link speed is 1 Gbps.

31-Gb Ethernet dedicated

management link status •Off—No link is present.

•Green—Link is active.

•Green, blinking—Traffic is present on the active link.

41-Gb Ethernet link speed •Off—Link speed is 10 Mbps.

•Amber—Link speed is 100 Mbps.

•Green—Link speed is 1 Gbps.

51-Gb Ethernet link status •Off—No link is present.

•Green—Link is active.

•Green, blinking—Traffic is present on the active link.

353089

mLOM

PCIe 01 PCIe 02

PSU 01 PSU 02

1 32 5 6 74

1-7

Cisco MSE 3365 Installation Guide

Chapter 1 Overview Status LEDs and Buttons

6Rear unit identification •Off—The unit identification LED is not in use.

•Blue—The unit identification LED is activated.

7Power supply status AC power supplies:

•Off—No AC input (12 V main power off, 12 V standby power off).

•Green, blinking—12 V main power off; 12 V standby power on.

•Green, solid—12 V main power on; 12 V standby power on.

•Amber, blinking—Warning detected but 12 V main power on.

•Amber, solid—Critical error detected; 12 V main power off.

Table 1-2 Rear Panel LEDs, Definitions of States (continued)

LED Name State

1-8

Cisco MSE 3365 Installation Guide

Chapter 1 Overview

General Warnings, Regulatory and Safety

Conventions

Safety warnings appear throughout this guide in procedures that may harm you if performed incorrectly.

A warning symbol precedes each warning statement. Specific warnings are included in the sections to

which they apply.

Warning

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you

work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar

with standard practices for preventing accidents. Use the statement number provided at the end of

eachwarningtolocateitstranslationinthetranslatedsafetywarningsthataccompaniedthisdevice.

Statement 1071 SAVE THESE INSTRUCTIONS

Caution Means reader be careful. In this situation, you might do something that could result in equipment damage

or loss of data.

Warnings

The warnings below are general warnings that are applicable to the entire guide. Specific warnings are

included in the sections to which they apply.

Warning

There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with

the same or equivalent type recommended by the manufacturer. Dispose of used batteries according

to the manufacturer’s instructions. Statement 1015

Warning

This equipment must be grounded. Neverdefeat the ground conductor oroperate the equipment in the

absence of a suitably installed ground conductor. Contact the appropriate electrical inspection

authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024

Warning

Read the installation instructions before connecting the system to the power source. Statement 1004

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

1-9

Cisco MSE 3365 Installation Guide

Chapter 1 Overview General Warnings, Regulatory and Safety

Regulatory and Safety

Note Refer to Appendix A for translated safety information for the Cisco 3365 Mobility Services Engine.

Note Refer to Appendix B for regulatory information for the Cisco 3365 Mobility Services Engine.

1-10

Cisco MSE 3365 Installation Guide

Chapter 1 Overview

General Warnings, Regulatory and Safety
