CHAPTER

4-1

Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide

OL-22567-02

Maintenance and Upgrade Procedures

This chapter describes maintenance and upgrade procedures, and includes the following sections:

•Removing and Installing SSPs, page 4-1

•Removing and Installing SSP Hard Disk Drives, page 4-4

•Installing and Removing Cisco ASA 5585-X Network I/O Modules, page 4-5

•Removing and Installing the Power Supply Module, page 4-11

•Removing and Installing the Fan Module, page 4-27

•Installing a Slide Rail Kit, page 4-29

•Installing and Removing a Slide-mounted Chassis, page 4-30

•Mounting the Chassis Using a Fixed Rack Mount, page 4-39

•Installing the Cable Management Brackets, page 4-41

•Troubleshooting Loose Connections, page 4-43

Removing and Installing SSPs

The ASA 5585-X comes with a core Security Services Processor (SSP) already installed (SSP-10,

SSP-20, SSP-40, or SSP-60). You can install an additional SSP (core SSP, IPS SSP, ASA CX SSP, or

FirePOWER SSP) in slot 1.

For a matrix describing which module configurations are allowed, see the ASA Module Compatibility

table.

Note Feature limitations may apply to dual SSPs. Refer to your configuration guide for more information.

The add-on SSP will not run without the core SSP installed. The add-on SSP must be installed in the

upper slot (slot 1), with the core SSP in the bottom slot (slot 0). You must power off the ASA 5585-X to

remove and install SSPs; the SSPs are not hot-swappable.

4-2

Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide

OL-22567-02

Chapter 4 Maintenance and Upgrade Procedures

Removing and Installing SSPs

To install and remove an add-on SSP in the ASA 5585-X, follow these steps:

Step 1 If you are replacing an existing SSP, shut it down first by entering the following CLI command;

otherwise continue with Step 3:

asa# hw-module module 1 shutdown

Shutdown module in slot 1? [confirm]

Note The core SSP resides in slot 0 (the bottom slot) while any additional SSP resides in slot 1 (the

top slot).

Step 2 Press Enter to confirm.

Step 3 Save the running config before powering off the ASA 5585-X or the configuration will be lost. Enter the

following CLI command:

asa# write memory

If you are using a management application such as ASDM or CSM to manage this ASA 5585-X, you

also can use that application to save the configuration.

Step 4 Power off the ASA 5585-X.

Step 5 Remove the power cable from the ASA 5585-X.

Step 6 If you are installing an add-on SSP for the fist time, loosen the captive screws on the upper left and right

of the slot tray (slot 1), and remove it. Store it in a safe place for future use. If you are replacing an

existing SSP, continue with Step 10.

Caution You must install slot trays in all empty slots to maintain the proper air flow. This also prevents EMI,

which can disrupt other equipment.

Step 7 On the front panel of the ASA 5585-X, loosen the captive screws from either the top slot (for the add-on

SSP), or bottom slot (for the core SSP).

1Slot tray

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 1

01234567 MGMT

AUX CO NS OLE

254861

4-3

Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide

OL-22567-02

Chapter 4 Maintenance and Upgrade Procedures

Removing and Installing SSPs

Step 8 Grasp the ejection levers at the left and right bottom of the module slot and pull them out.

Step 9 Grasp the sides of the module and pull it all the way out of the chassis.

Step 10 Install the new module by lining it up with the slot. first ensuring the ejection levers are extended.

Step 11 Slide the module into the slot until it is seated and then push the ejection levers into place.

Step 12 Insert and tighten the captive screws.

Step 13 Reconnect the power cable to the ASA 5585-X.

Step 14 Power on the ASA 5585-X.

Step 15 Press Enter to confirm.

Step 16 Verify that the PWR indicator on the front panel is green.

1Module 2Ejection levers

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 1

01234567 MGMT

AUX CONSOLE

253902

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 101234567 MGMT

AUX CONSOLE

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 1

01234567 MGMT

AUX CO NS OLE

253903

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 101234567 MGMT

AUX CONSOLE

4-4

Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide

OL-22567-02

Chapter 4 Maintenance and Upgrade Procedures

Removing and Installing SSP Hard Disk Drives

The CX or FirePOWER SSP resides in slot 1 (the top slot) of the Cisco ASA 5585-X. The SSP includes

two hard disk drives in a RAID 1 configuration. If one of the hard disk drives fails, you can remove and

install a replacement.

Note Make sure that you replace the SSP hard disk drives with Cisco-approved hard disk drives.

Each hard disk drive is hot-swappable. The hard disk drive resides in a carrier, which you install into the

SSP’s hard disk drive bay. You can use the hard disk drive with an AC or DC power supply. Each hard

disk drive is shipped in a carrier, as shown in Figure 4-1.

Figure 4-1 SSP Hard Disk Drive in Carrier

Caution Make sure that you replace the failed hard disk drive as soon as possible; otherwise, if the remaining

hard disk drive fails, all data is lost.

To remove and install a hard disk drive in the SSP, follow these steps:

Step 1 From the front panel of the SSP, remove the hard disk drive by pressing the button on the right side of

the bay until the locking lever is released. Pull out the hard disk drive.

Step 2 On the front panel of the SSP, line up the hard disk drive carrier with the hard disk drive bay and push it

in until it is seated. Push the locking lever into place.

332634

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 1

01234567 MGMT

AUX CO NS OLE

332632

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 101234567 MGMT

AUX CONSOLE

4-5

Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide

OL-22567-02

Chapter 4 Maintenance and Upgrade Procedures

Installing and Removing Cisco ASA 5585-X Network I/O Modules

Step 3 On the front panel of the SSP, ensure the HDD1 (left hard disk drive) and HDD0 (right hard disk drive)

indicators are flashing green to indicate that the drives are active.

Installing and Removing Cisco ASA 5585-X Network I/O

Modules

The ASA 5585-X comes with a core Security Services Processor (SSP-10, SSP-20, SSP-40, or SSP-60)

already installed in slot 0. You can install one or two of the following optional network I/O modules in

slot 1, which you divide into two slots using the accompanying slot divider:

•Cisco ASA 5585-X 4-port 10-G Network I/O Module

•Cisco ASA 5585-X 8-port 10-G Network I/O Module

•Cisco ASA 5585-X 20-port 1-G Network I/O Module

The network I/O module is not hot-swappable, so you must power off the ASA 5585-X before installing

or removing the module. You must have a Phillips head screwdriver to install the slot divider that divides

slot 1 into two bays.

The ports are numbered right to left, with port 0 being the far right port and the far left port is either port

3, 7, or 19 depending on whether you have a 4-, 8-, or 20-port module. The 20-port numbers go from top

to bottom, and right to left. For slot 1 (top right slot), the interface is named TenGigabitEthernet 1/0

through TenGigabitEthernet 1/3. For slot 2 (top left slot) the interface is named TenGigabitEthernet 2/0

through TenGigabitEthernet 2/7.

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 101234567 MGMT

AUX CONSOLE

332633

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 101234567 MGMT

AUX CONSOLE

4-6

Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide

OL-22567-02

Chapter 4 Maintenance and Upgrade Procedures

Installing and Removing Cisco ASA 5585-X Network I/O Modules

Figure 4-2 shows the port numbering for the 4-port network I/O module.

Figure 4-2 4-Port Network I/O Module Port Numbering

Figure 4-3 shows the port numbering for the 8-port network I/O module.

Figure 4-3 8-Port Network I/O Module Port Numbering

1TenGigabitEthernet 00 through 03

310

Cisco ASA 4-Port 10GE Network Module

STATUS

EJECT

PWR

332446

1TenGigabitEthernet 00 through 07

310

754

STATUS

EJECT

PWR

Cisco ASA 8-Port 10GE Network Module

332447

4-7

Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide

OL-22567-02

Chapter 4 Maintenance and Upgrade Procedures

Installing and Removing Cisco ASA 5585-X Network I/O Modules

Figure 4-4 shows the port numbering for the 20-port network I/O module. For slot 0, the interface is

named GigabitEthernet 0/0 through GigabitEthernet 0/19.

Figure 4-4 20-Port Network I/O Module Port Numbering

Caution Be sure the ASA software version installed on your ASA 5585-X supports the network I/O modules and

the accompanying SFP/SFP+ transceivers. Refer to Cisco ASA Compatibility for more information.

Table 4-1 lists the SFP/SFP+ transceiver modules supported by the ASA 5585-X.

1GigabitEthernet 00 through 07 2GigabitEthernet 08 through 19

19 6

Cisco ASA 5585-X 20-Port GE Module

PWR STATUS

EJECT

332446

Table 4-1 SFP/SFP+ Transceiver Modules

1G SFP Module

GLC-SX-MM 1000 Base-SX SFP module

GLC-SX-MMD 1000BASE-SX short wavelength, with DOM

GLC-LH-SM 1000 Base-LX/LH SFP module

GLC-LH-SMD 1000BASE-LX/LH long-wavelength, with DOM

GLC-EX-SMD 1000 Base-EX SFP module, SMF, 1310nm, DOM

GLC-T 1000BASE-T standard

10G SFP+ Module

SFP-10G-ER 10G ER SFP+ module

SFP-10G-SR 10G SR SFP+ module

SFP-10G-LRM 10G LRM SFP+ module

SFP-10G-LR 10G LR SFP+ module

SFP-H10GB-ACU7M 10GBASE-CU SFP+ Cable 7 Meter, active

SFP-H10GB-ACU10M 10GBASE-CU SFP+ Cable 10 Meter, active

4-8

Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide

OL-22567-02

Chapter 4 Maintenance and Upgrade Procedures

Installing and Removing Cisco ASA 5585-X Network I/O Modules

Note These SFP+ modules require ASA 8.2.5 or later: SFP-10G-LRM, SFP-10G-LR, SFP-H10GB-CU1M,

SFP-H10GB-CU3M, and SFP-H10GB-CU5M.

Note Only SFP/SFP+ transceiver modules certified by Cisco are supported on the ASA 5585-X.

Caution Protect your SFP/SFP+ transceivers by inserting clean dust plugs into the SFP/SFP+ modules after

extracting cables from them. Be sure to clean the surfaces of the fiber-optic cables before you plug

them back into the optical bores of another SFP/SFP+ module. Avoid getting dust and other

contaminants into the optical bores of your SFP/SFP+ modules. The cables do not operate correctly

when obstructed with dust.

Warning

Because invisible laser radiation may be emitted from the aperture of the port when no cable is

connected, avoid exposure to laser radiation and do not stare into open apertures.

Statement 70

To install a 4-, 8-, or 20-port network I/O module and related SFP/SFP+ transceivers into the

ASA 5585-X:

Step 1 Power off the security appliance.

Caution Network I/O modules are not hot-swappable.

Step 2 Locate a grounding strap, and fasten it to your wrist so that it contacts bare skin. Attach the other end to

the chassis.

Step 3 Loosen the captive screws on the upper left and right of the top slot tray (slot 1), and remove it

(Figure 4-5). Store it in a safe place for future use.

Caution You must install slot covers on all empty slots to maintain the proper air flow. This also prevents EMI,

which can disrupt other equipment.

SFP-H10GB-CU1M 10GBASE-CU SFP+ cable 1 meter, passive

SFP-H10GB-CU3M 10GBASE-CU SFP+ cable 3 meter, passive

SFP-H10GB-CU5M 10GBASE-CU SFP+ cable 5 meter, passive

Table 4-1 SFP/SFP+ Transceiver Modules (continued)

1G SFP Module

4-9

Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide

OL-22567-02

Chapter 4 Maintenance and Upgrade Procedures

Installing and Removing Cisco ASA 5585-X Network I/O Modules

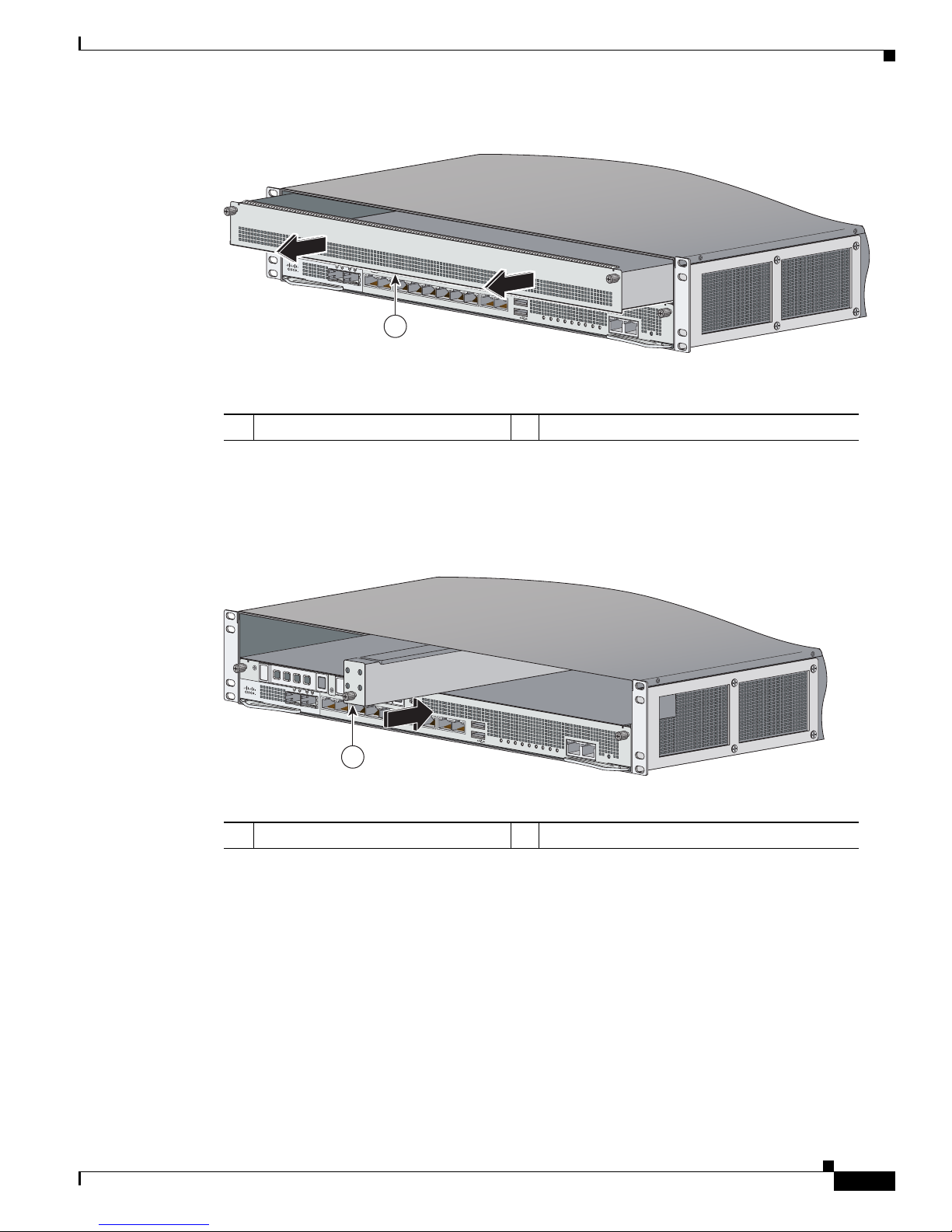

Figure 4-5 Removing the Empty Slot Tray

Step 4 Install the slot divider in the middle of slot 1 by lining up the groove on the top of the slot divider with

the inside track on the top of the security appliance and sliding it in until it is seated. Tighten the captive

screw with a Phillips head screwdriver (Figure 4-6).

Figure 4-6 Installing the Slot Divider

Step 5 Install a network I/O module by lining it up with either the left or the right bay of slot 1, making sure

the ejection levers are extended (Figure 4-7 and Figure 4-8 on page 4-10).

1Empty slot tray

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 1

01234567 MGMT

AUX CONSOLE

254861

1Slot divider with captive screw

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 1

01234567 MGMT

AUX CO NS OLE

331652

4-10

Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide

OL-22567-02

Chapter 4 Maintenance and Upgrade Procedures

Installing and Removing Cisco ASA 5585-X Network I/O Modules

Figure 4-7 Installing a 4- or 8-Port 10-G Network I/O Module

Figure 4-8 Installing a 20-Port 1-G Network I/O Module

Step 6 Slide the network module into the slot until it is seated and push the ejection levers back into place.

Step 7 With your fingers, tighten the captive thumb screws.

Step 8 If you are installing only one network I/O module, install a slot cover on the empty slot bay to protect it.

Caution You must install slot covers on all empty slots to maintain the proper air flow. This also prevents EMI,

which can disrupt other equipment.

Step 9 Install a SFP/SFP+ transceiver by aligning it with the I/O module port and sliding it into the port slot

until it locks into position (Figure 4-9).

Caution Do not remove the optical port plugs from the SFP/SFP+ until you are ready to connect the cabling.

14- or 8-port 10-G network module 2Ejection levers

3Slot 2 left bay 4Slot 1 right bay

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 10123

567 MGMT

AUX CONSOLE

331651

120-port 1-G network I/O module 2Ejection levers

3Slot 2 left bay 4Slot 1 right bay

PWR

BOOT

ALARM

ACT

VPN

PS1

HDD1

PS0

HDD0

USB

RESET

SFP1 SFP0 101234567 MGMT

AUX CONSOLE

331867

Tabla de contenidos

Otros manuales de Enrutador de red de Cisco

Cisco

Cisco RV260P-K9-G5 Manual de usuario

Cisco

Cisco 1401 Manual de usuario

Cisco

Cisco ASR-920-20SZ-M Manual

Cisco

Cisco 7609-S Manual de usuario

Cisco

Cisco ISR G2 Series Manual de usuario

Cisco

Cisco 6000 series Manual de usuario

Cisco

Cisco ASR1000-RP1 - ASR 1000 Series Route Processor 1... Manual de usuario

Cisco

Cisco 3200 Series Manual de instalación y operación

Cisco

Cisco WET54G Manual de usuario

Cisco

Cisco 851-K9 - 851 Integrated Services Router Manual de usuario

Cisco

Cisco 7600 Series Manual de usuario

Cisco

Cisco 836 Manual

Cisco

Cisco Catalyst 3560-CX Instrucciones de funcionamiento y seguridad

Cisco

Cisco Linksys WRK54G Manual de usuario

Cisco

Cisco ASR 902U Manual

Cisco

Cisco ASR1004 - ASR 1004 Modular Expansion Base Manual de usuario

Cisco

Cisco 1711 - Security Access Router Manual de usuario

Cisco

Cisco IE 4000 Manual

Cisco

Cisco ASR 1000 Series Manual de usuario

Cisco

Cisco cBR 8 Manual de usuario

Cisco

Cisco ASR 1000 Series Manual de usuario

Cisco

Cisco uBR900 Series Manual de usuario

Cisco

Cisco 7246VXR - uBR Router Manual de usuario

Cisco

Cisco 4500-M Manual de instalación

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

EnGenius

EnGenius ESR-9710 Manual de usuario

LevelOne

LevelOne FBR-1416 Manual de usuario

Dynacord

Dynacord Promatrix 6000 Manual de usuario

Lorex

Lorex F5D8230-4 Manual de usuario
