Cisco 1603R Manual de usuario

Quick Start Guide

INSTALLING YOUR

CISCO 1600 SERIES ROUTER

UNPACK THE BOX

INSTALL THE ROUTER

VERIFY YOUR INSTALLATION

Cisco 1600

Hub

Internet

Ethernet

network

WAN

connection Backup

WAN connection

(optional)

Server

Note: For Items That You Provide—You need only the items required to install your specific Cisco 1600 model.

Cables ordered from Cisco are colored as shown below.

Unpack the Box.

Note: The Cisco 1600 series routers are either of run-from-flash (RFF) or run-from-RAM (RFR) models. In

this document, model names without an R refer to both models. The “Router Memory” section in the hardware

installation guide that came with your router describes the differences between RFF and RFR models.

Cisco 1600 Router

Accessory Kit Items

Power supply

Power cord (black)

Software

Configuration

Product documentation

Items That You Provide

10BaseT Ethernet cable

RJ-48S-to-RJ-48S (Cisco 1602)

(blue, if ordered from Cisco)

RJ-45-to-RJ-45

(red if ordered from Cisco for Cisco 1603)

(orange if ordered from Cisco for Cisco 1604)

Ethernet AUI cable

Hardware

Installation

Documentation

Ethernet AUI transceiver or Ethernet 10BaseT hub

WAN interface card

(optional, might already be installed)

Phillips screwdriver

(if installing a WAN interface card)

Serial cable (Cisco 1601)

(blue if ordered from Cisco)

DB-25-to-DB-9 console

adapter (light gray)

Console cable

(light blue, RJ-45-to-DB-9)

There are four steps to installing your router:

Install the Router.

Warning Hazardous network voltages are present in WAN interface card ports regardless of whether

power to the router is OFF or ON. To avoid electric shock, use caution when working near WAN ports.

When detaching cables, detach the end away from the router first.

A. Connect the router to your Ethernet network.

B. Install a WAN interface card in the router (optional). If the card is not already installed, and you want to

use a card with the router, you must install it.

C. Connect the router to the WAN line. This is the telephone line (Frame Relay, serial, 56-kbps, or ISDN) that

is supplied by the telephone company.

D. Connect the router to the power supply. After you connect the power, you can confirm proper installation

by checking that certain LEDs are on.

Note: If you’re not sure what Cisco 1600 router model you are using, look on the rear panel.

DONOTINSTALLANYWAN

MODULEWITHPOWERON

Cisco 1601

A. Connect the router to the local network.

Install the Router (continued).

Connect the router to your local Ethernet network in

one of three ways:

Option 1: Connect the ETHERNET Ø 10BASET

port to an Ethernet hub or switch.

Option 2: Connect the ETHERNET Ø AUI port to

an Ethernet transceiver.

Option 3: Connect the ETHERNET Ø 10BASET

port to your PC.

Option 1

You must provide the Ethernet hub or switch and the

RJ-45-to-RJ-45 cable required for this connection.

Connect one end of the cable to the yellow

ETHERNET Ø 10BASET port.and the other end to

a network port on the 10BaseT hub or switch.

Option 2

You must provide the transceiver and AUI cable for

this connection. If the transceiver that you are using

connects directly to the router, you do not need the

cable.

DONOTINSTALLANYWAN

MODULEWITHPOWERON

LNK LED

Connect one end of the Ethernet transceiver to the

yellow ETHERNET Ø AUI port and the other end

to the Ethernet network.

Option 3

You must provide an Ethernet crossover cable for

this connection.

Connect one end of the crossover cable to the yellow

ETHERNET Ø 10BASET port and the other end to

the Ethernet connector on the back of your

computer.

DONOTINSTALLANYWAN

MODULEWITHPOWERON

DONOTINSTALLANYWAN

MODULEWITHPOWERON

B. Install the WAN interface card.

Look for a WAN interface card in the slot on the right-rear of the router, just above the slot labeled FLASH PC

CARD. (There is no WAN interface card installed if there is a metal plate over the slot.) If the card is already

installed, connect the card to your WAN line according to the instructions that came with the card. To install a

card, follow the instructions below.

Install the Router (continued).

Note: You must provide a Phillips

screwdriver for this step.

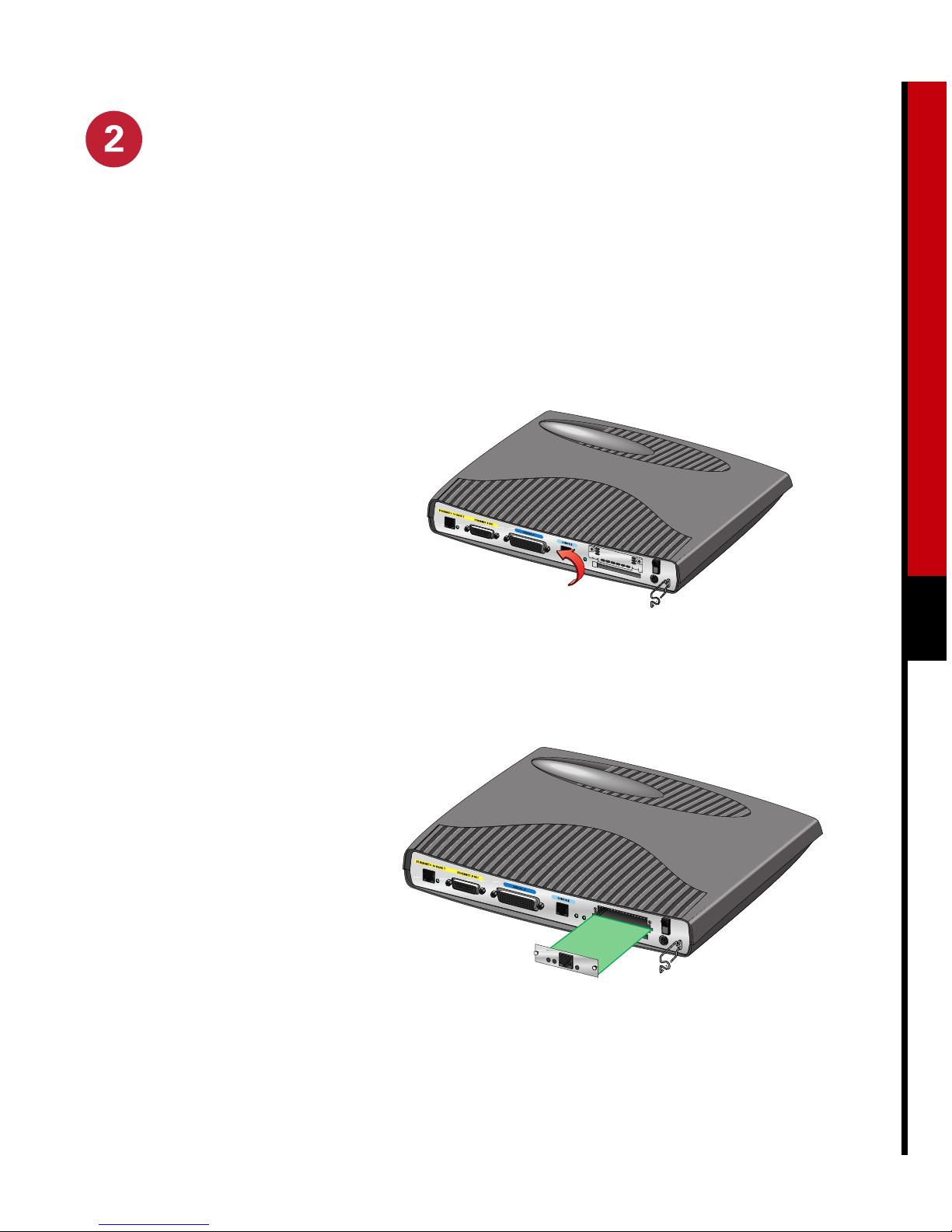

Step 1 Turn the power OFF by putting

the power switch in the O position.

Step 2 Remove the thumbscrews that

hold the slot cover in place.

Step 3 Remove the metal plate that

covers the card slot.

Step 4 Hold the card by the edges and

line it up with the guide on the card slot.

Step 5 Insert the card into the slot and

push in until it is firmly seated in the

connector and the card front panel is flush

with the router rear panel.

Step 6 Use the Phillips screwdriver to

tighten the screws that are in the card.

Step 7 Connect the correct cable to the

card according the instructions that came

with the card.

Step 8 Turn the power ON by putting

the power switch in the | position.

DONOTINSTALLANYWAN

MODULEWITHPOWERON

(

C. Connect the router to the wide-area network.

Install the Router (continued).

Each of the Cisco 1600 routers supports a different type of wide-area network (WAN) connection. This section

describes how to make these connections. The model number of your router is on the rear panel.

• Cisco 1601—This page

• Cisco 1602—Page 7

• Cisco 1603—Page 8

• Cisco 1604—Page 9

Cisco 1601 Serial Connection

Note: For this step, you must order a standard serial cable from Cisco. When you order the cable, specify the

type of serial line you are using.

Step 1 Connect one end of the serial cable to the blue SERIAL Ø port on the rear panel.

Step 2 Depending on what is required by your telephone company, do one of the following:

• Connect the other end of the cable to an external device such as an asynchronous modem, a

synchronous modem, or other DCE equipment (as shown in this illustration).

• Connect the other end of the cable directly to the wall jack.

DONOTINSTALLANYWAN

MODULEWITHPOWERON

RDY LED

External DCE equipment

C. Connect the router to the wide-area network (continued).

Cisco 1602 56-Kbps Connection

Note: You must provide an RJ-45-to-RJ-45 cable for this step.

Step 1 Connect one end of the cable to the blue SERIAL Ø 56K DSU/CSU port on the rear panel.

Step 2 Connect the other end of the cable to the 56-Kbps wall jack.

56-Kbps wall jack

CARRIER LED

C. Connect the router to the wide-area network (continued).

Cisco 1603 ISDN BRI S/T Connection

Note: You must provide a straight-through RJ-45-to-RJ-45 cable and (if required for your site) a network

termination (NT1) device for this connection.

Step 1 Connect one end of the cable to the orange ISDN BRI Ø S/T port on the rear panel.

Step 2 Depending on what is required by your telephone company, do one of the following:

• Connect the other end of the cable to an external NT1, then connect the NT1 to the ISDN wall jack.

• Connect the other end of the cable to the ISDN wall jack (as shown in this illustration).

OK LED

C. Connect the router to the wide-area network (continued).

Cisco 1604 ISDN BRI U Connection

Note: You must provide a straight-through cable, either RJ-11-to-RJ-11 (standard telephone cable) or

RJ-45-to-RJ-45, for this connection.

Step 1 Connect one end of the cable to the red ISDN BRI Ø port on the rear panel.

Step 2 Connect the other end directly to the ISDN wall jack.

For instructions on connecting another ISDN device such as a fax or telephone to the ISDN PHONE port, refer

to the hardware installation guide that came with your router.

NT1 LED

D. Connect the power supply.

Install the Router (continued).

After connecting the router to power and turning it on, you can confirm that you have installed the router

correctly by checking certain LEDs. Connect the router to the power supply as shown below. Depending on

where you install the router, your power supply and power outlet could be different from those in the picture.

Step 1 Connect the power supply cord to the power socket on the rear panel.

Step 2 Connect the power supply to a power outlet.

Confirm that the router has power by checking that the SYSTEM PWR LED on the front panel is on.

Step 3 Confirm that the router has power by checking that the SYSTEM PWR LED on the front panel is on.

DONOTINSTALLANYWAN

MODULEWITHPOWERON
