Cisco 12006 and Cisco 12406 Router

Unpacking and Repacking

Instructions

This document contains instructions for unpacking and repackaging the

Cisco 12006 and Cisco 12406 routers. After you unpack the system, refer to the

Cisco 12006 and Cisco 12406 Router Installation and Configuration Guide for

more information.

This document includes the following topics:

•Before Unpacking the Router, page 2

•Tools and Equipment, page 3

•Unpacking the Router, page 4

•Repacking the Router, page 9

•Regulatory, Compliance, and Safety Information, page 10

•Obtaining Documentation, page 10

•Documentation Feedback, page 12

•Obtaining Technical Assistance, page 12

•Obtaining Additional Publications and Information, page 14

Before Unpacking the Router

Cisco 12006 and Cisco 12406 Router Unpacking and Repacking Instructions 78-16104-02

Before Unpacking the Router

Figure 1 shows the Cisco 12006 or Cisco 12406 router on its shipping pallet. A

fully configured system can weigh as much as 205 pounds (94 kg), not counting

the additional weight of the pallet and packaging materials. Before unpacking the

system, you should carefully plan the site location of the router and the method

you will use to move it into position to install it in a rack.

Note Save all packing material and hardware (bolts, screws, brackets, and so on) after

unpacking the router. You can use them to repackage the router for shipping if

necessary.

Figure 1 Cisco 12006 or Cisco 12406 Router Secured to Pallet

50835

Cisco 12006 and Cisco 12406 Router Unpacking and Repacking Instructions

78-16104-02

Tools and Equipment

You need the following items and tools:

•3/16-inch flat-blade screwdriver

•1/4-inch flat-blade screwdriver

•9/16-inch (14-mm) wrench

•10-mm wrench (open-end or socket)

•Wire cutters

•Pliers

Unpacking the Router

Cisco 12006 and Cisco 12406 Router Unpacking and Repacking Instructions 78-16104-02

Unpacking the Router

This section explains how to unpack the router from the shipping pallet. Figure 2

shows the packing material and accessory kit container.

Figure 2 Unpacking the Router—Enhanced Model)

1Pallet base 4Plastic bag

2Front door (enhanced model only) 5Accessory kit tray

3Hold-down brackets with bolts 6Outer shipping container

SLOT-0

GIGABITROUTE PROCESSOR

SLOT-1

COLL

LINKTX

RJ-45

MII

RESET

AUX

EJECT

CONSOLE

CISCO 12000

SERIES

GIGABITSWITCH ROUTER

101113

Cisco 12006 and Cisco 12406 Router Unpacking and Repacking Instructions

78-16104-02

Unpacking the Router

Step 1 Use wire cutters to cut the plastic bands that secure the router to the pallet.

Step 2 Remove the tape that seals the shipping container and open the top of the box.

Step 3 Lift out the accessory kit and set it aside (see Figure 2).

Step 4 Remove the shipping container, the plastic bag, and all of the packing materials

and set them aside.

Unpacking the Router

Cisco 12006 and Cisco 12406 Router Unpacking and Repacking Instructions 78-16104-02

Step 5 Remove the bolts and screws that secure the two front anchor clips and side angle

brackets to the pallet (Figure 3).

If you are installing the enhanced version of the 12404 Internet router, go to

Step 6. For all other models, go to Step 8.

Figure 3 Removing the Router from the Shipping Pallet—Enhanced Model)

SLOT-0

GIGABIT ROUTEPROCESSOR

SLOT-1

COLL

LINK TX

RJ-45

MII

RESET

AUX

EJECT

CONSOLE

CISCO 12000

SERIES

GIGABITSWITCH ROUTER

57679

Cisco 12006 and Cisco 12406 Router Unpacking and Repacking Instructions

78-16104-02

Unpacking the Router

Step 6 Cut the plastic tie-wrapand remove it from the upper lefthinge bracket (Figure 4).

Note The plastic tie-wrap secures the front door to the chassis during shipment.

Figure 4 Removing the Tie-Wrap and Label

149690

REMOVE

TIE WRAP

Unpacking the Router

Cisco 12006 and Cisco 12406 Router Unpacking and Repacking Instructions 78-16104-02

Step 7 Open the front door and remove the labels (labeled REMOVE) that protect the

rubber bumpers during shipment (Figure 5).

Close the front door.

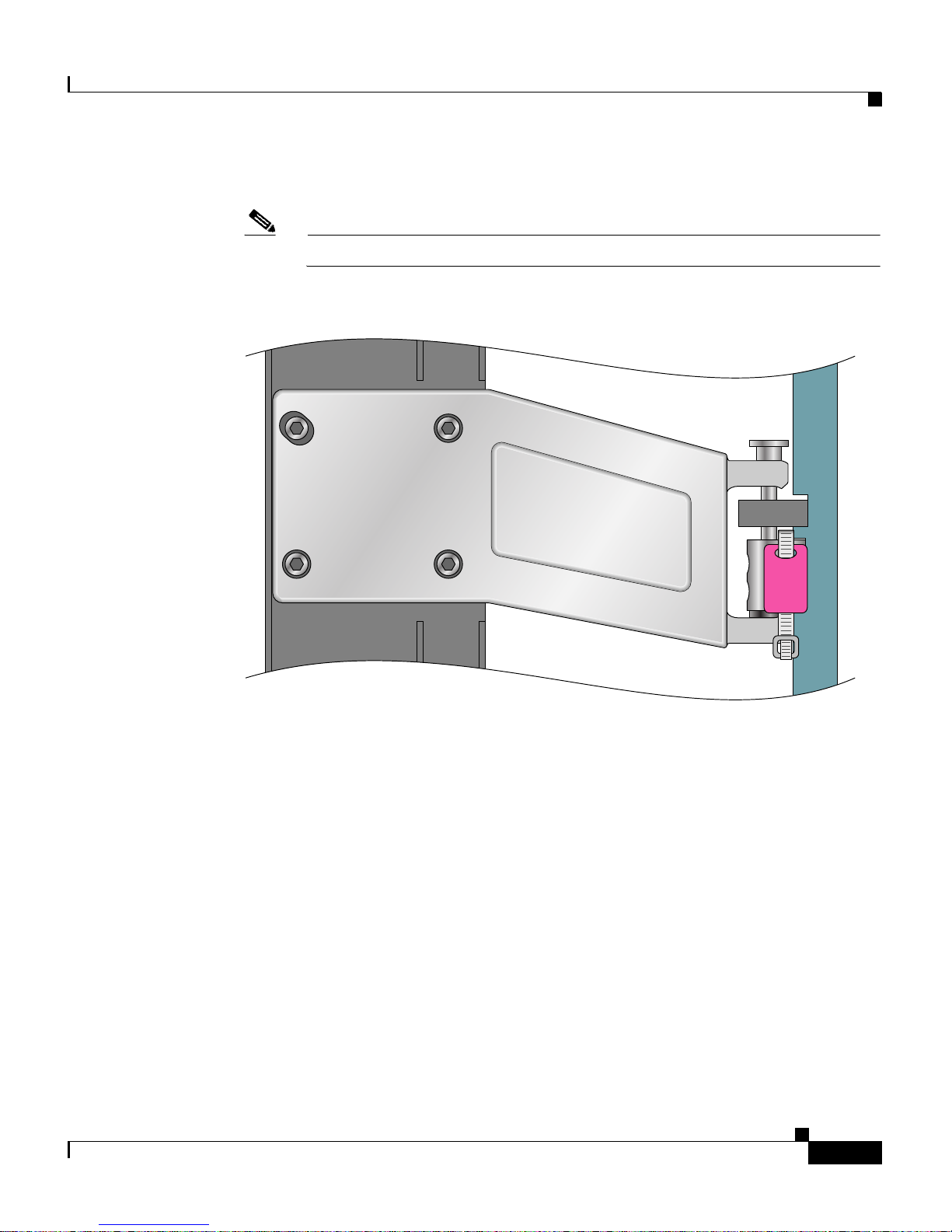

Figure 5 Removing the Rubber Bumper Shipping Label

Step 8 Your Cisco router is ready for installation. For installation instructions, see the

Cisco 12006 and Cisco 12406 Router Installation and Configuration Guide (see

Obtaining Documentation, page 10).

REMOVE

49691

Cisco 12006 and Cisco 12406 Router Unpacking and Repacking Instructions

78-16104-02

Repacking the Router

This section describes how to repack your Cisco router into the shipping

container. This procedure assumes you have the pallet, packing material, and

hardware you saved when the chassis was unpacked.

Note If the original packing kit—consisting of the pallet base, hold-down brackets,

bolts, screws, plastic bag cover, packing material, and shipping cartons—was lost

or damaged, you can order another kit (Product Number GSR6-PKG=)

Step 1 Place the router on a Cisco 12006/12406 shipping pallet.

Step 2 Secure the side and rear brackets to the pallet using the bolts and screws you saved

when the chassis was unpacked (see Figure 3).

Step 3 Tighten all of the captive screws on the power entry modules, power distribution

unit, and line cards so that they are secure.

Step 4 Refer to Figure 2 and:

a. Place the plastic bag cover over the router.

b. Place the accessory kit on top of the router.

c. Place the cardboard shipping container over the accessory kit and router.

Note If the master shipper tape closure was removed, replace it before you

secure the bands to your package.

Step 5 Secure the cardboard shipping container to the pallet using straps similar to the

ones used to ship the router to you.

Your router is ready for shipment.

Regulatory, Compliance, and Safety Information

Cisco 12006 and Cisco 12406 Router Unpacking and Repacking Instructions 78-16104-02

Transporting the Router

The shipping package for the router is engineered to reduce the potential of

product damage during shipment. To minimize potential damage to the product,

transport the router in its Cisco specified packaging. Failure to do so may result

in damage to the router or degradation of its performance. Do not remove the

router from its shipping container until you are ready to install it. The router

should always be transported or stored in an upright position. Keep the router in

the shipping container until you have determined an installation site.

Regulatory, Compliance, and Safety Information

The complete list of translated safety warnings and agency approvals is available

in the Regulatory Compliance and Safety Information for Cisco 12000 Series

Internet Routers publication (Document Number 78-4347-xx).

Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco

also provides several ways to obtain technical assistance and other technical

resources. These sections explain how to obtain technical information from

Cisco Systems.

Cisco.com

You can access the most current Cisco documentation at this URL:

http://www.cisco.com/techsupport

You can access the Cisco website at this URL:

http://www.cisco.com

You can access international Cisco websites at this URL:

http://www.cisco.com/public/countries_languages.shtml
