QUICK INSTALLATION GUIDE

Compact Wireless-G

USB Network Adapter

with SpeedBooster

Model: WUSB54GSC

Package Contents

Compact Wireless-G USB Network•

Adapter with SpeedBooster

USB Extension Cable•

Setup Wizard CD-ROM•

User Guide on CD-ROM•

Quick Installation•

InstallationWUSB54GSC

3Compact Wireless-G USB Network Adapter with SpeedBooster

Installation1

IMPORTANT: The Adapter is installed and set up using the Setup

Wizard on the enclosed Setup Wizard CD. Do not install the

Adapter in your computer until you are instructed to do so, or the

Adapter will not install correctly.

A. Insert the Setup Wizard CD into

your CD-ROM drive.

NOTE: Windows or other personal firewalls may ask for

permission to run the software or program. You will need to allow

the software to run in order to continue.

B. The Welcome screen appears.

Click the Click Here to Start

button

Read the License Agreement,C.

and click Next to continue the

installation.

Windows will begin copying theD.

files onto your PC.

The Setup Wizard will nowE.

prompt you to install the

Adapter into your PC.

Insert the CD-ROM

Click Here to Start

Installation WUSB54GSC

4 Compact Wireless-G USB Network Adapter with SpeedBooster

F. Locate an available USB slot on

your computer.

Insert the Adapter into the slot

until it locks into place.

Click Next.

For Windows Vista instructions, refer to Section 2.

For Windows XP or 2000 setup instructions, refer to Section 3.

Insert the Adapter

Setup for Windows VistaWUSB54GSC

5Compact Wireless-G USB Network Adapter with SpeedBooster

Setup for Windows Vista2

A. The first Windows Vista Wireless

Network Configuration utility

screen appears. Select your

network, and then click

Connect.

B. If your network has no wireless

security, this screen appears.

If your network has wireless

security, go to step C.

To connect to your unsecured

network, click Connect Anyway

and go to step E.

C. Enter the security key or

passphrase (also known as

pre-shared key or WEP key,

depending on your type of

security).

Click Connect.

Select Network

Unsecured Network

Secured Network

Setup for Windows Vista WUSB54GSC

6 Compact Wireless-G USB Network Adapter with SpeedBooster

D. This screen appears while

the Adapter connects to your

network. Do not cancel, unless

you want to end the installation.

E. This screen appears when you

are connected to your network.

Select Save this network, if you

want to save your settings.

Click Close.

F. The Set Network Location screen

may appear to help apply the

correct settings for your type of

location. If it doesn’t appear, go

to step H.

Select Home, Work, or Public

location.

Connecting to Network

Connected to Network

Select Network Location

Setup for Windows VistaWUSB54GSC

7Compact Wireless-G USB Network Adapter with SpeedBooster

G. This screen varies according to

the selected location.

Click Close.

H. The Windows Vista Wireless

Network Configuration utility

icon appears on your desktop’s

system tray.

You can use this utility to

configure or change your

wireless settings.

NOTE: For help with the Windows Vista Wireless Network

Configuration utility, refer to Windows Vista Help and Support, by

clicking Vista’s Start button > Help and Support.

Congratulations! Setup is complete.

Network Settings Saved

Windows Vista Wireless Network

Configuration Utility Icon

Wireless Connection Status

Setup for Windows XP or 2000 WUSB54GSC

8 Compact Wireless-G USB Network Adapter with SpeedBooster

Setup for Windows XP or 20003

The Available Wireless Networks screen appears. From this screen, you can

launch one of the two setup methods.

If your network appears on the Available Wireless Networks screen, continue

with this Quick Installation. If your network does not appear on the

Available Wireless Networks screen, click Advanced Setup and follow the

on-screen prompts.

Setting Up the Adapter with Available Networks

The Available Wireless Network

screen, lists available networks in

the center table by SSID (wireless

network name). Select the wireless

network you wish to connect to and

click Connect (If you do not see

your network listed click Refresh).

If the network utilizes wireless

security, you will need to configure

security on the Adapter. If not,

you will be taken directly to the

Congratulations screen. Go to Step B.

Available Wireless Network

Setup for Windows XP or 2000WUSB54GSC

9Compact Wireless-G USB Network Adapter with SpeedBooster

If wireless security is enabled on this network, you will see a wirelessA.

security screen. If your network utilizes WEP (Wired Equivalent Privacy)

encryption, the WEP Key Needed for Connection screen will appear. If

your network utilizes WPA Personal (Wi-Fi Protected Access), the WPA

Personal Needed for Connection screen will appear.If your network

utilizes PSK2 (Pre-Shared Key 2) encryption, the PSK2 Key Needed for

Connection screen will appear.

NOTE: For your network to operate correctly, your WEP key

(WEP) or Passphrase (WPA, WPA2) must match the WEP key or

Passphrase of your other wireless network devices.

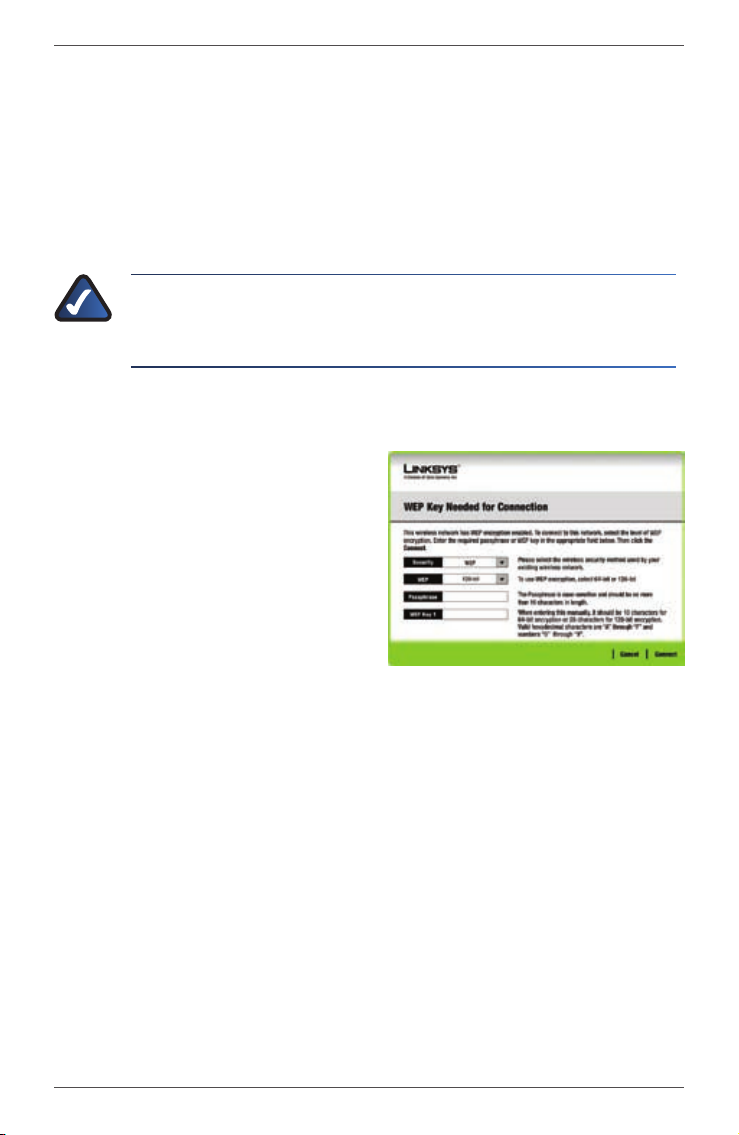

WEP Needed for Connection

1. Select the level of encryption,

and then enter the Passphrase

or WEP Key.

WEP Select the level of

encryption, 64-bit or 128-bit.

WEP Key If you have your

wireless network ‘s case

sensitive Passphrase, you can

enter it. The Passphrase will

automatically generate the

WEP key.

If you don’t have the

Passphrase, you can enter

the WEP Key manually. For

64-bit encryption, enter

10 hexadecimal characters

(“0” to “9” and “A” to “F”). For

128-bit encryption, enter 26

hexadecimal characters.

Click2. Connect and go to Step B.

WEP Key Needed

Setup for Windows XP or 2000 WUSB54GSC

10 Compact Wireless-G USB Network Adapter with SpeedBooster

WPA Personal Needed for Connection

1. Encryption - Select the type

of algorithm,TKIP or AES, from

the Encryption menu.

Passphrase2. - Enter a

Passphrase of 8-63 characters

in the Passphrase eld.

Click3. Connect and go to Step B.

WPA2 Personal Needed for Connection

1. Passphrase - Enter a

Passphrase of 8-63 characters

in the Passphrase eld.

Click2. Connect and go to Step B.

After the Adapter is configured for the network, theB. Congratulations

screen will appear. Click Connect to Network to connect to your

network.

NOTE: After the Adapter is installed, the Wireless Network

Monitor screen opens, and its icon appears in your computer’s

system tray. You can double-click the icon to open the Monitor

if you want to find available wireless networks or change the

Adapter’s configuration. For detailed information on the Monitor,

refer to the User Guide on the CD-ROM.

Congratulations! Setup is complete.

WPA Personal

WPA2 Personal
