TRENDnet TU2-ETG Manual de usuario
i
Table of Contents
1. Introduction.........................................................................................................1
Features.............................................................................................................................1
Package Contents..............................................................................................................1
System Requirements........................................................................................................1
LED Status........................................................................................................................2
2. Installation ...........................................................................................................3
Driver Installation.............................................................................................................3
Verifying the Driver Installation in Windows...................................................................4
Connecting to a Network ..................................................................................................4
Configuring Network Settings..........................................................................................5
Windows 7/Vista........................................................................................................................5
Windows XP/2000.....................................................................................................................5
Mac Driver Installation.....................................................................................................7
Mac OS X 10.5.2 ~ 10.6............................................................................................................7
3. Specifications....................................................................................................10
Limited Warranty...................................................................................................11
1
1. Introduction
The TU2-ETG is a Gigabit USB network adapter that allows you to instantly connect to a
10/100/1000Mbps network from a USB enabled desktop or laptop. Compliant with USB 2.0
and backwards compatible with the USB 1.0 and 1.1, you can share files and printers and
also gain access to broadband Internet to explore valuable resources on the web.
Features
Compliant with USB 2.0 and 1.1 specifications
Compliant with IEEE 802.3, 802.3u and 802.3ab standards
Auto Negotiation & Auto-MDIX RJ-45 Gigabit Port
Supports both full-duplex and half-duplex operations
Supports Suspend mode and Hibernate mode to remotely wake-up through
link-up or magic packet
Compatible with Windows 7(32/64-bit), Vista (32/64-Bit), XP(32/64-bit), 2000
and Mac 10.5.2 ~ 10.6
Powered by USB port. No external power adapter required
Diagnostic LEDs
Plug & Play
5-year limited warranty
Package Contents
Before installation, please check the items of the package.
TU2-ETG
CD-ROM (Driver & User’s Guide)
Multi-Language Quick Installation Guide
System Requirements
CD-ROM Drive
USB Port: 2.0 or 1.1
CPU: 300MHz or above / 800MHz or above (Windows Vista), 1GHz or above
(Windows 7)
Memory: 256 MB RAM or above / 512 MB RAM or above (Windows Vista)
1GB RAM (Windows 7)
Windows7/Vista/XP/2000
LED Status
LED Color Status Description
Link Green Off Link is not established.
On Link is established.
1000Mbps Green Off Link is not established
Link to 10/100Mbps network.
On Link to 1000Mbps network.
Blinking There is 1000Mbps traffic flow over the network.
3
2. Installation
Driver Installation
Note: DO NOT connect the Ethernet adapter to your computer before completing
the driver installation.
1. Insert the provided CD into your CD-ROM drive.
2. Click Run Autorun.exe (Windows 7/Vista only).
3. Click Install Driver. Then click your operating system.
4. Connect the Ethernet adapter’s USB end to a free USB port of your computer.
5. Drivers will install automatically.
Verifying the Driver Installation in Windows
To verify your Ethernet adapter installation, please launch Device Manager by the
steps below:
On Windows 7/Vista: Right-click on the Computer icon on the desktop and
select Properties > Device Manager.
On Windows XP/2000: Right-click on the My Computer icon on the desktop
and select Properties > System > (Hardware) > Device Manager.
In the Network adapters group, a string similar to USB2.0 to Gigabit Ethernet
Adapter should be displayed.
If there is a question or exclamation mark next to that item, then the driver is not
properly installed. Please delete the item, unplug the adapter and repeat the
installation steps.
*The example screenshot is taken from Windows Vista.
Connecting to a Network
Now you can connect your network to the device’s LAN port. The LAN port
supportsAuto-MDIX feature. It eliminates the need to use crossover cables.
5
Upon your connection, a message pops up in the notification area indicating your
connection speed.
The adapter’s AutoSense feature can automatically detect the network's maximum
line speed. To have a 1000Mbps connection, your network device (e.g., switch,
router or DSL modem) must also support 1000Mbps.
Configuring Network Settings
You should configure your Ethernet adapter as required according to your network
environment. If you are unsure about the settings, consult your network
administrator for assistance. The following describes how to launch the network
settings window for your Ethernet adapter.
Windows 7/Vista
After the installation, a local area connection icon is automatically created for your
Ethernet adapter in the Network Connections folder. You can access Network
Connections folder by selecting Start > Control Panel > Network and Internet >
View Network status and tasks >Management Network Connection or
Changing Adapter Setting.
Windows XP/2000
After the installation, a local area connection icon is automatically created for your
Ethernet adapter in the Network Connections folder. You can access Network
Connections folder by selecting Start > Settings > Control Panel > Network and
Internet Connections.
In the Network Connections folder, double-click the connection icon for your
adapter. Then the Local Area Connection Properties window appears.
7
Mac Driver Installation
Mac OS X 10.5.2 ~ 10.6

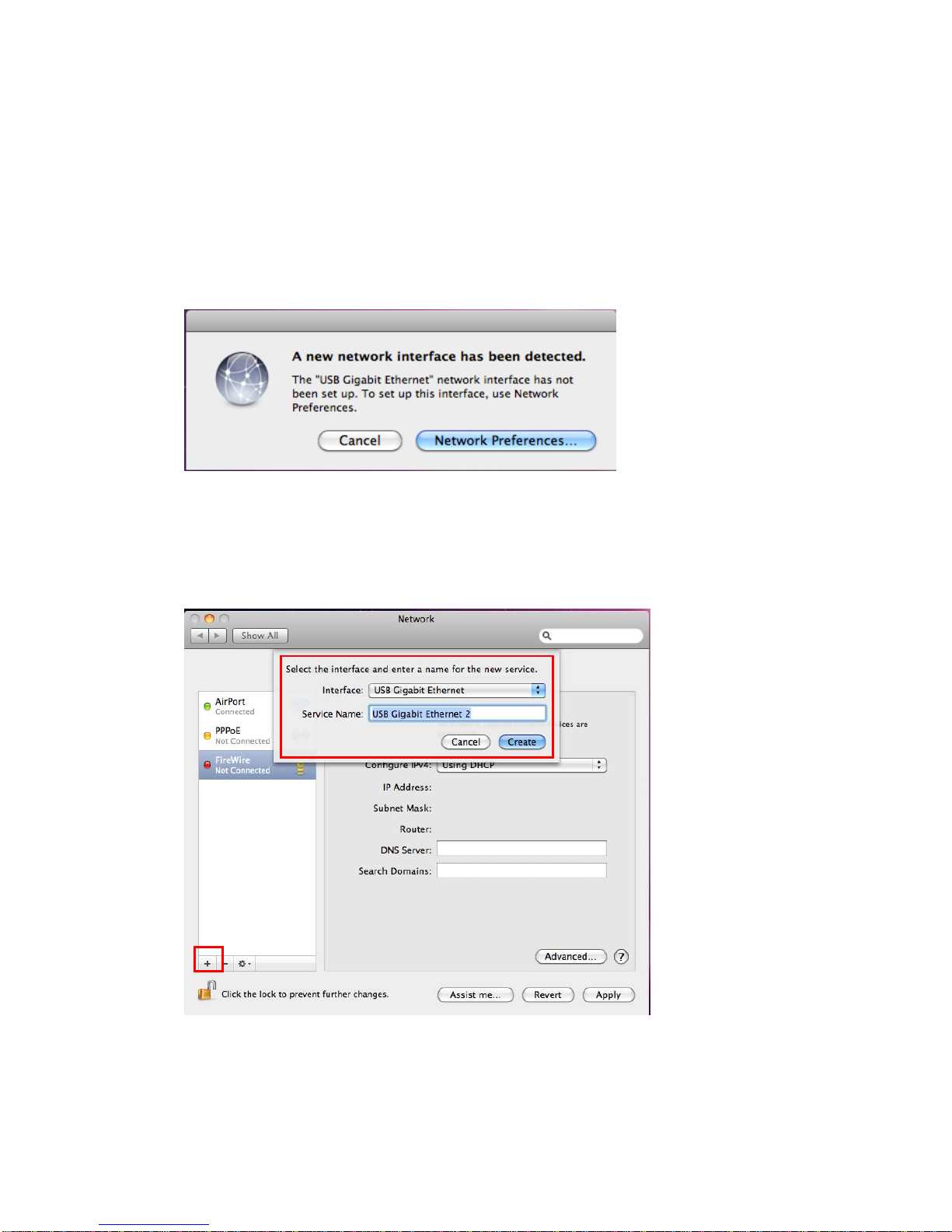

1. Mac has built in driver. Please connect the Ethernet adapter to a free USB port.
The system will pop up a message “A new network interface has been
detected”
2. If the message is not pop up , please start System Preferences and select
Network, then click the ”＋” to add an “USB Gigabit Ethernet “ service. Click
“Network Preferences…” to setup,
3. Select “USB Gigabit Ethernet “ then click “Advanced” to setup the network
by either using static IP or DHCP.
3. If select “Using DHCP” Mode, please click”Renew DHCP License“ to get the IP
address , Otherwise, please enter the IP information that provided by your
Network Service Provider.
4. A new Ethernet network connection is established.
