CE-100T-8 Ethernet Operation

This chapter covers the operation of the CE-100T-8 (Carrier Ethernet) card supported on the ONS 15310

(15310-CE-100T-8). A CE-100T-8 card is also supported on the ONS 15454 (15454-CE-100T-8).

Provisioning is done through Cisco Transport Controller (CTC) or Transaction Language One (TL1).

Cisco IOS is not supported on the CE-100T-8 card.

For Ethernet card specifications, refer to the Cisco ONS 15310-CL Reference Manual. For step-by-step

Ethernet card circuit configuration procedures and hard-reset and soft-reset procedures, refer to the

Cisco ONS 15310-CL Procedure Guide. Refer to the Cisco ONS SONET TL1 Command Guide for TL1

provisioning commands. For specific details on ONS 15310-CL Ethernet card interoperability with other

ONS platforms, refer to the “POS on ONS Ethernet Cards” chapter of the Ethernet Card Software

Feature and Configuration Guide for the ONS 15454 SDH, ONS 15454, and ONS 15327.

Chapter topics include:

•CE-100T-8 Overview, page 16-1

•CE-100T-8 Ethernet Features, page 16-2

•CE-100T-8 SONET Circuits and Features, page 16-6

CE-100T-8 Overview

The CE-100T-8 is a Layer 1 mapper card with eight 10/100 Ethernet ports. It maps each port to a unique

SONET circuit in a point-to-point configuration. Figure 16-1 illustrates a sample CE-100T-8

application. In this example, data traffic from the Fast Ethernet port of a switch travels across the

point-to-point circuit to the Fast Ethernet port of another switch.

Figure 16-1 CE-100T-8 Point-to-Point Circuit

The CE-100T-8 cards allow you to provision and manage an Ethernet private line service like a

traditional SONET line. CE-100T-8 card applications include providing Ethernet private line services

and high-availability transport.

15797

Point-to-Point Circuit

Ethernet Ethernet

16-2

Cisco ONS 15310-CL Ethernet Card Software Feature and Configuration Guide, R5.0 June 2005

Chapter 16 CE-100T-8 Ethernet Operation

CE-100T-8 Ethernet Features

The CE-100T-8 card supports ITU-T G.707 and Telcordia GR-253 based standards for SONET. It offers

a carrier-class level of features and reliability. This includes errorless (0-msec impact on traffic)

reprovisioning. When circuit or port provisioning takes place, this operation does not affect the

performance of other ports and circuit configurations that are already established on the card.

Software upgrades are errorless. However when the CE-100T-8 firmware is upgraded, the upgrade has

an effect on traffic similar to the effect of a hard reset on the CE-100T-8. A software upgrade or a

firmware upgrade does not affect the existing provisioning of the ports and circuits on the CE-100T-8

card.

Span upgrades are hitless. Protection and maintenance switches are also hitless.

The CE-100T-8 offers full TL1-based provisioning capability. Refer to the Cisco ONS SONET TL1

Command Guide for CE-100T-8 TL1 provisioning commands.

CE-100T-8 Ethernet Features

The CE-100T-8 card has eight front-end Ethernet ports which use standard RJ-45 connectors for

10BASE-T Ethernet/100BASE-TX Ethernet media. Ethernet Ports 1 through 8 each map to a POS port

with a corresponding number. The console port on the CE-100T-8 card is not functional.

The CE-100T-8 cards forward valid Ethernet frames unmodified over the SONET network. Information

in the headers is not affected by the encapsulation and transport. For example, included IEEE 802.1Q

information will travel through the process unaffected.

The ONS 15454 CE-100T-8 and the ONS 15310 CE-100T-8 support maximum Ethernet frame sizes of

1600 bytes including the CRC. The MTU size is not configureable and is set at a 1500 byte maximum

(standard Ethernet MTU). Baby giant frames in which the standard Ethernet frame is augmented by

802.1 Q tags or MPLS tags are also supported. Full Jumbo frames (9000 byte maximum) are not

supported.

The CE-100T-8 cards discard certain types of erroneous Ethernet frames rather than transport them over

SONET. Erroneous Ethernet frames include corrupted frames with cyclic redundancy check (CRC)

errors and undersized frames that do not conform to the minimum 64-byte length Ethernet standard.

Note Many Ethernet attributes are also available through the network element default feature. For more

information on NE defaults, refer to the "Network Element Defaults" appendix in the Cisco ONS 15454

Reference Manual.

Autonegotiation, Flow Control, and Frame Buffering

On the CE-100T-8, Ethernet link autonegotiation is on by default. The user can also set the link speed,

duplex, and flow control manually under the card-level Provisioning tab of CTC.

The CE-100T-8 supports IEEE 802.3x flow control and frame buffering to reduce data traffic congestion.

Flow control is on by default.

To prevent over-subscription, buffer memory is available for each port. When the buffer memory on the

Ethernet port nears capacity, the CE-100T-8 uses IEEE 802.3x flow control to transmit a pause frame to

the attached Ethernet device. Flow control and autonegotiation frames are local to the Fast Ethernet

interfaces and the attached Ethernet devices. These frames do not continue through the POS ports.

16-3

Cisco ONS 15310-CL Ethernet Card Software Feature and Configuration Guide, R5.0

June 2005

Chapter 16 CE-100T-8 Ethernet Operation CE-100T-8 Ethernet Features

The CE-100T-8 card has symmetric flow control and proposes symmetric flow control when

autonegotiating flow control with attached Ethernet devices. Symmetric flow control allows the

CE-100T-8 cards to respond to pause frames sent from external devices and to send pause frames to

external devices.

The pause frame instructs the source to stop sending packets for a specific period of time. The sending

station waits the requested amount of time before sending more data. Figure 16-2 illustrates pause

frames being sent and received by CE-100T-8 cards and attached switches.

Figure 16-2 Flow Control

This flow-control mechanism matches the sending and receiving device throughput to that of the

bandwidth of the STS circuit. For example, a router might transmit to the Ethernet port onthe CE-100T-8

card. This particular data rate might occasionally exceed 51.84 Mbps, but the SONET circuit assigned

to the CE-100T-8 port might be only STS-1 (51.84 Mbps). In this example, the CE-100T-8 sends out a

pause frame and requests that the router delay its transmission for a certain period of time. With flow

control and a substantial per-port buffering capability, a private line service provisioned at less than full

line rate capacity (STS-1) is efficient because frame loss can be controlled to a large extent.

Ethernet Link Integrity Support

The CE-100T-8 supports end-to-end Ethernet link integrity (Figure 16-3). This capability is integral to

providing an Ethernet private line service and correct operation of Layer 2 and Layer 3 protocols on the

attached Ethernet devices.

End-to-end Ethernet link integrity means that if any part of the end-to-end path fails,the entire path fails.

It disables the Ethernet port on the CE-100T-8 card if the remote Ethernet port is unable to transmit over

the SONET network or if the remote Ethernet port is disabled.

Failure of the entire path is ensured by turning off the transmit pair at each end of the path. The attached

Ethernet devices recognize the disabled transmit pair as a loss of carrier and consequently an inactive

link or link fail.

Figure 16-3 End-to-End Ethernet Link Integrity Support

115795

STS-N

SONET

Pause Frames

Ethernet

ONS 15310-CL ONS 15310-CL

Pause Frames

Ethernet

thernet port

115796

Ethernet por

STS-N

SONET

ONS 310 ONS 310

16-4

Cisco ONS 15310-CL Ethernet Card Software Feature and Configuration Guide, R5.0 June 2005

Chapter 16 CE-100T-8 Ethernet Operation

CE-100T-8 Ethernet Features

Note Some network devices can be configured to ignore a loss of carrier condition. If a device configured to

ignore a loss of carrier condition attaches to a CE-100T-8 card at one end, alternative techniques (such

as use of Layer 2 or Layer 3 keep-alive messages) are required to route traffic around failures. The

response time of such alternate techniques is typically much longer than techniques that use link state as

indications of an error condition.

IEEE 802.1Q CoS and IP ToS Queuing

The CE-100T-8 references IEEE 802.1Q class of service (CoS) thresholds and IP type of service (ToS)

(IP Differentiated Services Code Point [DSCP]) thresholds for priority queueing. CoS and ToS thresholds

for the CE-100T-8 are provisioned on a per port level. This allows the user to provide priority treatment

based on open standard quality of service (QoS) schemes already existing in the data network attached

to the CE-100T-8. The QoS treatment is applied to both Ethernet and POS ports.

Any packet or frame with a priority greater than the set threshold is treated as priority traffic. This

priority traffic is sent to the priority queue instead of the normal queue. When buffering occurs, packets

on the priority queue preempt packets on the normal queue. This results in lower latency for the priority

traffic, which is often latency-sensitive traffic, such as VoIP.

Because these priorities are placed on separate queues, the priority queuing feature should not be used

to separate rate-based CIR/EIR marked traffic (sometimes done at a Metro Ethernet service provider

edge). This could result in out-of-order packet delivery for packets of the same application, which would

cause performance issues with some applications.

For an IP ToS-tagged packet, the CE-100T-8 can map any of the 256 priorities specified in IP ToS to

priority or best effort. The user can configure a different ToS on CTC at the card-level view under the

Provisioning > Ether Ports tabs. Any ToS class higher than the class specified in CTC is mapped to the

priority queue, which is the queue geared towards low latency. By default, the ToS is set to 255, which

is the highest ToS value. This results in all traffic being treated with equal priority by default.

Table 16-3 shows which values are mapped to the priority queue for sample IP ToS settings. (ToS

settings span the full 0 to 255 range, but only selected settings are shown.)

For a CoS-tagged frame, the CE-100T-8 can map the eight priorities specified in CoS to priority or best

effort. The user can configure a different CoS on CTC at the card-level view under the Provisioning >

Ether Ports tabs. Any CoS class higher than the class specified in CTC is mapped to the priority queue,

which is the queue geared towards low latency. By default, the CoS is set to 7, which is the highest CoS

value. This results in all traffic being treated with equal priority by default.

Table 16-3 shows which values are mapped to the priority queue for CoS settings.

Table 16-1 IP ToS Priority Queue Mappings

ToS Setting in CTC ToS Values Sent to Priority Queue

255 (default) None

250 251–255

150 151–255

100 101–255

50 51–255

0 1–255

16-5

Cisco ONS 15310-CL Ethernet Card Software Feature and Configuration Guide, R5.0

June 2005

Chapter 16 CE-100T-8 Ethernet Operation CE-100T-8 Ethernet Features

Ethernet frames without VLAN tagging use ToS-based priority queueing if both ToS and CoS priority

queueing is active on the card. The CE-100T-8 card’s ToS setting must be lower than 255 (default) and

the CoS setting lower than 7 (default) for CoS and ToS priority queueing to be active. A ToS setting of

255 (default) disables ToS priority queueing, so in this case the CoS setting would be used.

Ethernet frames with VLAN tagging use CoS-based priority queueing if both ToS and CoS are active on

the card. The ToS setting is ignored. CoS based priority queueing is disabled if the CoS setting is the 7

(default), so in this case the ToS setting would be used.

If the CE-100T-8 card’s ToS setting is 255 (default) and the CoS setting is 7 (default), priority queueing

is not active on the card, and data gets sent to the default normal traffic queue. Also if data is not tagged

with a ToS value or a CoS value before it enters the CE-100T-8 card, it gets sent to the default normal

traffic queue.

Note Priority queuing has no effect when flow control is enabled (default) on the CE-100T-8. Under flow

control a 6 kilobyte single-priority first in first out (FIFO) buffer fills, then a PAUSE frame is sent. This

results in the packet ordering priority becoming the responsibility of the external device, which is

buffering as a result of receiving the PAUSE flow-control frames.

Note Priority queuing has no effect when the CE-100T-8 is provisioned with STS-3C circuits. The STS-3c

circuit has more data capacity than Fast Ethernet, so CE-100T-8 buffering is not needed. Priority queuing

only takes effect when buffering occurs.

RMON and SNMP Support

The CE-100T-8 card features remote monitoring (RMON) that allows network operators to monitor the

health of the network with a network management system (NMS). The CE-100T-8 uses the ONG RMON.

The ONG RMON contains the statistics, history, alarms, and events MIB groups from the standard

RMON MIB, as well as Simple Network Management Protocol (SNMP). A user can access RMON

threshold provisioning through TL1 or CTC. For RMON threshold provisioning with CTC, see the

Cisco ONS 15310-CL Procedure Guide and the Cisco ONS 15310-CL Troubleshooting Guide. For TL1

information, see the Cisco ONS SONET TL1 Command Guide.

Table 16-2 CoS Priority Queue Mappings

CoS Setting in CTC CoS Values Sent to Priority Queue

7 (default) none

56,7

4 5, 6, 7

3 4, 5, 6, 7

2 3, 4, 5, 6, 7

1 2, 3, 4, 5, 6, 7

0 1, 2, 3, 4, 5, 6, 7

16-6

Cisco ONS 15310-CL Ethernet Card Software Feature and Configuration Guide, R5.0 June 2005

Chapter 16 CE-100T-8 Ethernet Operation

CE-100T-8 SONET Circuits and Features

Statistics and Counters

The CE-100T-8 has a full range of Ethernet and POS statistics under Performance > Ether Ports or

Performance > POS Ports. These are detailed in the “Performance Monitoring” chapter of the Cisco

ONS 15310 Reference Manual.

CE-100T-8 SONET Circuits and Features

The CE-100T-8 has eight POS ports, numbered one through eight, which are exposed to management

with CTC or TL1. Each POS port is statically mapped to a matching Ethernet port. By clicking the

card-level Provisioning tab > POS Ports tab, the user can configure the Administrative State, Framing

Type, and Encapsulation Type. By clicking the card-level Performance tab > POS Ports tab, the user can

view the statistics, utilization, and history for the POS ports.

Available Circuit Sizes and Combinations

Each POS port terminates an independent contiguous SONET concatenation (CCAT) or virtual SONET

concatenation (VCAT). The SONET circuit is created for these ports through CTC or TL1 in the same

manner as a SONET circuit for a non-Ethernet line card. Table 16-3 shows the circuit sizes available for

the CE-100T-8 on the ONS 15310-CL.

A single circuit provides a maximum of 100 Mbps of throughput, even when an STS-3c circuit, which

has a bandwidth equivalent of 155 Mbps, is provisioned. This is due to the hardware restriction of the

Fast Ethernet port. A VCAT circuit is also restricted in this manner. Table 16-3 shows the minimum

SONET circuit sizes required for 10 Mbps and 100 Mbps wire speed service.

*STS-1-2v provides a total transport capacity of 98 Mbps.

The number of available circuits and total combined bandwidth for the CE-100T-8 depends on the

combination of circuit sizes configured. Table 16-5 shows the circuit size combinations available for

CE-100T-8 CCAT high-order circuits on the ONS 15310-CL. Table 16-6 shows the circuit size

combinations available for CE-100T-8 VCAT high-order circuits on the ONS 15310-CL.

Table 16-3 CE-100T-8 Supported Circuit Sizes

CCAT High Order VCAT High Order VCAT Low Order

STS-1 STS-1-1v VT1.5-nV (n= 1 to 64)

STS-3c STS-1-2v

STS-1-3v

Table 16-4 SONET Circuit Size Required for Ethernet Wire Speeds

Ethernet Wire Speed CCAT High Order VCAT High Order VCAT Low Order

Line Rate 100BaseT STS-3c STS-1-3v, STS-1-2v* Not applicable

Sub Rate 100BaseT STS-1 STS-1-1v VT1.5-xV (x=1-64)

Line Rate 10BaseT STS-1 Not applicable VT1.5-7V

Sub Rate 10BaseT Not applicable Not applicable VT1.5-xV (x=1-6)

16-7

Cisco ONS 15310-CL Ethernet Card Software Feature and Configuration Guide, R5.0

June 2005

Chapter 16 CE-100T-8 Ethernet Operation CE-100T-8 SONET Circuits and Features

The CE-100T-8 supports up to eight low order VCAT circuits. The available circuit sizes are VT1.5-nv,

where n ranges from 1 to 64. The total number of VT members cannot exceed 168 VT1.5s with each of

the two pools on the card supporting 84 VT1.5s. The user can create a maximum of two circuits at the

largest low order VCAT circuit size, VT1.5-64v.

A user can combine CCAT high order, VCAT high order, and VCAT low order circuits in any way as

long as there is a maximum of eight circuits and the mapper chip bandwidth restrictions are observed.

The following table details the maximum density service combinations.

* This LO-VCAT Circuit combination is achievable if the first circuit created on the card is an LO VCAT circuit. If the first circuit

created on the card is HO-VCAT or CCAT STS circuits, then a maximum of six LO-VCAT circuits can be added on the card.

Table 16-5 CCAT High Order Circuit Size Combinations

Number of STS-3c Circuits Maximum Number of STS-1 Circuits

None 6

2None

Table 16-6 VCAT High Order Circuit Size Combinations

Number of STS-1-3v Circuits Maximum Number of STS-1-2v Circuits

None 2

2None

Table 16-7 CE-100T-8 Maximum Service Densities

Service

Combination STS-3c or

STS-1-3v STS-1-2v STS-1 VT1.5-xV (x=1-7) Number of Active

Service

12000 2

21110 3

31030 4

4 1 0 0 7(x=1-12)* 8*

50220 4

6 0 1 1 6(x=1-14) 8

7 0 1 0 7(x=1-12)* 8*

80060 6

9 0 0 3 5(x=1-16) 8

100008(x=1-21)8

16-8

Cisco ONS 15310-CL Ethernet Card Software Feature and Configuration Guide, R5.0 June 2005

Chapter 16 CE-100T-8 Ethernet Operation

CE-100T-8 SONET Circuits and Features

CE-100T-8 STS/VT Allocation Tab

The CE-100T-8 has two pools, each with a maximum capacity of three STSs. At the CTC card-level view

under the Maintenance tab, the STS/VT Allocation tab displays how the provisioned circuits populate

the two pools. This information can be useful in freeing up the bandwidth required for provisioning a

circuit, if there is not enough existing capacity on any one pool for provisioning the desired circuit. The

user can look at the distribution of the existing circuits among the two pools and decide which circuits

to delete in order to free up space for the desired circuit.

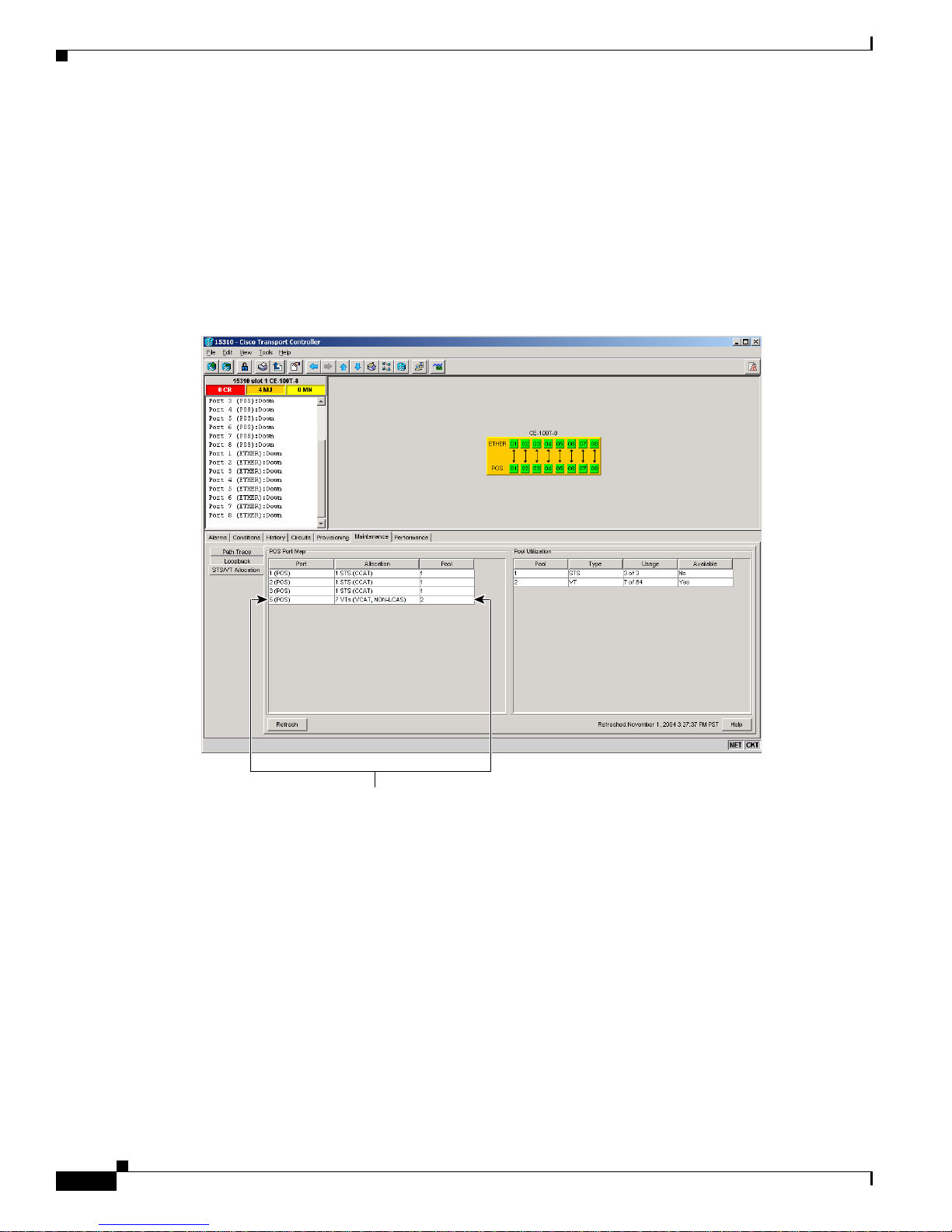

Figure 16-4 CE-100T-8 STS/VT Allocation Tab

For example if a user needs to provision an STS-3c or STS-1-3v on the CE-100T-8 card shown in

Figure 16-4, an STS-3c or STS-1-3v worth of bandwidth is not available from either of the two pools.

The user needs to delete circuits from the same pool to free up bandwidth. If the bandwidth is available

but scattered among the pools, the circuit cannot be provisioned.

Looking at the POS Port Map table, the user can determine which circuits belong to which pools. The

Pool and Port columns in Figure 16-4 show that the circuit on port 5 is drawn from Pool 2, and no other

circuits are drawn from Pool 2. Deleting this one circuit will free up an STS-3c or STS-1-3v worth of

bandwidth from a single pool.

The POS Port table has a row for each port with three columns (Figure 16-4). They show the port

number, the circuit size and type, and the pool it is drawn from. The Pool Utilization table has two

columns and shows the pool number, the type of circuits on that pool, how much of the pool’s capacity

is being used, and whether additional capacity is available.

124894

Port 5 belongs to Pool 2

16-9

Cisco ONS 15310-CL Ethernet Card Software Feature and Configuration Guide, R5.0

June 2005

Chapter 16 CE-100T-8 Ethernet Operation CE-100T-8 SONET Circuits and Features

CE-100T-8 VCAT Characteristics

The ML-100T-8 card and the CE-100T-8 card (both the ONS 15310-CL version and the ONS 15454

SONET/SDH version) have hardware-based support for the ITU-T G.7042 standard link capacity

adjustment scheme (LCAS). This allows the user to dynamically resize a high order or low order VCAT

circuit through CTC or TL1 without affecting other members of the VCG (errorless). ML-100T-8 LCAS

support is high order only and is limited to a two member VCG.

The ONS 15454 SONET/SDH ML-Series card has a software-based LCAS (SW-LCAS) scheme. This

scheme is also supported by both the ML-100T-8 card and both versions of the CE-100T-8, but only for

circuits terminating on a ONS 15454 SONET/SDH ML-Series card.

The CE-100T-8 card allows independent routing and protection preferences for each member of a VCAT

circuit. The user can also control the amount of VCAT circuit capacity that is fully protected, unprotected

or if the circuit is on a bidirectional line switched ring (BLSR), uses protection channel access (PCA).

Alarms are supported on a per-member as well as per virtual concatenation group (VCG) basis.

Note The maximum tolerable VCAT differential delay for the CE-100T-8 is 48 milliseconds. The VCAT

differential delay is the relative arrival time measurement between members of a virtual concatenation

group (VCG).

CE-100T-8 POS Encapsulation, Framing, and CRC

The CE-100T-8 uses Cisco EoS LEX (LEX). LEX is the primary encapsulation of ONS Ethernet cards.

In this encapsulation the protocol field is set to the values specified in Internet Engineering Task Force

(IETF) Request For Comments (RFC) 1841. The user can provision GPF-F framing (default) or

high-level data link control (HDLC) framing. With GFP-F framing, the user can also configure a 32-bit

CRC (the default) or no CRC (none). When LEX is used over GFP-F it is standard Mapped Ethernet over

GFP-F according to ITU-T G.7041. HDLC framing provides a set 32-bit CRC.

Figure 16-5 illustrates CE-100T-8 framing and encapsulation.

Figure 16-5 ONS CE-100T-8 Encapsulation and Framing Options

SONET/SDH Frame

SONET/SDH Payload EnvelopeTransport Overhead

LEX

HDLC Framing Mode GFP-F Framing Mode

Flag Address Control Protocol Payload FCS

Encapsulation GFP-Mapped

Ethernet (LEX)

GFP-F Frame Types

115444

Core

Header Payload

Header Payload FCS

16-10

Cisco ONS 15310-CL Ethernet Card Software Feature and Configuration Guide, R5.0 June 2005

Chapter 16 CE-100T-8 Ethernet Operation

CE-100T-8 SONET Circuits and Features

The CE-100T-8 card supports GFP-F null mode. GFP-F CMFs are counted and discarded.

The CE-100T-8 card is interoperable with the ML-100T-8 card and several other ONS Ethernet cards.

For specific details on ONS Ethernet card interoperability, refer to the “POS on ONS Ethernet Cards”

chapter of the Ethernet Card Guide Software Feature and Configuration Guide—for the ONS 15454,

ONS 15454 SDH and ONS 15327.

CE-100T-8 Loopback, J1 Path Trace, and SONET Alarms

The CE-100T-8 card supports terminal and facility loopbacks when in the Out of Service, Maintenance

state (OOS, MT). It also reports SONET alarms and transmits and monitors the J1 Path Trace byte in the

same manner as OC-N cards. Support for path termination functions includes:

•H1 and H2 concatenation indication

•C2 signal label

•Bit interleaved parity 3 (BIP-3) generation

•G1 path status indication

•C2 path signal label read/write

•Path level alarms and conditions, including loss of pointer, unequipped, payload mismatch, alarm

indication signal (AIS) detection, and remote defect indication (RDI)

•J1 path trace for high order paths

•J2 path trace for low order paths

•J2 path trace for low order VCAT circuits at the member level

•Extended signal label for the low order paths

Tabla de contenidos

Otros manuales de Tarjeta de red de Cisco

Cisco

Cisco Linksys WUSB600N Manual de usuario

Cisco

Cisco WPC600N - Ultra RangePlus Wireless-N PC Card Manual de usuario

Cisco

Cisco 7300-6T3 Manual del operador

Cisco

Cisco Linksys USB200M Manual de usuario

Cisco

Cisco PA-4C-E 1 Manual del operador

Cisco

Cisco PA-FE-FX Manual del operador

Cisco

Cisco LINKSYS WUSB54GR Manual de usuario

Cisco

Cisco Modular Gigabit Ethernet Line Card I Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco uBR10-MC5X20H Manual de usuario

Cisco

Cisco Linksys WMA11B Manual de usuario

Cisco

Cisco Valet Connector AM10 Manual de usuario

Cisco

Cisco DFC3B Manual de instalación y operación

Cisco

Cisco 12000 - Series Chassis Modular Expansion... Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco Media Gateway Controller Node Manager Manual de usuario

Cisco

Cisco MGX-FRSM-2CT3 Manual de usuario

Cisco

Cisco WAE-674-K9 - Wide Area Application Engine... Manual de usuario

Cisco

Cisco 7304 Series Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco WAN Interface Card Cable WIC-1DSU-T1 Manual de usuario

Cisco

Cisco PA-T3 Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco WUSB54GSC Manual de usuario

Cisco

Cisco uBR10-SRP-OC12SML Manual de usuario

Cisco

Cisco Gateway Controllers Instrucciones originales

Cisco

Cisco HWIC-4ESW - EtherSwitch HWIC Switch Manual de usuario

Cisco

Cisco MC16E Manual de usuario

Manuales populares de Tarjeta de red de otras marcas

FirstComm

FirstComm OBiWiFi5G Manual de usuario

Sun Microsystems

Sun Microsystems Interface Adapter Manual de usuario

TRENDnet

TRENDnet TU2-ETG Manual de usuario

YASKAWA

YASKAWA SI-EN3 Manual de usuario

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manual de usuario

Belkin

Belkin F5D7050 Manual de usuario

3Com

3Com EtherLink 3C509B Manual de usuario

TRENDnet

TRENDnet TEG-PCITX Manual de usuario

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manual de usuario

TwinMOS

TwinMOS Booming Manual de usuario

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manual de usuario

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manual de usuario

National Instruments

National Instruments NI 9234 Manual de usuario

Hama

Hama 49276 Manual de usuario

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manual de operación

Compaq

Compaq Wireless LAN 100 Manual de usuario

Bose

Bose PowerMatch Dante Manual de usuario

TRENDnet

TRENDnet TEG-PCITXR Manual de usuario
