Catalyst Matrix and Expansion Module

Installation and Conﬁguration Guide

78-2587-05 Rev. A0

This Guide discusses the following topics:

•Catalyst Matrix Module Installation

•Installing the Catalyst Switch Rear Stack Port Expansion Module

•Installing Catalyst Switch Front Expansion Modules

—WS-X3001, 100BaseTX

—WS-X3002, 4-port 10BaseT

—WS-X3003, 3-port 10BaseF

—WS-X3005, 100BaseF

—WS-X3006, ATM

—WS-X3007 and WS-X3008, 100VG AnyLAN

—WS-X3009 and WS-X3010, Dual-port Fast Ethernet with ISL

Catalyst Matrix Module Installation

A Catalyst Matrix module can be installed in either the left side, right side, or in both positions of the

Catalyst Matrix chassis. If a module fails, it can be replaced easily. The only tool needed is a #2 bit

Phillips screwdriver. The following procedure describes how to add or replace a Catalyst Matrix

module.

Note The Catalyst Matrix modules are hot-swappable. A module can be swapped with power

applied and when it is on-line to the system. However, if possible, try to avoid swapping an on-line

module during heavy trafﬁc. The switching time from an on-line module to an off-line module is

short; however, during extremely heavy trafﬁc it could cause an interruption of data. When it is

necessary to remove an on-line module, if possible, switch it off line when there is little or no trafﬁc.

Disconnect power from the module before removing it from the chassis.

2Catalyst Matrix and Expansion Module Installation and Conﬁguration Guide

Catalyst Matrix Module Installation

Use the following steps for installing or replacing a Catalyst Matrix module. If you are installing a

module into an open slot, proceed to Step 5.

Step 1 If there is a blank cover over the expansion module slot, remove it by unscrewing the two

attachment screws.

Step 2 Disconnect power from the module. (See previous note pertaining to power to the module.)

Step 3 Remove the screw located at the top center of the front of the module.

Step 4 Use the handle on the front of the module to pull the module straight out from the chassis.

Note The module may be ﬁrmly seated in the chassis; if so, you may need to exert reasonable force

to disengage the module.

Step 5 Insert the module into the open slot. In Figure 1, the secondary module is being inserted

into the unit. Place the bottom of the module against the bottom of the slot and slide the

module into the slot. You should feel some resistance as the module connector mates with

the Matrix connector. If you feel solid resistance, pull the module back a little and try again

while moving the module slightly to the left or right until you feel the two connectors

engage. After the connectors start to engage, you should be able to insert the module

approximately one-half inch further or until you feel hard resistance. The connectors

should be seated at that point. If the module fails to work properly, remove it and try this

step again.

Step 6 Install the screw at the top center of the module’s front plate.

Step 7 Connect the power cord to the module.

Step 8 Bring the module on line by pressing the ACTIVATE push-button.

Figure 1 Inserting a Secondary Module into a Catalyst Matrix

H5486

RDY

SWITCH

ID ACTIVATE

~LINE 50/60Hz

100-120VAC,1.5A

200-240VAC, .75A

ACTV

PWR

RDY

SWITCH

ID ACTIVATE

~LINE 50/60Hz

100-120VAC,1.5A

200-240VAC, .75A

ACTV

PWR

Catalyst Matrix and Expansion Module Installation and Configuration Guide 3

Installing the Catalyst Switch Rear Stack Port Expansion Module

ThefollowingsectionexplainstheinstallationanduseoftheCatalystStackPortconnectionmodule,

which enables two or more Catalyst switches to work together as a Stack.

Catalyst Stack Port

The Catalyst Stack Port is a single-port expansion module with a special 50-pin connector. (For a

detailed description of the Catalyst Stack refer to the Catalyst Stack Installation and Conﬁguration

Guide for your particular model.) With the Catalyst Stack Port, two types of Stacks can be created:

•Two Catalyst switches, each equipped with a Catalyst Stack Port module, can be combined into

a back-to-back Stack by connecting each module together using a single Stack Port cable. For

cablingtheStack Port module, see the following section, “Catalyst Stack Port Expansion Module

Cables.”

•More than two Catalyst switches, each equipped with a Catalyst Stack Port module, can be

combined into a Stack by connecting each module to a Catalyst Matrix unit. The Catalyst Matrix

supports a Stack of up to eight Catalyst switches.

Inserting the Catalyst Stack Port

The module can be inserted in its expansion slot as shown in Figure 2.

Figure 2 Inserting a Catalyst Stack Port Expansion Module

Caution Catalyst Stack Port modules are not hot-swappable. Always be sure that the power is off

before installing or removing a Catalyst Stack Port module. If the power is on, damage to the

equipment may result.

Caution Do not touch the components or connectors on the Catalyst Stack Port module. Do not

touch the connector pins on a cable when the other end is plugged into a component. Damage may

result from static discharge.

Caution During installation, the connector on the Catalyst Stack Port module must line up evenly

with the connector inside the expansion slot. Misalignment may cause the connector pins to bend.

When inserting the Catalyst Stack Port module into the expansion slot, be sure that the board is level

and that the left and right sides slide evenly into the slot.

SWITCH PROBE PORT DUPLEX

FULL

HALF

RST SYS REQ CONSOLE

1234 5 67 8 910 11 12 13 14 15 16

LINE 50/60Hz

100-120VAC, 1.5A

200-240VAC, 75A

H5295

4Catalyst Matrix and Expansion Module Installation and Conﬁguration Guide

Installing the Catalyst Switch Rear Stack Port Expansion Module

Use the following steps when installing a Catalyst Stack Port module into the rear expansion slot of

the Catalyst switch chassis.

Step 1 Disconnect the power to the Catalyst switch.

Step 2 Remove the cover (if there is a blank cover over the expansion module slot) by unscrewing

the two attachment screws.

Step 3 Hold the module by the edges to prevent static damage. Be careful not to touch the top or

bottom.

Step 4 Slide the module into the slot evenly, taking care to line up the edges with the guides.

Step 5 Seat the module by pressing the front of the module with your thumbs.

Step 6 Secure the module to the chassis by tightening the thumb (panel) screws at the left and right

edges of the expansion modules front panel. Do not overtighten the screws.

Step 7 Return power to the switch.

Catalyst Stack Port Expansion Module Cables

The Catalyst Stack Port module has a connector designed to accept special 50-pin Stack-port cables.

Do not attempt to use a SCSI-2 cable. For more information about these cables, contact Cisco

support.

Note When installing the Stack port cable connector, keep the connector straight as you insert it

into the Stack port connector. Inserting the connector at an angle may cause bent pins.

Catalyst Matrix and Expansion Module Installation and Configuration Guide 5

Installing Catalyst Switch Front Expansion Modules

This section covers the installation of the following expansion modules:

•WS-X3001, 100BaseTX

•WS-X3002, 4-port 10BaseT

•WS-X3003, 3-port 10BaseF

•WS-X3005, 100BaseF

•WS-X3006, ATM

•WS-X3007 and WS-X3008, 100VG AnyLAN

•WS-X3009 and WS-X3010, Dual-port Fast Ethernet with ISL

Caution Expansion modules are not hot-swappable. Always be sure that the power is off before

installing or removing an expansion module. If the power is on, damage to the equipment may result.

The 100BaseTX Expansion Module

The single-port 100BaseTX expansion module (WS-X3001) is used to connect to computers, hubs,

servers, and other high-speed network devices. The following sections explain the installation, cable

connection, and network connection for the 100BaseTX expansion module. For a functional

description of the 100BaseTX and the Catalyst switch, see the chapter that discusses the theory of

operation in the Catalyst Stack Installation and Conﬁguration Guide for your model of Catalyst

switch.

The 100BaseTX expansion module is shown in Figure 3.

Figure 3 100BaseTX Module

XMIT

RCV

LNK/FDX

DIAG 1

WS-X3001

FULL

HALF

DUPLEX

H4708

6Catalyst Matrix and Expansion Module Installation and Conﬁguration Guide

Installing Catalyst Switch Front Expansion Modules

Installing The WS-X3001 (100Base TX) Expansion Module

The modules can be inserted in either of the two expansion slots, as shown in Figure 4.

Use the following steps when installing a module into an expansion slot of the Catalyst chassis.

Caution The Catalyst expansion modules are not hot-swappable. Power must be disconnected

from the Catalyst chassis before an expansion module is inserted or removed.

Caution Do not touch the components or connectors on the expansion module. Do not touch cable

connector pins when the other end is plugged in. Damage may result from static discharge.

Caution During installation, the connector on the expansion module must line up evenly with the

connector inside the expansion slot. Misalignment may cause the connector pins to bend. When

inserting the module into the expansion slot, be sure that the board is level and that the left and right

sides slide evenly into the slot.

Step 1 Disconnect the power to the Catalyst switch.

Step 2 If there is a blank cover over the expansion module slot, or if the slot has an installed

module, remove it by unscrewing the two attachment screws.

Step 3 Hold the module by the edges to prevent static damage. Be careful not to touch the top or

bottom.

Step 4 Slide the module into the slot evenly, taking care to line up the edges with the guides.

Figure 4 Inserting a 100BaseTX Expansion Module

Step 5 Seat the module by pressing the front of the module with your thumbs.

Step 6 Secure the module to the chassis by tightening the thumb (panel) screws at the left and right

edges of the expansion modules front panel. Do not overtighten the screws.

Step 7 Return power to the switch.

PWR

DIAG

FAULT

XMIT

RCV

LNK/FDX

123456789 10 11 12 13 14 15 16

678910 11 12 13 14

MDIX

AUI

1MDI

1234515 16

XMT

RCV

LNK/FDX

DIAG 1

WS-X3001

FULL

HALF

DUPLEX

H4701

WS-X3001

XMT

RCV

LNK/FDX

DIAG

FULL

HALF

DUPLEX

Catalyst Matrix and Expansion Module Installation and Configuration Guide 7

Installing Catalyst Switch Front Expansion Modules

100BaseTX Expansion Module Cables

The 100BaseTX module’s network port is an RJ-45 connector that uses 100BaseTX cable.

Note 100BaseTX and 10BaseT cable have the same connectors and cable pinouts, but using one in

place of the other may cause system performance problems. 10BaseT is a Category 3 cable, and

100BaseTX is a Category 5 cable (physically, Category 5 cable is usually a little heavier or stiffer

than category 3 cable). Check to see if the cable type is printed on the cable jacket.

The 100BaseTX module’s network port is an RJ-45, 100BaseTX type that is always in MDI-X

mode. Cabling the 100BaseTX to different types of equipment that have MDI or MDI-X ports

requires different types of 100BaseTX cable. The cable types are described below.

•Straight-through cable: If the 100BaseTX is cabled to a port that is MDI, such as a server, use a

straight-through connecting cable.

•Crossover cable: If the 100BaseTX is cabled to a port that is also MDI-X, such as a high-speed

hub, use a crossover cable.

As a reference for 100BaseTX cable, use the 10BaseT cable information in “Appendix A” in the

Catalyst Stack Installation and Conﬁguration Guide.

Connecting Cables to 100 BaseTX Expansion Module Ports

Connect cables to the RJ-45 port on the front of the 100BaseTX module as follows:

Step 1 Determine if the unit is operating in half-duplex or full-duplex mode. If the Catalyst switch

is an enhanced version, see the section “Conﬁguring Full-Duplex Communications” in the

Catalyst Stack Installation and Conﬁguration Guide for a detailed explanation on how to

determine whether the communication mode is half- or full-duplex. The Catalyst switch

and the 100BaseTX operate in half-duplex mode only for unenhanced Catalyst switch

units. Set the DUPLEX switch on the front of the module to the appropriate position: down

for half-duplex, or up for full-duplex. Set to half-duplex only for unenhanced Catalyst

switch units.

Step 2 Determine that you have the correct cable. Refer to “Appendix A” in the Catalyst Stack

Installation and Conﬁguration Guide for a description of 100BaseTX cables.

Step 3 Connect a 100BaseTX cable from a hub or end-node device to the RJ-45 jack on the front

of the expansion module.

Step 4 Insert the cable’s 8-pin (RJ-45) plug into the jack until it clicks into place (see Figure 5).

8Catalyst Matrix and Expansion Module Installation and Conﬁguration Guide

Installing Catalyst Switch Front Expansion Modules

Figure 5 RJ-45 Connector Insertion

Checking the Installation

When the connection is established, the LNK/FDX LED is on: green in half-duplex mode, or yellow

in full-duplex mode. If the LED is not on, there may be a cable problem. Verify that you are using

the correct type of cable, then check if the cable is bad by trying a different one.

If, after installation, there is poor system performance or the 100BaseTX module does not work at

all, remove the module and check for any damage or bent connector pins. You may need a bright

light to see inside the expansion module slot to check for bent pins. Also, verify that the module is

set ﬁrmly in place. If you cannot ﬁnd an immediate cause for the problem, refer to the chapter that

discusses troubleshooting in the Catalyst Stack Installation and Conﬁguration Guide.

910 11 12

H4693

Catalyst Matrix and Expansion Module Installation and Configuration Guide 9

Installing Catalyst Switch Front Expansion Modules

100BaseTX Control Panel

The following tables describe the connectors, LEDs, and switches on the 100BaseTX module.

Table 1 100BaseTX Expansion Module Connector

Table 2 100BaseTX Expansion Module LEDs

Table 3 100BaseTX expansion Module Switch

Name Description

Network Port 8-pin, RJ-45, 100BaseTX

Name Description

XMIT A packet has been transmitted to the attached segment.

RCV A packet has been received from the attached segment.

LNK/FDX Off = link not detected.

Green = half-duplex,

Yellow = full-duplex (Enhanced version only).

DIAG Running diagnostic. In normal operation DIAG should be off.

Name Description

Duplex Establishes the communication mode of the network port if the

Catalyst 3000 is an enhanced version. Only set to half-duplex for

unenhanced versions.

Full-duplex (up) or half-duplex (down).

10 Catalyst Matrix and Expansion Module Installation and Conﬁguration Guide

Installing Catalyst Switch Front Expansion Modules

The 10BaseT Expansion Module

The four-port 10BaseT expansion module (WS-X3002) is used for connections to computers, hubs,

servers, and other network devices. The 10BaseT module is shown in Figure 6.

Figure 6 The 10BaseT Expansion Module

Inserting the 10BaseT

Expansion modules are installed in the expansion slots on the front of the Catalyst switch. All front

expansion modules are installed in a similar way. Use the previous section “Installing The

WS-X3001 (100Base TX) Expansion Module” as an example for detailed installation instructions

and precautions for the 10BaseT module.

10BaseT Expansion Module Cables

The 10BaseT module’s network ports are RJ-45 connectors that use 10BaseT cable.

Note 10BaseT and 100BaseTX cable have the same connectors and cable pinouts, but using one in

place of the other may cause system performance problems. 10BaseT is a Category 3 cable, and

100BaseTX is a Category 5 cable (physically, Category 5 cable is usually a little heavier or stiffer

than Category 3 cable). Check to see if the cable type is printed on the cable jacket.

The 10BaseT module’s network ports are RJ-45, 10BaseT types that are always in MDI-X mode.

Cabling the 10BaseT to different types of equipment that have MDI or MDI-X ports requires

different types of 10BaseT cable. The cable types are described below.

•Straight-through cable: If the 10BaseT is cabled to a port that is MDI, such as a server, use a

straight-through connecting cable.

•Crossover cable:If the 10BaseT is cabled to a port that is also MDI-X, such as a high-speed hub,

use a crossover cable.

For detailed information on 10BaseT cables see “Appendix A” in the Catalyst Stack Installation and

Conﬁguration Guide.

XMIT

10Mb/s

WS-X3002

RCV

DIAG

LNK/FDX 432

DUPLEX

FULL

HALF

11 22 33 44

H5747

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Cisco

Cisco

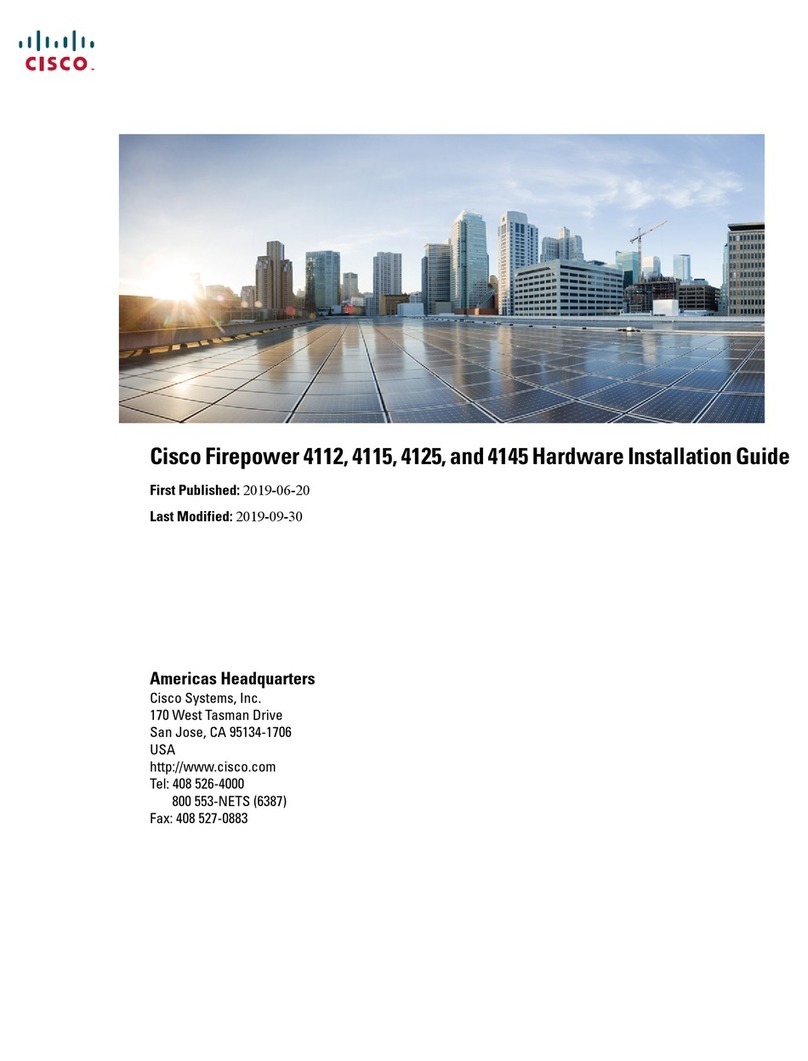

Cisco Firepower 4112 Manual

Cisco

Cisco WS-G5484 Manual de usuario

Cisco

Cisco Firepower 4110 Manual de usuario

Cisco

Cisco 7300-1OC12POS-MM Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco GS7000 Instrucciones de funcionamiento

Cisco

Cisco WS-SVC-ASA-SM1-K7 Manual de instalación y operación

Cisco

Cisco TelePresence MCU 4200 Series Manual de usuario

Cisco

Cisco 6015 Manual de uso y cuidado

Cisco

Cisco Catalyst 5000 Series Manual de usuario

Cisco

Cisco CSS 11500 Manual de servicio

Cisco

Cisco HPNA Manual de usuario

Cisco

Cisco GS7000 Manual del operador

Cisco

Cisco NM-1CT1 Guía de inicio rápido

Cisco

Cisco Catalyst 3110G Manual

Cisco

Cisco SM-X-1T3/E3 Manual de usuario

Cisco

Cisco Beacon Point Module Manual

Cisco

Cisco PA-VXA Series Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco MEM-NP8F Series Guía de inicio rápido

Cisco

Cisco TelePresence MCU 4500 Series Manual de usuario

Cisco

Cisco C3850-NM-4-1G Manual de instrucciones

Cisco

Cisco NM-1E2W Guía de inicio rápido

Cisco

Cisco T1 Manual de usuario

Cisco

Cisco ONS 15200 Manual de usuario

Cisco

Cisco T3 Guía de inicio rápido

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
