Circutor DHC-96 CPM Manual de usuario

INSTRUCTION MANUAL

DC Multimeter

DHC-96 CPM

(M246B01-03-19A)

DHC-96 CPM

Instruction Manual

DHC-96 CPM

SAFETY PRECAUTIONS

DANGER

Warns of a risk, which could result in personal injury or material damage.

ATTENTION

Indicates that special attention should be paid to a specific point.

Follow the warnings described in this manual with the symbols shown below.

If you must handle the unit for its installation, start-up or maintenance, the following should be

taken into consideration:

Incorrect handling or installation of the unit may result in injury to personnel as well as damage to the

unit. In particular, handling with voltages applied may result in electric shock, which may cause death

or serious injury to personnel. Defective installation or maintenance may also lead to the risk of fire.

Read the manual carefully prior to connecting the unit. Follow all installation and maintenance in-

structions throughout the unit’s working life. Pay special attention to the installation standards of the

National Electrical Code.

Refer to the instruction manual before using the unit

In this manual, if the instructions marked with this symbol are not respected or carried out correctly, it can result

in injury or damage to the unit and/or installations.

CIRCUTOR, SA reserves the right to modify features or the product manual without prior notification.

DISCLAIMER

CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set

out in this instruction manual without prior notice.

CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica-

tions and the most updated manuals.

www.circutor.com

CIRCUTOR, recommends using the original cables and accessories that are supplied

with the device.

DHC-96 CPM

Instruction Manual

CONTENTS

SAFETY PRECAUTIONS .........................................................................................................................................................3

DISCLAIMER ..........................................................................................................................................................................3

CONTENTS.............................................................................................................................................................................4

REVISION LOG .......................................................................................................................................................................6

SYMBOLS...............................................................................................................................................................................6

1. VERIFICATION UPON RECEPTION ....................................................................................................................................7

2. PRODUCT DESCRIPTION .................................................................................................................................................7

3. DEVICE INSTALLATION....................................................................................................................................................9

3.1.- PRIOR RECOMMENDATIONS ....................................................................................................................................9

3.2.- INSTALLATION ......................................................................................................................................................10

3.3.- DEVICE TERMINALS................................................................................................................................................11

3.4.- CONNECTION DIAGRAM......................................................................................................................................... 12

3.4.1.- DHC-96 CPM: CURRENT MEASUREMENT USING SHUNT ............................................................................. 12

3.4.2.- DHC-96 CPM-HS: CURRENT MEASUREMENT USING HALL EFFECT SENSOR .............................................. 13

4. OPERATION.................................................................................................................................................................... 14

4.1.- DISPLAY ................................................................................................................................................................. 14

4.2.- KEYBOARD FUNCTIONS ......................................................................................................................................... 14

4.3.- RELAY OUTPUTS ...................................................................................................................................................15

4.4.- ANALOG OUTPUT ..................................................................................................................................................15

4.5.- DIGITAL INPUTS ...................................................................................................................................................15

4.6.- DISPLAY................................................................................................................................................................. 16

4.6.1.- MAXIMUM & MINIMUM VALUES ..................................................................................................................... 17

4.6.2.- TOTALISERS .................................................................................................................................................... 17

5. CONFIGURATION ...........................................................................................................................................................18

5.1.- CONFIGURATION OF THE INPUT ........................................................................................................................... 20

5.1.1.- VOLTAGE DISPLAY VALUE................................................................................................................................ 20

5.1.2.- VOLTAGE MEASUREMENT RANGE ................................................................................................................... 21

5.1.3.- CURRENT DISPLAY VALUE.............................................................................................................................. 21

5.1.4.- CURRENT INPUT..............................................................................................................................................22

5.1.5.- SAVE CONFIGURATION ....................................................................................................................................22

5.2.- RS-485 COMMUNICATIONS...................................................................................................................................23

5.2.1.- MODBUS ADDRESS .........................................................................................................................................23

5.2.2.- BAUD RATE .....................................................................................................................................................24

5.2.3.- DATA FORMAT.................................................................................................................................................24

5.2.4.- SAVE CONFIGURATION....................................................................................................................................24

5.3.- ANALOG OUTPUT ..................................................................................................................................................25

5.3.1.- TYPE OF OUTPUT........................................................................................................................................... 26

5.3.2.- ANALOG OUTPUT PARAMETER..................................................................................................................... 26

5.3.3.- READING FOR THE START OF THE ANALOG OUTPUT .....................................................................................27

5.3.4.-READING FOR THE END OF THE ANALOG OUTPUT ........................................................................................ 28

5.3.5.- SAVE CONFIGURATION................................................................................................................................... 28

5.4.- RELAY OUTPUT 1 .................................................................................................................................................. 29

5.4.1.- RELAY MODE.................................................................................................................................................. 29

5.4.2.- RELAY PULSE DURATION ............................................................................................................................... 30

5.4.3.- ALARM PARAMETER ..................................................................................................................................... 30

5.4.4.- CONNECTION DELAY ....................................................................................................................................... 31

5.4.5.- ALARM VALUE................................................................................................................................................. 31

5.4.6.- HYSTERESIS....................................................................................................................................................32

5.4.7.- SAVE CONFIGURATION ...................................................................................................................................33

5.5.- RELAY OUTPUT 2 .................................................................................................................................................33

5.6.- CONFIGURATION OF THE DISPLAY ........................................................................................................................34

5.6.1.- LOGIN PASSWORD .......................................................................................................................................... 35

5.6.2.- CYCLIC DISPLAY ............................................................................................................................................ 35

5.6.3.- BACKLIGHT OF THE DISPLAY ........................................................................................................................ 35

5.6.4.- LIGHT ALARM ................................................................................................................................................ 36

5.6.5.-DISPLAY HOME SCREEN................................................................................................................................. 36

5.6.6.- DELETING THE MAXIMUM & MINIMUM VALUES ............................................................................................37

5.6.7.- DELETING THE ELECTRICAL CHARGE TOTALISERS .........................................................................................37

5.6.8.- DELETING THE ENERGY TOTALISERS............................................................................................................. 38

Instruction Manual

DHC-96 CPM

5.6.9.- SAVE CONFIGURATION.................................................................................................................................. 38

5.7.- SOFTWARE VERSION ............................................................................................................................................ 38

6. RS485 COMMUNICATIONS ..........................................................................................................................................39

6.1.- CONNECTIONS .......................................................................................................................................................39

6.2.- MODBUS PROTOCOL............................................................................................................................................. 40

6.2.1. READING EXAMPLE: FUNCTION 0x01.............................................................................................................. 40

6.2.2. EXAMPLE OF OPERATION OF THE REMOTE CONTROL: FUNCTION 0X05. ..................................................... 40

6.3.- MODBUS COMMANDS ........................................................................................................................................... 41

6.3.1.- MEASUREMENT VARIABLES AND DEVICE STATUS ......................................................................................... 41

6.3.2.- RELAY OUTPUTS .............................................................................................................................................42

6.3.3.- DIGITAL INPUTS ..............................................................................................................................................42

6.3.4.- REMOTE CONTROL OUTPUT (Relay output)...................................................................................................43

6.3.5.- DELETING VALUES..........................................................................................................................................43

6.3.6.- DEVICE CONFIGURATION VARIABLES .............................................................................................................44

7. TECHNICAL FEATURES ..................................................................................................................................................47

8. MAINTENANCE AND TECHNICAL SERVICE .................................................................................................................. 50

9. GUARANTEE ................................................................................................................................................................. 50

10. CE CERTIFICATE........................................................................................................................................................... 51

ANNEX A. CONFIGURATION MENU....................................................................................................................................54

DHC-96 CPM

Instruction Manual

REVISION LOG

Table 1: Revision log.

Date Revision Description

09/20 M246B01-03-19A Initial version

Note: Devices images are for illustrative purposes only and may differ from the actual device.

SYMBOLS

Table 2: Symbols.

Symbol Description

In compliance with the relevant European directive.

Device covered by European directive 2012/19/EC. At the end of its useful life, do not leave the

unit in a household waste container. Follow local regulations on electronic equipment recycling.

DC current

~AC current

Instruction Manual

DHC-96 CPM

1. VERIFICATION UPON RECEPTION

Check the following points when you receive the device:

a) The device meets the specifications described in your order.

b) The device has not suffered any damage during transport.

c) Perform an external visual inspection of the device prior to switching it on.

d) Check that it has been delivered with the following:

- An installation guide,

If any problem is noticed upon reception, immediately contact the transport com-

pany and/or CIRCUTOR’s after-sales service.

2. PRODUCT DESCRIPTION

The DHC-96 CPM is designed to measure and display the DC voltage, DC current, power, energy and

electric charge.

Depending on the input current, Circutor has two models:

DHC-96 CPM, current measurement using shunt.

DHC-96 CPM-HS, current measurement using a Hall effect sensor.

The device features:

- 4 keys that allow you to browse between the various screens and program the device.

- LED display, displays all parameters.

- 2 fully programmable relay outputs

- 2 digital inputs.

- 1 programmable analog output, voltage or current.

- Communications RS-485.

CIRCUTOR has different models, see Table 3.

DHC-96 CPM

Instruction Manual

Table 3: DHC-96 CPM Models.

Model Power Supply Analog output

80... 270 V ~ 80... 270 V 20... 60 V V A

DHC-96 CPM

M223A8   - - 

M223A80040000 - - -

M223AA   --

M223AA0040000 - -   -

DHC-96 CPM-HS

M223B8   - - 

M223B80040000 - - -

M223BA   --

M223BA0040000 - -   -

Instruction Manual

DHC-96 CPM

3. DEVICE INSTALLATION

3.1.- PRIOR RECOMMENDATIONS

In order to use the device safely, it is critical that individuals who handle it follow the

safety measures set out in the standards of the country where it is being used, use the

necessary personal protective equipment, and pay attention to the various warnings

indicated in this instruction manual.

The DHC-96 CPM device must be installed by authorised and qualified staff.

The power supply plug must be disconnected and measuring systems switched off before handling, al-

tering the connections or replacing the device. It is dangerous to handle the device while it is powered.

Also, it is critical to keep the cables in perfect condition in order to avoid accidents, personal injury and

damage to installations.

The device’s functionality is limited to the category of measuring voltage or specific current values.

The manufacturer of the device is not responsible for any damage resulting from failure by the user

or installer to heed the warnings and/or recommendations set out in this manual, nor for damage

resulting from the use of non-original products or accessories or those made by other manufacturers.

If an anomaly or malfunction is detected in the device, do not use it to take any measurements.

Disconnect the device from the power supply (device and measuring system power

supply) before maintaining, repairing or handling the device’s connections.

Please contact the after-sales service if you suspect that there is an operational fault

in the device.

DHC-96 CPM

Instruction Manual

3.2.- INSTALLATION

Terminals, opening covers or removing elements can expose parts that are hazard-

ous to the touch while the device is powered. Do not use the device until it is fully

installed.

The device should be installed inside an electric panel or enclosure, and panel-mounted.

To install it, take the following steps:

1.- Make a cut in the panel, according to the dimensions in Figure 1.

Figure 1: Cut in the panel.

2.- Remove the device’s fixing clips (Figure 2).

Clip de jación / Fixing clip

Figure 2: Fixing clips.

3.- Insert the device into the cut in the panel.

4.- Fit the fixing clips until the device is fixed to the panel.

The device should be connected to a power circuit protected by a fuse with a maximum nominal cur-

rent of 0.25 A.

Otros manuales para DHC-96 CPM

Tabla de contenidos

Otros manuales de Multímetro de Circutor

Circutor

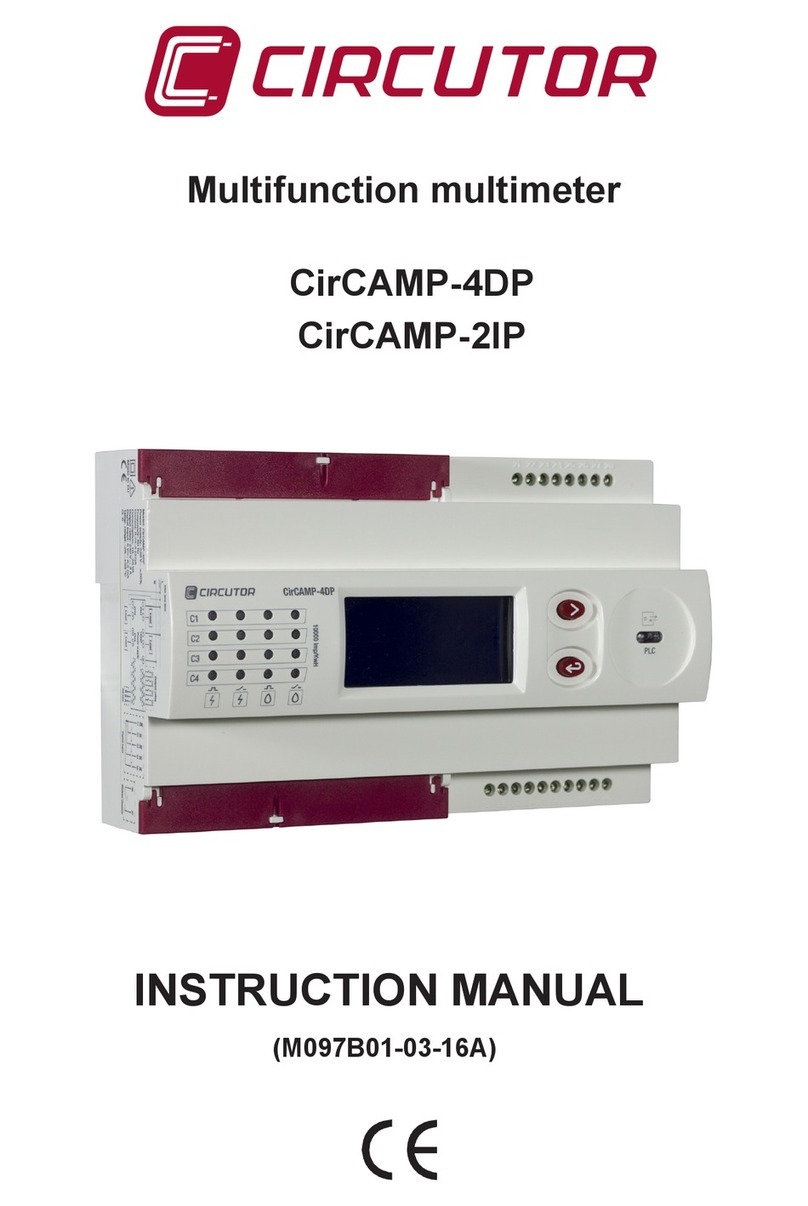

Circutor CirCAMP-4DP Manual de usuario

Circutor

Circutor DHC-96 CPM Manual de usuario

Circutor

Circutor CPM M80430 Manual de usuario

Manuales populares de Multímetro de otras marcas

Agilent Technologies

Agilent Technologies 34420A Manual de usuario

Fluke

Fluke 83 Manual de usuario

Hameg

Hameg HM 8012 Manual de usuario

Mastech

Mastech MY70 Manual de usuario

Steren

Steren MUL-300 Manual de usuario

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manual de usuario

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manual de usuario

PeakTech

PeakTech 4000 Manual de uso y cuidado

YOKOGAWA

YOKOGAWA 90050B Manual de usuario

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manual de usuario

Fluke

Fluke 8846A Manual de operación y mantenimiento

Tempo Communications

Tempo Communications MM200 Manual de usuario

Elenco Electronics

Elenco Electronics CM-1555 Manual de usuario

Mastech

Mastech MS8238C Manual de usuario

SDAR

SDAR 830A, 830B, 830D, 830C Manual de usuario

RS PRO

RS PRO RS-9519BT Manual de usuario

BGS technic

BGS technic 8890 Manual de usuario

Amprobe

Amprobe Hexagon 60 Manual de usuario
