CHIEF PWS Manual de usuario

Plasma Wall Swing-Out (PWS)

Wall Mount

The PWS wall mount is a rugged, versatile, and installer-friendly

solution to unique display mounting requirements. This instruction

manual contains instructions for Model PWS2000.

With the PWS securely mounted on a wall, simply hang your display

like a picture (vertical or horizontal). Using the Q-latch mounting sys-

tem permits you to hang and secure your display quickly.

The PWS allows you pull your display out 23.5” from the wall, pivot

it up to 90 degrees left or right of center, traverse up to 22” left or

right of center, and adjust the pitch 5 degrees up and 15 degrees down.

The PWS also provides 2 degrees roll adjustment right and left for

screen leveling.

Two electrical box openings in the wall plate is provided for cabling.

The cable tray hides cables for aesthetics and cable protection.

BEFORE YOU BEGIN

•Caution: To prevent damage to the PWS, which could affect or void the Factory warranty, and to the equipment that

will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay particu-

lar attention to the “Important Warnings and Precautions” on Page 1.

• The maximum weight to be installed on the PWS wall mount is 100 pounds (45.36Kg).

• The PWS wall mount is designed to be installed using wall studs or supporting framework. The wall to which the PWS wall

mount is anchored must be capable of supporting four times the total weight of the mount and all attached equipment.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PARKWAY, STE. 700

SAVAGE, MINNESOTA 55378 USA

PART NO. 8831-000003 (Rev. H)

www.chiefmfg.com

11-04

INSTALLATION INSTRUCTIONS

Installation Instructions PWS

IMPORTANT WARNINGS AND PRECAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-

sponding instructions.

•WARNING:Improper installation can result in serious personal injury! Make sure that the structural members can

support a redundant weight factor four times the total weight of the equipment: if not, reinforce the struc-

ture before installing the PWS.

•WARNING:Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.

•WARNING:The installer is responsible for verifying that the wall, to which the PWS is anchored, will safely support

the combined load of all attached components or other equipment.

•WARNING:The weight of the display placed on the PWS must not exceed 100 lbs. (45.36 kg), the maximum load

capacity of the PWS.

•WARNING:Watch for pinch points. Do not put your fingers between movable parts.

•CAUTION: Check the unit for shipping damage before you begin the installation.

NOTE: Hardware for attaching this unit to the wall is not supplied.

TOOLS REQUIRED FOR INSTALLATION

• Electric drill and bit set

• Socket set with extension and open wrenches

NOTE: Other tools may be required depending on the

method of installing the mount on the wall.

CONTENTS

DIMENSIONAL DRAWING ........................................ 2

INSPECT THE UNIT BEFORE INSTALLING ............ 3

PWS INSTALLATION ................................................ 3

MOUNT THE DISPLAY ............................................. 5

ADJUSTMENTS ........................................................ 4

Rotational Adjustment ......................................................... 4

Pitch Adjustment ................................................................. 4

Horizontal Adjustment ........................................................ 4

REMOVE THE DISPLAY ........................................... 4

Installation Instructions PWS

DIMENSIONAL DRAWING

PWS Backing Plate Dimensions

Installation Instructions PWS

INSPECT THE UNIT BEFORE INSTALLING

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

1. Carefully inspect the PWS for shipping damage. If any damage

is apparent, call your carrier claims agent and do not continue

with the installation until the carrier has reviewed the damage.

NOTE: Read all instructions before starting installation.

2. Lay out components to ensure you have all the required parts

before proceeding:

1 PWS (see PWS dimensional drawing on page 2)

PWS INSTALLATION

WARNING: It is the responsibility of the installer to verify that

the wall to which the PWS is anchored will safely

support the combined load of all attached compo-

nents and equipment.

CAUTION: DO NOT attempt to mount the Flat Panel Display in

an inverted position. Mounting the Flat Panel Display

in an inverted position may cause overheating and

extensive damage to the Flat Panel Display.

Install the PWS as follows:

1. Determine the exact mounting location prior to installation,

considering the unit’s total swing arm radius.

2. Using the wall plate as a pattern, transfer the mounting hole

pattern to the wall.

NOTE: Notice the wall plate has a nominal hole (2”X4”) to

accommodate a duplex wall outlet.

3. Drill pilot holes at the desired height.

WARNING: Improper installation can result in serious per-

sonal injury! Make sure that the structural mem-

bers can support a redundant weight factor five

times the total weight of the equipment: if not,

reinforce the structure before installing the PWS.

4. With the PWS correctly oriented and level, secure the PWS to

the wall using a minimum of four fasteners (not included). Fas-

teners must be driven into the supporting wall studs or other

supporting framework.

Installation Instructions PWS

MOUNT THE DISPLAY

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

1. For Model PWS2000 only, follow the instructions for installing

the PSB bracket(s) of your specific flat panel display.

2. Before lifting your flat panel display, make sure the latch of the

PWS is lowered and will not interfere with mounting the dis-

play (see Figure 1).

3. Using two people, align the Q-latch buttons with the Q-latch

openings and install the display. Make sure the buttons of the

Q-latch bracket fully engage all the Q-latch openings on the

PWS (see Figure 2).

4. Secure the display to the PWS by completely engaging the

latch (see Figure 3).

5. Connect and secure power/audio/video cables, making sure to

leave sufficient slack to allow for movement of the swing arms.

ADJUSTMENTS

Rotational Adjustment

1. If necessary, loosen or tighten bottom rotational tilt tension

adjustment nut (see Figure 4).

2. Mount the display and check for desired rotational tilt tension.

3. Repeat Steps 1 and 2 until desired rotational tilt tension is

obtained.

Pitch Adjustment

1. Turn the T-knob handle until desired angle is achieved.

2. Make sure the carriage bolt is properly seated.

Horizontal Adjustment

1. Turn the display to desired horizontal position (max. 90

degrees).

2. Pull display from wall or push display back to wall.

REMOVE THE DISPLAY

1. Disconnect power/audio/video cables.

2. Disengage (lower) the latch.

3. Using two people, lift the display from the PWS.

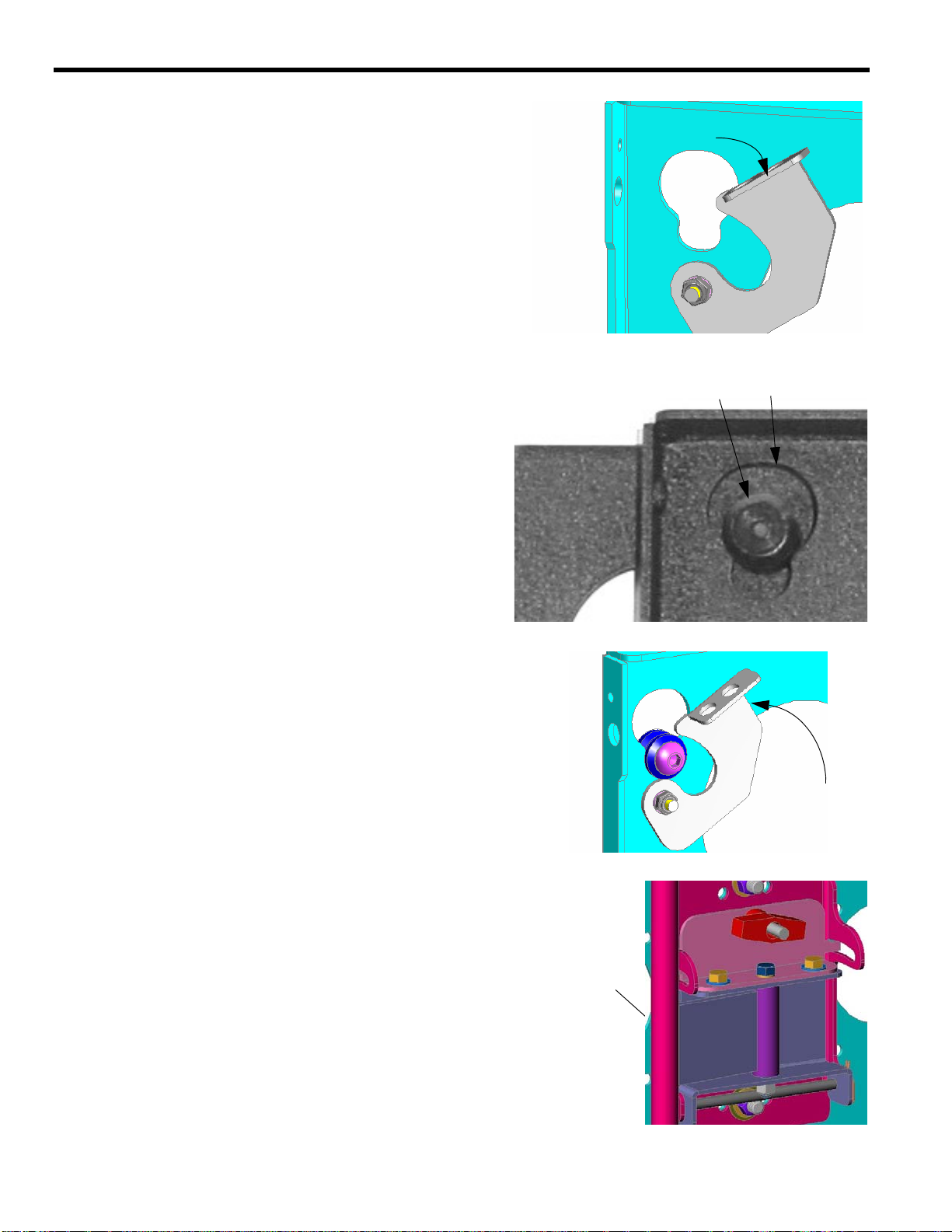

Make sure latching flag is lowered

FIGURE 1. LOWER LATCH

Q-latch Opening

Back of Display

PWS

Q-latch Button

FIGURE 2. ENGAGE Q-LATCH

Back of Display

PWS

Raise latch

FIGURE 3. RAISE LATCH

Adjust Rotation

FIGURE 7. ADJUST ROTATION
