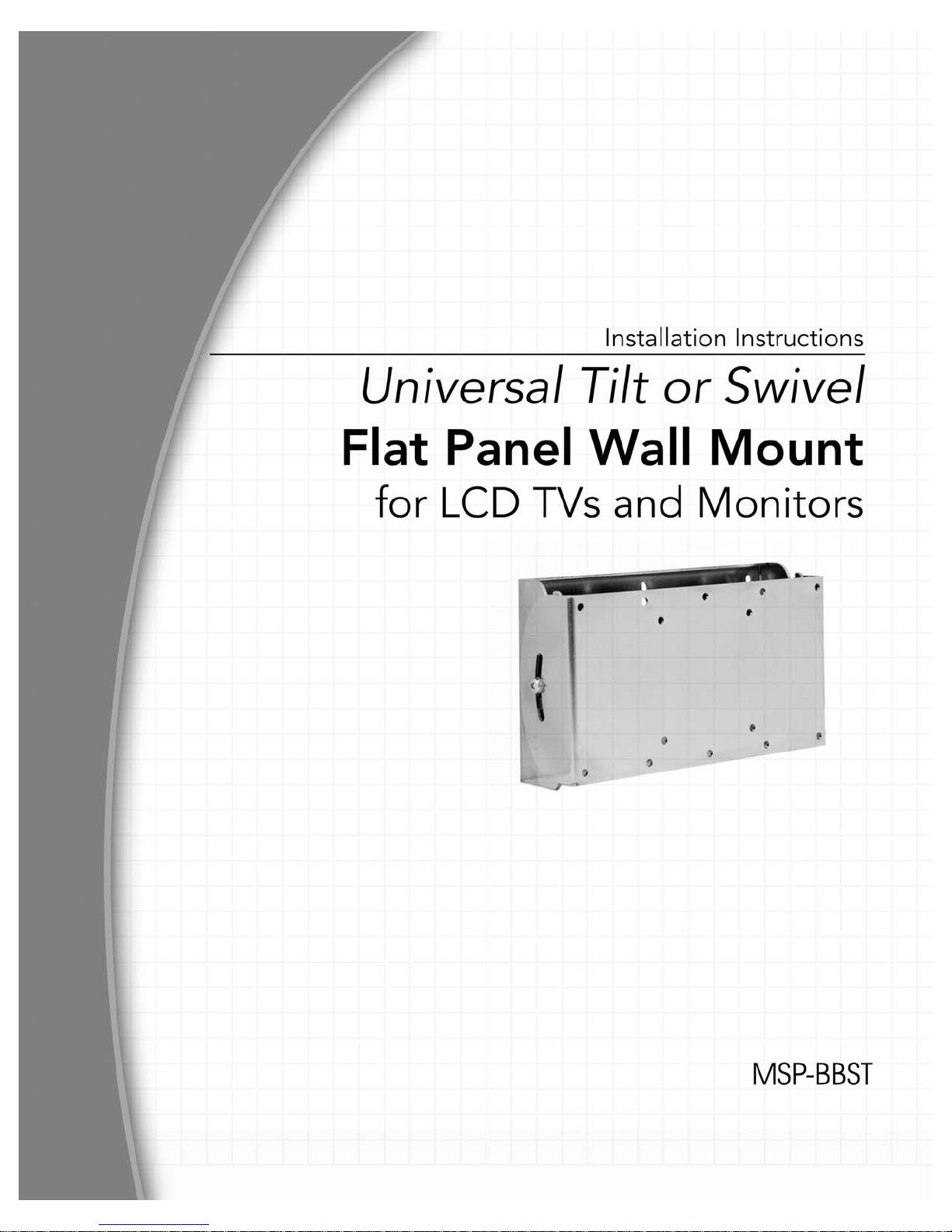

Installation Instructions MSP-BBST

IMPORTANT WARNINGS and CAUTIONS!

WARNING A WARNING alerts you to the possibility of serious injury or death if you do not follow

the instructions.

CAUTION ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not

follow the corresponding instructions.

WARNING Improper installation can result in serious personal injury! Make sure that the

mounting surface can support a redundant weight factor five times the total weight of

the equipment. If not, reinforce the mounting surface structural members before

installing the mount.

WARNING Be aware of the potential for personal injury or damage to the unit if it is not

adequately mounted.

WARNING The installer is responsible for verifying that the mounting surface to which the

mount is anchored will safely support the combined load of all attached components

or other equipment.

WARNING Weight Specifications (see Table 1).

WARNING Watch for pinch points. Do not put your fingers between movable parts.

WARNING Make sure the mount is correctly oriented.

CAUTION Check the unit for shipping damage before you begin the installation.

CAUTION If your monitor uses a longer screw size other than those included in the kit, DO NOT use

the screws provided with the mount. Use the screws provided with your monitor or contact

the manufacturer. Using the wrong screws could result in damage to your monitor.

WEIGHT SPECIFICATIONS

Table 1 contains the weight specifications for the various tilt mount VESA configurations.

Table 1. Weight Specifications

VESA HOLE

PATTERN 4-HOLE 6-HOLE

FLUSH

MOUNT

RECESSED

MOUNT

MAX SUPPORT

WEIGHT

75MM X 75MM X X X 45

LBS. (20.4KG)

100MM X 100MM X X X 45

LBS. (20.4KG)

200MM X 100MM X X X 45

LBS. (20.4KG)

200MM X 200MM X X 45

LBS. (20.4KG)

Installation Instructions MSP-BBST

CONTENTS

WEIGHT SPECIFICATIONS..........................................2

TOOLS REQUIRED FOR INSTALLATION....................3

TILT MOUNT KIT ...........................................................4

Tilt Mount Without Bracket Adapters..........................5

Tilt Mount With Bracket Adapters...............................5

INSTALLATION..............................................................6

Wall Stud Installation (Step 1) ....................................6

Attaching the VESA Bracket to the Display (Step 2) ..6

Flush Mount (Without Bracket Adapter)..................7

Recessed Mount .....................................................8

Flush Mount (With Bracket Adapter).......................9

Mounting the Display on the Wall Bracket (Step 3)....10

Locking the Display on the Wall Bracket (Step 4) ......10

TOOLS REQUIRED FOR

INSTALLATION

• Phillips screwdriver

• Drill and drill bits

NOTE: Other tools may be required depending on your

method of installation.

Installation Instructions MSP-BBST

TILT MOUNT KIT

Unpack the carton. Verify the kit contents shown in Table 2. Read installation instructions completely. If you are

missing any of the listed components, please contact Customer Service at 1-800/582-6480.

Table 2. Tilt Mount Kit

ITEM

NUMBER DESCRIPTION QTY NOTES

10 BRKT, VESA TILT INTERFACE 1

20 BRKT, WALL TILT MOUNT 1

30 PHILLIPS HEAD WOOD SCREW, 2-1/2” 2 SINGLE STUD

MOUNTED

40 NYLON WASHER 2

50 PHILLIPS PAN HEAD MACHINE SCREW, M5 X 10MM 2

TILT

ADJUSTMENT

PHILLIPS PAN HEAD MACHINE SCREW, M4 X 12MM

6 FLUSH MOUNT

PHILLIPS PAN HEAD MACHINE SCREW, M4 X 12MM 4

200MM X 200MM

MOUNT

70 PHILLIPS PAN HEAD MACHINE SCREW, M4 X 20MM

(USE WITH 80 OR 110) *

80 3/8” NYLON SPACER 6

90 PHILLIPS PAN HEAD MACHINE SCREW, M4 X 30MM

(USE WITH 100) **

100 3/4” NYLON SPACER 6

110 1/8” NYLON SPACER (USE WITH 90) *** 6

RECESSED

MOUNT

120 BRACKET ADAPTER 2

130 WASHER, M4 4

140 PHILLIPS PAN HEAD MACHINE SCREW, M6 X 10MM 4

150 PHILLIPS PAN HEAD MACHINE SCREW, M4 X 5MM 4

200MM X 200MM

MOUNT

• *Use M4 x 20mm screws (70) with spacers (80) for recessed mount applications.

• **Use M4 x 30mm screws (90) with spacers (100) for recessed mount applications.

• ***Use M4 x 20mm screws (70) with spacers (110) for recessed mount applications.

Installation Instructions MSP-BBST

Tilt Mount Without Bracket Adapters

Tilt Mount With Bracket Adapters

100mm x 100mm

75mm x 75mm

200mm x 100mm

VESA CHART (WITHOUT BRACKET ADAPTERS)

VESA HOLE

PATTERN 4-HOLE 6-HOLE

FLUSH

MOUNT

RECESSED

MOUNT

75MM X 75MM X X X

100MM X 100MM X X X

200MM X 100MM X X X

VESA CHART (WITH BRACKET ADAPTERS)

VESA HOLE

PATTERN 4-HOLE

FLUSH

MOUNT

200MM X 200MM X X

200mm x 200mm

Installation Instructions MSP-BBST

INSTALLATION

The following procedures describe how to install the

tilt mount.

NOTE: Read “Warnings and Cautions” on Page 2.

Wall Stud Installation (Step 1)

Install the wall bracket on a wall stud, as follows:

1. Determine the exact mounting location prior to

installation, considering screen size as well as

the mount swing and extension radius.

2. Position the wall bracket (20) as desired.

NOTE: Mark the mounting holes as accurately as

possible before drilling the holes. The holes

must be centered for the wall bracket to fit

correctly on the wall.

3. Locate stud and, using wall bracket (20) as a

template at the desired height, mark the location

of the two center mounting holes.

4. Using the two wood screws (30), secure wall

bracket (20) to wall.

Attaching the VESA Bracket to the

Display (Step 2)

Depending on the VESA hole-pattern on your

display, select the applicable set of instructions,

listed below, to attach the VESA bracket to your

display:

• Flush Mount (Without Bracket Adapter)

− 75mm/75mm compliant displays

− 100mm/100mm compliant displays

− 200mm/100mm compliant displays

• Recessed Mount (spacers are used)

− 75mm/75mm compliant displays

− 100mm/100mm compliant displays

− 200mm/100mm compliant displays

• Flush Mount (With Bracket Adapter)

− 200mm/200mm compliant displays

CAUTION:

If monitor uses a screw size other than those

included in the kit, DO NOT use the screws provided.

Using the wrong screws could result in damage to

your monitor.

Figure 1. Installing Wall Bracket — Wall Stud

Center

Mounting

Holes

Mounting

Hole

Installation Instructions MSP-BBST

Flush Mount (Without Bracket Adapter)

To attach the VESA bracket using the recessed

mount procedure, do the following:

1. Place the VESA bracket (10) on the display.

2. Align the hole-pattern of your display with the

hole-pattern on the VESA bracket (10).

3. Attach VESA bracket (10) to the display using six

M4 X 10mm screws (50) provided.

Figure 2. Flush Mount

200mm/100mm Display (shown)

Installation Instructions MSP-BBST

Recessed Mount

To attach the VESA bracket using the recessed

mount procedure, do the following:

1. Refer to the applicable table (listed below) and

select six screws and six spacers.

• See to Table 3 for 75mm/100mm and

100mm/100mm compliant displays.

• See Table 4 for 200mm/100mm compliant

displays.

2. Select option 1, 2, or 3 to pick the applicable

screw and spacer combination.

3. Set six spacers over the four mounting holes on

your monitor (see Figure 3. Recessed Mount

200mm/100mm Display (shown)).

4. Set VESA interface bracket (10) on top of

spacers and install six screws into the mounting

holes of your display.

Table 3. 75mm/75mm and 100mm /100mm

Compliant Displays

OPTION SCREW QTY SPACER QTY

1 70 4 80 4

2 90 4 100 4

3 70 4 110 4

Table 4. 200mm/100mm Compliant Displays

OPTION SCREW QTY SPACER QTY

1 70 6 80 6

2 90 6 100 6

3 70 6 110 6

Figure 3. Recessed Mount

200mm/100mm Display (shown)

NOTE:

For additional

information,

see VESA

Chart, page 5

Screws

Spacers

Installation Instructions MSP-BBST

Flush Mount (With Bracket Adapter)

To attach the VESA bracket using the recessed

mount procedure, do the following:

1. Select the two bracket adapters (120), four

washers (130), and four screws (refer to the

Table 5) that will be used to install the VESA

bracket for 200mm/200mm compliant displays.

2. Align the two bracket adapters (120) with the

200mm/200mm hole-pattern of your display.

3. To attach the two bracket adapters (120) to your

display, use one of the following options:

a. Four M6 X 10mm screws (140). Or,

b. Four M4 X 12mm screws (60) and four M4

washers (130).

4. Place the VESA bracket (10) on the two bracket

adapters (120).

5. Align the VESA bracket (10) with the hole-pattern

on the two bracket adapters (120).

6. Attach VESA bracket (10) to the two bracket

adapters (120) using four M4 X 5mm screws

(150).

7. Tighten (do not over-tighten) the screws.

Table 5. 200mm /200mm Compliant Displays

ITEM DESCRIPTION QTY NOTES

120 BRACKET ADAPTER 2 2

130 WASHER, M4 (USE WITH 60) 4 4

140 PHILLIPS SCREW, M6 X 10MM 4

60 PHILLIPS SCREW, M4 X 12MM 4

BRACKET

ADAPTER

TO DISPLAY

150 PHILLIPS SCREW, M4 X 5MM 4

VESA

BRACKET

ADAPTER

Figure 4. Flush Mount — 200mm x 200mm Compliant Displays

130

Installation Instructions MSP-BBST

Mounting the Display on the Wall

Bracket (Step 3)

To mount the display on the wall bracket, do the

following:

1. With an assistant (if necessary), lift the display up to

the wall bracket (20) over the four mounting pins.

2. Align the mounting pins on the display with the slots

in the wall bracket (20), and set the display into

place.

3. Verify that the display tilts on the wall bracket (20).

Locking the Display on the Wall

Bracket (Step 4)

To lock the display on the wall bracket, do the following:

1. Assemble a washer (40) over each M5 screw (50).

Install the two M5 (50) screw assemblies into the

tapped holes located on the side of the wall bracket

(20).

2. Set the display into the desired position. Tighten the

M5 screw (50) until friction holds the display

stationary.

Figure 5. Assemble the Brackets

Figure 6. Install the M5 Screw

Tapped

Hole

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rack y soporte de CHIEF

CHIEF

CHIEF MSP-TDKCG110 Manual de usuario

CHIEF

CHIEF SSB-298 Manual de usuario

CHIEF

CHIEF KTA-1007 Manual de usuario

CHIEF

CHIEF Fusion FCA801 Manual de usuario

CHIEF

CHIEF NS1F1223 Manual de usuario

CHIEF

CHIEF FCA500 Manual de usuario

CHIEF

CHIEF CSMP9X12 Manual de usuario

CHIEF

CHIEF CMA101 Manual de usuario

CHIEF

CHIEF RMF Manual de usuario

CHIEF

CHIEF Universal Slat Wall Multi Arm Mount KSY220 Manual de usuario

CHIEF

CHIEF Kontour KRA243 Manual de usuario

CHIEF

CHIEF PSM2613 Manual de usuario

CHIEF

CHIEF PAC511 Manual de usuario

CHIEF

CHIEF J Series Manual de usuario

CHIEF

CHIEF PNRIW Series Manual de usuario

CHIEF

CHIEF D8089 Manual de usuario

CHIEF

CHIEF Ceiling Plate CMA-330 Manual de usuario

CHIEF

CHIEF PSMH-2046 Manual de usuario

CHIEF

CHIEF KRA225 Manual de usuario

CHIEF

CHIEF LCD2C Manual de usuario

CHIEF

CHIEF Flat Panel Display Security Kit FSA-100 Manual de usuario

CHIEF

CHIEF FSR Series Manual de usuario

CHIEF

CHIEF MWR Manual de usuario

CHIEF

CHIEF JWP-210 Manual de usuario

Manuales populares de Rack y soporte de otras marcas

Salamander

Salamander Acadia AC/W/L400/WH Manual de usuario

Fohhn

Fohhn VAT-09 Guía del usuario

ricoo

ricoo FS0522 Manual de usuario

AMSOIL

AMSOIL BMK-22 Guía rápida

Kargo Master

Kargo Master 48220 Manual de usuario

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manual de usuario

ricoo

ricoo S1222 Manual de usuario

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manual de usuario

VidaBox

VidaBox VB MNT FFS2 Manual de usuario

Welch Allyn

Welch Allyn 48960 Manual de usuario

Arkon

Arkon CM035-ST-2 Manual de usuario

PROEL

PROEL PLWIN60C Manual de usuario

Agilent Technologies

Agilent Technologies E2609B Manual de usuario

Mustang

Mustang MV-ARM4 Manual de usuario

Mounting Solutions

Mounting Solutions WRM-320 Manual de usuario

Pyle

Pyle PMKSPAD1 Manual de usuario

ShelterIt

ShelterIt 21208 Manual de usuario

SPL

SPL RackPack?4 1040 Manual de usuario
