CHIEF PSM-2230 Manual de usuario

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918 2003 Chief Manufacturing

12800 HIGHWAY 13 SOUTH, SUITE 500 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 01/03

PLASMA DISPLAY STATIC MOUNT

PSM-2230, PSM-2231 & PSM-2232

(1) Bracket, Plasma Mounting, Static (1) 10-24 x .5 FH Undercut Screw

(1) Latching Flag (1) 10-24 Nylock Nut

(6) Mounting Buttons, Steel, Silver (6) M6 x 25mm Phillips Head Cap Screws

(1) Nylon Washer .250" OD x .1875" ID x .0312" (6) M6 x 30mm Button Head Cap Screws

(6) Nylon Spacer, .750 x .250ID x .25” (4) Rubber Bumpers

(1) M4 Allen Key

NOTE: Not all parts are used for every application.

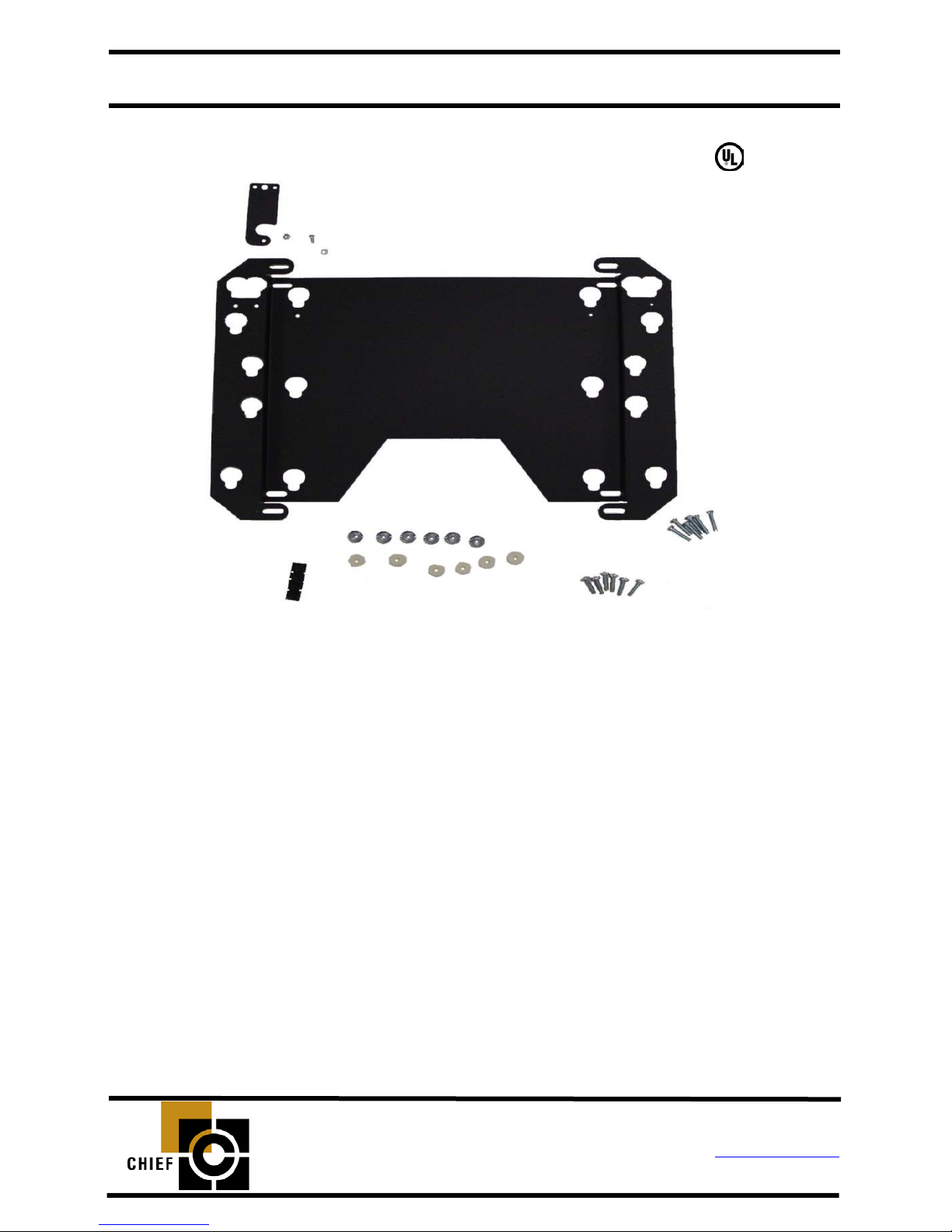

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read

installation instructions completely. If you are missing any of the listed components, please

contact Customer Service at 1-800/582-6480.

PLASMA DISPLAYS ARE EXTREMELY FRAGILE.

CAUTION!

Figure 1

PSM 2230

42” 4:3 Aspect Ratio Plasma

1. Attach six Nylon spacers and mounting buttons to plasma using six M6 x 30mm button head

screws provided (see Figure 2

2. Secure latching flag to Plasma Static Mount using .250" OD x .03125" ID x .0312" Nylon

Washer, 10-24 x .5 FH Undercut Screw, and 10-24 Nylock Nut (see Figure 3).

3. Install four rubber bumpers as shown in Figure 4.

ALL COMPONENTS MUST BE SECURELY FASTENED

TO A STRUCTURAL MEMBER CAPABLE OF

SUPPORTING 4 TIMES THE COMBINED WEIGHT OF

ALL COMPONENTS PLUS THE EQUIPMENT BEING

MOUNTED. IF IT CANNOT SUPPORT THIS WEIGHT,

THE STRUCTURE MUST BE REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

MOUNT IS 150 POUNDS (68.04 KG).

4. Securely anchor the plasma static mount to the wall using wall studs or supporting

framework (see WARNING).

5. Make sure the flag is lowered to the side before attempting to place the plasma on the mount.

With the aid of another person, lift the plasma display up to the mount, align the mounting buttons on

the plasma with the teardrop slots in the mount, and set the plasma into place (see Figure 5).

7. Position (raise) the flag

to secure the plasma.

This side toward

display

Rubber Bumpers

Align Mounting

Buttons with

Teardrop Slots

This side

toward wall

Anchor to wall

using four slots

OTE: Mount shown

light color for better viewing

Figure 4 Figure 5

Figure 2

ylon Space

Mounting Button

M6 x 30mm Cap Screw

Here

Figure 3

10-24 Nylock Nut

installed from

underside

Latching Flag

ylon Washer

between flag & mount

10-24 x .5 FH

Undercut Screw

WARNNG!

PSM 2231

46” Plasma

1. Attach six mounting buttons to plasma using six M6 x 25mm Phillips head screws

provided (see Figure 6

2. Secure latching flag to Plasma Static Mount using .250" OD x .1875" ID x .0312" Nylon

Washer, 10-24 x .5 FH Undercut Screw, and 10-24 Nylock Nut (See Figure 7).

3. Install four rubber bumpers as shown in Figure 8.

ALL COMPONENTS MUST BE SECURELY FASTENED

TO A STRUCTURAL MEMBER CAPABLE OF

SUPPORTING 4 TIMES THE COMBINED WEIGHT OF

ALL COMPONENTS PLUS THE EQUIPMENT BEING

MOUNTED. IF IT CANNOT SUPPORT THIS WEIGHT,

THE STRUCTURE MUST BE REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

MOUNT IS 150 POUNDS (68.04 KG).

Securely anchor the plasma static mount to the wall using wall studs or supporting framework.

5. Make sure the flag is lowered to the side before attempting to place the plasma on the mount.

With the aid of another person, lift the plasma display up to the mount, align the mounting buttons on

the plasma with the teardrop slots in the mount, and set the plasma into place (see figure 9).

7. Position (raise) the flag

to secure the plasma.

Mounting Button

M6 X 25mm Phillips Screw

Here

Align Mounting

Buttons with

Teardrop Slots

Anchor to wall

using four slots

Figure 6

Figure 9

Figure 7

10-24 Nylock Nut

installed from

Latching Flag

(Note outer

hole location

)

ot here

ylon Washer

etween fla

& moun

10-24 x .5 FH

Undercut Screw

Figure 8

Install Rubber

Bumpers

WARNNG!

PSM 2232

42” 16:9 Aspect Ratio Plasma

1. Attach six mounting buttons to plasma using six M6 x 25mm Phillips head screws provided

(see Figure 10

2. Secure latching flag to Plasma Static Mount using .250" OD x .1875" ID x .0312" Nylon

Washer, 10-24 x .5 FH Undercut Screw, and 10-24 Nylock Nut (See Figure 11).

ALL COMPONENTS MUST BE SECURELY FASTENED

TO A STRUCTURAL MEMBER CAPABLE OF

SUPPORTING 4 TIMES THE COMBINED WEIGHT OF

ALL COMPONENTS PLUS THE EQUIPMENT BEING

MOUNTED. IF IT CANNOT SUPPORT THIS WEIGHT,

THE STRUCTURE MUST BE REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

MOUNT IS 150 POUNDS (68.04 KG).

Securely anchor the plasma static mount to the wall using wall studs or supporting framework.

4. Install four rubber bumpers as shown in Figure 12.

5. Make sure the flag is lowered to the side before attempting to place the plasma on the mount.

With the aid of another person, lift the plasma display up to the mount, align the mounting buttons on

the plasma with the teardrop slots in the mount, and set the plasma into place (see Figure 13).

7. Position (raise) the flag

to secure the plasma.

Figure 10 Figure 11

Latching Flag

(Note inner

hole location

)

10-24 x .5 FH

Undercut Screw

ylon Washer

between flag &

mount

10-24 N

lock Nut installed

from underside

Mounting Buttons

Here

Anchor to wall

using four slots

Align Mounting

Buttons with

Teardrop Slots

Figure 13

Install Rubber

Bumpers

Figure 12

WARNNG!
