Cherry G83-14401LPAUS-0 Manual de usuario

Main Applications

-Rack Mount Systems

-Airlines

-Education/Schools

-Banking

-Medical Equipment

-Automotive Equipment

-POS/POT

-Office/Data Entry

-White Box PCs

-Field Services

-Test Equipment

-Kiosk Applications

-POS/POT

-Manufacturing

-Transport

Key Features

•USB keyboard with fingerprint sensor

and PC/SC smart card reader

•Capacitive fingerprint sensor TCS1CD

from UPEK (ST-Micro) with TouchChip®

technology 256x360 pixel

•Smart card reader

CardMan 3121-compatible

Main Part Numbers

G83-14401LPAUS-2

Black housing, smart card reader

with fingerprint sensor, Protektor suite,

OEM software

G83-14401LPAUS-0

Lt. grey housing, smart card reader

with fingerprint sensor, Protektor suite,

OEM software

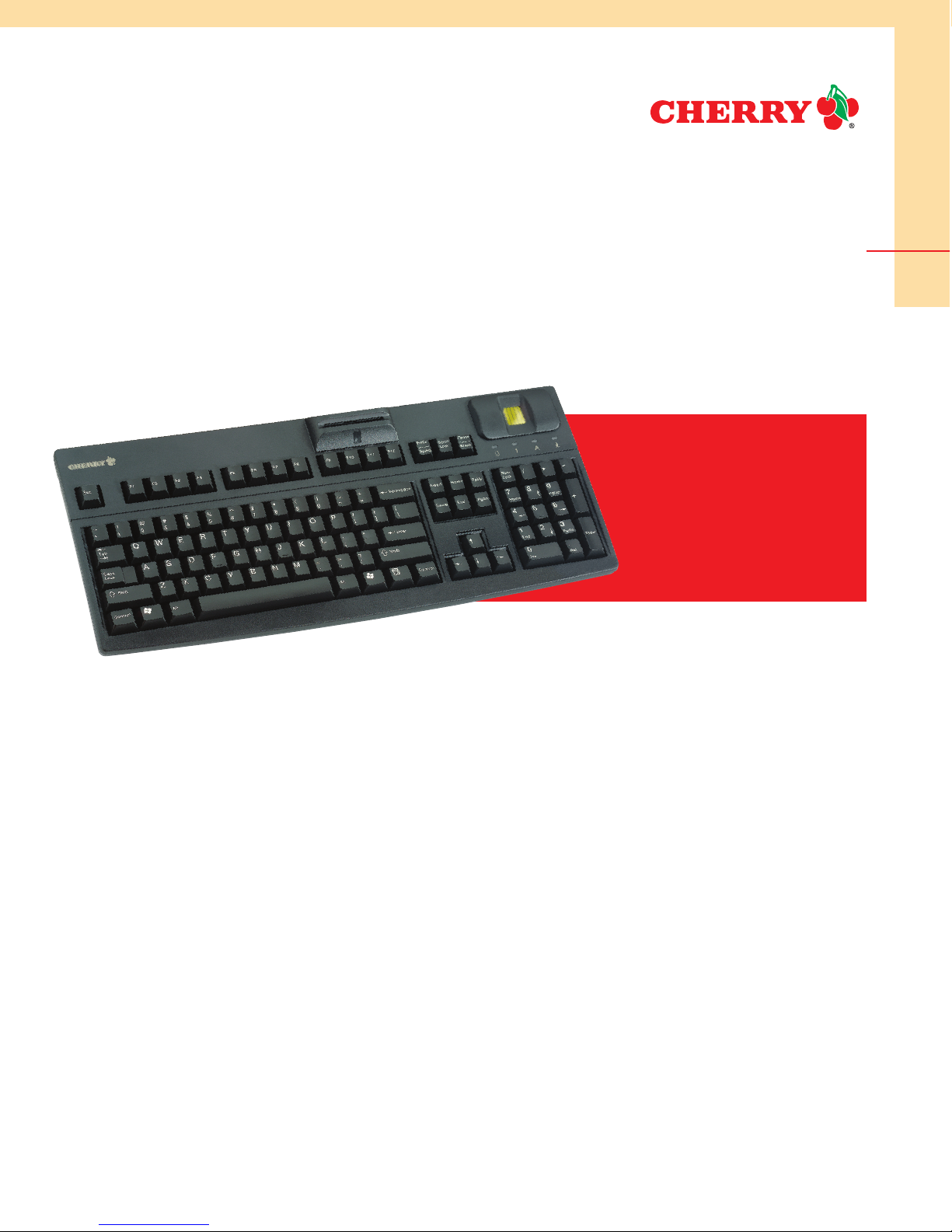

Biometric Keyboard

with Integrated UPEK

Fingerprint Sensor and

CardMan 3121-Compatible

Smart Card Reader

Integrated Security Devices

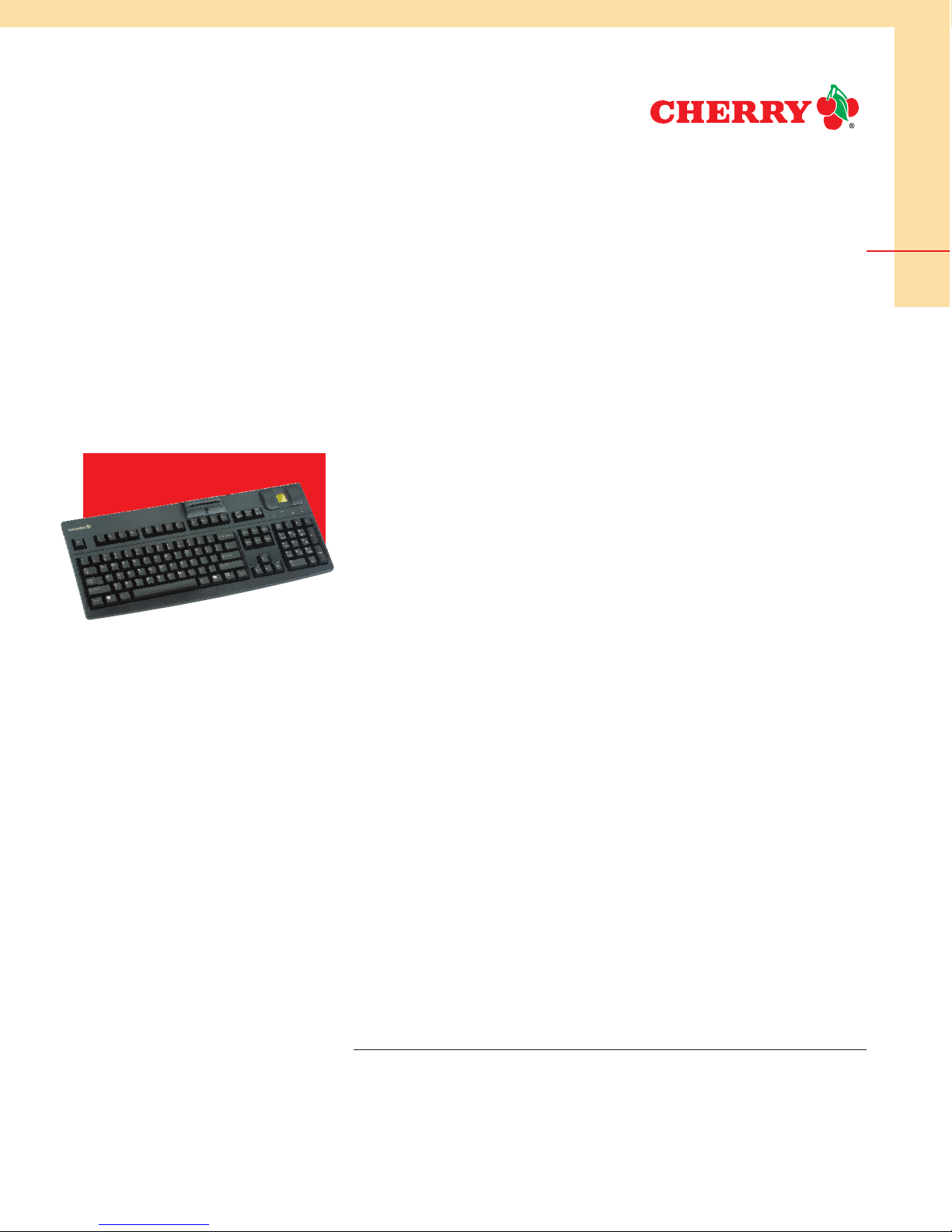

G83-14401

Biometric Keyboard

with Smart Card Reader

Part Number Legend Technical Data

Interface

USB, bus powered device

Current Input

max. 150 mA

Smart Card Interface

Reads and writes all ISO 7816 cards

supports T=0, T=1, 12C

(S=8), 2 wire (S=10), 3 wire (S=9)

Card Connecting Unit

approx. 100,000 insertions

Smart Card Speed

412, 903 bps

Insertion Cycles

approx. 100,000

Smart Card Clock

4.8 MHz

Clock Frequency Smart Card

4.8 MHz

Biometric Sensor

High resolution wide area touch sensor

TCS1CD from UPEK (ST-Micro) with

TouchChip®technology

256x360 pixel (508 dpi)

Keyswitch Lifetime

>20 million operations

Cable Length

Approx. 1.75 m

Key Layout

Full Size 105 position US key layout

including Windows keys

Weight (without/with packaging)

2.62/3.30 lbs

Dimension

17.9 x 7.7 x 2.1 (keyboard)

19.4 x 10.0 x 2.3 (packaging)

Packaging Units

40 leyboards per master carton

2 master cartons per pallet

Storage Temperature

-20°C to 60°C

Operating Temperature

0°C to 50°C

Agency Approvals

FCC, GS, CE, c-tick, GHOST-R, VCCI

Microsoft WHQL Windows™ 2000, XP

Delivery Volume

Keyboard, Printed manual, CD with

smart card reader drivers and

Protektor Suite OEM

Warranty

2 years

For information on repairs or

warranty status contact:

Cherry Technical Support

Phone: 800.510.1689

E-Mail: [email protected]

G83-14401LPAUS-2

Integrated Security Devices

G83-14401

Biometric Keyboard

with Smart Card Reader

Contact

Call, fax or visit our

website for more information.

Last Update: 10/15/08

Cherry Electrical Products

11200 88th Avenue

Pleasant Prairie, WI 53158

Phone: 262.942.6500

Web: www.cherrycorp.com

E-Mail: [email protected]

Fax: 262.942.6566

The manufacturer accepts no

liability for errors or non-availability,

and reserves the right to change

specifications without prior notice.

Technical data relates to product

specifications only. Features may

differ from those described.

Only drawings combined with

product specifications shall be

deemed binding.
