FRAMING NAILER

34 DEGREE & 28 DEGREE MAGAZINE ANGLES

Models 91053, 91054, 92147, & 92185

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

Skus 91053, 91054 For technical questions, please call 1-800-444-3353. Page 2

92147, & 92185

Specifications

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp or

wet locations. Do not expose to rain. Keep work area well lit. Do not use electri-

cally powered tools in the presence of flammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do not

let them handle machines, tools, extension cords, or air hoses.

4. Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

Item Description

Magazine Angle Models 91054 & 92147: 34 Degrees

Models 91053 & 92185: 28

Nail Size All Models:

.113” to .131” Shank / 2” to 3-1/2” Long Clipped Head / 8 to 10 Gauge

Nail Capacity

(Quantity)

All Models:

90 Per Load

Operating PSI All Models:

75 PSI to 125 PSI *

SCFM

Required

Models 91053 & 91054: 8 to 10 SCFM @ 90 PSI

Model 92147: 12 to 14 SCFM @ 100 PSI

Model 92185: 13 to 15 SCFM @ 100 PSI

Trigger Type All Models:

Full Sequential Safety Trip

Accessories All Models:

Carrying Case (Qty: 1) / Nails (Qty: 450).

Hex Wrenches (Qty: 4) / Air Tool Oil (Qty. 1).

Construction Models 91053 & 91054: Steel and Steel Alloy.

Models 92147 & 92185: Magnesium / Steel.

* The air pressure setting must not exceed job site regulations/restrictions. The air

pressure setting must not exceed 90 PSI when being used with work pieces that

have a thickness of less than 1-3/4”.

Save This Manual

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep this manual and invoice in a safe and dry place for future reference.

REV 11/06

Skus 91053, 91054 For technical questions, please call 1-800-444-3353. Page 3

92147, & 92185

5. Use the right tool for the job. Do not attempt to force a small tool or attachment

to do the work of a larger industrial tool. There are certain applications for which

this tool was designed. It will do the job better and more safely at the rate for

which it was intended. Do not modify this tool and do not use this tool for a pur-

pose for which it was not intended.

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically nonconductive clothes and nonskid footwear

are recommended when working. Wear restrictive hair covering to contain long

hair.

7. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines or air hoses.

8. Use eye and ear protection. Always wear ANSI approved impact safety

goggles and appropriate hearing protection. Wear a full face shield if you

are producing metal filings or wood chips. Wear an ANSI approved dust

mask or respirator when working around metal, wood, and chemical dusts

and mists. Other people in the work area must also wear ANSI approved

impact safety goggles.

9. Maintain tools with care. Keep tools clean for better and safer performance.

Follow instructions for lubricating and changing accessories. Inspect tool cords

and air hoses periodically and, if damaged, have them repaired by an authorized

technician. The handle must be kept clean, dry, and free from oil and grease at

all times. Do not operate a tool if any portion of the tool’s operating controls are

inoperable, disconnected, altered or not working properly.

10. Disconnect Air Hose and release any built-up air pressure. Never service the

Nailer, clear jams, or disassemble with the air hose attached. Always release any

built-up air even after disconnecting hose. Disconnect the Nailer when not in use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting

wrenches are removed from the tool or machine work surface before attaching to

an air source.

12. Avoid unintentional starting. Be sure the trigger is in the Off position when not

in use and before plugging in. Do not carry any tool with your finger on the trig-

ger, whether it is attached to an air source or not. Do not point the tool towards

yourself or anyone whether it contains fasteners or not.

13. Stay alert. Watch what you are doing, use common sense. Do not operate any

tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears dam-

aged should be carefully checked to determine that it will operate properly and

Skus 91053, 91054 For technical questions, please call 1-800-444-3353. Page 4

92147, & 92185

perform its intended function. Check for alignment and binding of moving parts;

any broken parts or mounting fixtures; and any other condition that may affect

proper operation. Any part that is damaged should be properly repaired or re-

placed by a qualified technician. Do not use the tool if the trigger does not oper-

ate properly.

15. Guard against electric shock. Prevent body contact with grounded surfaces

such as pipes, radiators, ranges, and refrigerator enclosures.

16. Replacement parts and accessories. This product is to be repaired and ser-

viced only by a qualified technician. When this product is serviced, only identical

replacement parts should be used. Use of any other parts will void the warranty.

Only use accessories intended for use with this tool. Approved accessories are

available from Harbor Freight Tools.

17. Do not operate tool if under the influence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgement or reflexes

are impaired while taking drugs. If there is any doubt, do not operate the tool.

18. Use proper size and type extension cord. If an extension cord is required, it

must be of the proper size and type to supply the correct current to the compres-

sor without heating up. Otherwise, the extension cord could melt and catch fire,

or cause electrical damage to the tool. Check your air compressor’s manual for

the appropriate size cord. It is also possible that the use of an extension cord

may cause your circuit breaker to trip or your panel fuse to break. If this happens,

either use the compressor without an extension cord or find a larger amperage

circuit to use.

19. Maintenance. The maintenance outlined in the maintenance section should be

performed regularly. For your safety, this product should be serviced or repaired

regularly only by a qualified technician.

20. Compressed air only. Never use combustible gas as a power source.

21. Do not load nails with the trigger or safety depressed. Unintentional

firing may occur. Do not load nails when the air hose is connected to

the tool. Always assume the tool contains fasteners.

22. Disconnect air supply before loading the Nailer. Before reloading (or making

any adjustments to) the Nailer, make sure the compressed air is disconnected.

23. Fire fasteners into an appropriate work surface only. Do not attempt to fire

fasteners into surfaces too hard to penetrate. Do not drive fasteners on top of

other fasteners, or at too steep an angle. Fasteners can ricochet causing per-

sonal injury. Never fire the Nailer into the air, or point it toward yourself or another

Skus 91053, 91054 For technical questions, please call 1-800-444-3353. Page 5

92147, & 92185

Unpacking

When unpacking, check to make sure all parts shown in the Parts List on page 12

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number on the cover of this manual as soon as possible.

person. Always wear ANSI approved safety goggles during use, maintenance,

and reloading.

24. Do not fire fasteners too close to the edge of a workpiece. They may split the

workpiece and fly free, causing personal injury.

25. Take caution, as some woods contain preservatives such as copper chro-

mium arsenate (CCA) which can be toxic. When working with these materials

extra care should be taken to avoid inhalation and minimize skin contact.

26. WARNING: Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities contain chemicals known (to the State of

California) to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

* Lead from lead-based paints

* Crystalline silica from bricks and cement and other masonry products

* Arsenic and chromium from chemically treated lumber.

(California Health & Safety Code § 25249.5, et seq.)

26. Stay within air pressure capacity. Never operate the Nailer above 125 PSI.

27. Hold tool away from head and body. During operation the Nailer may kick back

causing injury.

28. Transport Nailer safely. Always disconnect air supply when moving the tool in

the workplace. Carry the tool by the handle to avoid contact with the trigger.

29. Avoid working alone. If an accident happens, an assistant can bring help.

Note: Performance of the compressor (if powered by line voltage) may vary depending

on variations in local line voltage. Extension cord usage may also affect the tool

performance.

Warning: The warnings, cautions, and instructions discussed in this instruction

manual cannot cover all possible conditions and situations that may occur. It must

be understood by the operator that common sense and caution are factors which

cannot be built into this product, but must be supplied by the operator.

REV 11/06

Skus 91053, 91054 For technical questions, please call 1-800-444-3353. Page 6

92147, & 92185

Testing the Full Sequential Safety Trip Mechanism

Warning: Even though the nailer should be empty during this procedure,

ALWAYS point the nailer at a piece of scrap wood when testing.

1. Make sure the tool is disconnected from the power supply.

2. Completely empty the Magazine (74) of nails.

3. The Nailer should not fire if the Lower Safety (32) is not depressed against the

workpiece.

Operation

For best service, you should incorporate an oiler, regulator, and inline filter, as

shown in the diagram below. Hoses, couplers, oilers, regulators, and filters are all avail-

able at Harbor Freight Tools.

ROOFING

NAILER

1. To connect this tool, we recommend you use the included quick connector.

Note: If you are not using an automatic oiler system, before operation, add a few

drops of Pneumatic Tool Oil to the airline connection. Add a few drops more after

each hour of continual use.

2. Set the air pressure on your compressor from 75-125 PSI. Do not exceed the

maximum air pressure.

3. Check the air connection for leaks.

Note: The amount of air pressure effects how deep the nails/staples will be

driven. It is suggested that you experiment on scrap material.

4. Check the air connection for leaks and disconnect the Nailer/Stapler.

REV 11/06

Skus 91053, 91054 For technical questions, please call 1-800-444-3353. Page 7

92147, & 92185

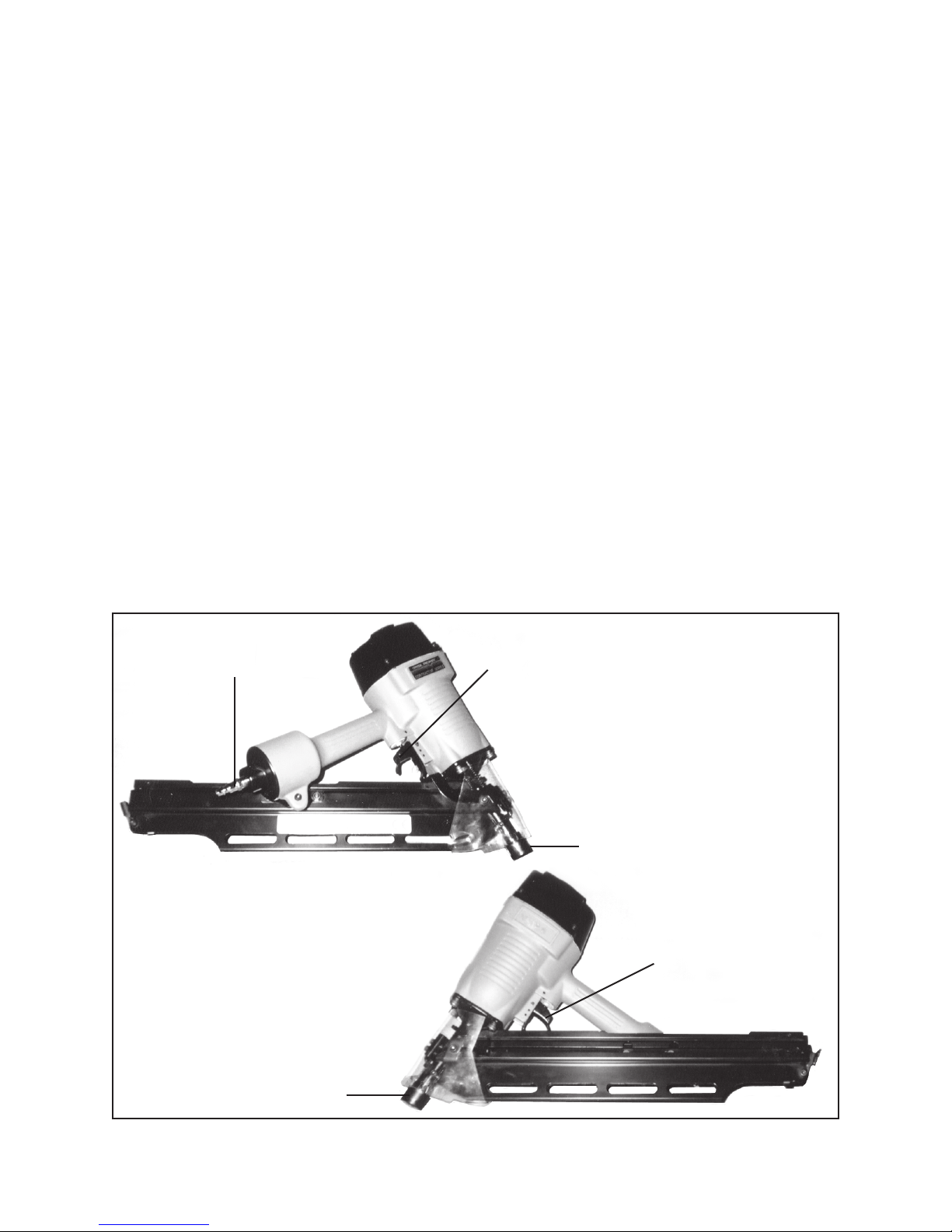

LOWER SAFETY (32)

TRIGGER (48)QUICK CONNECTOR (87)

LOWER SAFETY (32)

TRIGGER (48)

4. Make sure the Trigger (48) and Lower Safety (32) move freely, without sticking -

see the illustration below.

5. Connect the air supply to the tool at the Quick Connector (87). Set the regulator at

the recommended 75 to 125 PSI.

6. Test the tool by depressing the Lower Safety (32) against the workpiece without

pulling the Trigger (48). The Tool must not cycle (fire). If it cycles (fires), stop

immediately and have it repaired by a qualified service technician.

7. Hold the tool away or off of the workpiece. The Lower Safety (32) of the tool

should return to its original position. Squeeze the Trigger (48). The tool should

not cycle (fire). If the tool fires, stop immediately and have it repaired by a

qualified service technician.

8. Depress the Lower Safety (32) against the workpiece and squeeze the Trigger

(48). The tool must cycle (fire) only once. Release the Trigger and squeeze it

again. The tool must not cycle (fire). With the Trigger held, carefully lift the

nailer and press it against the workpiece again. The tool must not cycle (fire).

If it fails to perform in the manner explained in bold, have it repaired by a qualified

service technician.

REV 11/06

Skus 91053, 91054 For technical questions, please call 1-800-444-3353. Page 8

92147, & 92185

ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN

RELOADING OR DOING ANY OTHER MAINTENANCE ON THIS TOOL.

Other people in the work area must also wear ANSI approved impact safety

goggles.

Warning! Make sure the Nailer is not attached to the air hose whenever loading the

tool.

1. Slide the Tab (64) back and the Latch (78) will hold it in place.

2. Holding the nailer with the nose pointing slightly down, load a stick of nails into the

top slot.

3. While holding the Tab back, carefully press the Latch. BE CAREFUL. When you

press the Latch (78), the Tab (64) will spring forward with force. Slowly and cautiously

allow the tab to slide forward.

Loading Nails

TAB (64)

(PULLED

BACK)

NAILS (91)

LATCH

(78)MAGAZINE

(74)

Skus 91053, 91054 For technical questions, please call 1-800-444-3353. Page 9

92147, & 92185

QUICK CONNECTOR (87)

WORK SURFACE

LOWER SAFETY (32)

TRIGGER (48)

EXHAUST COVER (3)

Operating the Nailer

1. Attach the Nailer to the air supply at the Quick Connector (87). Start your com-

pressor, and check the pressure making sure it is set at the recommended 75-125

PSI and not to go over the maximum PSI.

2. Rotate the Exhaust Cover (3) so that the exhaust air blast will be directed away

from the operator.

3. To fire, place the nose of the Nailer on the workpiece. The Nailer should not fire if

the nose is not depressed. Once depressed, gently and briefly squeeze the

Trigger (48) once. Do not fire repeatedly. Nails could bounce off of one an-

other, damaging the workpiece or causing PERSONAL INJURY.

4. Do not press the Lower Safety (32) of the Nailer against the work surface with

excessive force. Allow the tool to do the work. Always allow the tool to recoil off

the workpiece.

5. Caution: While working, dirt and sawdust may build up on the Lower Safety (32)

of the Nailer. This can prevent normal operation. Remove buildup using com-

pressed air.

6. When finished using the Nailer, always disconnect the tool from its compressed

air supply. Empty the Magazine (74) completely of nails. Attempt to fire the

Nailer into a piece of scrap wood to ensure it is disconnected and is incapable of

firing any nails.

7. Make sure to store the Nailer in its Carrying Case in a clean, dry, safe location

out of reach of children.

REV 11/06

Skus 91053, 91054 For technical questions, please call 1-800-444-3353. Page 10

92147, & 92185

Clearing Jams

1. Occasionally a Nail may become jammed in the firing mechanism of the Nailer,

making the tool inoperative.

2. To remove a jammed nail, disconnect the Nailer from its compressed air supply.

Slide the Tab (64) back and empty the Magazine (74) completely of Nails. At-

tempt to fire the Nailer into a piece of scrap wood to ensure it is disconnected

and is incapable of firing any nails.

3. Use a pair of needle nose pliers (not included) to remove the jammed nail (usu-

ally from the Upper Safety (28) and/or Lower Safety (32) areas). While holding

the Tab back, carefully press the Latch. BE CAREFUL. When you press the

Latch (78), the Tab (64) will spring forward with force. Slowly and cautiously allow

the tab to slide forward.

4. Reconnect the air supply hose to the tool.

5. Press the Lower Safety (32) of the Nailer against a piece of scrap wood.

6. Test fire the Nailer several times, checking for proper operation.

7. If the Nailer is properly firing, you can continue to use the Nailer. Disconnect the

air supply to the Nailer, and reload the Nails. Then, reconnect the air supply and

continue working.

8. When finished working, Disconnect the air supply. Remove the Nails. Then,

store the Nailer and nails in a location out of children’s reach.

Anytime

any

maintenance or repairs are done (including clearing jams),

FIRST:

1. Disconnect the Nailer from the air hose.

2. Empty the Magazine (74) completely.

3. Attempt to fire the Nailer into a piece of scrap wood to ensure that it is discon-

nected and is incapable of firing any nails.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Pistola de clavos de Central Pneumatic

Central Pneumatic

Central Pneumatic 66872 Manual de usuario

Central Pneumatic

Central Pneumatic 97525 Manual de usuario

Central Pneumatic

Central Pneumatic 41164 Guía de referencia rápida

Central Pneumatic

Central Pneumatic 69927 Manual de usuario

Central Pneumatic

Central Pneumatic 90193 Manual de usuario

Central Pneumatic

Central Pneumatic 41209 Manual de usuario

Central Pneumatic

Central Pneumatic 69575 Instrucciones de montaje

Central Pneumatic

Central Pneumatic 98917 Manual de instalación

Central Pneumatic

Central Pneumatic 68019 Manual de instalación

Central Pneumatic

Central Pneumatic 92917 Manual de instalación

Central Pneumatic

Central Pneumatic 98751 Guía del usuario

Central Pneumatic

Central Pneumatic 68068 Instrucciones de montaje

Central Pneumatic

Central Pneumatic 68022 Manual de instalación

Central Pneumatic

Central Pneumatic 92917 Manual de instalación

Central Pneumatic

Central Pneumatic 68021 Manual de instalación

Central Pneumatic

Central Pneumatic 68023 Manual de instalación

Central Pneumatic

Central Pneumatic 94446 Manual de usuario

Central Pneumatic

Central Pneumatic Contractor Series Manual de usuario

Central Pneumatic

Central Pneumatic Contractor 97526 Manual de lista de piezas

Central Pneumatic

Central Pneumatic 66995 Manual de instalación

Central Pneumatic

Central Pneumatic 92359 Manual de usuario

Central Pneumatic

Central Pneumatic 44923 Manual de lista de piezas

Central Pneumatic

Central Pneumatic 46309 Manual de usuario

Central Pneumatic

Central Pneumatic 97586 Manual de usuario

Manuales populares de Pistola de clavos de otras marcas

Performance Tool

Performance Tool M643 Manual de usuario

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manual de usuario

Parkside

Parkside PET 25 B1 Manual de usuario

Senco

Senco Fusion Technology F-35XP Manual de usuario

Grizzly

Grizzly G1847 Manual de usuario

Ryobi

Ryobi R18N18G Manual de usuario

Black & Decker

Black & Decker 492848-00 Manual de usuario

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manual de usuario

Metabo HPT

Metabo HPT NR 3690DC Manual de instrucciones

Surtek

Surtek CN650 Dimensiones y guía de instalación

Makita

Makita GF600 Manual de usuario

Parkside

Parkside PET 25 B1 Manual de usuario

Senco

Senco AirFree 25 Manual de usuario

Freeman

Freeman P50LSLW Manual de usuario

Aicon PRO

Aicon PRO DAC4507 Manual de usuario

DAJ

DAJ XR150A Manual de usuario

Makita

Makita AN923 Manual de usuario

Grizzly

Grizzly T20644 Manual de usuario
