CDA HN9841FR Guía de inicio rápido

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu

www.cda.eu

HN9841FR

Induction Hob

Installation, Use and Maintenance

Important

The CDA Group Ltd cannot be held responsible for injuries or losses

caused by incorrect use or installation of this product. Please note

that CDA reserve the right to invalidate the guarantee supplied with

this product following incorrect installation or misuse of the appliance

or use in a commercial environment.

This appliance is not designed to be used by people (including

children) with reduced physical, sensorial or mental capacity, or

who lack experience or knowledge about it, unless they have had

supervision or instructions on how to use the appliance by someone

who is responsible for their safety.

Under no circumstances should any external covers be removed for

servicing or maintenance except by suitably qualiﬁed personnel.

Appliance information:

Please enter the details on the appliance rating plate below for

reference, to assist CDA Customer Care in the event of a fault with

your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

EU Declarations of Conformity

This appliance has been manufactured to the strictest standards and

complies with all applicable legislation, including Electrical safety

(LVD) 2014/35/EU and Electromagnetic interference compatibility

(EMC) 2014/30/EU. Parts intended to come into contact with food

conform to 1935/2004/EC.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.

At the end of its working life, the product must be taken to a special

local authority waste collection centre or to a dealer providing

appliance recycling services.

Disposing of a household appliance separately avoids possible

negative consequences for the environment and health. It also

enables the constituent materials to be recovered, saving both energy

and resources. As a reminder of the need to dispose of household

appliances separately, the product is marked with a crossed-out

wheeled dustbin.

Please note:

•Induction hobs become hot and remain hot during and immediately

after use. Do not touch the hob until it has been allowed to cool.

•Keep children away from the appliance when in use.

•Never use the hob top for storage.

•Pan handles should never stand out beyond the edge of the

worktop. This will help to avoid children reaching them.

•Do not lean over the hob when it is in use.

•Follow the cleaning instructions carefully.

•Ensure the base of the saucepan is clean and dry before placing it

on the hob.

•Avoid hard shocks from cookware – the vitroceramic glass surface

is highly resistant but not unbreakable.

•Do not place hot lids ﬂat on the hob top. A “suction” eect could

cause damage to the hob.

•Do not drag cookware across the hob top: in the long term, this

could cause damage to the hob.

•Do not store cleaning or ﬂammable products in the unit below the

hob.

•Always use appropriate cookware.

•Do not cook unopened tins of food directly on the hob.

•Never put cooking foil or plastic materials on the ceramic surface

when the hob is hot. These materials could melt and cause

damage to the hob.

•This hob (Class 3) has been designed for use only as a cooking

appliance. Any other use should be considered incorrect and

therefore dangerous.

FOR THOSE WITH HEART PACEMAKERS OR ACTIVE IMPLANTS:

The function of this hob conforms to current electromagnetic

interference standards and thus is in total compliance with legal

requirements (2004/108/CE directives).

To avoid interference between your hob and a pacemaker, your

pacemaker must be designed and programmed in compliance with

the regulations that apply to it. As such, CDA guarantee only that our

product is compliant.

With regard to the compliance of the pacemaker or any potential

incompatibility, you should obtain information from the manufacturer

or your attending physician.

Important

•Do not use the hob if the glass surface is cracked or damaged to

prevent the risk of electric shock. Disconnect it from the power

supply.

•Ensure that the power cable of a connected electrical appliance

near the hob is not in contact with the cooking zones.

Cooking on Induction

The principle of induction cooking is based on magnetic eect.

When you put your cookware on an induction zone and switch it on,

the electronic boards in the hob produce induced currents in the base

of the cookware and instantly raise its temperature. This heat is then

transferred to the food inside the cookware.

The best cookware to use with induction cooking has thick ﬂat bases,

as the heat will be better distributed meaning cooking is more even.

Most cookware is compatible with induction cooking.

There are three ways to check the suitability of your cookware:

1. Using a magnet to see if the base of the pan is magnetic: if the

magnet sticks, then the cookware is compatible.

2. Place the pan on one of the cooking zones and switch the

zone on. If the display continues to show the selected power

level then the cookware is compatible. If the display shows ‘ ’,

the cookware cannot be used on an induction hob.

3. Check the instructions or packaging of the pans for the

symbols indicating suitability for use with induction.

Using your hob

Zones:

1. Rear left 2.1 - 3.7kW 4. Front left 2.1 - 3.7kW

2. Rear middle 2.1 - 3.7kW 5. Front middle 2.1 - 3.7kW

3. Rear right 2.1 - 3.7kW 6. Front right 2.1 - 3.7kW

Control panel:

1. Keep warm setting indicator 8. Pause function sensor with LED

2. Cooking zone indicator 9. On/o sensor

3. Timer activity indicator 10. Safety key lock sensor with LED

4. Bridge function indicator 11. Booster function sensor

5. Timer minus setting sensor 12. Heat setting slider sensor

6. Timer display 13. Keep warm function sensor

7. Timer plus setting sensor

ﬁg. 1

ﬁg. 2

456

3344

891011

1213

Using Your Hob

To switch the hob on

•To switch the power on, touch and hold the on/o sensor (9) for

approximately one second. The hob will beep and all cooking zone

indicators will show ‘0’. The inductor modules will click faintly when

turning the hob on (and o).

Please note: If a power level is not set within ten seconds, the hob

will switch o automatically.

To activate a zone and set a power level

•Simply set the desired power level using the heat setting slider

sensor (12). The standard power levels range from 1 (minimum) to

9 (maximum). The hob will then begin heating providing that the

correct cookware is being used.

To deactivate a zone

•Simply use the heat setting slider sensor (12) to return the heat

setting to '0' for that zone.

• If switching o multiple zones, the above step needs to be taken

for each zone. When all the zones are at '0', the hob will switch o

automatically after approximately ten seconds.

•Alternatively, to switch o the hob immediately, touch and hold the

on/o sensor (9) for approximately two seconds.

Please note: Any zones that are still hot to the touch will display an

' ' provided the mains power supply is not interrupted.

Booster function

The hob is equipped with a booster function on all zones, allowing a

higher power level than the maximum for approximately ten minutes.

To activate the booster on a zone

•Set the desired heat setting using the heat setting slider sensor (12),

if not already active, and then touch the booster function sensor (11)

for that zone. 'P' will be displayed on the cooking zone indicator to

show that the booster is on.

• The booster function automatically deactivates after 10 minutes of

usage. The cooking zone will continue to operate at its nominal

power at this point. The booster can be reactivated after this time

provided the hob's internal components have not overheated.

To deactivate the booster on a zone

• To cancel the booster at any time, use the heat setting slider sensor

(12) to return the heat setting to '0' or an alternative level.

Please note: The booster function can not be used on all zones at

once. If two zones in a vertically aligned module are placed on boost,

then the ﬁrst zone to have been placed on boost will be reduced

to power level 5. Additionally, a bridged pair of zones can not be

boosted. This is to help protect the hob's internal components.

If the appliance's electronic circuits or induction coils overheat

whilst the booster function is in operation then the function will be

automatically deactivated and the zone will continue to operate at its

nominal power. The booster function will be available again once the

internal components have been cooled suciently.

It is normal for a high pitched whirring noise to begin whilst the

booster function is in use. This is the cooling fan inside the hob

keeping the internal components as cool as possible.

If a pot is removed from the cooking zone whilst the booster function

is in use, the ten minute countdown continues.

Operating time limiter

In addition to the booster deactivation timer, each zone has an

operating time limiter to increase overall eciency and to prevent

the hob from being left on indeﬁnitely. If a zone's heat setting is

not changed for a speciﬁc duration then the associated zone is

automatically switched o and residual heat indicator activated.

Zones can still be used as normal in accordance with the operating

instructions. The operating time limiter is set according to the last

selected heat setting. The maximum operating times for each setting

can be found below.

360

Zone Heat Setting

Maximum

Operating Time

(minutes)

234 5 6 7 8 9 P

360 300 300 200 90 90 90 90 9.6

Tabla de contenidos

Otros manuales de Quemador de CDA

CDA

CDA MATRIX MHC101FR Manual de referencia

CDA

CDA HC9606FR Hoja de especificaciones

CDA

CDA hn3620 Manual de referencia

CDA

CDA Domino HE3140SS Guía de inicio rápido

CDA

CDA HCG 730 Users operating instructions Guía del producto

CDA

CDA HVC70 Manual de referencia

CDA

CDA HCG602 Manual de referencia

CDA

CDA HVG980 Guía de inicio rápido

CDA

CDA HCN510 Manual de referencia

CDA

CDA HCG302 Guía de inicio rápido

CDA

CDA HN6111 Manual de usuario

CDA

CDA HG6001SS Guía de inicio rápido

CDA

CDA hn9610 Manual de referencia

CDA

CDA HN9626FR Guía de inicio rápido

CDA

CDA Matrix MHN101FR Manual de usuario

CDA

CDA HN3615FR Guía de inicio rápido

CDA

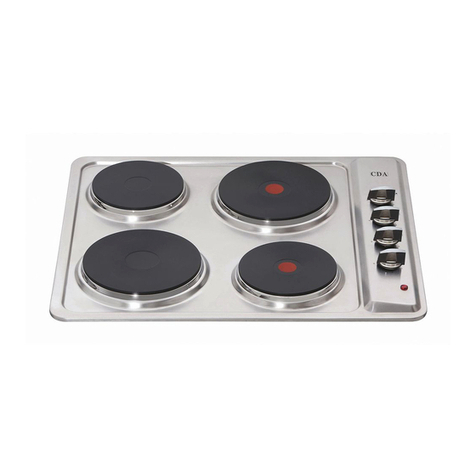

CDA he6050ss Manual de referencia

CDA

CDA hc9620 Manual de referencia

CDA

CDA PEB4.7SVR Manual de usuario

CDA

CDA hc7620 Manual de referencia

CDA

CDA HC3621FR Manual de usuario

CDA

CDA HE6051FR Guía de inicio rápido

CDA

CDA HN6111FR Guía de inicio rápido

CDA

CDA HC6621FR Hoja de especificaciones

Manuales populares de Quemador de otras marcas

Siemens

Siemens EX875KYV1E Hoja de especificaciones

AEG

AEG CERAMIC HOB 6010 K Manual de usuario

VALERA

VALERA CT 70A Manual de usuario

Zanussi

Zanussi ZGF 6420 Manual de usuario

Gaggenau

Gaggenau CI 273 Manual de usuario

G3 Ferrari

G3 Ferrari Energy Manual de usuario

Pkm

Pkm IN4B Manual de usuario

Award

Award H903BG Manual de usuario

Zanussi

Zanussi VCH 5005 RZ Manual de usuario

Miele

Miele KM 523 Manual de usuario

Hotpoint

Hotpoint IS67V8CCXT/E Manual de usuario

AEG

AEG HK854870XB Manual de usuario

Cookology

Cookology SEP600BK Manual de usuario

Bauknecht

Bauknecht Hob Manual de usuario

Zanussi

Zanussi ZGM 782 Manual de usuario

dipo INDUCTION

dipo INDUCTION DIBK218S Manual de usuario

Miele

Miele KM 5987 Manual de usuario

Miele

Miele KM 360 G Manual de usuario
