Cateye Strada Digital Wireless CC-RD420DW Manual de usuario

Click the button and follow the

instructions.

CATEYE STRADA

DIGITAL WIRELESS

CC-RD420DW

Quick Start

START

Thank you for purchasing our cyclocomputer CATEYE STRADA DIGITAL WIRELESS.

This Quick Start Manual explains how to set up the computer and how to install the unit on

your bicycle.

Please set up the unit according to the speciﬁed procedure, then it will be ready for use as a

cyclocomputer.

•Beforeuse,readtheinstructionmanualthatcomeswiththeproductthoroughly

totheendtounderstandthefunctionsofthisunit,andtouseitsafelyina

correctmanner.

•Pacemakerusersshouldneverusetheheartratesensor.

This PDF contains a movie ﬁle.

When you click on the movie screen, a message regarding security appears. Click the

“Trustinthetext” or “Play” button to close the message.

Click the screen again to play the movie.

CATEYE STRADA DIGITAL WIRELESS

QuickStartManual Contents

Click the item you wish to view.

Return to a Cover

Settingupthecomputer

Howtoinstallthespeedsensor(movie)

Howtoinstallthebracket(movie)

Registeringanewsensor

Howtoweartheheartratesensor(movie)

Operationofbuttons

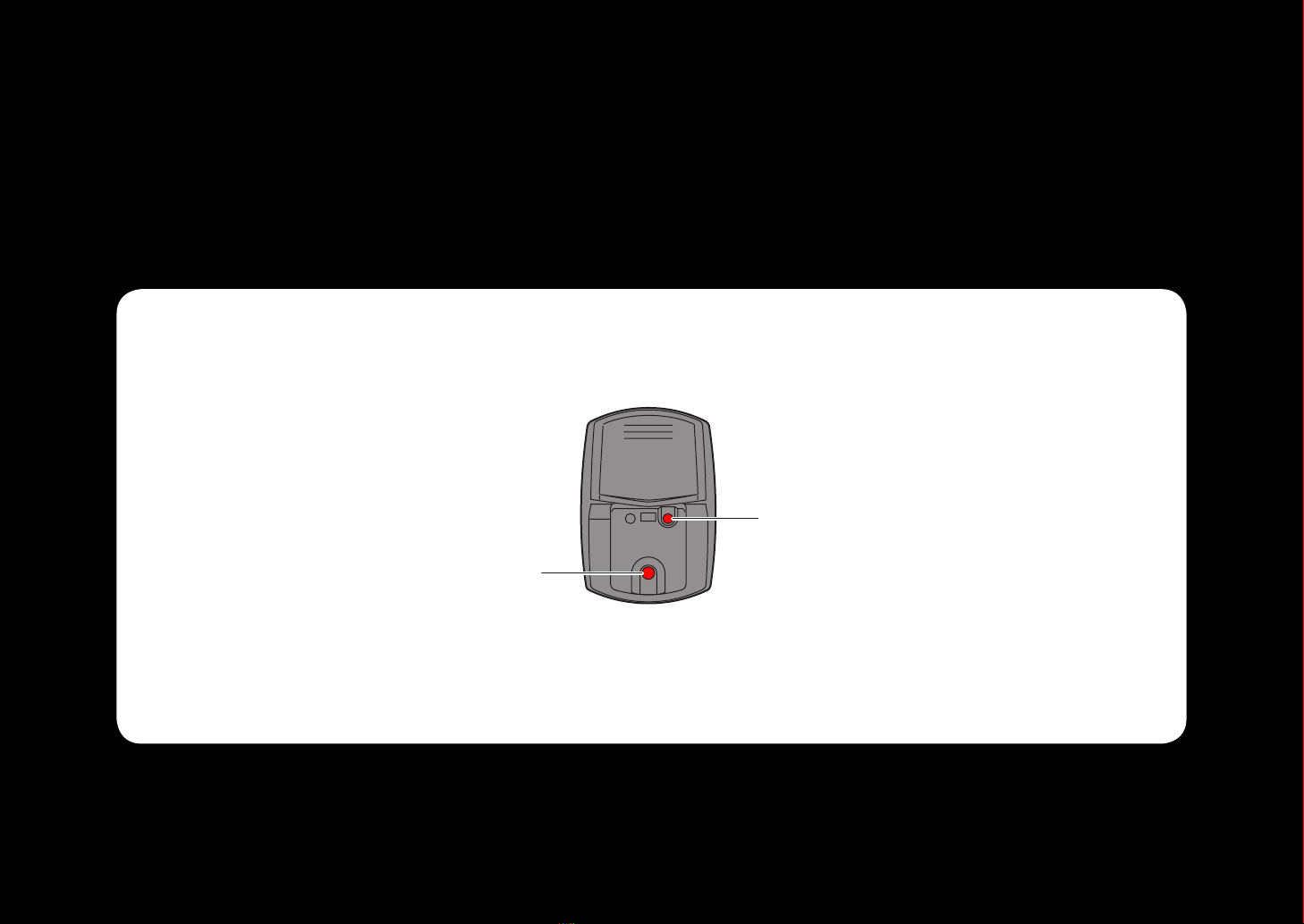

Set up the computer by operating the buttons as follows.

Check the button position before you start setting up.

MODE

Back

Press the MENU button and the MODE

button on the back of the computer.

CATEYE STRADA DIGITAL WIRELESS

QuickStartManual Settingupthecomputer

Setting the speed unit

Entering the tire circumference

Setting the clock display

Measuring screen

(Setup completed)

Setting the hour

Setting the minute

Clear all data (initialization) Formattingoperation

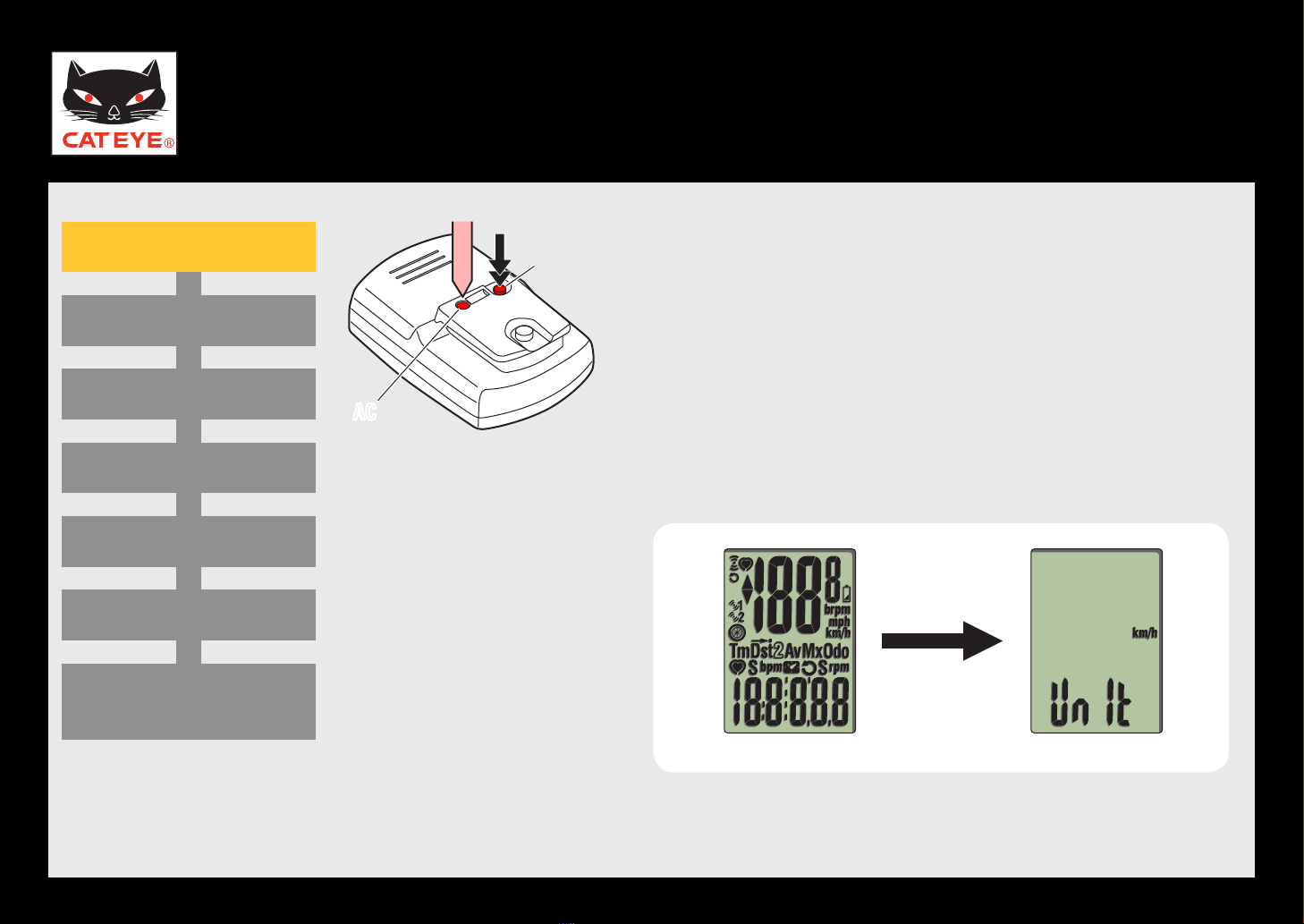

Press the MENU button on the back of the computer

and the AC button simultaneously.

Press and hold the* MENU button for 3 seconds

after you release the AC button.

After full lighting of the screen, the computer switch-

es to the speed unit setting screen to start setup.

ACAC

Full lighting Setting the speed unit

Return to Contents

Return

CATEYE STRADA DIGITAL WIRELESS

QuickStartManual Settingupthecomputer

Entering the tire circumference

Setting the clock display

Measuring screen

(Setup completed)

Setting the hour

Setting the minute

Setting the speed unit

Clear all data (initialization)

Setting the speed unit

Settingthespeedunit

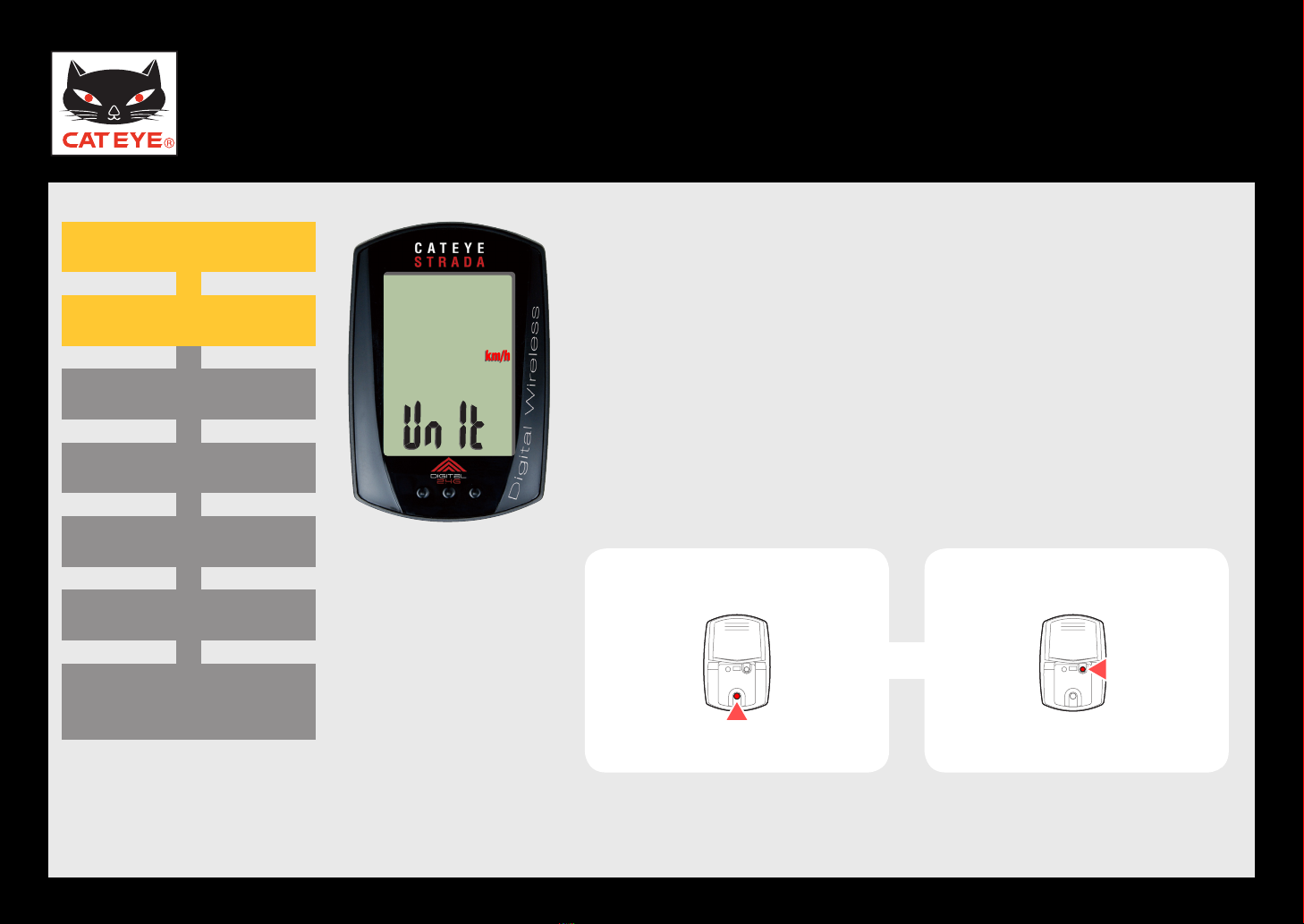

When the MODE button is pressed, either “km/h” or “mph”

is selected for the speed unit display. Select the display of

your choice.

After selecting, press the MENU button to proceed to the

next step “Entering the tire circumference”.

To the next step

MODE

km/h ↔mph

Return to Contents

Return

CATEYE STRADA DIGITAL WIRELESS

QuickStartManual

Setting the clock display

Measuring screen

(Setup completed)

Setting the hour

Setting the minute

Settingupthecomputer

Entering the tire circumference

Setting the speed unit

Clear all data (initialization) Enteringthetirecircumference

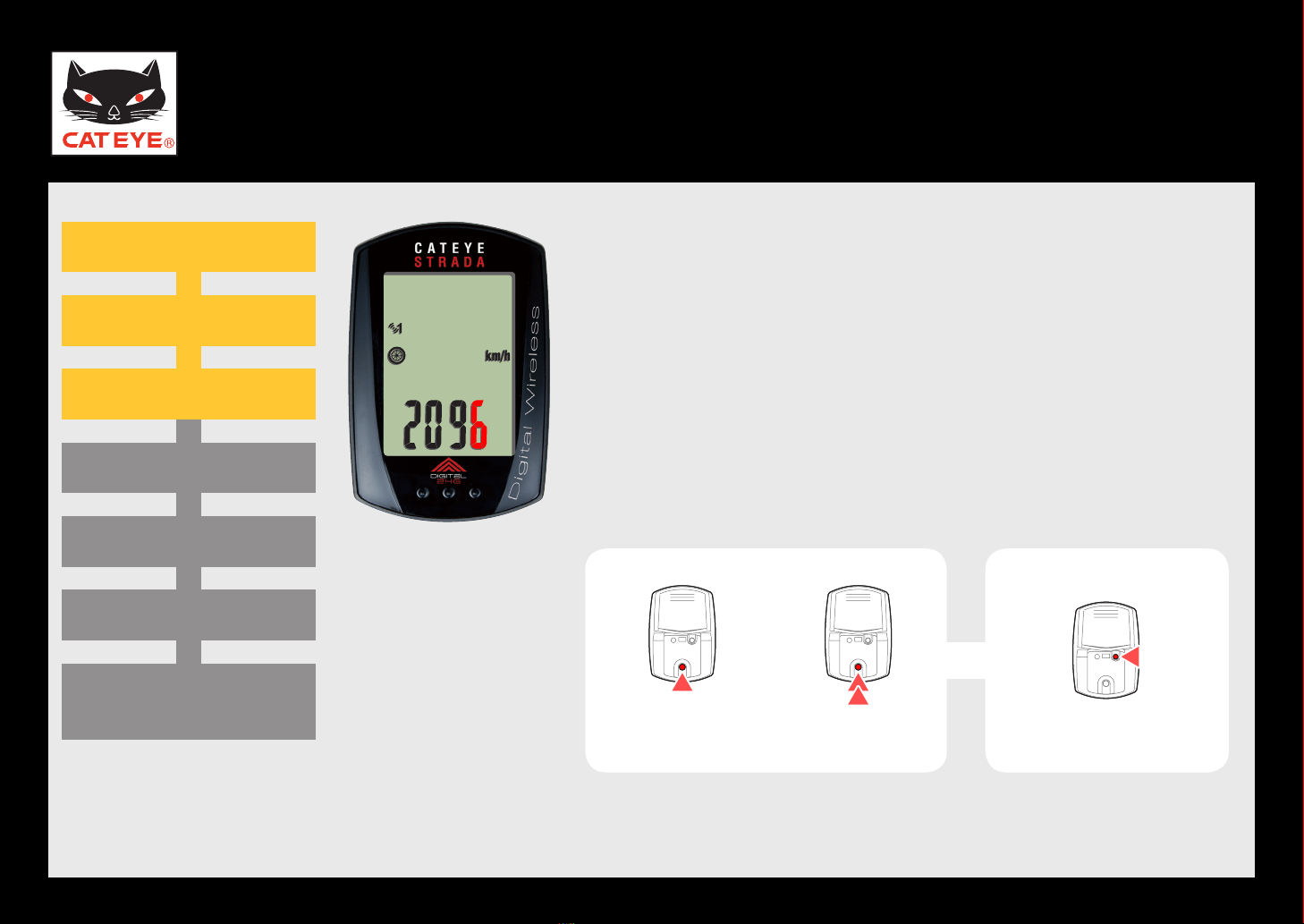

Enter the tire circumference (mm) of your bicycle with 4

digits using the tire circumference reference table.

Enter the tire circumference of the wheel to which the*

sensor magnet is attached (front or rear).

Pressing the MODE button increases the value ﬂashing,

and pressing and holding the MODE button moves to the

next digit. After entering, press the MENU button to pro-

ceed to the next step “Setting the clock display”.

Entering the tire

circumference Move digitIncrease the value

To the next step

MODE

(Press and hold)

Return to Contents

Return

Tire circum-

ference refer-

ence table

CATEYE STRADA DIGITAL WIRELESS

QuickStartManual Settingupthecomputer

Measuring screen

(Setup completed)

Setting the hour

Setting the minute

Setting the clock display

Entering the tire circumference

Setting the speed unit

Clear all data (initialization) Settingtheclockdisplay

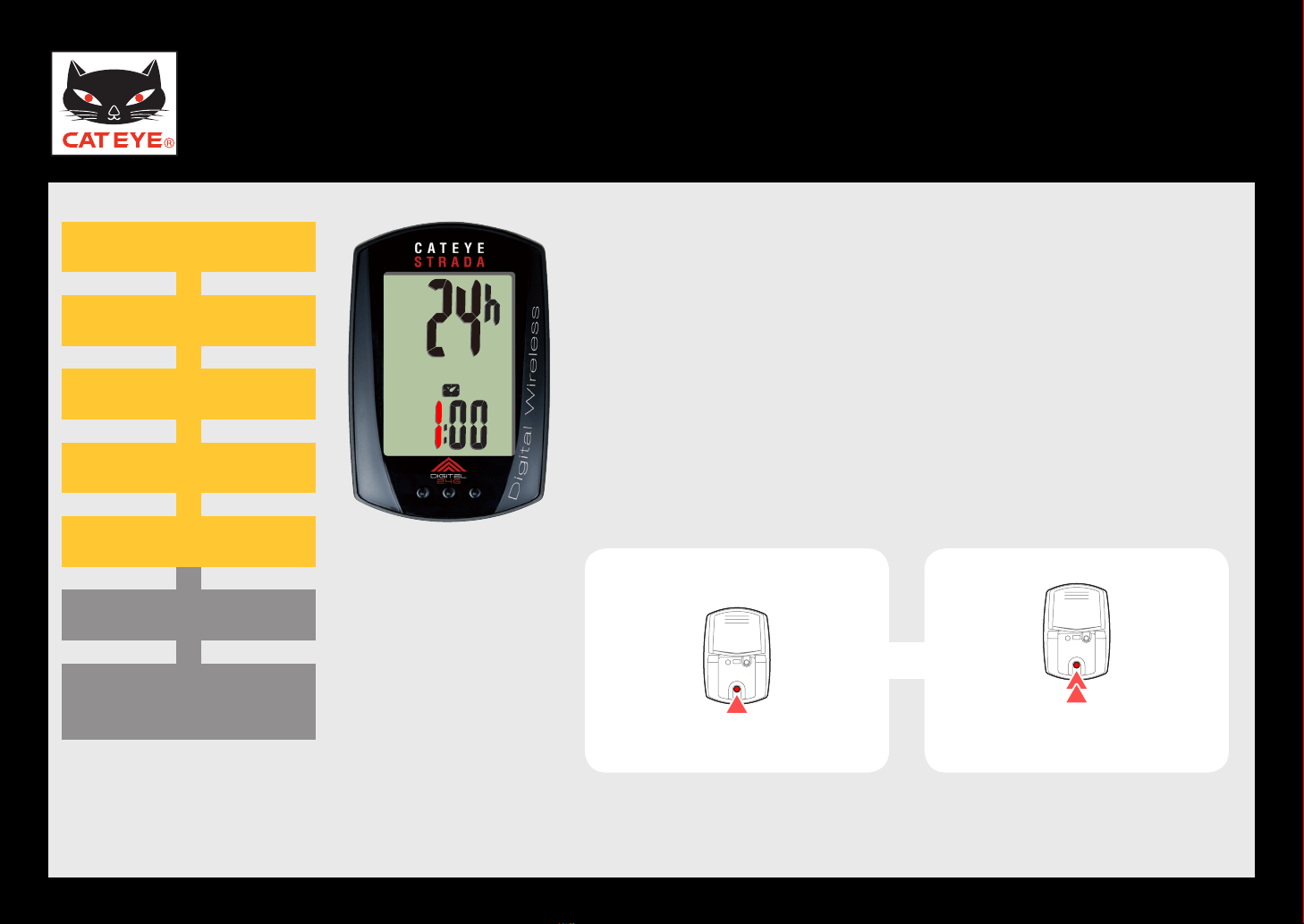

When the MODE button is pressed, either “12h” or “24h”

is selected for the clock display. Select the display of your

choice.

After selecting, press and hold the MODE button to pro-

ceed to the next step “Setting the hour”.

Clock display To the next step

MODE

24h ↔12h

MODE

(Press and hold)

Return to Contents

Return

CATEYE STRADA DIGITAL WIRELESS

QuickStartManual Settingupthecomputer

Measuring screen

(Setup completed)

Setting the minute

Clear all data (initialization)

Setting the speed unit

Entering the tire circumference

Setting the clock display

Setting the hour

Settingthehour

Pressing the MODE button increases the value ﬂashing

(“Hour” of the clock). Enter any value.

After entering, press and hold the MODE button to pro-

ceed to the next step “Setting the minute”.

Hour

MODE

Increase the value To the next step

MODE

(Press and hold)

Return to Contents

Return
