Cateye Air GPS Manual de usuario

Cover,

Introduction

Frequently

Asked

Questions

Appendix

SET

CATEYE

Air GPS

CYCLOCOMPUTER

CC-GPS100

The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by CATEYE Co., Ltd. is under

license. Any right relating to any trademark, emblem, logo or trade name

of any commodity or service included in this Document shall revert to the

Company or any other individual right-holder thereof.

This instruction manual is subject to be

changed without notice.

https://www.cateye.com/instruction/?id=CC-GPS100

Mounting on a bicycle

Setup

Cover, Introduction

Starting measurement

Viewing measurement data

Changing settings of the

Air GPS and sensors

Frequently Asked

Questions

Further use

Warning / Caution

Product Warranty, etc.

Cateye Cycling™ iOS version

Setup

Mounting on a

bicycle

Starting

measurement

Measurement

results

Changing settings/

Using sensors

SET

Frequently

Asked

Questions

Appendix

Cover,

Introduction

1/2

Introduction

The Air GPS is a cyclocomputer equipped with a built-in GPS.

The Air GPS alone can perform various measurements by acquiring position information

from the GPS.

The Air GPS can measure cadence and heart rate as well as highly accurate speed by

pairing with CATEYE or third party sensors compatible with Bluetooth 4.0.

Measurement data (trip data *1) can be viewed and managed on a smartphone

(free smartphone app Cateye Cycling™) by importing the data from the Air GPS.

(*1) Trip data contains data from measurement start to end.

* For CATEYE sensors compatible with the Air GPS, refer to the sensor’s online manual

(on our website).

* We do not guarantee all operations of third party sensors.

* For the screen display and measurement data of the Air GPS, see “Starting

measurement” (page 9).

Part names and package contents

• Air GPS unit

MODE

POWER

Dot section

Rubber cover

Micro-USB port

Click

(Long press)

When the computer is used alone

MODE

(Long press)

When installed on blacket

MODE button operation

Button icons in this manual

MODE

(Long press)

MODE

Setup

Mounting on a

bicycle

Starting

measurement

Measurement

results

Changing settings/

Using sensors

SET

Frequently

Asked

Questions

Appendix

Cover,

Introduction

2/2

Introduction

• Accessories

Charging the Air GPS

Connect the Air GPS to a commercially available USB charger or PC

using the USB cable.

When charging starts, the battery icon will be displayed.

Approx. 3 hours

Standard

charging time

USB cable

Connect to PC or USB charger

Battery icon

Charge screen

Rubber cover

Caution!: Keep the rubber cover ﬁrmly in place to maintain waterproofness.

* If charging starts during measurement, the measurement will be terminated and saved.

Please charge the Air GPS before or after measurement.

* If the battery icon is not displayed, disconnect and reconnect the USB cable repeatedly

until this icon is displayed.

* The standard charging time is approximate and will vary according to environmental and

user conditions.

* When fully charged, the device can be used for about 10 hours.

* Even with a full charge, allowing the unit to stand for a long period of time will consume

the battery because of the standby current.

Charging via a PC

• When your PC is in the sleep state, the battery cannot be charged.

• Before disconnecting the USB cable, perform Safely Remove Hardware process for

[GPS100] on a PC.

* When the Air GPS is connected to a Mac, the [GPS100] icon may still be displayed

on the screen even after the removal procedure. Regardless of the displayed [GPS100]

icon, the USB cable can be disconnected after the removal procedure.

Bracket band

Magnetless

cadence sensor

(CDC-30)

Sensor

rubber pad Rubber band

(Large/medium/small)

Nylon tie x1 Lithium battery

(CR2032)

Air GPS + magnetless cadence sensor (CDC-30) set includes these parts.

Bracket Dial USB cable

(MICRO USB)

Start GuideBracket

rubber pad

Cover,

Introduction

Setup

Mounting on a

bicycle

Starting

measurement

Measurement

results

Changing settings/

Using sensors

SET

Frequently

Asked

Questions

Appendix

1/3

Setup

To set up the Air GPS, the smartphone app Cateye Cycling™ is required.

After installing Cateye Cycling™, follow the procedure below to set up the Air GPS.

For the latest information on the smartphones that are compatible with Cateye Cycling™

operations, see “Cateye Cycling™ Recommended Devices”.

* When using the application for the ﬁrst time, allow the use of the GPS and Bluetooth®

and select the unit (km/h or mph).

Select “Always” or “While Using the App” and turn on “Precise Location” information.

Air GPS

Press and hold (POWER) to turn on the Air GPS.

The Air GPS enters standby mode (READY ﬂashes).

* If the screen is blank or (battery frame only) is displayed after

a long press of (POWER), charge the Air GPS according to the

procedure under “Charging the Air GPS” (page 3)”.

Open the rubber cover on the Air GPS and press the AC

button to format the Air GPS.

Rubber cover

AC button

Caution!:

• Formatting will restore the Air GPS to factory default settings.

• Keep the rubber cover ﬁrmly in place to maintain waterproofness.

After the entire screen is lit, the Air GPS returns to standby mode (READY ﬂashes).

Setup

(Long press)

Cover,

Introduction

Setup

Mounting on a

bicycle

Starting

measurement

Measurement

results

Changing settings/

Using sensors

SET

Frequently

Asked

Questions

Appendix

2/3

Setup

Smartphone

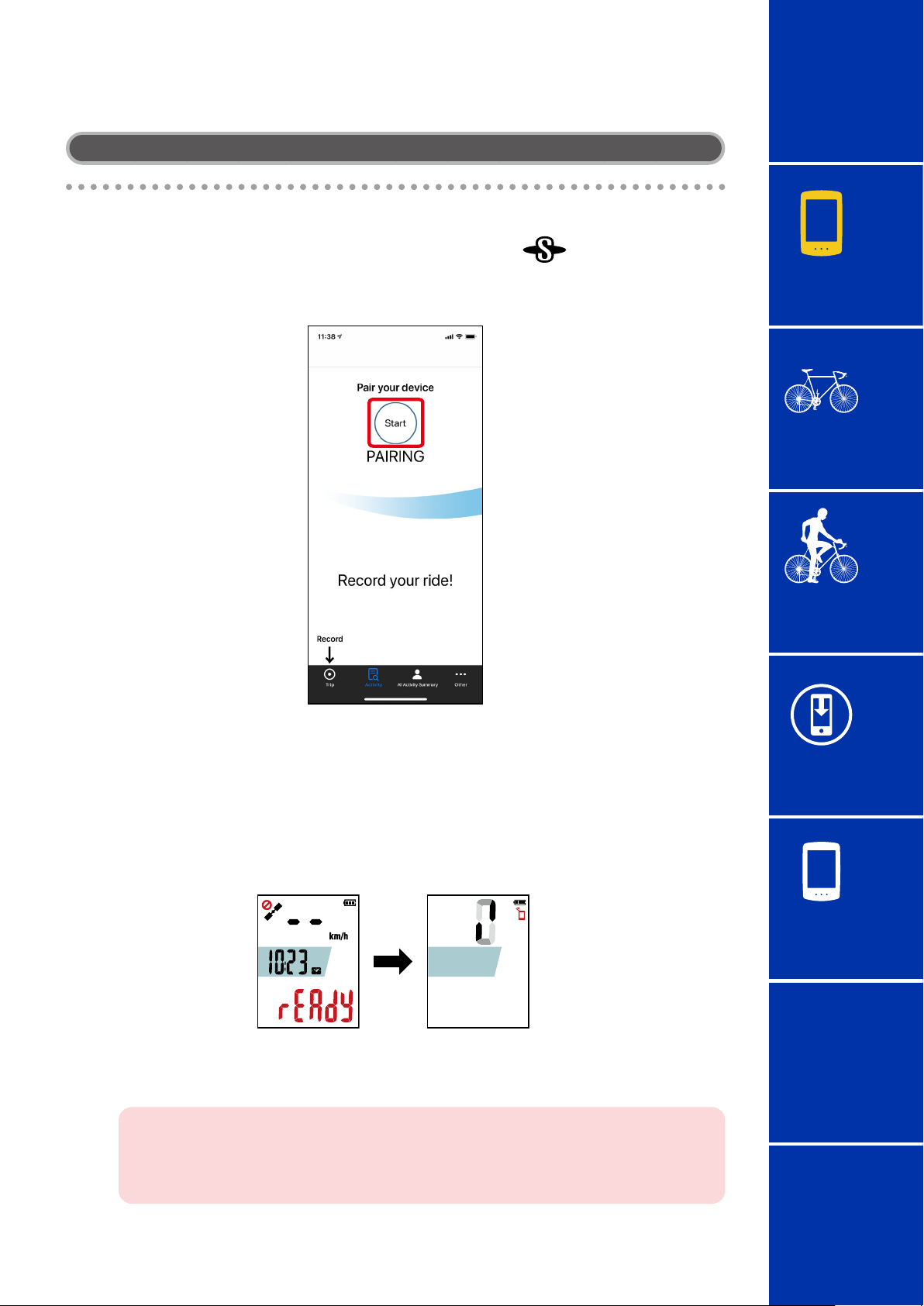

Launch Cateye Cycling™, tap [Start] to begin pairing.

* If the startup screen does not appear, tap [Activity] > (Startup) at the top

left of the screen to display the startup screen.

* To pair with the Air GPS, allow the use of Bluetooth®.

When Cateye Cycling™ detects Air GPS, a message is displayed on the

smartphone.

Tap [Pairing] to complete pairing.

When pairing is complete, the app is connected to the Air GPS.

The display of the Air GPS in standby mode changes to the smartphone link

screen.

Standby Smartphone Link

screen

When a ﬁrmware update notiﬁcation is displayed

A new ﬁrmware version is available for the Air GPS. Update the ﬁrmware by

tapping [Update].

Cover,

Introduction

Setup

Mounting on a

bicycle

Starting

measurement

Measurement

results

Changing settings/

Using sensors

SET

Frequently

Asked

Questions

Appendix

3/3

Setup

Turn [Connect] off on Cateye Cycling™.

This concludes the setup of the Air GPS.

To use sensors, follow the procedure under “Using sensors” (page 21) to pair

the sensors.

Cover,

Introduction

Setup

Mounting on a

bicycle

Starting

measurement

Measurement

results

Changing settings/

Using sensors

SET

Frequently

Asked

Questions

Appendix

1/2

Mounting on a

bicycle

Mounting on a bicycle

• When mounting on handlebar

Mounting the bracket

The bracket can be mounted on either the stem or the handlebar.

Mounting the bracket

• When mounting on stem

Caution!:

• Always tighten the bracket

band dial by hand. Using a

tool or other object to tighten

the dial may crush the screw

thread.

• Cut the bracket band so that cut end will not cause injury.

Cut

Handlebar

Bracket band

Bracket

rubber pad

Stem

Bracket band

Bracket

rubber pad

Bracket band Bracket DialBracket

rubber pad

Dial

Cover,

Introduction

Setup

Mounting on a

bicycle

Starting

measurement

Measurement

results

Changing settings/

Using sensors

SET

Frequently

Asked

Questions

Appendix

2/2

Mounting on a

bicycle

Mounting on a bicycle

Attach/detach Air GPS

Hold Air GPS.

Push out so that front lifts up.

Insert Air GPS into the bracket until it clicks

to ﬁx it in place.

Click

Mounting the sensor

If the magnetless cadence sensor comes with the Air GPS, follow the procedure under

“Magnetless cadence sensor: 3. How to install the unit on your bicycle” in the sensor’s

online manual (on our website) to mount the sensor.

Cover,

Introduction

Setup

Mounting on a

bicycle

Starting

measurement

Measurement

results

Changing settings/

Using sensors

SET

Frequently

Asked

Questions

Appendix

1/6

Starting

measurement

Starting measurement

Restrictions on measurement

• The maximum moving time that can be measured for a single trip varies depending

on how much battery power remains at measurement start. (When fully charged, the

device can be used for about 10 hours.)

If the battery of the Air GPS runs out during measurement, the measurement will be

terminated and saved, and the power will be turned off.

• The maximum recording time for trip data is approx. 80 hours in total. (With a

1-second record interval) If this total is exceeded, the oldest trip data will be deleted

to make room for new measurements.

(*1) The middle and lower displays can be customized via smartphone (Cateye Cycling™).

For details, see

“Setting the Air GPS” (page 18)

Icon Description

(GPS signal received) GPS sensitivity

Indicates the GPS signal status.

(GPS signal unreceived)

Battery

Indicates the remaining Air GPS battery in 4 different increments.

* When (battery frame only) is constantly shown on the

screen, the remaining battery power is low. Follow the procedure

under “Charging the Air GPS” (page 3) to charge the Air GPS.

Smartphone Link

Flashes when a smartphone (Cateye Cycling™) is connected.

Sensor signal icon

Turns on when a paired sensor signal is received.

• S: Speed sensor

• C: Cadence sensor

• S C (both lit) : Speed/cadence sensor

• H: Heart rate sensor

Clock (*1)

0:00 – 23:59 or 1:00 – 12:59

Current function (*1)

Dot section

Upper display

Middle display

Lower display

Current speed

0.0 (3.0) – 99.9 km/h [0.0 (2.0) – 62.0 mph]

* Minimum speed when measured by a speed sensor:

0.0 (4.0) km/h [0.0 (3.0) mph]

Cover,

Introduction

Setup

Mounting on a

bicycle

Starting

measurement

Measurement

results

Changing settings/

Using sensors

SET

Frequently

Asked

Questions

Appendix

2/6

Starting

measurement

Starting measurement

Icon Description

Pace arrows

Indicates whether the current speed is faster ( ) or slower ( )

than the average speed.

km/h

m/h

Units

Displays the currently selected measurement unit.

• Constant : Measurement stopped

•

Flashing :

Measurement in progress (counting the moving time)

Tm Moving Time

Heart rate

Displayed when a heart rate sensor is paired.

Cadence

Displayed when a cadence sensor is paired.

* Indicates the number of pedal rotations per minute.

Dst Trip Distance

Dst2

Trip Distance 2

This is the secondary trip distance measured separately from the

above trip distance.

The distance can be measured across multiple trips.

* For reset operation of Trip Distance 2, see “Setting the Air GPS”

(page 18).

°C / °F Temperature (temperature of Air GPS unit)

Average value

Displays the average heart rate and average cadence measured

by paired sensors in addition to the average speed.

Maximum value

Displays the maximum heart rate and maximum cadence

measured by paired sensors in addition to the maximum speed.

Odo Total Distance

Clock

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios para bicicletas de Cateye

Cateye

Cateye VELO Wireless+ CC-VT235W Manual de usuario

Cateye

Cateye Strada Smart CC-RD500B Guía de configuración

Cateye

Cateye Tomo CC ST-200 Manual de usuario

Cateye

Cateye Stealth EVO CC-GL11 Manual de usuario

Cateye

Cateye Vectra CC-7000 Manual de usuario

Cateye

Cateye CC-ED200N Manual de usuario

Cateye

Cateye RAPIDmicro G Manual de usuario

Cateye

Cateye PADRONE SMART Manual de usuario

Cateye

Cateye MSC 2DX Manual de instrucciones

Cateye

Cateye CC-MT200 Manual de usuario

Cateye

Cateye CC-VL200 Manual de usuario

Cateye

Cateye ViZ450 Manual de usuario

Cateye

Cateye STRADA SMART Manual de usuario

Cateye

Cateye Strada Digital Wireless CC-RD420DW Manual de usuario

Cateye

Cateye PADRONE SMART Manual de usuario

Cateye

Cateye VELO WIRELESS CC-VT200W Manual de usuario

Cateye

Cateye CC-TR200DW (V2c) Manual de usuario

Cateye

Cateye Padrone Smart + CC-SC100B Manual de usuario

Cateye

Cateye Stealth EVO+ CC-GL51 Manual de instrucciones

Cateye

Cateye Velo Wireless + Manual de usuario

Cateye

Cateye Stealth 10 Manual de usuario

Cateye

Cateye CC-CD200N Manual de usuario

Cateye

Cateye Solar CC-2000 Instrucciones de funcionamiento y mantenimiento

Cateye

Cateye Astrale 8 Manual de usuario

Manuales populares de Accesorios para bicicletas de otras marcas

Sigma

Sigma BC 16.16 Manual de usuario

Playcore

Playcore Dero Setbacks Manual de usuario

VDO Cyclecomputing

VDO Cyclecomputing x3dw Manual de usuario

buratti meccanica

buratti meccanica Clorofilla Trail Manual de usuario

Shimano

Shimano SG-8R20 Instrucciones de funcionamiento

BOB

BOB YAK Manual de usuario

APLIC

APLIC 303303/20190717TW012 Manual de usuario

SRAM

SRAM AXS BlipBox Manual de usuario

Garmin

Garmin EDGE 500 Manual de usuario

Shimano

Shimano FD-RX810 Manual de usuario

KMART

KMART 43115907 Manual de usuario

SIGMA SPORT

SIGMA SPORT Buster 2000 Manual de usuario

NVO Components

NVO Components STEM Manual de usuario

DAXYS

DAXYS BP188 Manual de usuario

XLC

XLC BV-W17 Manual de usuario

Deda Elementi

Deda Elementi SUPERBOX Manual de usuario

Akku Vision

Akku Vision e-bike vision 10046 Guía de inicio rápido

Squire

Squire Inigma Manual de usuario
