Carrier CRF-30-CM Instrucciones de funcionamiento

INSTALLATION &

OWNER S MANUAL

Centralized Controller

Thank youforpurchasingour product.

Beforeusingyour unit, pleaseread thismanualcarefullyandkeepfor futurereference.

MODEL: CRF-30-CM

1Installation part.......................................................................................1

1.1Packing listand installation components.....................................2

1.2Installation instructions..................................................................3

1.3Installation methods........................................................................3

1.4Wiring methods................................................................................5

1.5Safetyprecautions..........................................................................6

1.6Systemwiring instruction...............................................................7

2Operation part.........................................................................................8

2.1Function instructions......................................................................9

2.2Operation conditions.......................................................................9

2.3Key words.......................................................................................10

2.3.1Statusindication.....................................................................10

2.3.2Poweron orreset...................................................................10

2.3.3Emergency stop and forcedon.............................................10

2.3.4Variouslocking.......................................................................11

2.3.5ONand OFF ............................................................................12

2.4Operation instructions.................................................................14

2.4.1Keys instructions...................................................................15

2.4.2LCD instructions....................................................................19

2.4.3Otherinstructions...................................................................22

2.4.4Errorcodetable......................................................................24

2.5Technicalindexand requirements..............................................25

CONTENT

INSTALLATION PART

Installation &Owner sManual

1.1 Packinglistandinstallation components

GB845/ST3.9*25-C-H(S)

Φ6*30

RVVP-300/300 3 0.75mm2

RVV-300/5003 1.5mm2

5————

————

1.Please check thepacking listofthecentralizedcontroller,whetherthecomponents are

complete.

Quantity Remarks

Matchingresistance 120 Ω

2.Installationassemblies preparedon thesite

Name Remarks

3-core control

shielded cable 2PCS

1PCS

2/3PCS

Several

pieces

3-core cable

Switchbox

Wire pipe(jack

casing pipe,

captivenut)

Tighten strip

No.

No. Quantity

(install into

wall)

Selected model

Name

For power supplyofthe

centralized controller

For bindingcables(asthe

casemaybe)

Centralized controller

Cross-recessed headtapping

screws

Fastening plasticexpansion pipe

Installation &Operation Manual

One for communicating with

the airconditioner;the other

for communicating withthe

computer.

Installation &Owner sManual

48.5

85 68

122

1.3 Installation methods

1.2Installation instructions

1) Connect220VACpower tothe L Nterminalsofthe centralized controller directly.

2) Do notlay the signalwireand thepowerwire ofthe centralized controller inthe samepower

wire pipe,there shouldbe300~500mm distancebetween two pipes.

3) The signalwire ofcentralized controllershouldnotexceed 1200m.

4) No intermediatejointis allowed for the shielded cable.Ifjointsare inevitable,crimpitwiththe

terminalblock.

5) After the centralized controllerisconnected,do notusemegohmmeter toinspectthe insulation

ofthe signalcable.

6) Wiring mode ofthe centralized controller and the network interface:

The communicationport betweenthe centralized controller and the network interfaceofthe air

conditioner is polarity-sensitive.The X,Yand Eatbothsidesshouldcorrespond properly.Dot

notcross-connectthe signalwires,the sametothe RS485-RS232 ofthe centralized controller.

Correctconnection Incorrectconnection Incorrectconnection

Incorrectconnection

Installation instructions

Fig.1.1Centralizedcontrollersize(unit:mm)

Installation &Owner sManual

CCM30/BKE-A

CE-CCM30/BKE-A CCM30/BKE-B

CE-CCM30/BKE-B

X YEF1 F2 E FORCED ONEMG.STOP LN

（GB845/ST3.9*25）

00~15

1 2 3

Insert theflatheadscrewdriver intothe

concaveon theupper side of the box,

androtateslightly toopen the upper cover(3places).

Fix the screwsof thecentralizedcontroller

Base

Front cover

Address dial code

Dial code

Dial codeposition Address range

Fig. 1.2Installation diagram

Forced on

switch

Emergency

stop switch

LNterminals

(198V~242V)/(50/60Hz)

Communicationterminal withcomputer

Communicationterminal withairconditioner

Fig.1.3Terminal instructionof centralizedcontroller

Installation &Owner sManual

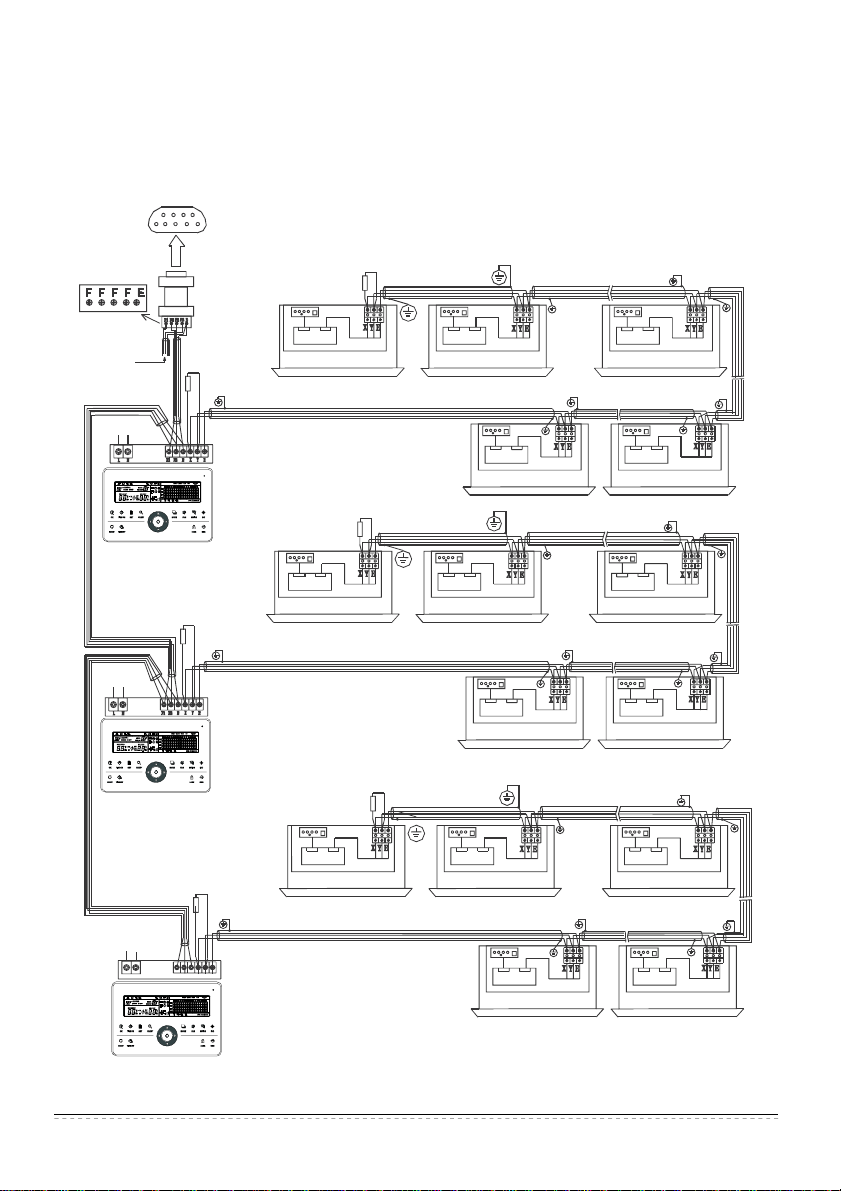

1.4Systemwiring instruction

EFFFF 2211

TN F1F2EXYE

POWER

Network airconditionerwiring diagram(two typesfor indoor unit:oneisthe maincontrolboard

withan externalnetwork interfacemodule;the other isthe network interfacemoduleisbuiltinthe

maincontrolboard).

RS232 pinbuckle:insertthe COMportofcomputer

RS485-to-RS232

module

Othercentralized

controllers

Matchedresistanceof

communication

terminal 120 Ω

Matchedresistanceof

communication

terminal 120 Ω

Matchedresistanceof

communication

terminal 120 Ω

Matchedresistanceof

communication

terminal 120 Ω

Matchedresistanceof

communication

terminal 120 Ω

Matched resistance of

communication

terminal120

Centralized

controller

Centralized

controller

Centralized

controller

Onecomputercanconnect16 centralized controllers atmost

Acentralizedcontrollercan connect64 indoorunitsatmost

Reliablygroundthe shielding terminal

IndoorunitIndoorunitIndoorunit

IndoorunitIndoorunit

IndoorunitIndoorunitIndoorunit

IndoorunitIndoorunit

IndoorunitIndoorunitIndoorunit

IndoorunitIndoorunit

Electronic

control box Electronic

control box

Electronic

control box

Electronic

control box

Electronic

control box Electronic

control box

Electronic

control box

Electronic

control box

Electronic

control box

Electronic

control box

Electronic

control box Electronic

control box

Electronic

control box

Fig.1.4Wiringdiagram

Installation &Owner sManual

1.5Safetyprecautions

The RS485-to-RS232 moduleandthe wires inthewiring diagramare used when the network

systemneedstoconnectwiththe computeronly. Onecomputer can connectwith16 centralized

controllersatmost,Namely the maximumofindoor units is16X64=1024,thatanetwork system

can connect.The centralized controllerscan be distinguished byaddress code,whichsetting range

is0to15.No duplicateaddressesisallowed inasamenetwork.

Note

Safetyprecautions

! Readthe safety precautionscarefully before installingthe unit.

! Stated below are important safety issues that must be obeyed.

! The meaningsofall partsare asfollows:

! Upon completion ofthe installation, checkwhetherthe trial run isnormal,and deliverthe

user'smanual tothe user.

Warning Meansimproperhandling maylead topersonal injury orpropertyloss.

Meansimproperhandling maylead topersonal deathorsevereinjury.

Note

Do not install the equipment in a place vulnerable to leakage of flammable gases.Once

flammable gases are leaked and left around the centralized controller,firemayoccur.

The wiring shall adaptto the current of the centralized controller. Otherwiseelectricleakage or

heating may occur and resultin fire.

Warning

Pleaseentrustthe distributororprofessionalstoinstallthe equipment.Installation byunauthorized

personsmaylead toimperfectinstallationwhichmayresultinelectricshockorfire.

Adhere to this installation manual.Improper installation may lead toelectricshockorfire.

Reinstallation mustbe performed by professionals.Improperinstallation may

shockorfire. lead toelectric

Do notuninstallthe eq on.Unauthorized uninstalling may lead to

ating or fire ofthe air conditioner.

uipmentwithoutpermissi abnormal

operation,he

Installation &Owner sManual

1.6Systemwiring instruction.

(a) (b)

1) Wiringdiagramof building network airconditioning system.

(a)The wiringsystemisgoodforcommunication,recommended

(b)The wiring systemisbad forcommunication,notrecommended

2) System wiring diagramofcentralizedcontroller and indoorunitofairconditioner.

Both ofthe following wiring modes ofcentralized controller and indoor unit are

applicable:

(The number of

indoor unitsconnected with

eachcentralized controllerisnotbeyond 64)

Indoor unit

Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit

Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit

Centralized controller

Fig.1.5Wiringdiagram ofcentralizedcontroller and indoor unit of airconditioner

Installation &Owner sManual
