Wired Controller

40VCW327FQEE User Manual

Turn to the experts

TABLE OF CONTENTS

WIRED CONTROL PANEL FUNCTIONS..........................................................................................1

Interface introduction.......................................................................................................................1

Key description................................................................................................................................2

Interface description........................................................................................................................3

INSTALLATION................................................................................................................................24

Turn to the experts

ENGLISH

WIRED CONTROL PANEL FUNCTIONS

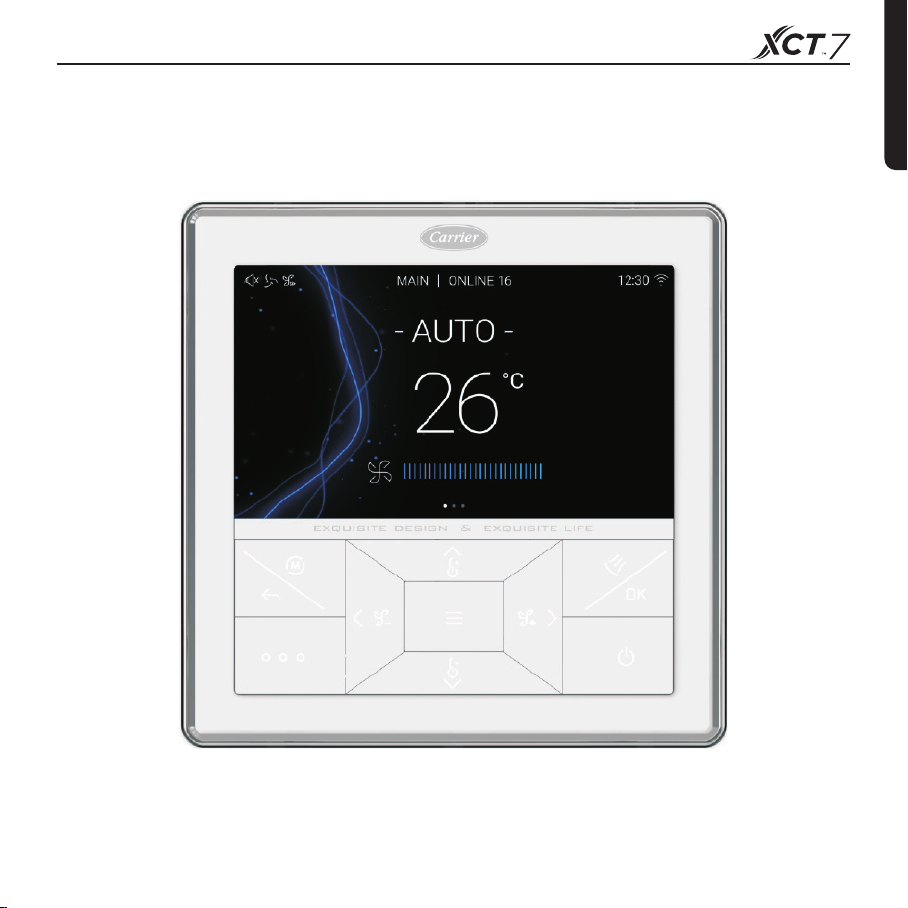

Interface introduction

ENGLISH

Key description

Mode key in the main interface, return key in other interface.

Page Down.

Left/Right key,

Fan speed adjustment key in the main interface,

Left/Right swing angle adjustment key in the swing interface,

Left and right switch keys or value adjustment key in other interface.

Up/Down key,

Temp.adjustment key in the main interface,

Up/Down swing angle adjustment key in the swing interface,

Up / down switch key or value adjustment key in other interface.

Menu key in the main interface, set key in other interface.

Swing key in the main interface, OK key in other interface.

on/o󰀨 key.

Turn to the experts

ENGLISH

lnitialization interface

Daytime screen saver

Night screen saver

Screen saver

Interface description

The main interface

1) Mode interface

Press the mode key to cycle in ve modes: auto, cool, dry,heat and fan.

Press the On/O󰀨 key to turn on/o󰀨.

AUTO COOL

DRY HEAT

FAN OFF

Turn to the experts

Interface description

ENGLISH

2) Other display information

Clock display area, the format of the date can be changed

through the time function.

Temperature display area, set temperature can be adjusted

by the Up/Down key. If energy saving function is not set, the

range of set temperature is 60°F-86°F(16°C-30°C), or the

adjustment range will be limited.

If energy saving function is set, the default lowest temp.of

cooling /dry mode is 74°F(23°C), the default highest temp.

of heating mode is 78°F(26°C). The adjustment step is

1°F(0.5°C).

Press " ''key to switch to the ambient temperature

display interface to view the current ambient temperature

value.

The ambient temperature display can be turned on/off

through the display settings.

The state of wired controller, this area also can display “Sub".

"MAIN" means the wired controller is the main controller,

“Sub" means the wired controller only can control parts of

functions; ONLINE 16:The quantity of indoor units connected

to the wired controller.

Mode:Auto→Cool→Dry→Heat→Fan.

Fan speed,the cycle type of fan speed can be set through

basic setting.

Extra Function: When the extra function is enabled, the main

interface will display the corresponding icon.

Interface description

3) Ambient temperature display interface:

Press the Page Down key to cycle to the ambient temperature display interface. Press again to

return to the main interface.

4)Swing interface

Press the swing key on the main interface to enter the swing interface. There are three types:Up/

down swing,left/right swing, four-way cassette swing. The default information of swing type is

decided by the indoor unit.

Up/down swing Press Up/Down key to adjust the up and

down swing.

Left/right swing Press Left/Right key to adjust the left and

right swing.

Four-way cassette

swing

Press the Menu key to adjust the louver. The

louver ashes,then press the Up/Down key to

adjust angle of the louver.

Turn to the experts

Interface description

ENGLISH

5) Menu interface

When in the main interface, press the menu key to enter the menu interface.

It contains: SCHEDULE, TIME, EXTRA, DISPLAY, ERROR, ECO, INSTALLATION.

Press the left and right keys to select the corresponding icon, and press the OK key to

enter the function.

①SCHEDULE

Schedule options include segmented timing and random timing. It can be selected

through display setting. The default is random timing.

The segmented timing will only e󰀨ective in cooling or heating mode. Time can be adjusted

in 24 hours. Temperature can be adjusted from 60°F(16°C) to 86°F(30°C), "OFF" can also

be set meaning power o󰀨. First, press the Up/Down key to select any scene, and then

press the Menu key to enter the site settings.

Segmented timing

Interface description

The left and right keys select the parameters, and the up and down keys adjust the

parameter values.

When the cursor is in the temperature regulation area, press the OK key to set it o󰀨.

After adjustment, press the return key to exit the settings.

When the display interface selects random timing. The Schedule will display the following

interface:

Press the Menu key to pop up the following interface

Random timing

Turn to the experts

Interface description

ENGLISH
