Carimali DIVA Manual de usuario

QUICK START GUIDE

DIVA

NT-05414-01-EN

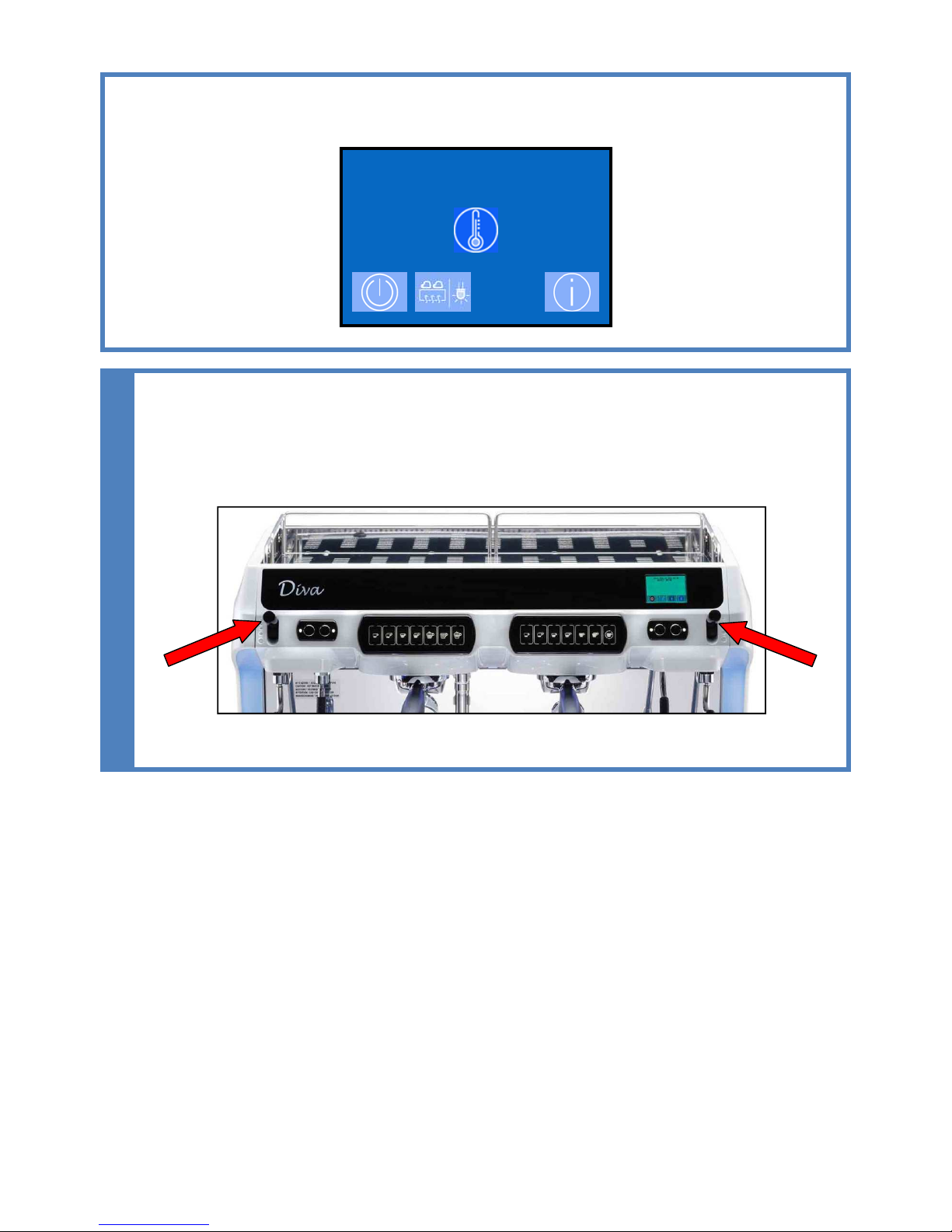

STARTING UP

•Turn on the tap from the water mains and switch the power ON by pressing the main switch located bottom

right underneath the machine.

•The machine will automatically go into OFF state, the message displayed will be:

2015-FEB-16 TUE 04:54

OFF

•

Press to switch ON the machine,

filling up will start and t

he display will show:

2015-FEB-16 TUE 04:54

FILLING UP BOILER

•Afterwards the keypad lights will be off and heating of the boiler starts. Please wait about 15 minutes to reach

the set temperature

2015-FEB-16 TUE 04:54

BOILER HEATING

•

HEATING UP:

LM Version: during the warming up, the milker solenoid valve will stay open from 0°c to 95°c and the

barista steam wand from 50°C to 95°C. This will release the air from the boiler

COF Version: during this stage, keep the steam lever open for a few seconds, this operation will

release the air from the boiler

•The machine will be ready when the boiler temperature is reached, the display shows:

2015-FEB-16 TUE 04:54

SELECT DRINK

•The Info section of the menu indicates following data:

2015-FEB-16 TUE 04:54

TEMPERATURE

124 °C STEAM

1,2 ar STEAM

77 °C GROUP 1

77 °C GROUP 2

CUP WARMER MID

CUP WARMER

2 2

Press to access to the cup warmer menu

2015-FEB-16 TUE 04:54

SELECT DRINK

The display shows:

2015-FEB-16 TUE 04:54

SELECT DRINK

Press to get to cup warmer temperature profile

2015-FEB-16 TUE 04:54

SELECT DRINK

Select the cup wermer temperature profile between:

•FULL

•

MID

•LOW

•OFF

KEYS DESCRIPTION

•

ESC

•

DECREASE VALUE

•

INCREASE VALUE

•

ENTER

•

SCROLL UP

•

SCROLL DOWN

LIGHTS

2 2

Press to access to the lights menu

2015-FEB-16 TUE 04:54

SELECT DRINK

Press to turn ON or OFF the side lights

2015-FEB-16 TUE 04:54

SELECT DRINK

INFO

2 2

Press to access to machine Info data

2015-FEB-16 TUE 04:54

SELECT DRINK

The display shows the following data:

2015-FEB-16 TUE 04:54

TEMPERATURE

XX °C STEAM

YY ar STEAM

ZZ °C GROUP 1

SS °C GROUP 2

CUP WARMER VVV

DATA DESCRIPTION

•XX °C STEAM: STEAM TEMPERATURE

•YY ar STEAM: STEAM PRESSURE

•ZZ °C GROUP 1: GROUP 1 TEMPERATURE

•SS °C GROUP 2: GROUP 2 TEMPERATURE

•CUP WARMER VVV: CUP WARMER TEMPERATURE PROFILE

DISPENSING

COFFEE DISPENSING: place a cup under the dispenser and press one of the coffee dose keys

MACHINE KEYPADS DIVA COF 2GR

Gr. 1 keypad

Gr. 2 keypad

11 12 13 14 15 21 22 23 24 25

MACHINE KEYPADS DIVA LM 2GR

Gr. 1 keypad

Gr. 2 keypad

11 12 13 14 15 16 17 21 22 23 24 25 26 27

HOT WATER DISPENSING: place a cup under the hot water nozzle and press the Tea / Hot water keys

or , to activate dispensing of the related hot water dose

2015-FEB-16 TUE 04:54

H2O: HOT WATER 1

Gr1: SELECT DRINK

Gr2: SELECT DRINK

Bar: SELECT DRINK

PLEASE NOTE:

delivery in progress can be stopped before reaching the desired programmed product quantity by

pressing the same key of the unit used for product delivery

•DISPENSING EXTRAMILK (ONLY LM MACHINES):

If enabled in program menu, keep pressed any Milk - based drink, release the key to interrupt the delivery

•The display will show:

2015-FEB-16 TUE 04:54

H2O: SELECT DRINK

Gr1: EXTRAMILK

Gr2: SELECT DRINK

Bar: SELECT DRINK

DISPENSING STEAM: warm up drinks (milk, cognac, etc) as follows, slowly pull down the steam lever, and then dip

the nozzle into the drink

Before using the steam wand pull down

the steam lever to purge the nozzle

Use the steam wand to foam or heat

any liquid into the jug, by handling the

plastic handle

After using the steam wand pull down

the steam lever to purge the nozzle

Clean the steam wand by means of a

cloth

Do not leave the steam wand into any

liquid at any time

WE STRONGLY RECOMMEND TO USE AND CLEAN THE STEAM WAND AS ABOVE SHOWN
