CareCo ICONNECT STEALTH Manual de usuario

USER MANUAL

PRODUCT CODE WA01010006

Scan me on your

phone camera

to watch our

assembly video.

PRODUCT CODE WA01010006

INTRODUCTION

The iCONNECT Stealth Carbon Tri-Walker has been designed to oer increased stability and

support to individuals that want to stay active.

Its cutting-edge carbon framework delivers strength, style and durability while maintaining a

low carry weight.

READ BEFORE USE:

Before you begin using your tri-walker, please ensure you, and any persons that may assist

you in its use, take the time to read, understand and follow the instructions given within this

manual carefully. We recommend that you keep this user manual in a safe place for future

reference.

If you have any questions about wheelchair use, maintenance, or safety,

please contact CareCo:

CareCo (UK) Limited, 1 Turing Court, Tel: 0333 015 5000

Great Notley, Braintree, CM77 7AT www.CareCo.co.uk

Thank you for choosing CareCo.

Need help with assembly?

We’ve put together a step-by-step assembly guide to help

you get your product set up safely and correctly. Just scan

the QR code with your phone camera to play the video.

SAFETY INSTRUCTIONS

• Only use the tri-walker for its intended use, incorrect use can lead to

hazardous situations.

• Only use the tri-walker on even and solid surfaces

• Do not overll the product bag – Maximum load 5KG

• Prolonged exposure to hot or cold temperatures can cause parts of the

tri-walker to become hot or cold.

• Replace damaged or signicantly worn parts if and when required.

• Periodically test the brakes to ensure safe use.

Visually impaired users can view this manual in PDF

format at the following URL:

www.careco.co.uk

PRODUCT IDENTIFICATION

The product identication label is located on the cross-frame.

PRODUCT CODE WA01010006

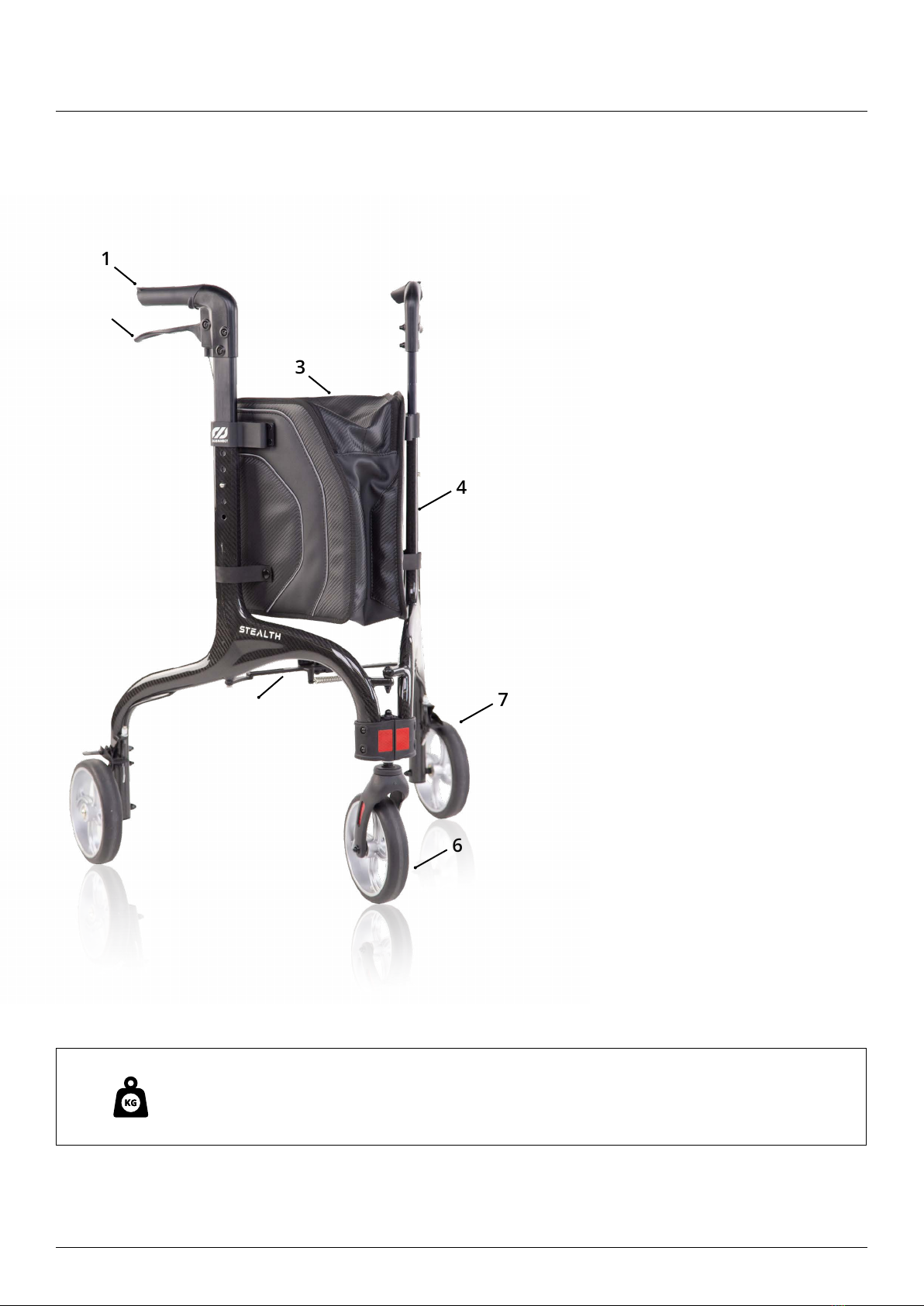

PARTS DESCRIPTION

1. Hand Grip

2. Brake

3. Storage Bag

4. Frame

5. Folding Crossbar

6. Front Wheel

7. Rear Wheel

MAXIMUM CARRY BAG LOAD: 5 KG

FOLDING & UNFOLDING

FOLDING:

Position the tri-walker upright

on its wheels.

Push the crossbar inwards to

release the spring lock.

Push both handles together.

UNFOLDING:

Position the tri-walker

upright on its wheels.

Pull both handles apart.

The crossbar will lock into

place.

The tri-walker can be folded with/without the storage bag attached.

If the bag is full, empty the bag before folding. Alternatively, remove it from the frame.

PRODUCT CODE WA01010006

HANDLE HEIGHT ADJUSTMENT

Press and hold spring button (A) while pulling the

handle upwards.

When the handle is at the desired height, release

spring button (A).

An audible “click” will conrm the handle is secure.

Repeat on the opposite side.

APPLYING THE BRAKES

Stopping

Gradually squeeze both brake levers to stop

the tri-walker.

Release the brake levers to start moving again.

Turning

Squeeze the left and right brake levers individually

to rotate the tri-walker.

Release the brake lever to stop rotating.

Locking

Push both brake levers downwards to apply the

brake lock.

Unlocking

Pull both brake levers upwards to unlock the brakes.

Ensure the tri-walker is stationary when

locking the brakes.

Regularly test the brakes to ensure they

function correctly.

Ensure both handles are level before using the

tri-walker.

ACCESSORIES

BAG

Attaching

Insert the bag clips into the bag mounts on the tri-walker frame.

Secure using the bag fasteners

Removing

Release the bag fasteners

Lift the bag upwards to remove it from the frame.

PRODUCT CODE WA01010006

HANDLING & TRANSPORTING

Carry the tri-walker using the rubber handles and/or areas of the frame that are clear of

pinch points.

Avoid heavy pressure when transporting the tri-walker.

CLEANING & HYGIENE

To keep the tri-walker in optimal condition, it should be cleaned regularly with a damp cloth

and/or mild soap. Do not use abrasive cleaners/materials.

Dry the tri-walker after cleaning and after use in bad weather conditions.

MAINTENANCE

By performing simple maintenance, the user can extend the life expectancy of the tri-walker.

• Check fasteners regularly and tighten if necessary

• Check tyre condition regularly

• Check brake functionality

• Check wheels move freely

• Check upholstery for wear

ADJUSTMENTS

BRAKE CABLE ADJUSTMENT

Diculty Level

Tools Required

The user can adjust the brake cable using

simple household tools.

Loosen the lock nut (A) by rotating

it anticlockwise.

Adjust the brake cable tension by

rotating the brake adjuster (B).

Tighten the lock nut (A) by rotating

it clockwise.

LOW Moderate High

10mm Spanner x1

PRODUCT CODE WA01010006

SPECIFICATIONS

Overall Height 900-1000mm

Overall Length 560mm

Overall Width 690mm

Folded Height 900mm

Folded Length 650mm

Folded Width 260mm

Height Adjustable Range 900-1000mm

Front Wheel Size 7"

Rear Wheel Size 7"

Shopping Bag Size (W/H/D) 240 / 333 / 340mm

Outer Carton Size (W/H/D) 660 / 940 / 275 mm

Loading weight for Shopping Bag 5kg

Total Product Weight 4.39kg

Product Weight without shopping bag 3.6kg

Maximum User Weight 115kg

Frame Material Carbon Fiber

Wheel Material PVC

Handle Material TPE

Shopping Bag Material PVC Leather

Tyre Type Solid Tyre
