INTRODUCING YOUR NEW CARECO MOBILITY SCOOTER
The CareCo Frontier has been designed to provide a comfortable and safe solution for users
who have diculty in walking for extended periods of time.
Due to CareCo’s commitment to continuous product improvement, product information and
designs are subject to change without notice.
No claims can be made based on the data or illustrations in this user manual.
The CareCo Frontier is a Class II Medical Device, limited to a maximum speed of 4MPH.
It is the responsibility of the user and/or attendant to determine if they are mentally
and physically capable of using the mobility scooter safely. A risk assessment should be
completed by a competent individual before operating the scooter.
FIRST USE
Take the time to understand the scooter’s stopping duration, turning radius, throttle
sensitivity and manoeuvrability. We recommend practicing using the scooter in an open area
until condent enough to operate in smaller and/or public areas.
Operate the scooter at a lower speed before gradually increasing to a higher speed.
If any additional assembly, disassembly and/or operation assistance is required, please
contact CareCo.
Keep this user manual is in a safe place for future reference.
KEY DEFINITIONS
This user manual contains warnings and suggestions marked with the following symbols:
SUGGESTION
General suggestions and advice for operating the product.
WARNING!
Highlights a potentially hazardous condition/situation for the user and/or product.
PRODUCT CODE MS01010033.TIM
4
CONTENTS
GETTING STARTED
CARTON CONTENTS
PRODUCT COMPONENTS
SETTING UP YOUR MOBILITY SCOOTER
HOW TO USE YOUR MOBILITY SCOOTER
USER INSTRUCTIONS
HOW TO DISCONNECT & CONNECT THE FRONT AND REAR SECTIONS
TILLER CONTROLS
KEY SWITCH
BATTERY GAUGE
HORN BUTTON
HEADLIGHT BUTTON
SPEED DIAL
THROTTLE LEVER
CIRCUIT BREAKER
BASKET
MOBILITY SCOOTER MODES
EMERGENCY BRAKING
AUTOMATED POWER-SAVING
BATTERIES & CHARGING
HOW TO CHARGE YOUR MOBILITY SCOOTER
CHARGING REGIME
BATTERY RANGE
CHARGING INFORMATION
6
6
7
8
12
12
16
20
20
20
20
20
20
21
21
22
23
23
23
24
24
24
25
25
5
DISASSEMBLING YOUR SCOOTER, TRANSPORTATION & STORAGE
DISASSEMBLY INSTRUCTIONS
TRANSPORTATION
STORAGE
COMFORT ADJUSTMENTS
SEAT HEIGHT ADJUSTMENT
TILLER ANGLE ADJUSTMENT
ARMREST WIDTH
LOOKING AFTER YOUR MOBILITY SCOOTER
CLEANING
MAINTENANCE
MAINTENANCE SCHEDULE
REPAIRS
TROUBLESHOOTING
WARNINGS & TECHNICAL INFORMATION
SCOOTER SPECIFICATIONS
ELECTROMAGNETIC INTERFERENCE (EMI)
PRODUCT RE-ISSUING
RECYCLING & DISPOSAL
INTENDED USE
PRODUCT IDENTIFICATION
GENERAL WARNINGS
EXPECTED LIFETIME
WARRANTY
NOTES
26
26
29
29
30
30
31
32
32
32
33
33
33
34
35
35
36
37
37
37
37
38
39
40
41
PRODUCT CODE MS01010033.TIM
6
GETTING STARTED
Contact CareCo immediately if any of the listed contents are missing.
We strongly recommend that you keep the box and internal packaging for the duration of
your warranty period.
Need help with assembly?
We’ve put together a step-by-step assembly guide to help
you get your product set up safely and correctly. Just scan
the QR code with your phone camera to play the video.
Item Number Description Quantity
1 CareCo Frontier 1
2 Basket 1
3 Charger 1
4Instruction Manual 1
5 Armrest 2
6 Armrest Securing Bolt 2
7 Seat Post Pin 1
8 Seat Post Securing Bolt 1
9 Battery Securing Plate 1
10 Battery Securing Bolt 1
11 12AH Battery Pack 1
12 Seat Assembly 1
CARTON CONTENTS
7
PRODUCT COMPONENTS
1. Tiller control panel
2. Basket
3. Tiller adjustment knob
4. Front bumper / Carry handle
5. Removable armrest
6. Seat
7. Seat swivel lever
8. Battery pack
9. Front wheel
10. Rear wheel
1
2
3
4
5
6
7
8
9
10
PRODUCT CODE MS01010033.TIM
8
SETTING UP YOUR MOBILITY SCOOTER

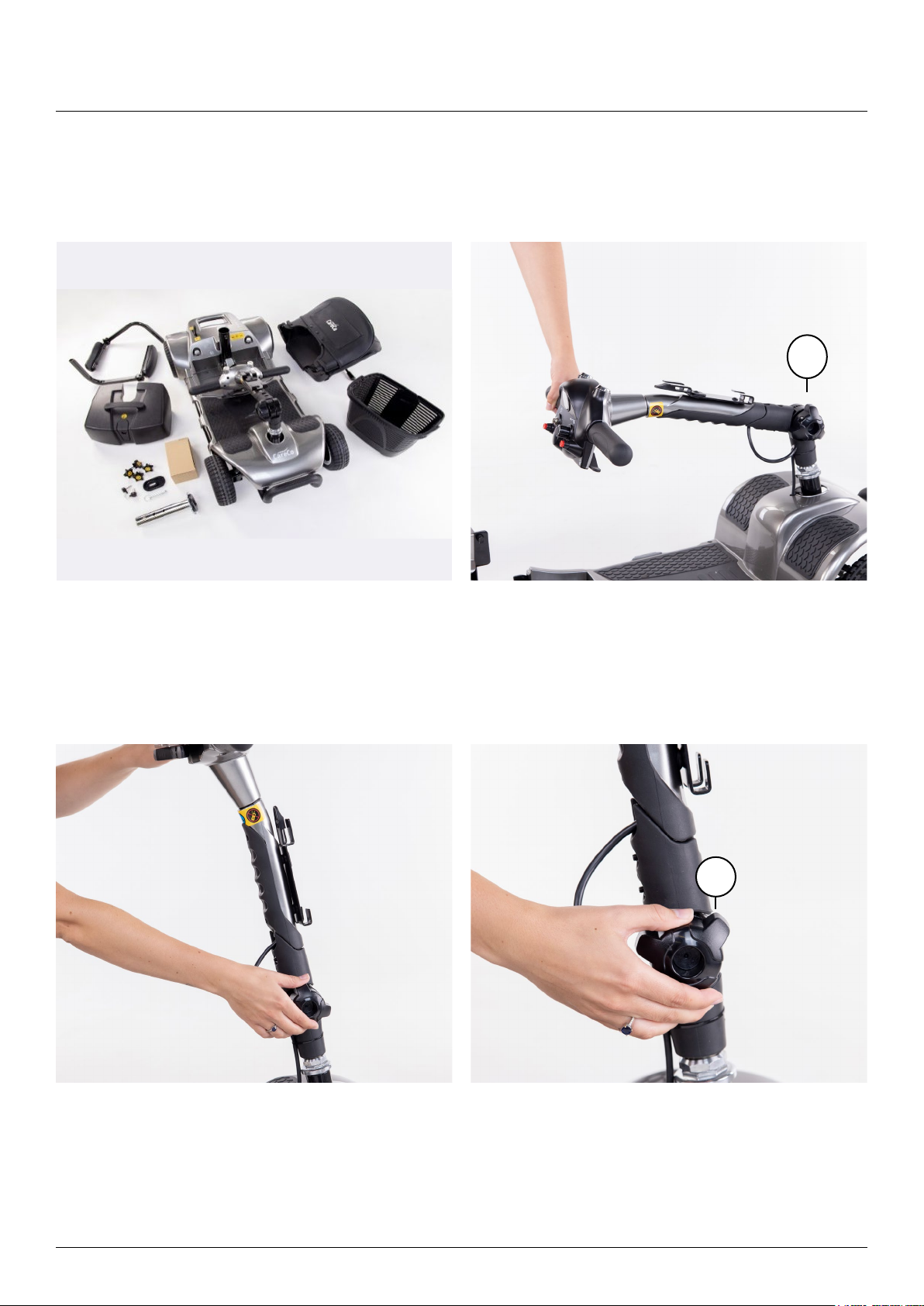

2. Loosen Tiller Knob (A) by rotating it
anticlockwise.
3. Lift the tiller until it is at a suitable and
comfortable angle.
4. Tighten Tiller Knob (A) by rotating it
clockwise.
1. Remove all scooter components from the
outer packaging and place them onto a
level surface.
A
A
9
5. Place the battery pack into the
battery tray. Ensure the battery pack
electrical contacts align with the rear sec-
tion contacts.
6. Secure the battery to the scooter using
the battery securing plate & bolt.
7. Insert the seat post into the base stem of
the scooter.
8. Insert the seat post pin through the base
stem and seat post.
PRODUCT CODE MS01010033.TIM
10
9. Insert the seat post securing bolt into the
front of the base stem and tighten.
10.Place the seat onto the seat post.
11.Insert the armrest into the lower seat
bracket and secure with the armrest bolt.
Repeat on the opposite side.
12.Mount the basket onto the tiller basket
holder hooks.
