Caraudio-Systems UsbLOGiC Manual de usuario

Version 25.01.2012 USB-E65

usbLOGiC USB-AV-Player

USB-E65

for BMW E65 Professional navigation systems

with 8.8” monitor

Product features

• USB-port for media up to 2 TB (2000GB)

• supports FAT32 and NTFS formatted media

• multi partition capable

• compatible with MP3, AVI, VOB, MOV, RMVB, JPG and many more

• last position memory

• integrated into and controllable by vehicle infotainment

• AV-input with IR-control channel

• control of after-market devices by OEM buttons, e.g. DVD-player, USB/iPod devices, …

• after-market rear-view camera input

• automatic switching to rear-view camera input (only from usbLOGiC mode)

• rear-view camera power (+12V max 1A)

• rear-seat-entertainment AV-output

• optional remote control for full USB functions/rear-seat-entertainment

• power on remote out trigger signal (+12V max 1A) to switch on connected devices

• video-in-motion

Version 25.01.2012 USB-E65

Page1

Contents

1. Prior to Installation

1.1. Delivery contents

1.2. Check compatibility of vehicle and accessories

1.3. Setting the dip switches of the CAN-box TV-436

1.4. Setting the dip switches of the USB-box USBC-M536

1.4.1. Automatic switching to rear-view camera

1.4.2. Deactivating usbLOGiC AV input

2. Installation

2.1. Installation of CAN-box TV-436

2.2. Installation of USB-box USBC-M536

2.3. Antennas and optional IR-remote control set

2.4. Connecting peripheral devices

2.4.1. AV-source

2.4.2. Installing AV-source’s IR-sensor additionally

2.4.3. After-market rear-view camera

2.4.4. After-market rear-seat-entertainment

2.4.5. Factory nightvision, factory DVD-changer, factory rear-view camera

3. Operation

3.1. Activation of the video-in-motion function

3.2. Selecting the usbLOGiC as current AV-source

3.3. Assigning device control for connected AV-source

3.4. Switching to internal USB, AV-source or after-market rear-view camera

3.5. Button assignment table iDrive

4. Specifications

5. Connections (USB-box)

6. Technical support

Appendix A –Device control table

Appendix B –USB function manual

Version 25.01.2012 USB-E65

Page2

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labor cost for and other expenses

involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

1.1. Delivery contents

If remote function for a peripheral device shall be used, additional an IR-

Remote cable and Y-adapter are needed, see chapter AV-source .

CAN-box

TV-436

HW_____

SW _____

Take down the SW-version and HW-version of the interface boxes, and store this

manual for support purposes.

USB-box

USBC-M536

HW_____ SW_____

Harness

C2C-BMW02

Harness

C3C-AVIR

USB-installation socket USBC-EXT

Harness

TV-BMW65

Version 25.01.2012 USB-E65

Page3

1.2. Check compatibility of vehicle and accessories

1.3. Setting the dip switches of the CAN-box TV-436

1.4. Setting the dip switches of the USB-box USBC-M536

The default dip switch settings of the USB-box

need to be changed ONLY if a rear-view camera is

or shall be connected or if the AV-input of the

usbLOGiC shall be deactivated. The dip switches are

located inside the USB-box. For changes it is

necessary to open the box. Default settings are:

dip1 = ON, dip2 = OFF, dip3 = ON

1.4.1. Automatic switching to rear-view camera

If an after-market rear-view camera shall be connected or a factory

rear-view camera is connected, in order for the usbLOGiC to

automatically switch to its camera input, when reverse is engaged

set dip2 = ON (up).

Note: Automatic switching works only from usbLOGiC mode.

Dip switches

of USB-box

Requirements

Vehicle 7series (E65/E66)

Navigation Navigation system Professional E65 (older 1/2-button iDrive

or CIC (newer 8-button iDrive) with 8.8” monitor

Limitations

factory-TV-tuner Must NOT be installed. If uninstalled, optical ring must be closed.

factory DVD-changer After-market rear-view camera cannot be connected to

or factory nightvision the usbLOGiC interface.

factory Additional interface VL-RGB02-R is necessary

rear-seat-entertainment

After-market rear-view cam Only works from usbLOGiC mode, not from OEM.

USB-port Only for media which work with power supply by ONE single USB

connector

All vehicles dip 1 ON, dip 2 OFF, dip 3 OFF

Version 25.01.2012 USB-E65

Page4

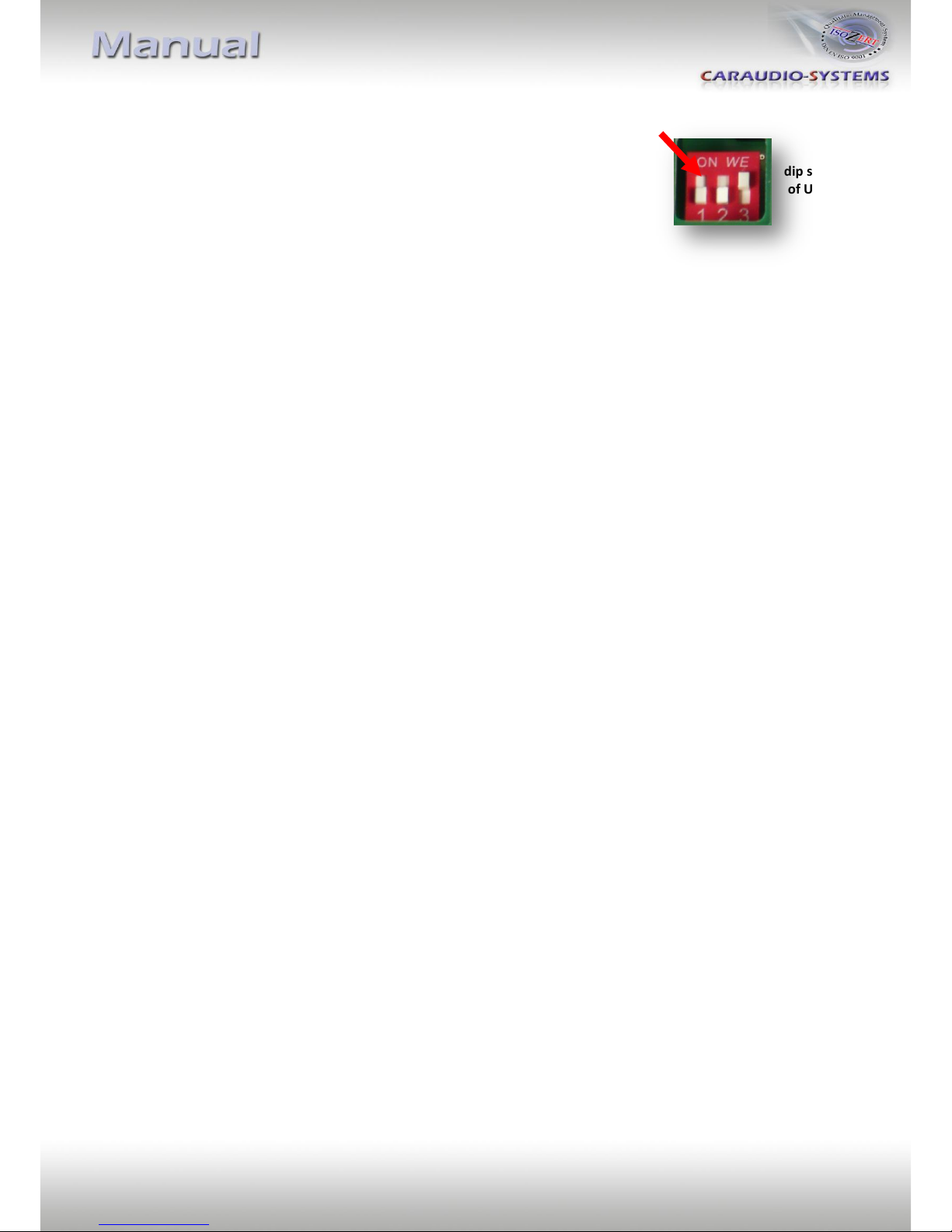

dip switches

of USB-box

1.4.2. Deactivating usbLOGiC AV input

If no peripheral AV-source shall be connected to the usbLOGiC, we

recommend to disable the AV-input, to avoid customers switching by

mistake to black/no picture of the AV-input. In order to disable the

AV-input of the usbLOGiC,

set dip1 = OFF (down).

2. Installation

Switch off ignition and disconnect the vehicle’s battery! If according to factory rules

disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in

sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a

resistor lead.

Complete and correct function of the interface is possible only when CAN and MOST®

(tuner) connections are made properly. On vehicles without TV-icon, it will be coded

automatically after installation.

Place of installation is at the rear of the navigation screen and at the rear of the navigation

computer.

Version 25.01.2012 USB-E65

Page5

2.1. Installation of CAN-box TV-436

The CAN interface is connected to

the backside of the OEM screen.

Remove 3 TORX screws at the OEM screen.

Remove cover grill (only plugged). Place soft

towel beneath the navigation monitor

to avoid scratches

Flip down the board monitor. NOTE: The OEM

screen gets stuck with its connector at the upper

side of the cockpit. Insert a hard plastic sheet like

a credit card to prevent cockpit from

taking damage.

Remove the black connector at the backside of

the screen as shown below.

Version 25.01.2012 USB-E65

Page6

Remove 12-pin insert from black vehicle

harness connector.

Insert 12-pin insert into black connector

of the CAN interface harness TV-BMW65.

Insert the completed black connector into

CAN interface harness TV-BMW65.

Connect 12-pin insert from CAN interface

harness TV-BMW65 into black connector from

vehicle harness.

Insert completed connector into the plug on the backside of the navigation monitor.

Connect 8pin Molex connector of TV-BMW65 to CAN-box TV-436.

NOTE: Pictures do NOT show the fibre optics connected in car!

Version 25.01.2012 USB-E65

Page7

2.2. Installation of USB-box USBC-M536

The fibre optical interface installation is

made at the navigation computer, which

is located at the left side in the trunk

behind a cover and has to be removed.

The video lead (red/colored - video signal, black - video ground) has to be removed from the

white insert of C2C-BMW02. The white insert is not needed for E65/E66 installation.

Connect video lead of C2C-BMW02 to green 18-pin AMP connector

Video-signal (red) to chamber 3 of the green 18-pin AMP connector

Video-ground (black) to chamber 11 of the green 18-pin AMP connector

Remove fibre optics from black 20-pin plug and connect them as shown below. Then

reconnect the fibre optics in the black 20-pin connector and connect the MOST to the USB-

box USBC-M536.

Obey the direction

arrows of the optical

connectors!

14pin Molex connector

red –connect to +12V permanent current

black –ground

pink –remote signal +12V, high when navigation is on

white –The white wire is not connected and has to be isolated. In some cases it is possible

that the automatic switching does not work. In this case connect the white wire to the

reverse gear light (+12V).

green –camera power +12V (max 0.5A) on engaged reverse.

To black 20pin of

navigation computer

Version 25.01.2012 USB-E65

Page8

2.3. USB and optional IR-remote control set

Connect USB-connector of USB-installation socket USBC-EXT to USB-socket of USB-

box USBC-M536 and install the USBC-EXT socket in a well accessible location, e.g. the

glove-box. Make sure there is enough space to load USB-media.

Installation socket for the connection of USB-media.

The USB-IRSET consists of the external C3C-SENSOR IR-sensor and the USBC-RC IR-

remote control and can be used to control the usbLOGiC’s internal USB functions

additionally to the control through the navigations buttons. Connect the C3C-SENSOR

to the female black/red/blue 3pin AMP connector of harness C3C-AVIR and locate the

sensor in an accessible place.

2.4. Connecting peripheral devices

It is possible to connect an after-market AV-source, after-market rear-view camera and rear-

seat-entertainment to the usbLOGiC. Also factory nightvision, factory DVD-changer or

factory rear-view camera must be connected to the usbLOGiC.

Before final installation of the peripheral devices, we recommend to test-run the usbLOGiC

functions to detect incompatibility of vehicle, navigation, factory accessories or peripheral

devices as soon as possible.

Version 25.01.2012 USB-E65

Page9

2.4.1. AV-source

The usbLOGiC has the possibility to connect and remotely control by navigation buttons a

pre-programmed device. The device list in the device control table shows the pre-

programmed remote channels and the related IR-remote cables STA-xxx which must be

ordered separately for the control of the device.

Using the respective STA-xxx IR-control cable, interconnect the yellow female 3pin

AMP connector of harness C3C-AVIR and the IR-port of the AV-source.

Using an RCA-cable, interconnect the female RCA-port AV1 of the USB-box

USBC-M536 with the AV-output of the AV-source.

The pink ACC-output wire (+12V max 1A) of harness C2C-BMW02 can be connected

to the ACC-input wires of the connected device to switch it on. It carries +12V when

the navigation computer is running.

2.4.2. Installing AV-source’s IR-sensor additionally

Additionally to the control via OEM navigation, it is possible to install the original IR-sensor

of a connected device. By using the respective Y-adapter (e.g. STA-Y35MM or STA-RJ12) for

the IR-Port of the connected device, the controls of navigation AND device’s IR-sensor can be

connected and used simultaneously. Installation of the IR-sensor is recommended as the

controls via navigation are limited, and not all functions may be covered.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios para automóviles de Caraudio-Systems

Caraudio-Systems

Caraudio-Systems AC-AUX-FM Manual de usuario

Caraudio-Systems

Caraudio-Systems CI-TF-NTG5 Manual de usuario

Caraudio-Systems

Caraudio-Systems z.LiNK ZL-MFD2 Manual de usuario

Caraudio-Systems

Caraudio-Systems c.LOGiC C2-MMI2G Series Manual de usuario

Caraudio-Systems

Caraudio-Systems TF-NTG3 Manual de usuario

Caraudio-Systems

Caraudio-Systems OBD-CIC-CDC Series Manual de usuario

Caraudio-Systems

Caraudio-Systems OBD-CCC-CDC-01 Manual de usuario

Caraudio-Systems

Caraudio-Systems OBD-E65-CDC Series Manual de usuario

Caraudio-Systems

Caraudio-Systems TF-MMI Manual de usuario

Caraudio-Systems

Caraudio-Systems r.LiNK RL-PCM3-2-TF Manual de usuario

Caraudio-Systems

Caraudio-Systems V5-NBT Manual de usuario

Caraudio-Systems

Caraudio-Systems MD-VW01 Manual de usuario

Caraudio-Systems

Caraudio-Systems r.LiNK RL-FD79-TF Manual de usuario

Caraudio-Systems

Caraudio-Systems RL-LR17-TF Manual de usuario

Caraudio-Systems

Caraudio-Systems c.LOGiC lite C1-C25 Manual de usuario

Caraudio-Systems

Caraudio-Systems usbLOGiC USB-E65-TV Manual de usuario

Caraudio-Systems

Caraudio-Systems TV-Free TF-E65 Manual de usuario

Caraudio-Systems

Caraudio-Systems V5-CIC-E Manual de usuario

Caraudio-Systems

Caraudio-Systems CI-RL4-MIB101 Manual de usuario

Caraudio-Systems

Caraudio-Systems V5-CIC-F Manual de usuario

Caraudio-Systems

Caraudio-Systems TF-LR15 Manual de usuario

Caraudio-Systems

Caraudio-Systems v.LOGiC Intelligent Solution V5-NTG46 Manual de usuario

Caraudio-Systems

Caraudio-Systems TF-U501 Manual de usuario

Caraudio-Systems

Caraudio-Systems v.LOGiC Intelligent Solution V5-CCC Manual de usuario

Manuales populares de Accesorios para automóviles de otras marcas

James Baroud

James Baroud Odyssey Manual de usuario

Motorola

Motorola i50sx Manual de usuario

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manual de usuario

Feniex

Feniex T3 Manual de usuario

Renault

Renault 77 11 423 180 Manual de usuario

Kia

Kia E8300-4D000 Manual de usuario

Brink

Brink 756843 Manual de usuario

Whispbar

Whispbar K085W Manual de usuario

v.link

v.link CI-VL2-PC-HSD Manual de usuario

Viking

Viking Stack-Rack Guía de configuración rápida

Aries

Aries 203015 Manual de usuario

Choetech

Choetech AT0005 Manual de usuario

ZZ2

ZZ2 ZZAIR-PRO Manual de usuario

Holman

Holman 4A80L Manual de usuario

Thule

Thule 2075 Manual de usuario

Motorola

Motorola T325 Manual de usuario

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guía de instalación

DV8

DV8 FBJL-02 Manual de usuario

Caraudio-Systems usbLOGiC Manual de usuario

Manuales populares de Accesorios para automóviles de otras marcas
