Caple Sense 90cm Touch Control Induction Hob

Service Manual

INDUCTION HOB G5 –TC SLIM SLIDER

1. To detect the wrong breakdowns :

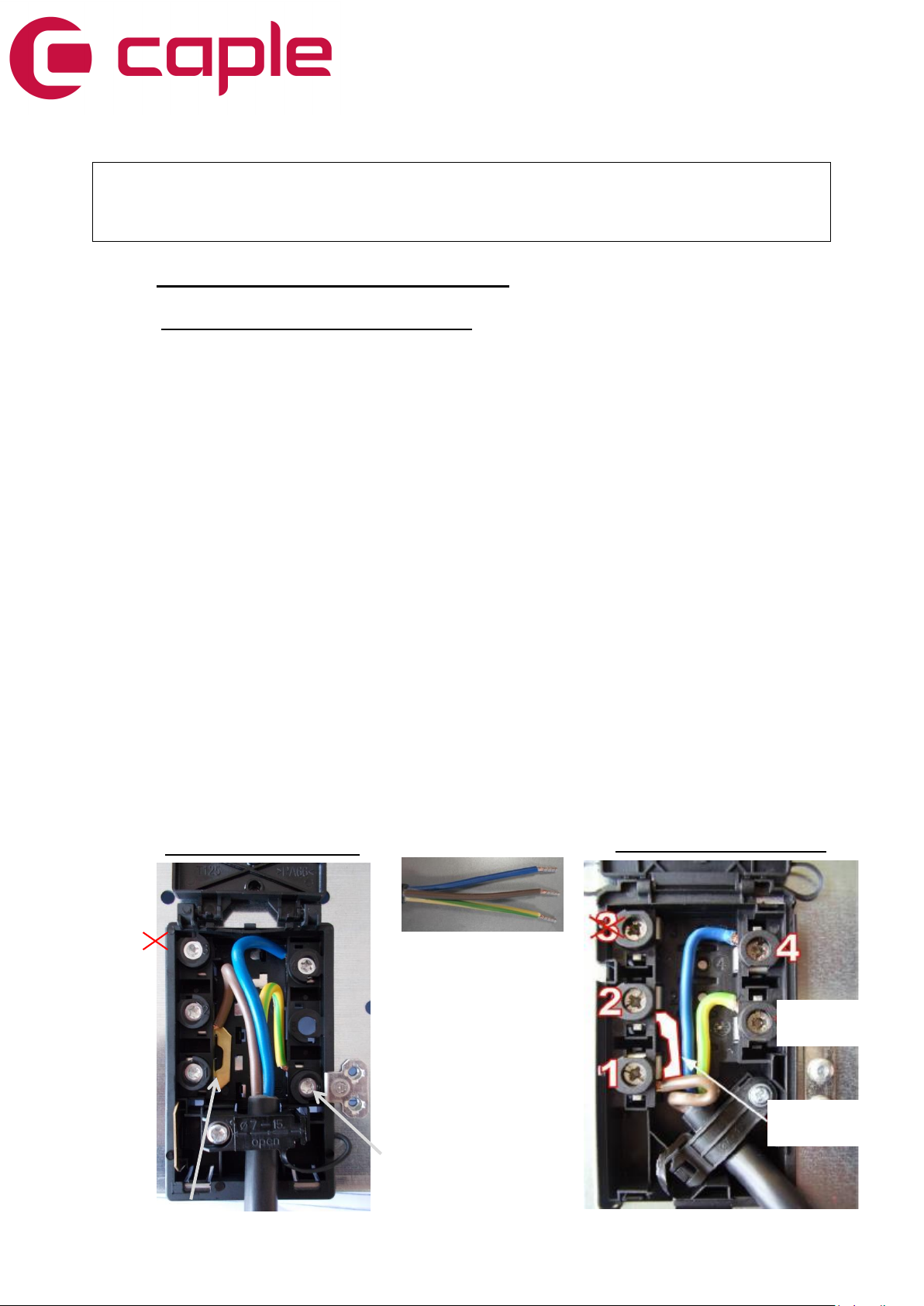

1-1 Connection to the electric network:

Control the tightening of the screws of the connection box

Control the section of the cables used (see manual of use)

Control if the earth wire (green/yellow) is connected

1+2 = phase

4 = neutral

3 = no connection

Earth = obligatory

Alimentation cable: advised with fasten terminal wires (see photograph).

Tightening of the screws: either with a cross screwdriver (PZ N°2), or with a

torx screwdriver (T20 footprint) according to the type of terminal block.

- The checking of the connection and tightening has to be made before any intervention

on the hob.

- A bad tightening can be at the origin of a breakdown

If a bridging is not made correctly or if a screw is badly tightened, there can be the

following symptoms:

- If the terminals 1 or 4 are wrong connected, the hob does not switch on (no

reaction) because the touch control is not supplied.

- If the terminal 2 is wrong connected, “E5” will appear on the right hand side

displays on the right side.

BRIDGE

EARTH

Torx screw terminal block

Philips screw terminal block

EARTH

BRIDGE

Caple C901I Induction Hob

1-2 Installation :

Control the installation of the gasket under the glass.

If the glass is glued with silicone and in case of an after sales service: leave

the glass in place and dismount the steel case under the work plan.

Control the ventilation of the air coming in of the ventilator (minimum 20 mm

of space).

1-3 Quality of the pans :

Control if the pan is compatible with induction.

- either a „magnet“ must remain hung on the bottom of the pan

- or put a little water that must quickly boil at the power level „9”.

The functioning of an induction generates a certain sonority. This one

depends on the pans used.

Use only pans with flat bottoms. Others risk damaging the hob.

BAD GOOD

1-4 Use :

To start the hob it is necessary to press the key [0/I] during 2 to 3 seconds.

During the first times of use, the cooking appliance will release an smell of

„new“.

1-5 Ventilation :

The ventilation starts as soon as two heating zones are switched on.

This ventilation goes on cooling the heating zones even after the stop of

cooking.

1-6 Securities :

In case of overflow, the hob stops as soon as 2 keys at least of the control

panel are covered.

Caple C901I Induction Hob

In case of overheating of the heating zones, an automatic and progressive

reduction of the power takes place.

2. To determine the breakdown according to the indications of the

control panel.

2-1 Normal Display (according to the models)

Display Designation Description

0. Zero The heating zone is activated.

1…9 Power level Selection of the cooking level.

U No Pan detection No pan or inadequate pan.

A Heat accelerator Automatic cooking.

H Residual heat The heating zone is hot.

P Booster The booster is activated.

Double booster The double booster is activated.

U Keep warm Maintain automatically of 42, 70, or 94°C.

II Pause The hob is in pause.

2-2 Display of an error message :

Display Designation Description

E Error message Electronic hardware failure.

Er Error message Electronic software or TC failure.

Example of error display 31 : “Er”blinks with “31”

Caple C901I Induction Hob

2-3 Fast starting :

When the hob is connected to the electric network, the displays’segments scroll

clockwise.

After that, press the key [0/I] (On/Off), « 0 » appears.

If no handling is made within 20 seconds, everything switches off.

So, slide on the « slider » to regulate gradually from 1 to 9, or press the selected

level for a direct access before 20 seconds (First put a pan with a little water.

The bottom of the pan has to be cleaned to avoid from any scratching).

If no pan is put on the selected cooking zone, or if the pan is taken away during

the cooking, or if the pan is not adapted to induction, you will have the following

display:

slider

Caple C901I Induction Hob

PROCEDURE OF CONFIGURATION (E4) - TC SMART SLIDER

A. Disconnect the hob from the electrical network.

B. Connect the network and take into account that the configuration setting has to be made in a

maximum time of 2 minutes (If the time goes over, the procedure must be begun again from

stage A).

C. Do not switch on the hob by pressing key [ ].

D. Press and keep the finger on key [ ] until you hear a “Beep”.

E. Then, press on each display in the order « A-B-C-D-E-F » until you hear a “Beep”.

F. Remove your fingers from the touch control, then push again on touch [ ] during few

seconds, until blinking [ E ] symbols appears.

G. Wait until [ E ] symbols stop blinking. After few seconds, [ E ] are automatically

transformed in [ C ]. The existing setup has been cancelled

H. Take a ferromagnetical pot with a minimum diameter of 16 cm. Select a cooking zone by

pushing on the corresponding [ C ] display. Place the pot on the area to be set. Wait until

the [ C ] display becomes a [ - ]. The selected cooking zone is now configured.

I. Follow the same procedure for each cooking zone with a [ C ] display.

All the cooking zones are configured once all the displays are turned off.

Please use the same pot for the whole procedure.

Never put several pots together on the zones during the setup-process.

The hob is now ready to be used.

Caple C901I Induction Hob

ERROR CODES

Legend:

Visual Control

No appropriated measure

Measure with multimetre

Error Code

Description

Potential Failure

Measure

What to do…

E blinking No error!

IHE configurations have

been erased

You are in the configuration menu:

See description of the configuration

procedure

C No error!

Cooking zone can be

Configured

You are in the configuration menu:

See description of the configuration

procedure

- No error!

Cooking zone is configured

You are in the configuration menu:

See description of the configuration

procedure

C blinking No error!

Cooking zone can be

configured

You are in the configuration menu:

See description of the configuration

procedure

TC = Touch Control panel

Cable LIN = White Cable 0.25 mm2 (ex : connection between TC and Filter Board PCB).

IHE = Induction Heating Element

Caple C901I Induction Hob

Error Code

Description

Potential Failure

Measure

What to do…

E 2

Temperature sensor

indicates overheat of

induction coil

IHE over temperature

Wrong algorithm calculated

over-temperature at coil

sensor PT-1000 (only for

cooking level 9)

Cooking zone has overheated

(maybe pot boiled without

food...)

A cool down is necessary Error is

disappearing when cooling down

Replace IHE with sensor if E2 reappears

after complete cooling down of cooktop.

E 3

Not adapted pan

Component failure

Some pans lose their magnetic

properties due to a overheat of

the bottom

The pan generates

interferences which disturb the

functioning of the induction.

Some bad pans may destroy

some electronic components.

Employment of suitable pan

⇨Replace the pan

Replace IHE

E 4

IHE is not configured

Communication failure

between TC and IHE

Component failure

Defective or missing Lin Bus

cable between CU and IHE

Missing voltage supplying of

the IHE

Failure on the IHE

Configure again, with the manual procedure

Check and/or change the Lin Bus cable

Check the voltage of the IHE

Replace the IHE

E 5 Communication failure

between TC and IHE

Defective Lin Bus cable

Absence of power supply

IHE not connected

Check the mains connection

Check and/or change Lin Bus cable

Replace the IHE

Caple C901I Induction Hob

Error Code

Description

Potential Failure

Measure

What to do…

E 6 Network failure Frequency problem

Overvoltage

Check the frequency and voltage

Replace the IHE

E 7 Unknown error Compatibility problems

between IHE and TC Replace IHE or TC

E 8 Fan failure Fan or control electronics

defect Replace IHE

E 9 Temperature probe PT 1000 Temperature probe PT 1000 is

defective Replace IHE

E A Hardware failure Hardware failure Replace IHE

E C Configuration failure 2 cooking zones are connected

on the same key Configure again with the manual procedure

E H Fixed resistor recognition

If there is no temperature

change at the cook place after

activation of cooktop within 5

minutes, error display shows

message “E H“

Induction cooktop has to cool down

Caple C901I Induction Hob

Error Code

Description

Potential Failure

Measure

What to do…

No display /

Function

Wrong connection

Error on Touch Control

Defect mains connection

Component part error on TC

Component part error on IHE

As soon as the hob is installed, please check

if it works properly. If you cannot turn on the

appliance, please double check the electrical

connections on both sides of the power cord.

A wrong connection that lasts more than 30

minutes will cause permanent damage that

is not covered by the warranty.

Check the mains connection

replace TC

replace IHE

Review or replacement of Lin Bus Cable

Incorrect pot detection Pan not adapted

Component failure on IHE

Use an adapted pan

Replace IHE

Cyclic bar

display

Er31

Er47

Defective or missing Lin Bus

cable between CU and IHE

TC failure

Reconfigure the TC

Review or replacement of Lin Bus Cable

Replace TC
