Caple DD935BK Manual de usuario

DD935BK

Caple Downdraft Induction Hob

Technical Manual

DD935BK

Caple Downdraft Induction Hob

DD935BK

Caple Downdraft Induction Hob

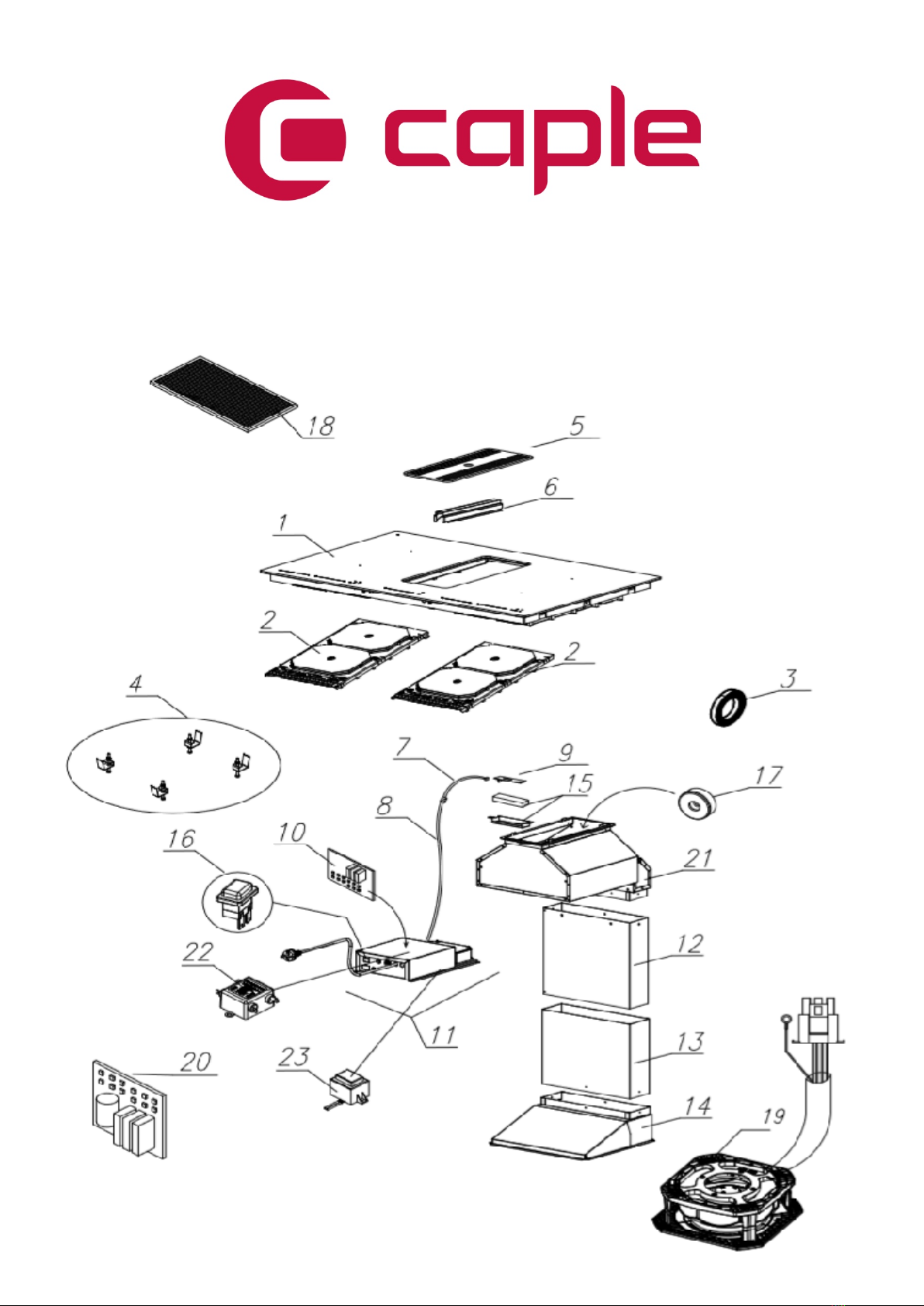

Item

Part Number

Description

Quantity

75070007852

HOB GLASS 780x520

75070000030

INDUCTION

75070000025

TAPE FOR HOB

75159217303

BRACKETS

75070042140

BLACK GRILLE

75070030958

SUPPORT FOR FILTERS

75070000544

FLAT CABLE

75074510579

LEAD WIRE

75102450003

TOUCH CONTROL

75001799999

MAIN BOARD

75119211776

WIRING ASSEMBLY SDDH3

75021001127

UPPER PIPE 320X90

75021001124

LOWER PIPE 320X90

75021010347

JOINT 320X90

75070000801

TOUCH CONTROL HOB

75470199999

EMERGENCY SWITCH/START NEON

75007026155

MAGNET 15X5

75071503045

GREASE FILTER

75007096715

MOTOR

75071008008

MAIN PCB

75071008372

BLACK FILTERING CASE

44149940015

MAINS IN FILTER

75149940002

TRANSFORMER FROM 11/2018

DD935BK – Caple Downdraft Induction Hob

Error Codes

Error

Message Description Possible Error Reason Troubleshooting

E03 & Acoustic

Signal

Permanent useofkeys. Control unitcuts

off after 10 seconds.

Water or cooking utensils on the

glass above the control unit. Cleaning of the operational surface.

E21

Control unit cuts off after

controlling due to overheating to

avoid damage to electronics.

Standard algorithm reaches limit when

overheated. Ambient temperature of

electronics still to high.

Allow cavity to cool down.

Check heat sealing-off of

control unit.

E22 Defective Key evaluation.

Control unit cuts off after 3.5 – 7.5 sec.

Short-circuit or discontinuation in the

range of the key evaluation. Exchange control unit.

E20 Flash-failure. µC- faulty. Exchange control unit.

E36

NTC value is not within its

specification (value < 200mV or

> 4.9V; control unit cuts off.

Short-circuit or cut-off at NTC. Exchange control unit.

E31 Configuration data incorrect. Configuration of induction necessary. New Configuration.

E47 Communication error between

TC and induction. None or faulty communication! Ensure that connection cable is

plugged on correctly and functional.

E2 Overheating of the induction coils Cooling down necessary.

U400

Secondary voltage ofthe power unit to

high (primary > 300V). Control unit cuts

off after 1 sec releasing apermanent tone. Control unit iswrongly connected. Connect tocorrect mains voltage.

E5 Error onfilter board. Exchange filter board.

E6 Error on power unit. Exchange power unit.

E9 Coil temperature sensor defective. Exchange temperature sensor.
