imagePRESS Server G100 Installation Procedure

imagePRESS Server G100 設置手順書

This installation procedure is written in Japanese and English. The installation procedure for Japan model is described in Japanese and one for the other models is

described in English. These procedures are different from each other. Follow the procedure corresponding to the installed model.

- Japanese: The installation procedure for Japan model

- English: The installation procedure for the other models except for Japan model

この設置手順書には、和文と英文の設置手順が記載されている。和文では日本モデル用の設置手順が記載されており、英文では日本モデル以外のその他のモデル用の設

置手順が記載されている。それぞれの設置手順は異なっているので、モデルに応じた手順に従うこと。

・和文：日本モデル用設置手順

・英文：日本モデル以外のその他のモデル用設置手順

PRINTED IN USA 45128775 PUB No. FT2-0109-000

Before Connection > Installing the license

How to Check this Installation Procedure

Symbols in the Illustration

The frequently-performed operations are described with symbols in this procedure.

1x 1x 1x

Install

Screw

Packaged Item Remove Tighten Loosen

Connect

Connector

Disconnect

Install

Harness

(Common for Guides and Clamps)

Remove

1x 1x

Connect

Power Cord

Disconnect

Check visuallyCheck the sound Check

OFF Cleaning

ON Push

Power

Unused Parts

F-1-1

Before Connection

Installing the license

Be sure to take out the license certicate included in the package and obtain the license key

in advance. Make the setting of the EFI Controller by the Web browser in the Control Panel.

1) Log in to the host machine as an administrator (mode).

Factory default password is as follows.

• System administration division ID: 7654321

• System administration password: 7654321

CAUTION:

When [System Manager Information Settings] is set, it is required to log in as a system

manager in accordance with instructions from the user administrator.

2) Select Settings/Registration > [Management Settings] > [License/Other] > [Register

License].

3) Enter the license key of the Web browser.

Example: 8888-7777-6666-5555-4444-3333

4) Press [Start] > [OK].

5) Turn OFF and then ON the main power switch to determine the registration.

Checking the Contents

The IP addresses for communication between the host

machine and server are set automatically

1) Enter the Service Mode (level 1).

2) Select: COPIER > OPTION > INT-FACE > IMG-CONT > "3".

3) Exit the Service Mode.

Securing space for installation

A space of 200 mm or more is required from the back of this equipment.

200mm or more

Rear

Equipment

Front

Checking the Contents

NOTE:

[3] Power Cord: The connector has a different shape depending on locations.

Use the correct power code to match the location/area of installation.

Make sure not to leave unused power code at the site.

The parts ([10] to [12], and [13] to [16]) are packed in single bags.

• [10] to [12]: To be used when installing the Open I/F PCB.

• [13] to [16]: To be used when installing the PS Unit.

F-1-2

Europe X2

USA X 1

[1] PS Unit X 1 [3] Power Cord X 1[2] PS Unit Fixation Plate

X 1

[4] Cross Ethernet

Cable X 1

[6] Open I/F PCB X 1

[7] Support Plate X 2 [8] Interface Cable

(1.0 m) X 1

[10] Open I/F PCB

Mounting Plate X 1

[11] Card Spacer X 1 [12] Screw (TP; M3x6) X 4

[5] Shield Ethernet

Cable (3.0 m) X1

[9] License Access

Number Certificate X 1

F-1-3

Installation Outline Drawing

Use 2 of them

[13] Wire Saddle X 4 [15] Stepped Screw

(M4) X 2

[14] Screw with

Toothed Washer

(Binding; M4x8) X 4

[16] Screw (TP; M3x6) X 6

< CD/Guides >

• Media Pack

• QUICK SETUP POSTER

F-1-4

Turning OFF the power of the host machine

Check that the main power switch is OFF.

1) Turn OFF the main power switch of the host machine.

2) Be sure that display in the Control Panel and the lamp of the main power supply are turned

off, then disconnect the power plug.

Check when Connecting the Power Plug to an Outlet

When connecting the power plug of this equipment to an outlet, be sure to use an outlet of a

system different from that of the host machine.

Installation Outline Drawing

F-1-5

Installation Procedure > Installing the Open I/F PCB

Installation Procedure

Installing the Open I/F PCB

1) Remove the Box Left Cover.

• 4 Screws

F-1-6

2) Disconnect the Reader Communication Cable and release the 2 Lock Levers.

3) Hold the grip to remove the Main Controller PCB 2.

• 2 Screws

F-1-7

F-1-8

Installation Procedure > Installing the Open I/F PCB

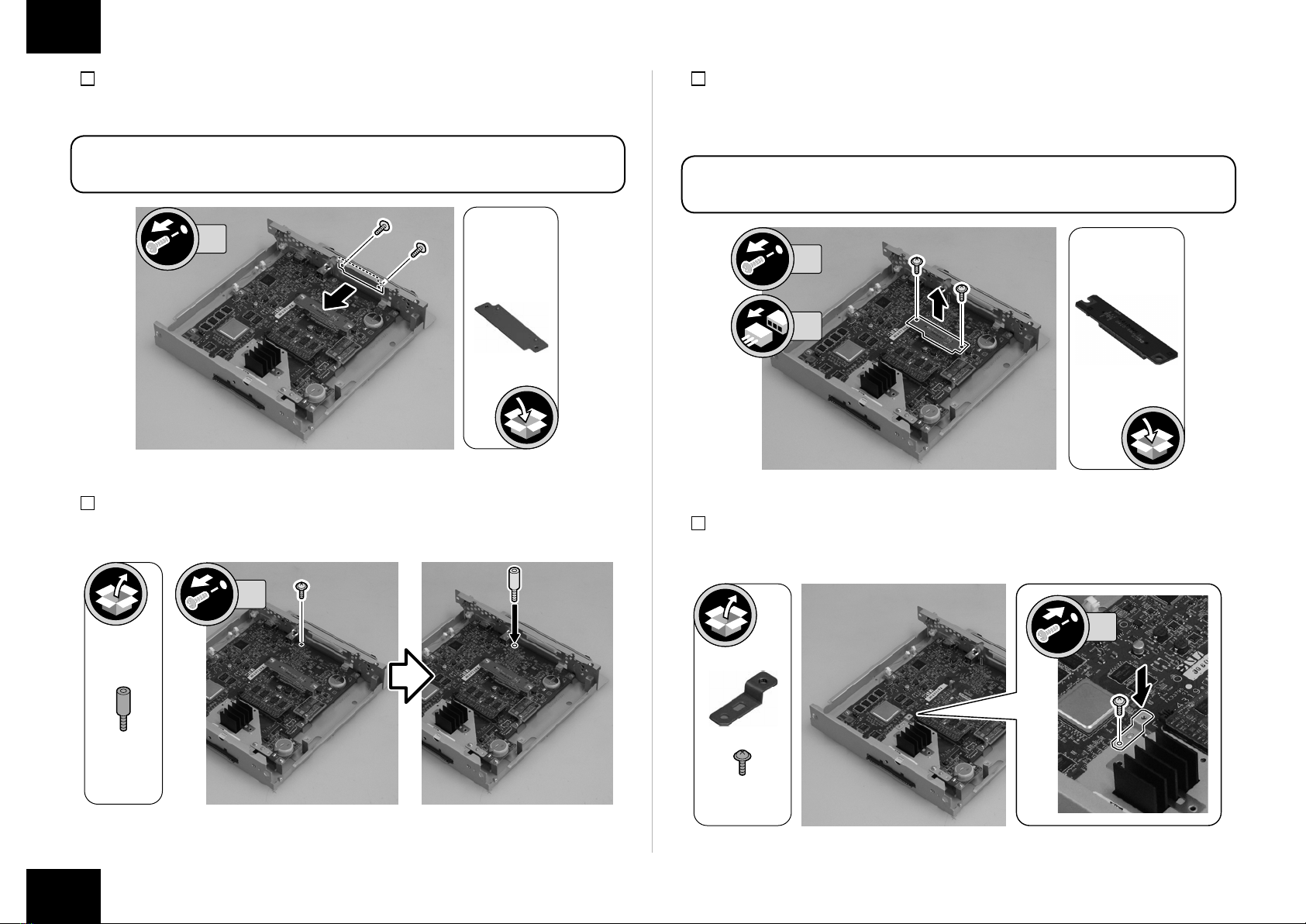

4) Remove the Face Plate (the removed Face Plate will not be used).

• 2 Screws (The removed screws will be used in step 8.)

NOTE:

Ask the user to store the Face Cover, in case it is needed in the future.

5) Remove the screw and replace it with the Card Spacer (the removed screw will be used in

step 8).

F-1-9

F-1-10

6) Remove the Bypass PCB (the removed Bypass PCB will not be used).

• 2 Screws (The removed screws will be used in step 8.)

• 1 Connector

NOTE:

Ask the user to store the Bypass PCB, in case it is needed in the future.

7) Install the Open I/F PCB Mounting Plate.

• 1 Screw (TP; M3 x 6)

M3x6

F-1-11

F-1-12

Installation Procedure > Installing the Open I/F PCB

8) Install the Open I/F PCB.

• 1 Connector

• 5 Screws (Use the screws removed in steps 4, 5, and 6.)

• 3 Screws (TP; M3 x 6)

M3x6

9) Release the 2 Lock Levers in the direction of the arrows, and uniformly push in the Main

Controller PCB 2 with both hands until it stops.

CAUTION:

Install the Main Controller PCB 2 while paying attention not to trap cables.

Lock

Lever

F-1-13

F-1-14

10) Turn over the 2 Lock Levers, and push in and secure the Main Controller PCB 2.

• 2 Screws (Install in order of bottom and top.)

CAUTION:

Be sure to perform the work in the order from 1 to 5 in the gure because the connector

of the Main Controller PCB 2 may not be connected.

11) Connect the Reader Communication Cable.

12) Connect the Interface Cable to the Open I/F PCB.

F-1-15

F-1-16

Installation Procedure > Installing the PS Unit

13) Put the Interface Cable through the hole of the Box Left Cover to install the Box Left

Cover.

• 4 Screws

CAUTION:

When installing the Box Left Cover, be careful not to trap cables.

F-1-17

Installing the PS Unit

1) Remove the 2 Face Seals of the Rear Upper Cover and loosen the 2 Screws.

(the removed Face Seals will not be used)

2) Hook the Support Plate to the screw (right side) loosened in step 1, and install it in the

direction of the arrow..

• 1 Screw (TP; M3 x 6)

Screw

Screw Support Plate

M3x6

F-1-18

F-1-19

Installation Procedure > Installing the PS Unit

3) Hook the Support Plate to the screw (left side) loosened in step 1, and install it in the

direction of the arrow.

• 1 Screw (TP; M3 x 6)

Screw

Support Plate

M3x6

4) Tighten the 2 screws loosened in step 1.

Screw

F-1-20

5) Install the 2 Stepped Screws (M4) to the Support Plate.

Support Plate

Stepped Screw

6) Remove the 8 screws of the PS Unit. (the removed screw will be used in step 7)

F-1-21

F-1-22

Installation Procedure > Installing the PS Unit

7) Install the PS Unit Fixation Plate.

• 4 Screw (Use the screws removed in steps 6.)

CAUTION:

Be sure to install it in the correction direction.

8) Hook the PS Unit to the 2 Stepped Screws (M4) tightened in step 5, and install it.

• 4 Screws with Toothed Washer (Binding; M4 x 8)

Screw with

Toothed Washer

Binding; M4x8

F-1-23

F-1-24

9) Remove the 2 Face Seals of the Rear Lower Cover (the removed Face Seals will not be

used).

10) Install the 4 Wire Saddles.

F-1-25

F-1-26
