Customizing the

Camera

You can customize various camera functions to suit

your picture-taking preferences with Custom Functions.

Custom Functions can be set and used only in Creative

Zone modes.

Setting Custom Functions _"

......iii i!ii

Select [Custom Functions (C.Fn)].

Underthe[t'4] tab, select[Custom

Functions (C.Fn)], thenpress

<SET>.

Custom Function number Select the Custom Function

number.

Press the <<> <1_> keys to select

the Custom Function number, then

press <SET>.

,iiii!!ii!!!!ii iiiii

Change the setting as desired.

Press the <A> <¥> keys to select

the desired setting (number), then

press <SET>.

Repeat steps 2 and 3 if you want to

set other Custom Functions.

At the bottom of the screen, the

current Custom Function settings are

indicated below the respective

function numbers.

Exit the setting.

Press the <MENU > button.

The screen for step 1 will reappear.

Under [_,4: Clear settings], select [Clear all Custom Func. (C.Fn)] to

clear all the Custom Function settings (p.227).

298

Setting Custom Functions*

C.Fn I: Exposure

1 Exposure level increments O

p.3O0

2 ISO expansion O

'_Movie

Shooting

In M

C,Fn I1: Image

I3IHighlighttonepriority Ip30111o I

C,Fn II1: Autofocus/Drive o(With

4 AF-assist beam firing p.302 AFQuick*)

5 Mirror Iockup

* If you use an EX-series Speedlite (sold separately) equipped with an LED light,

the LED light will turn on for AF-assist even in the AF_:_ AF(), and AFu modes.

C.Fn IV: Operation/Others

6 Shutter/AE lock button p.303 O

O O

7 Assign SET button p.304 (Except 3) (Except2, 3)*

8 LCD display when power ON

* [5: ISO speed] is settable only for manual exposure shooting.

[_ The shaded Custom Functions do not function during Live View (LV)

shooting or movie shooting. (Settings are disabled.)

299

Custom Function Settings _

Custom Functions are organized into four groups based on the function

type: C.Fn I: Exposure, C.Fn I1:Image, C.Fn II1:Autofocus/Drive, C.Fn

IV: Operation/Others.

0: 1/3-stop

1: 1/2-stop

Sets 1/2-stop increments for the shutter speed, aperture, exposure

compensation, AEB, flash exposure compensation, etc. This is

effective when you prefer to control the exposure in less fine

increments than 1/3-stop increments.

J_ With setting 1,the exposurelevel will bedisplayed inthe viewfinder and on

the LCD monitor as shown below.

=@ =,p_= o=

0: Off

1: On

When you set the ISO speed, you will be able to set "H"

(equivalent to ISO 25600) for still photos and "H" (equivalent to

ISO 12800) for movies. Note that if [C.Fn-3: Highlight tone

priority] is set to [1: Enable], "H" cannot be set.

300

Custom Function Settings *

0: Disable

1:Enable

Improves the highlight detail. The dynamic range is expanded from

the standard 18% gray to bright highlights. The gradation between

the grays and highlights becomes smoother.

, With setting 1,the Auto Lighting Optimizer (p.130) is automatically set to

[Disable] and the setting cannot be changed.

With setting 1, noise (grainy image, banding, etc.) may become slightly

more pronounced than with setting 0.

[_] With setting 1, the settable range will be ISO 200 - ISO 12800 (up to ISO

6400 for movies).

Also, the <D+> icon will be displayed on the LCD monitor and in the

viewfinder when highlight tone priority is enabled.

301

Custom Function Settings*

Enables or disables the built-in flash's AF-assist beam or the EOS-

dedicated external Speedlite's AF-assist beam.

0: Enable

The AF-assist beam will be emitted when necessary.

1: Disable

The AF-assist beam is not emitted. This prevents the AF-assist

beam from disturbing others.

2: Enable external flash only

If an external Speedlite is attached, it will emit the AF-assist beam

when necessary. The camera's built-in flash will not fire the AF-

assist beam.

3: IR AF assist beam only

When an external Speedlite is attached, only with infrared AF-

assist beam will be emitted. This prevents the AF-assist beam

from firing as a burst of small flashes.

With an EX-series Speedlite equipped with an LED light, the LED

light will not automatically turn on for AF-assist.

Ifthe external Speedlite's[AF-assist beam firing] Custom Functionis set

to [Disable], this function's settingwill be overridden andthe AF-assist

beam wilt notbe emitted.

0: Disable

1: Enable

Prevents mechanical vibrations in the camera caused by the reflex

mirror action (mirror shock), which can disturb shooting with super

telephoto lenses or close-up (macro) shooting. See page 147 for

the mirror Iockup procedure.

302

Custom Function Settings *

0: AF/AE lock

1: AE Iock/AF

This is convenient when you want to focus and meter separately.

Press the <-X-> button to autofocus, and press the shutter button

halfway to apply AE lock.

2: AF/AF lock, no AE lock

In the AI Servo AF operation, you can press the <-X-> button to

pause the AF operation momentarily. This prevents the AF from

being thrown off by any obstacle passing between the camera and

subject. The exposure is set at the moment the picture is taken.

3: AE/AF, no AE lock

This is useful for subjects that keep moving and stopping

repeatedly. During AI Servo AF, you can press the <-X-> button to

start or stop the AI Servo AF operation. The exposure is set at the

moment the picture is taken. Thus, the optimum focusing and

exposure will always be achieved as you wait for the decisive

moment.

[_ During LiveView shooting or movie shooting

With setting 1or 3, press the <")('> buttonfor One-ShotAF.Also, using

thetouch shutter will take apicture without autofocusing.

With setting2, press the shutter buttonhalfway for One-Shot AF.

303

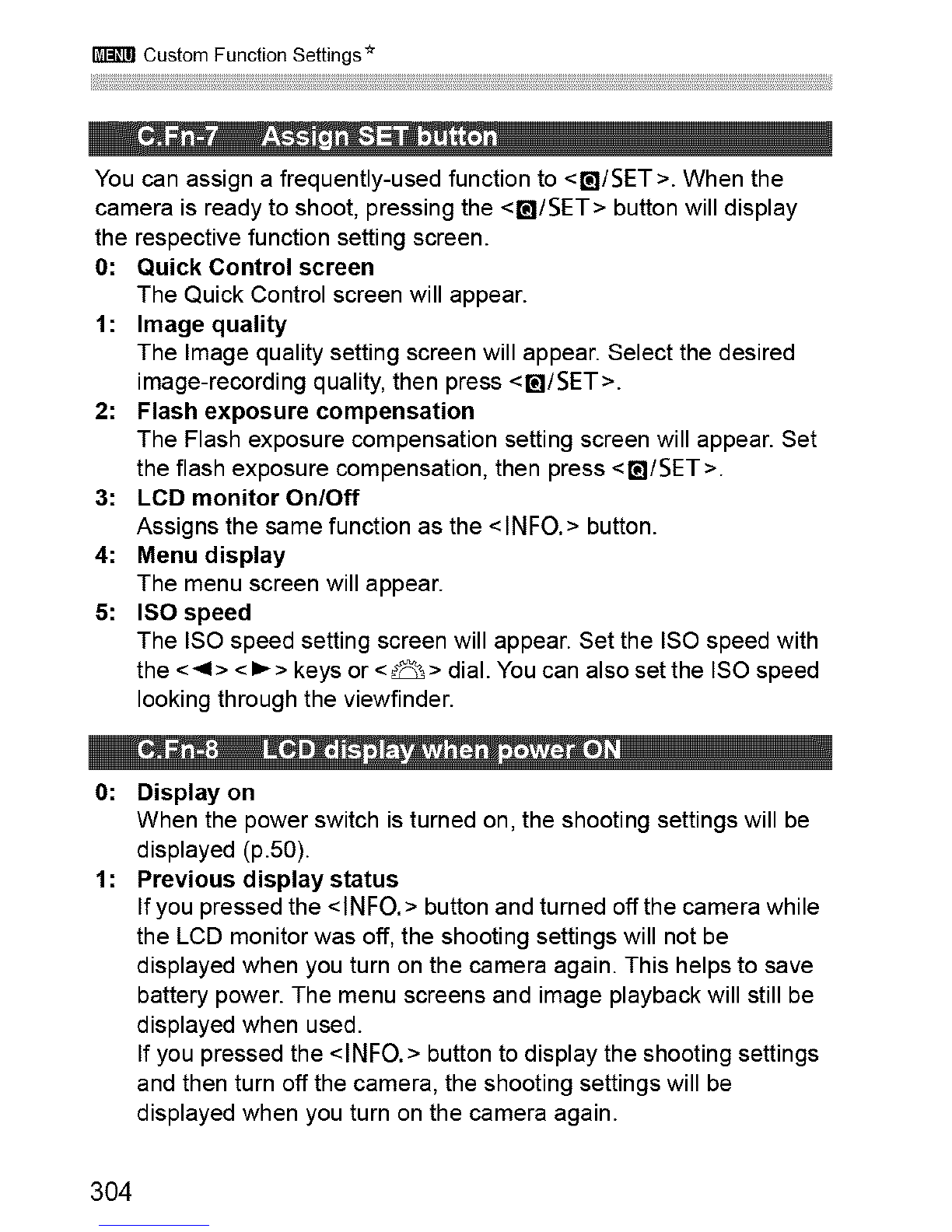

Custom Function Settings*

± o, =l •l_.l I

You can assign a frequently-used function to <B/SET>. When the

camera is ready to shoot, pressing the <_I/$ET> button will display

the respective function setting screen.

0: Quick Control screen

The Quick Control screen will appear.

1: Image quality

The Image quality setting screen will appear. Select the desired

image-recording quality, then press <I_I/$ET>.

2: Flash exposure compensation

The Flash exposure compensation setting screen will appear. Set

the flash exposure compensation, then press <I_I/$ET>.

3: LCD monitor On/Off

Assigns the same function as the <INFO.> button.

4: Menu display

The menu screen will appear.

5: ISO speed

The ISO speed setting screen will appear. Set the ISO speed with

the <'4 >< I_ > keys or <_>dial. You can also set the ISO speed

looking through the viewfinder.

0: Display on

When the power switch is turned on, the shooting settings will be

displayed (p.50).

1: Previous display status

If you pressed the <INFO.> button and turned off the camera while

the LCD monitor was off, the shooting settings will not be

displayed when you turn on the camera again. This helps to save

battery power. The menu screens and image playback will still be

displayed when used.

If you pressed the <INFO.> button to display the shooting settings

and then turn off the camera, the shooting settings will be

displayed when you turn on the camera again.

3O4

Registering My Menu "_

Under the My Menu tab, you can register up to six menu options and

Custom Functions whose settings you change frequently.

Select [My Menu settings].

Under the [_-] tab, select [My Menu

settings], then press <SET>,

Select [Register to My Menu].

Select [Register to My Menu], then

press <SET >.

Select the item, then press <SET>.

On the confirmationdialog, select [OK]

and press <SET> to register the item.

You can register up to six items.

To return to the screen in step 2,

press the <MENU> button.

Sort

You can change the order of the registered items in My Menu. Select

[Sort] and select the item whose order you want to change. Then

press <SET>. With [_] displayed, press the <&> <¥> keys to

change the order, then press <SET>.

Delete item/items and Delete all items

You can delete any of the registered items. [Delete item/items]

deletes one item at a time, and [Delete all items] deletes all

registered items.

Display from My Menu

When [Enable] is set, the [_] tab will be displayed first when you

display the menu screen.

305
