Canon PowerShot G5 Manual de instrucciones

CHAPTER 4. PARTS CATALOG

CONTENTS

PowerShot G5

CASING PARTS SECTION --------------------------------------------------------------------------------------------------- Pg1

INTERNAL PARTS SECTION-1 --------------------------------------------------------------------------------------------- Pg2

INTERNAL PARTS SECTION-2 --------------------------------------------------------------------------------------------- Pg3

TOP COVER SECTION -------------------------------------------------------------------------------------------------------- Pg4

EVF UNIT SECTION ----------------------------------------------------------------------------------------------------------- Pg5

BATTERY BOX UNIT SECTION -------------------------------------------------------------------------------------------- Pg6

Fuse------------------------------------------------------------------------------------------------------------------------------------- Pg7

Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg8

Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg9

Accessories-3 ------------------------------------------------------------------------------------------------------------------------ Pg10

Service Tools-1 ---------------------------------------------------------------------------------------------------------------------- Pg11

Service Tools-2 ---------------------------------------------------------------------------------------------------------------------- Pg12

Category of CLASS

A: Frequency of use: High

B: Frequency of use: Middle

C: Frequency of use: Low

D: Safety-related critical parts

E: Consumable parts

F: Standard screws and washers

S: Supply of the parts is limited

Y: Service Tools

PowerShot G5

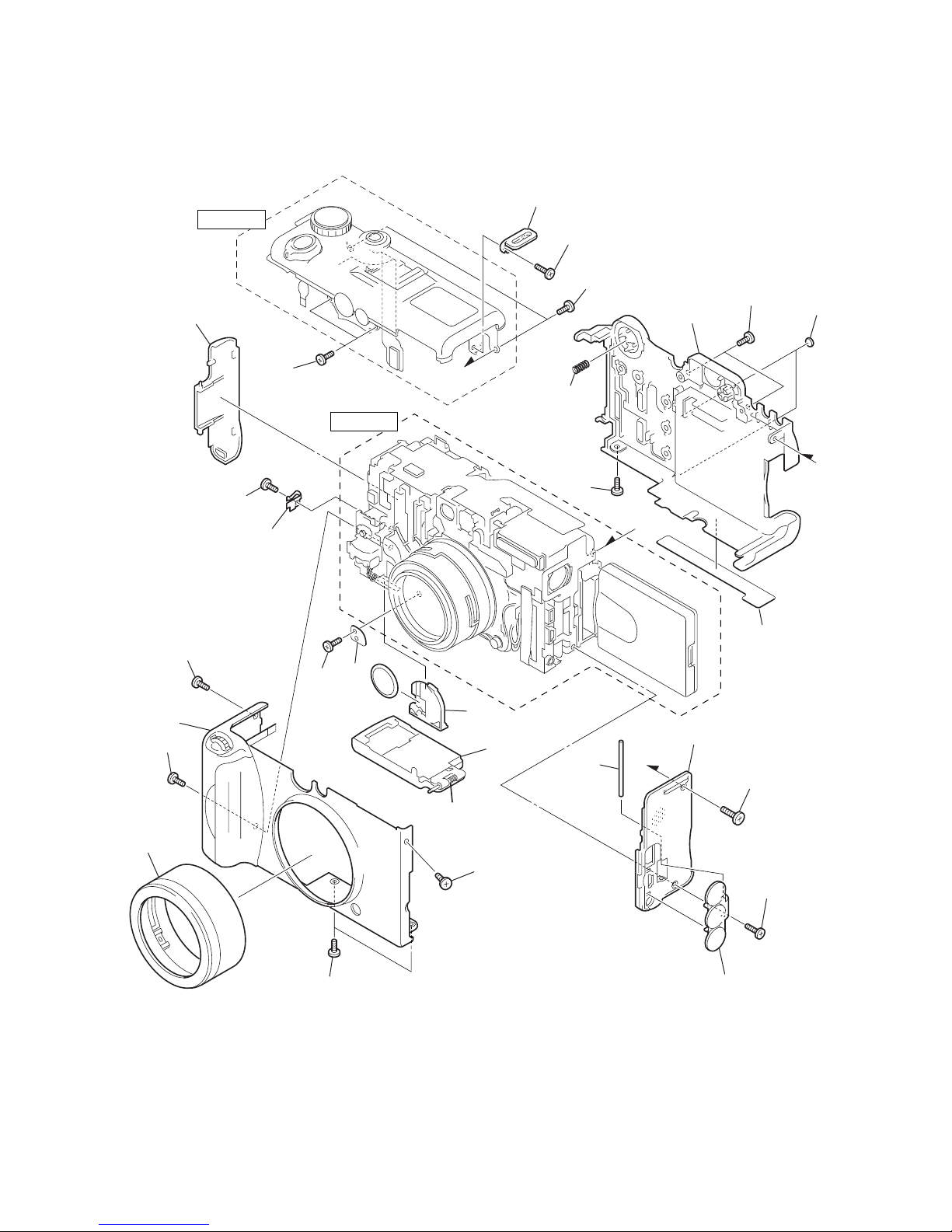

CASING PARTS SECTION

Pg1

910

See Pg4

See Pg2

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot G5

PARTS LIST Pg1

1 CM1-1618-000 B 1 FRONT CAP UNIT

2 CM1-1607-000 B 1 FRONT COVER UNIT

3 CM1-1617-000 B 1 BATTERY LID UNIT

4 CD1-3264-000 B 1 HOLDER, DATE BATTERY

5 CD1-4778-000 C 1 HOLDER, BATTERY SHAFT

6 CD1-4782-000 C 1 SPRING, CF CLIPPING 2

7 CD1-5010-000 B 1 COVER, CF

8 CD1-4837-000 B 1 BASE, STRAP RIGHT

9 CM1-1604-000 B 1 REAR COVER UNIT

10 CD1-5004-000 B 2 BUSH, LCD

11 CS8-5211-000 C 1 SPRING, SELECTOR

12 CD1-4995-000 B 1 COVER, SIDE

13 CS8-3256-000 C 1 SHAFT, JACK COVER

14 CD1-5007-000 B 1 COVER, JACK

15 CY1-6290-000 B 1 PLATE, BODY NUMBER (J) (FOR JAPAN) #13111xxxxx

CY1-6291-000 B 1 PLATE, BODY NUMBER (N)

(FOR EUROPE, ASIA) #13311xxxxx

CY1-6292-000 B 1 PLATE, BODY NUMBER (E)

(FOR USA, CANADA) #13211xxxxx

CY1-6296-000 B 1 PLATE, BODY NUMBER(C) (FOR CHINA) #13651 xxxxx)

16 CD1-5030-000 C 5 SCREW

17 CD1-5028-000 C 1 SCREW

18 CD1-5032-000 C 1 SCREW

19 CD1-5033-000 C 1 SCREW

20 XA4-9170-359 F 1 SCREW

21 XA4-5170-307 F 1 SCREW

22 XA4-9170-407 F 2 SCREW

23 XA1-7170-357 F 1 SCREW

24 XA1-7170-307 F 2 SCREW

25 CD1-5031-000 C 2 SCREW

PowerShot G5

Pg2 INTERNAL PARTS SECTION-1

N.S

See Pg3

See Pg5

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot G5

PARTS LIST Pg2

1 CM1-1615-000 C 1 MAIN BARREL UNIT

2 CD1-3213-000 C 1 HOLDER, MICROPHONE

3 CM1-1564-010 C 1 MICROPHONE UNIT

4 CD1-4850-000 C 1 FRAME, SIDE COVER

5 CM1-1619-000 C 1 PCB ASS’Y, MAIN

6 CD1-4911-000 C 1 SHEET, MAIN

7 XA4-9170-359 F 2 SCREW

8 XA1-7170-307 F 3 SCREW

9 CD1-3108-000 C 1 SCREW

10 CD1-3798-000 C 2 SCREW

11 CD1-4987-000 C 2 SCREW

PowerShot G5

Pg3 INTERNAL PARTS SECTION-2

25 24

21 a

21 23

22 11

See Pg6

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot G5

PARTS LIST Pg3

1 CM1-1463-000 B 1 FINDER UNIT

2 CM1-1602-000 B 1 OPTICAL UNIT

3 CD1-3869-000 C 1 HOLDER, LED

4 CS8-5209-000 C 1 SPRING, CCD

5 CK1-0670-000 C 1 FPC, MAIN/FLASH

6 CM1-1632-000 C 1 PCB ASS’Y, DC/DC CONVERTER

7 CD1-4433-000 C 1 PLATE, ZOOM GND

8 CD1-4838-000 C 1 FRAME, SUB

9 CD1-4844-010 C 1 BASE, TRIPOD

10 CD1-4748-000 C 1 FRAME, MAIN

11 CM1-1473-010 C 1 FLASH/JACK UNIT

12 CM1-1631-000 C 1 SPEAKER UNIT

13 CD1-4848-000 C 1 BUSH, SPEAKER

14 CM1-1641-000 C 1 CF UNIT

15 CD1-4765-000 C 1 FRAME, REAR

16 CM1-1638-000 C 1 PCB ASS’Y, BUTTON

17 CD1-4762-000 C 1 BASE, SEL. BUTTON

18 CD1-4812-000 C 1 HOLDER, EF SENSOR

19 CM1-1614-000 C 1 BAT BOX UNIT

20 CM1-1642-000 B 1 FRONT LENS UNIT

21 XA4-9170-359 F 12 SCREW

22 CB1-1998-000 C 6 SCREW

23 CD1-3798-000 C 2 SCREW

24 XA1-7170-307 F 6 SCREW

25 XA1-7170-147 F 4 SCREW

PowerShot G5

Pg4 TOP COVER SECTION

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot G5

PARTS LIST Pg4

1 CD1-4836-000 B 1 BASE, STRAP LEFT

2 CM1-1608-000 C 1 B/W LCD UNIT

3 CD1-5019-000 B 1 DIAL, MODE

4 XG8-1500-591 C 1 BALL, MODE DIAL

5 CS8-5292-000 C 1 SPRING, MODE DIAL

6 CM1-1610-000 B 1 TOP COVER UNIT

7 CD1-5018-000 B 1 CAP, MODE DIAL

8 CL1-1106-000 C 1 MODE DIAL BASE UNIT

9 CD1-5027-000 B 1 BUTTON, TOP3

10 CD1-5024-000 B 1 BUTTON, TOP1

11 CD1-5025-000 B 1 BUTTON, TOP2

12 CD1-4826-000 B 1 WINDOW, B/W LCD

13 CD1-4824-000 C 1 SEAL, DUST COVER

14 CA1-9328-000 C 1 SPRING, ACCESSORY SHOE

15 CM1-1611-000 B 1 ZOOM LEVER UNIT

16 CD1-4846-000 C 1 BRUSH, ZOOM

17 CS8-5293-000 C 1 SPRING, ZOOM

18 CB1-6258-000 B 1 ACCESSORY CONTACT UNIT

19 CA1-6504-000 C 1 SHOE, ACCESSORY

20 CD1-3108-000 C 2 SCREW

21 XA1-3170-407 F 4 SCREW

22 XA1-7170-167 F 2 SCREW

23 XA4-5170-409 F 2 SCREW

24 XA4-9170-359 F 2 SCREW

PowerShot G5

Pg5 EVF UNIT SECTION
