Set-Up Instructions

Thank you for purchasing Canon imageCLASS MF5770.

To get your machine ready for use, please follow the instructions in this document before referring to any other documentation.

Unpack the machine and its components.

Check that you have the following:

●Machine

●Cartridge

NOTE

●The cartridge included with the machine is Cartridge X25 that yields approximately 2,500 pages of printouts (Letter at 4%

dot coverage).

●Cassette extension

●Extension cover

●Power cord

●USB cable

●Telephone line cord

●Destination labels

●Set-Up Instructions

●Basic Guide

●Facsimile Guide

●Warranty

●

Limited Warranty Note for Cartridge X25

●Registration Card

●MF5700 Series User Software CD-ROM

for the Machine

E227ME (MF5770) US2 SI.qxd 2/1/05 12:05 PM Page 1

Before setting up the machine:

1Place the machine on a flat, stable surface.

2Remove all shipping tape from the exterior of the machine.

Referring to the following figure, remove the tape and spacers on both sides of the

cassette housed in the machine.

Install the cartridge.

4Pull open the front cover.

1Remove the cartridge from the bag. Keep the

bag in a safe place for future use.

2Gently rock the cartridge several times to

evenly distribute the toner inside.

3Hold the cartridge on a flat stable surface with

one hand, and break the tab ➊and pull out

the seal ➋completely with the other hand.

E227ME (MF5770) US2 SI.qxd 2/1/05 12:05 PM Page 2

Assemble the cassette and load paper.

5Hold the cartridge so that the instructions (A)

and the arrow (B) are facing up, and insert it in

the machine horizontally as far as it will go.

6Close the front cover of the machine.

Hold the document feeder (

) with one hand,

and open the document feeder tray (

) with

the other.

Pull out the paper cassette completely.

NOTE

●Pull the cassette straight/forward. Pulling it at an angle

may damage the paper sensing lever inside the

machine.

E227ME (MF5770) US2 SI.qxd 2/1/05 12:06 PM Page 3

3Attach the extension to the cassette. The slots

➊ are keyed and must be inserted at a 90°

angle. Once inserted, fold the extension as

shown ➋.

4Pinch and slide the rear paper end guide to

match the size of paper.

NOTE

●Confirm that the paper guide is fitted in the paper size

slit correctly.

5Load the paper into the cassette. Make sure

the paper stack sits below the hooks (A)

6Pinch and slide the side paper end guides to

match the size of paper.

To load Legal-size paper:

Pull the blue tab ➊and extend the cassette ➋as far as it will go. Keep the rear paper end guide to LTR

size mark. If you are not using Legal-size paper, skip to the next step without extending the cassette.

E227ME (MF5770) US2 SI.qxd 2/1/05 12:06 PM Page 4

7Even out the edges of the paper stack.

Make sure the height of the stack does not

exceed the limit marks (A) and that

the side edges of the stack are below the

hooks (B).

9Insert the tabs on the extension cover into the

slots ➊on the back of the machine,

and carefully lower the cover ➋until it sits on

the cassette extension beneath it.

8Insert the paper cassette back into the

machine as far as it will go.

NOTE

●If you do not completely insert the cassette into the

machine, paper jams may occur.

IMPORTANT

●Do not push in the cassette at an angle. Doing so

may damage the paper sensing lever inside the

machine.

IMPORTANT

●Do not load paper from the back of the machine.

Doing so may damage the paper feeding assembly

inside the machine.

E227ME (MF5770) US2 SI.qxd 2/1/05 12:06 PM Page 5

2Once it is warmed up, the standby display

appears in the LCD.

Connect the power cord.

1Plug the power cord into the rear socket ➊.Then connect the other end to the wall outlet ➋.

IMPORTANT

●For important safety instructions on installation and handling of the machine, see“Important Safety

Instructions” in the Basic Guide.

NOTE

●Make sure the correct paper size is specified in the machine. For details, see Chapter 2,“Paper Handling,”in the Basic

Guide.

Connect the telephone cable and any necessary external device.

Connect the telephone cable

to the wall jack.

You can connect an external

device if necessary (optional).

zTelephone or answering machine

Connect external devices as follows:

zTelephone and answering machine

Telephone

line Machine

Telephone or

answering machine

= Telephone line jack

= External device jack

zBuilt-in computer modem and telephone

Telephone

line Machine Computer

Telephone

TELLINE

Telephone

line Machine Answering Telephone

TELLINE

machine

E227ME (MF5770) US2 SI.qxd 2/1/05 12:06 PM Page 6

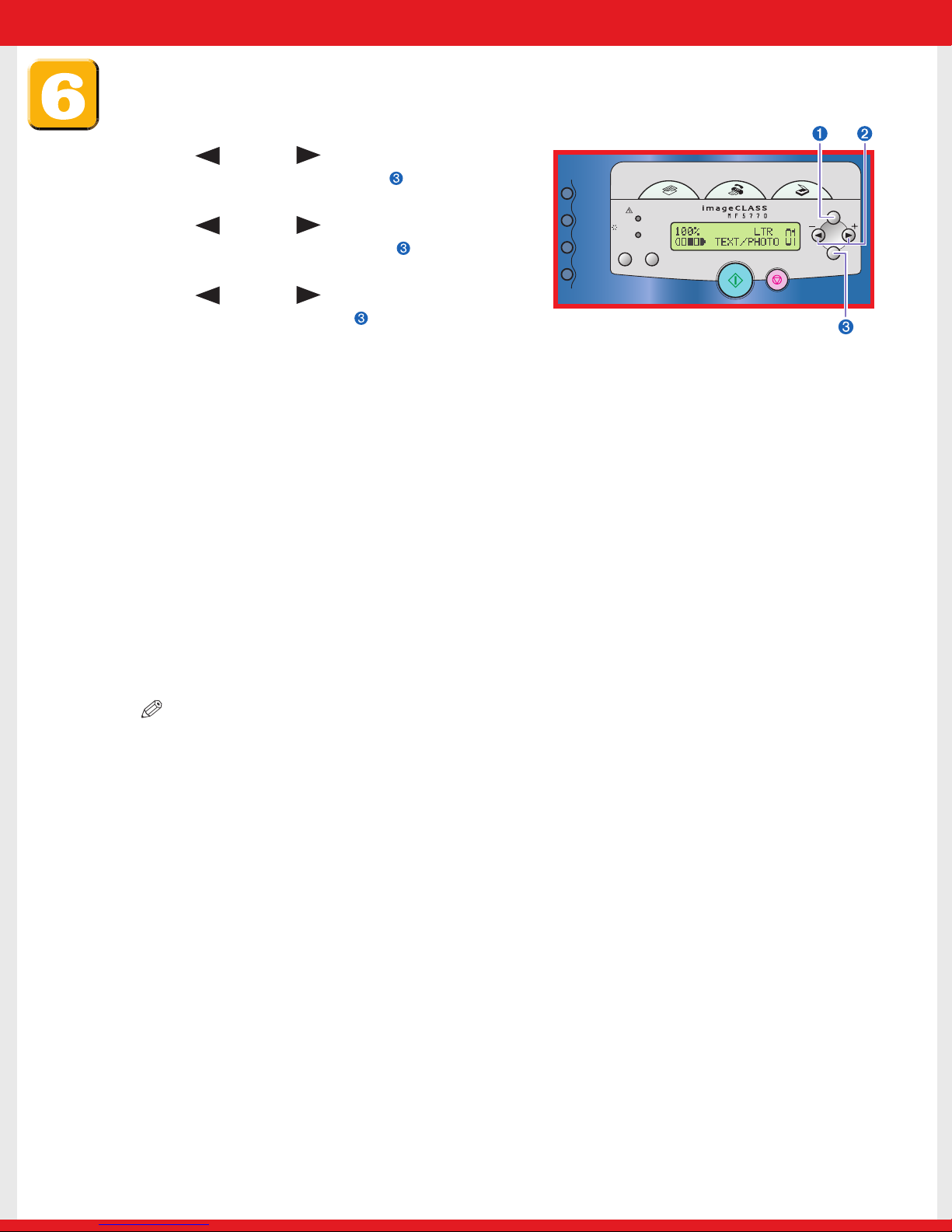

Set the receive mode

1Press [Menu]➊.

2Press [ (–)] or [ (+)]➋to select

<FAX SETTINGS>→press [Set] .

3Press [ (–)] or [ (+)]➋to select

<RECEIVE MODE>→press [Set] .

4Press [ (–)] or [ (+)]➋to select the

receive mode →press [Set] .

You can select from the following:

●<FaxOnly> to automatically receive faxes, all calls will be answered as fax transmission.Voice calls

will then be disconnected.

●<FaxTel> to automatically switch between fax and voice calls. Faxes will be received

automatically, and the machine will ring for voice calls.

●<AnsMode> to receive faxes automatically and route voice calls to an answering machine connect-

ed to the machine.

●<DRPD> to distinguish between fax and voice calls by using Distinctive Ring Pattern Detection.

●<Manual> for the connected telephone to ring for fax and voice calls. Fax calls must be answered

manually.

5Press [Stop/Reset] to return to the standby display.

NOTE

●For details on setting fax receive mode, see Chapter 5, "Receiving Faxes," in the Facsimile Guide.

●Before using the machine, make sure you have set the correct telephone line type for your telephone line. For details on

setting fax receive mode, see Chapter 2, "Registering Information in Your Machine," in the Facsimile Guide.

COPY FAX SCAN

Start

Stop/Reset

Set

In Use / Memory

Alarm

Status

Monitor

Clear

Coded

Dial

Redial /

Pause

Directory

Hook

E227ME (MF5770) US2 SI.qxd 2/1/05 12:06 PM Page 7

Part no.FA7-7063 (010)

Canon and imageCLASS are trademarks of Canon Inc.

All other products and brand names are registered

trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

PRINTED IN CHINA

Congratulations! You have now completed the machine setup.

Where to go from here...

Once you have completed all steps in this document, see the Set-Up Sheet for

Networking and Printing to set up the machine for use in a network and to install driver

software.

For basic operations of all functions of your machine, see the Basic Guide.

For details on sending and receiving faxes, see the Facsimile Guide.

For information on the driver software, see the Software Guide (included in the User

Software CD).

For details on the network function of the machine, see the Network Guide (included in

the User Software CD).

For information on remotely monitoring and controlling machine functions through a

network, see the Remote UI Guide (included in the User Software CD).

NOTE

●Remember to register your machine to ensure product support. The serial number is located on the back of the

machine.

For installation help and operational instructions, call us at:

1-800-828-4040 1-800 OK CANON

U.S.A. CUSTOMERS CANADA CUSTOMERS

E227ME (MF5770) US2 SI.qxd 2/1/05 12:06 PM Page 8
