Canon ImageCLASS MF4450 Guía de seguridad

1Preface

2Installing the Machine

P. 5

3Configuring and

Connecting the Fax

P. 13

Appendix

P. 28

Connecting to a Computer

and Installing the Drivers

P. 17

Read this guide first.

Please read this guide before operating this

product.

The remarks for important safety

instructions are described in "Basic

Operation Guide." Read the guide also.

After you finish reading this guide, store it in

a safe place for future reference.

Illustrations and displays used in this manual are which of MF4570dn unless specified.

Starter Guide

Setting Up the Machine to Suit Your Needs

Copy Fax Settings from

a Computer

Scan*2

PC Fax

Scan

PC Fax

Registering the Sender Information P. 13

Fax Settings

Settings are now complete.

Selecting the Receive Mode P. 14

Connecting a Telephone Line P. 15

Preparing the Toner Cartridges P. 6

Connecting the Power Cord P. 10

Determine which machine functions (Copy, Print, Fax, PC Fax, Scan, Remote UI*1) you intend to use, and make settings

according to the flowchart below.

Start settings.

Carrying the Machine to the Installation Site and Removing the Packing Materials P. 5

Turning the Power ON and

Specifying the Initial Settings

Language Settings Country and Region Settings Current Time Settings

P. 11

Loading Paper P. 9

Settings for paper sizes and paper types are required after turning the power ON.

P. 12

Remote

UI*1

Network

Connection

USB

Connection

Settings in a Computer

: available : not available

Copy Print 2-sided

Printing

Fax

(PC Fax)

Scan

(USB)

Scan

(Network)* Remote UI ADF

(1-sided)

ADF

(2-sided)

MF4570dn

MF4450

* You may use network scan function only in the Windows environment.

Available Features

*1 The network function is available only for MF4570dn.

*2 You may use network scan function only in the Windows environment.

Required Operations

For Windows

For Macintosh

Connecting to a Network*1 P. 17

Checking the IP Address*1 P. 18

Installing the Software P. 23

Installing the Software P. 20

Connecting a USB Cable P. 24

Connecting a USB Cable P. 21

Checking the Supplied Accessories

1. Confirm that all the supplied

accessories are contained in the box.

If an item is missing or damaged, please contact our Canon

Authorized Service Facilities or the Canon Customer Care

Center.

The machine unit

The toner cartridge is already

installed.

Toner cartridge

Power cord

User Software CD-ROM

Limited Warranty Notice

Telephone cable

Speed dial label

Starter Guide (This manual)

Basic Operation Guide

Supplied Toner Cartridge

The average yield of the included toner cartridge is as follows.

Canon Cartridge 128 Starter Average yield*1: 1,000 sheets

*1 The average yield is on the basis of "ISO/IEC 19752"*when printing A4 size paper with the default print density setting.

*2 "ISO/IEC 19752" is the global standard relating to "Method for the determination of toner cartridge yield for monochromatic electrophotographic printers

and multi-function devices that contain printer components" issued by ISO (International Organization for Standardization).

The average yield of the replacement toner cartridge differs from which of the supplied toner cartridge.

To purchase replacement toner cartridges, see "About Replacement Toner Cartridge" in the e-Manual.

About the LAN cable

The machine does not come with a LAN cable

or a hub. Have cables or a hub ready as needed.

• Use a Category 5 or higher twisted pair cable.

• If you want to connect the machine to a 100BASE-TX

Ethernet network, all the devices to be connected to the

LAN must support 100BASE-TX.

About the USB cable

The machine does not come with a USB cable.

Have cables ready as needed.

Registration Card

Preface

Installing the Machine

Configuring and Connecting the Fax

Connecting to a Computer and

Installing the Drivers

Appendix

User Software CD-ROM

About the Drivers and Software

The drivers and software included in the CD-ROM supplied with this machine are as follows.

MF Drivers

Printer driver You can print from an application using the machine by installing the printer driver on

your computer. You can process print data at high speed by compressing the print data

using the computer's processing capabilities.

Fax driver If you install the fax driver on your computer, you can select “Print” from an application,

select the Canon fax driver as a printer, and specify the output destination and options.

The fax driver converts the data into an image that conforms to standard fax protocols so

that the data can be printed or saved using the recipient’s fax machine.

Scanner driver You can use the machine as a scanner if you install the scanner driver on your computer.

Network Scan Utility

(MF4570dn only)

This software is required for using the scan functions via a network. This software is

installed with the scanner driver.

MF Toolbox

MF Toolbox* MF Toolbox is a program which allows you to easily open an image scanned by the

scanner in an application, attach the scanned image to an e-mail, and store the scanned

image in a hard disk.

Additional Software Programs

Presto! PageManager This is software for managing scanned images.

* MF Toolbox for Macintosh and MF Toolbox for Windows may be different in some features.

For details, see the Scanner Driver Guide.

: available

: not available

Windows 2000/XP Windows Vista/7 Windows Server 2003/

Server 2008

Mac OS X

(version 10.4.9 or later)

Printer driver

2pt

Fax driver

2pt

Scanner driver

(Only for USB connection)

Network Scan Utility

2pt

MF Toolbox (Only for USB connection)

Presto! PageManager

* Available only with a network connection.

Supported Operating Systems

About the Supplied Manuals

Read this manual first.

This manual describes the settings for

setting up the machine and installing

the software. Be sure to read this

manual before using the machine.

Starter Guide

Basic Operation Guide

e-Manual

Read this manual next.

This manual describes the basic use of

the machine.

Read the desired chapter

to suit your needs.

The e-Manual is categorized by subject to

find desired information easily.

For details about using the e-Manual, refer

to“Using the e-Manual“ in “Appendix.”

• Preface

• Installing the Machine

• Configuring and Connecting the Fax

• Connecting to a Computer and Installing the Drivers

• Appendix

• Before Using the Machine

• Document and Paper Handling

• Copying

• Printing from a Computer

• Registering Destinations in the

Address Book

• Using the Fax Functions

• Basic Operation

• Copy

• Fax*2

• Print*2

• Scan*2

• Network Settings*1

• Security

• Setting and Managing from

Computer*1

• Troubleshooting

• Maintenance

• Setting Menu List

• Specifications

• Using the Scan Functions

• Maintenance

• Troubleshooting

• Registering/Setting the

Various Functions

• Appendix

* The e-Manual is included in the User Software CD-ROM.

*1 The network function is available only for MF4570dn.

*2 If you are using Macintosh, see the following Driver Guides or Help for more details on these functions.

You can find the driver guides in the following locations on the User Software CD-ROM.

• Fax: User Software CD-ROM →[Manuals] →[GUIDE-FAX-US.pdf]

• Print: User Software CD-ROM →[Manuals] →[GUIDE-UFR II-US.pdf]

• Scan: User Software CD-ROM →[Manuals] →[GUIDE-SCAN-US.pdf]

This manual

Preface

Installing the Machine

Configuring and Connecting the Fax

Connecting to a Computer and

Installing the Drivers

Appendix

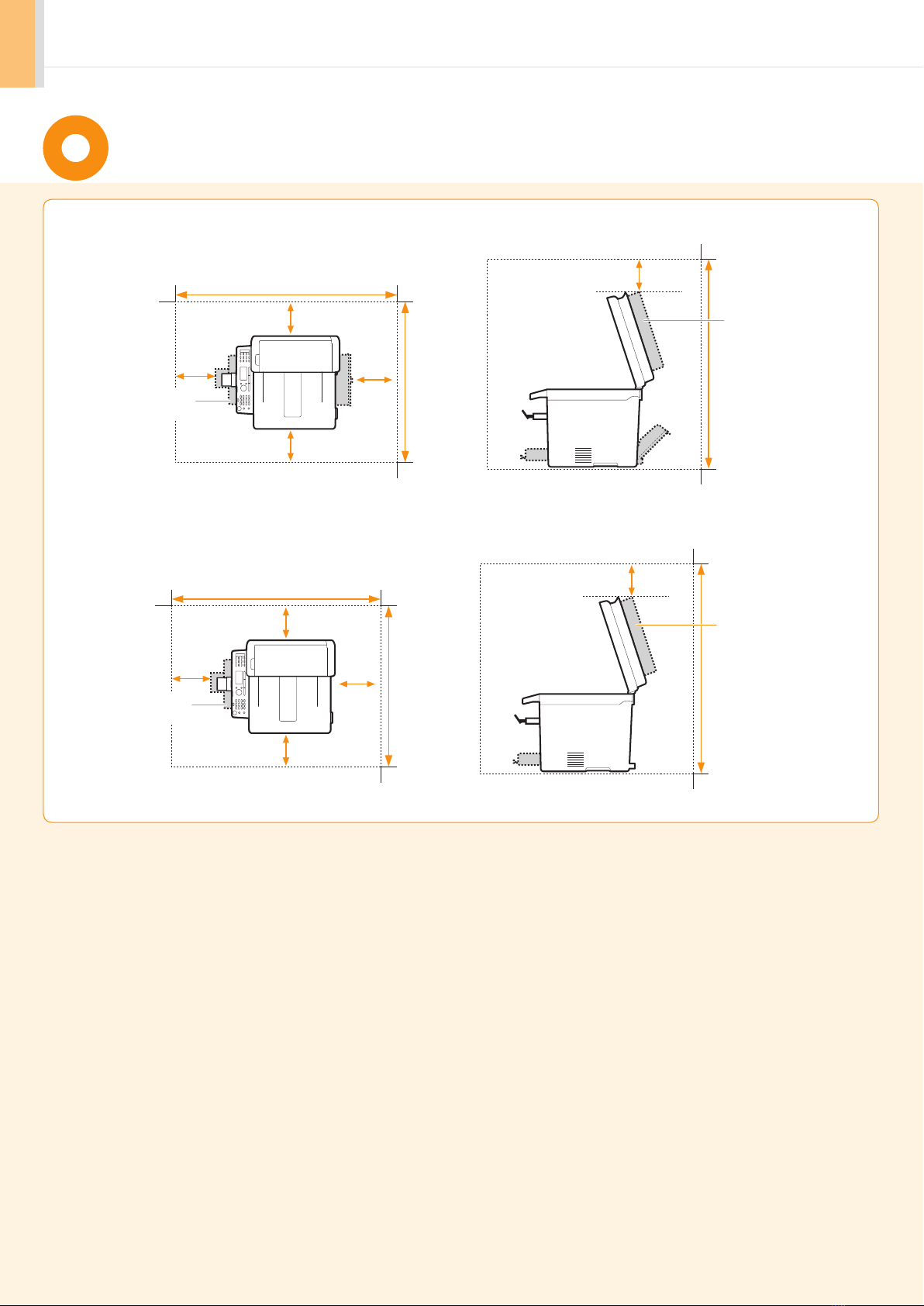

Determining the Installation Site

31 5/8" (804 mm)

4" (100 mm)

(100 mm)

(100 mm) 24 1/4"

(617 mm)

29"

(735 mm)

4" (100 mm)

Paper

cassette

Feeder

cover

30 7/8" (784 mm) 4" (100 mm)

24 1/4"

(617 mm)

4" (100 mm)

29"

(735 mm)

(100 mm) 4"

(100 mm)

Feeder

cover

Paper

cassette

• MF4450

• MF4570dn

Preface

Installing the Machine

Configuring and Connecting the Fax

Connecting to a Computer and

Installing the Drivers

Appendix

2. Remove the packing materials. * The packing materials may be changed in form or placement, or may be

added or removed without notice.

Remove the packing materials. Remove the packing materials.

1. Carry the machine to the installation site.

Hold the grips. Carry the machine.

Remove the tape while opening

the paper cassette.

Open the feeder.

• MF4570dn • MF4450

Carrying the Machine to the Installation Site

and Removing the Packing Materials

Preparing the Toner Cartridges

Did you remove all the packing materials?

Check!

• MF4570dn: Tape x 7

• MF4450: Tape x 5

Packing materials with tape x2

1. Lift the scanning platform.

Remove the packing materials with tape. Close the feeder.

Lift the scanning platform.Hold the operation panel. If you cannot lift the

scanning platform

Ensure that the feeder is

completely closed.

Do not forcefully lift the

scanning platform, as this

may damage the machine.

Packing material x1

Preface

Installing the Machine

Configuring and Connecting the Fax

Connecting to a Computer and

Installing the Drivers

Appendix

3. Remove the packing materials from the toner cartridge, and then

distribute the toner.

2. Open the toner cover.

Open the toner cover.

Remove the packing material.

Hold the grip on the left front side of toner cover.

Turn the sheet to the back. Remove the toner cartridge.

Shake five to six times.

This part (a plastic part

attached to the end of

paper) is also a packing

material. Be sure to

remove it.

Remove the packing material.

4. Close the toner cover, and then lower the scanning platform.

Lower the scanning platform.

Lift the tab.

Place the toner cartridge on a flat surface,

and then lift the tab.

Close the toner cover.

Pull the sealing tape completely out.

The full length of the sealing tape is

approximately 20”(50 cm).

Protrusion

Insert the toner cartridge.

Fit the protrusions on each side of the toner cartridge into

the guides located on each side of the machine, and then

slide the toner cartridge into the machine.

Did you remove all the packing materials?

Check!

Packing materials x2

Packing material with a sheet x1

Sealing tape x1

Remove the packing material.

Otros manuales para imageCLASS MF4450

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Canon

Canon

Canon PIXMA MX532 Series Manual de usuario

Canon

Canon Laser Class 2060P Manual de usuario

Canon

Canon MX390 series Guía de configuración

Canon

Canon PIXMA MG6320 Manual

Canon

Canon Staple Finisher-S1 Manual de usuario

Canon

Canon IMAGERUNNER ADVANCE C5051 Manual de usuario

Canon

Canon MultiPASS F50 Manual de usuario

Canon

Canon imageRUNNER 5000 Manual de usuario

Canon

Canon imageRUNNER 2545i Hoja de información del producto

Canon

Canon 1750 Guía de instalación

Canon

Canon MAXIFY MB5150 Guía de configuración

Canon

Canon PIXMA MP500 Manual de instrucciones

Canon

Canon PIXMA MP610 Series Manual de usuario

Canon

Canon iP6700D - PIXMA Color Inkjet Printer Manual de usuario

Canon

Canon PIXMA MX870 Series Manual de usuario

Canon

Canon PIXMA MX420 Series Manual

Canon

Canon iR C1020 Series Manual de usuario

Canon

Canon ImageCLASS MF7480 Manual de usuario

Canon

Canon imageRUNNER ADVANCE 4251 Instrucciones de montaje

Canon

Canon PIXMA MP495 Series Instrucciones de instalación y mantenimiento

Canon

Canon PIXMA E304 Guía de configuración

Canon

Canon Color imageRUNNER LBP5975 Manual de usuario

Canon

Canon imageClass MF5650 Manual de usuario

Canon

Canon PIXMA MG5600 Series Guía de configuración

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario

Canon imageCLASS MF4450 Guía de seguridad

Manuales populares de Impresora todo en uno de otras marcas
