CAME LHS A/01 Manual
LHS A/01 LHS V/01
LHS V/01 PLUS
INSTALLATION AND CONFIGURATION MANUAL
FA0 16 39 - E N
EN English
Page 2- Manual FA01639-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
GENERAL PRECAUTIONS
Read the instructions carefully before beginning the
installation and carry out the procedures as specified by the
manufacturer. • Installation, programming, commissioning
and maintenance must only be carried out by qualified,
expert technicians and in full compliance with the applicable
law. • Before carrying out any cleaning or maintenance,
disconnect the device from the power supply. • Wear anti-
static clothing and footwear if performing work on the circuit
board. • Only use this product for its intended purpose. Any
other use is hazardous. • Came S.p.A. is not liable for any
damage caused by improper, erroneous or unreasonable
use. • The product, in its original packaging supplied by
the manufacturer must only be transported in a closed
environment (railway carriage, containers, closed vehicles).
• If the product malfunctions, stop using it and contact an
authorised support centre.
If the production batch is not immediately
identifiable, please contact customer services.
The general conditions of sale are given in the
ocial CAME price lists.
Legislative References
This product complies with the applicable standards in force
at the time of manufacturing.
CAME S.p.A. declares that the product described in this
manual complies with Directive 2014/53/EU and the Radio
Equipment Regulations 2017.
The full EC declaration of conformity and UK Conformity
Assessed (UKCA) marking information can be found at www.
came.com.
98°
72°
1150
726
500
1550 ÷ 1650
Page 3- Manual FA01639-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
PRODUCT DATA AND INFORMATION
Description
LHS A/01 (840AA-0060)
Monolith intercom entry panel for X1 system expandable up to 4 calls.
LHS V/01 (840AA-0040)
Monolith video entry panel for X1 system expandable up to 4 calls.
LHS V/01 PLUS (840AA-0050)
Monolith video entry panel for X1 system expandable up to 4 calls, with Bluetooth and built-in RFID reader for access control.
Description of parts
1Video camera lens*
2Front cover
3Button
4Hole cover
5Microphone
6Front cover fastening screw
7Back
8Wiring hole
9Screws and expansion plugs
Optional accessories
10 Rain cover
11 Recessed-mount profile and frame
12 Back box
13 Single button
14 Double button
* Video versions only (840AA-0050/840AA-0040)
Page 4- Manual FA01639-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
1Speaker volume control
2Microphone volume control
3Electric lock opening time control
4RESET button
5Call button P1
6Call button P3
7Warning LED Call in progress
8Warning LED Electric lock activation
9Warning LED Conversation in progress
10 Warning LED System busy
11 Terminal block
12 PROG button
13 PROG LED (yellow)
14 Call button P2
15 Call button P4
16 CAME KEY connector and rubber cap
RESET button
The [RESET] button allows you to restart the device.
Page 5- Manual FA01639-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
Size
135
243
11
97 23
205
170
82
34
Page 6- Manual FA01639-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
Technical data
MODELS LHS V/01 LHS V/01 PLUS LHS A/01
IP protection rating 54 54 54
IK protection rating 09 09 09
Operating temperature (°C) -25 ÷ +55 -25 ÷ +55 -25 ÷ +55
Storage temperature (°C) * -25 ÷ +70 -25 ÷ +70 -25 ÷ +70
Dimensions (mm) 97 x 205 x 23 97 x 205 x 23 97 x 205 x 23
Consumption (mA) 190 220 150
Consumption in stand-by mode (mA) 90 110 80
Power supply (V DC) 16-18 DC 16-18 DC 16-18 DC
Video standard PAL PAL -
Minimum lighting (LUX) 11-
Standard wireless - Bluetooth LE 5.0 -
Bluetooth radio frequency (MHz) - 2400 -
RFID frequency (kHz) - 125 -
Bluetooth transmission power (dBm) - -25 ÷ +3 -
Material colour Matt grey 9023 Matt grey 9023 Matt grey 9023
(*) Before installing the product, keep it at room temperature where it has previously been stored or transported at a very high or very
low temperature.
Page 7- Manual FA01639-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
INSTALLATION
Preliminary operations
Wall-mounted installation
Installation with rain cover (optional)
Page 8- Manual FA01639-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

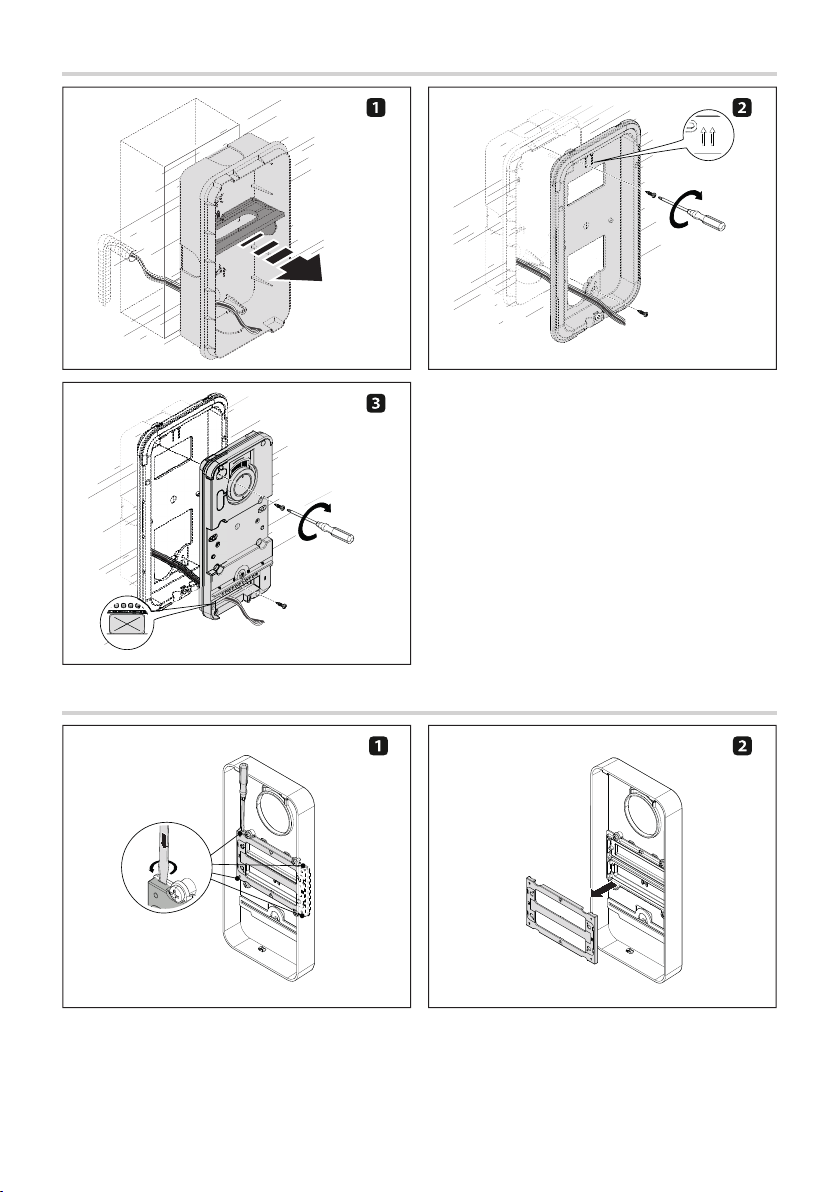

Recess installation
Button assembly
Page 9- Manual FA01639-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
Page 10 - Manual FA01639-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
Function of terminals
①Local power supply input 16-18 V DC
②BUS output
③Max. 12V - 1A electric lock
④Earth
⑤Door release button (NO)
⑥Programmable I/O (Default NO port contact input)
⑦Max. auxiliary contact 1 A 30 V (Default AUX 2)
