AGT A200K + TARGHA KIT FA01425-EN

INSTALLATION MANUAL

AGT A200K

HA/200 A/200N

HBP HPC/1

Page 2- Manual FA01425-EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

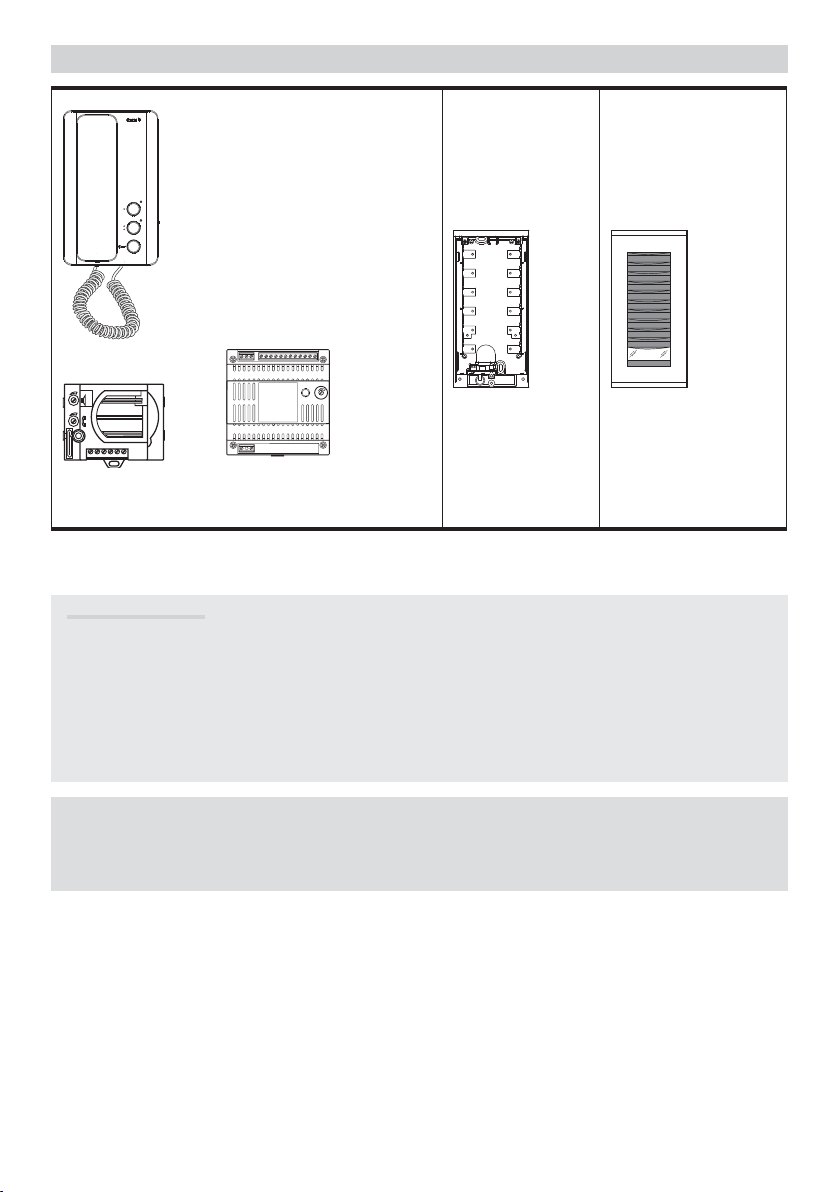

CONTENTS OF THE KIT

General precautions

• Read the instructions carefully before staring installation and perform all procedures as explained by the manufacturer.

• The installation, programming, commissioning and maintenance of the product must only be carried out by technicians who are

qualiﬁed and properly trained in compliance with the regulations in force, including as regards health and safety, and disposal of

packaging.

• The installer must ensure that the information for the user, where there is any, is provided and delivered.

• Before carrying out any cleaning or maintenance, disconnect the devices from the power supply.

• The equipment must only be used for the purpose for which it was expressly designed.

• The manufacturer declines all liability for any damage as a result of improper, incorrect or unreasonable use.

• Only use soft, dry or slightly damp cloths to clean the device. Do not use any chemical products.

• These instructions must be attached to the device.

This product complies with current applicable reference standards.

DISPOSAL - Dispose of the packaging and the device at the end of its life cycle responsibly, in compliance with the laws in force

in the country in which the product is used. The recyclable components are marked with a symbol and the material ID marker.

THE DATA AND INFORMATION IN THIS MANUAL MAY BE CHANGED AT ANY TIME AND WITHOUT NOTICE. THE MEASUREMENTS,

UNLESS OTHERWISE STATED, ARE IN MILLIMETRES.

󱫀

SW11

EXT.AUX 1

LED

P. B. SW12

SW11

Page 3- Manual FA01425-EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

AGT A200K

Description

Intercom internal audio receiver.

Function of terminals and jumpers

Terminal board M1󱫀

5Earth

7Call from entry panel input

8Audio FROM entry panel

9Audio TO entry panel

AUX2: auxiliary services (24V 100 mA)

21 +11 to 175 VDC LED power supply

AUX 1 (24V 100mA)

24 AUX1 LED (active to earth with SW12 jumper in position

EXT.)

Function of SW11 jumper 󱫀

Remove the jumper to make the door lock release button ( )

active only with the handset raised.

Function of SW12 jumper 󱫀

EXT.: LED connected to terminal 24.

P.B.: LED connected to AUX1 key.

Technical data

Type AGT A200 K

Single LED consumption (mA) 1

Operating temperature (°C) +5 to +40

Storage temperature (°C) -25 to +70

IP Rating IP30

󱤨󱤩

󱫂󱫄 󱫄

󱤪󱫆

󱫄

503 503

Ø60

󱫈

Page 4- Manual FA01425-EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Installation

• Open the device by pressing on the tab at the bottom 󱫂.

• Separate the shell from the bottom of the device.

• Fasten the bottom of the device to the box on the wall 󱫄

󱤨-󱫄󱤩-󱫄󱤪.

• Avoid overtightening the screws.

☞the box must be installed at an appropriate height for the

user.

• Once all connections have been made, reattach the shell to

the bottom of the device 󱫆.

Ringtone settings

O (red LED on)

Where there is no power to terminal 21, the

volume switches from O to Low.

Medium volume

Maximum volume

Button functions 󱫈

Door lock release

AUX 1

AUX 2

64,5

105

145

43,5

7,5 57

105

106

󱫀

Page 5- Manual FA01425-EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

A/200N

Description

A/200N guarantees the power supply to the HPC/1 entry panel

and a maximum of 20 front plates with 6 buttons HPP/6.

It is provided with the following functions:

- 2 dual-tone call beeps for two entry panels (or for additional

call, e.g. from the landing).

- Power supply and control for solenoid lock (12 V AC, 1 A) via

a relay (inside the device) controlled by a timer, adjustable from

2 to 15 seconds using the potentiometer P1 󱫀.

- Call generator: 2 types of dual-tone beep (up to 3 internal

receivers can be connected in parallel on the same call). The

device can be powered at 12 V DC, for example by a battery or

UPS (terminals +B and 5).

The equipment does not include a battery protection device.

Function of terminals and jumpers

Terminal board A 󱫀

Network

Terminal board B 󱫀

+B Input 12 V DC (*)

5 Earth

21 Output 11 V DC

8 Common call output 1

8A Common call output 2

11 Audio from entry panel

12 Audio to entry panel

23 – Output 14 V AC

16 +

NO Normally open

relay contactsC Common

NC Normally closed

(*) The device is electronically protected against overloads and

short circuits.

Terminal board C 󱫀

5 Earth

8 Audio to internal receiver

9 Audio to internal receiver

Technical data

Type A/200N

50-60 Hz (VAC) power supply 230

Power consumption (VA) 34

Output voltages at 11 VDC (mA) 150

Output voltages at 14 VAC (mA) 650

Peak output voltages (mA) 300

Operating output voltages (mA) 650 (1A)

Storage temperature (°C) -25 to +70

Operating temperature (°C) 0 to +35

IP Rating IP30

Ⓐ

Ⓑ

󱫂󱫄

󱫀

Page 6- Manual FA01425-EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

HA/200

Trimmers 󱫀

ⒶSpeaker audio

ⒷMicrophone audio

Technical data

Type HA/200

Power supply (VDC) 12

Max power consumption (mA) 50

Power consumption in stand-by (mA) <35

Storage temperature (°C) -25 to +70

Operating temperature (°C) -15 to +50

IP Rating IP54

Installation

• The device can be installed on DIN rails (EN 50022) on a

suitable switchboard, or on the wall using the terminal covers.

• To dismantle the device, proceed as shown in ﬁgure 2-3.

• See ﬁgure 1 for dimensions.

The power supply must always be installed horizontally.

Ensure there is correct ventilation if the power supply is

installed in a metal case.

Description

Audio module.

Functions of terminals and audio adjusters

Terminal board 󱫀

5 – power supply

21 + 12 VDC

8 common call (for call beep)

11 audio to internal receiver

12 audio from internal receiver

14 enable

In systems in which there is an enable command, terminal

14 can be connected to the earth (unit always active) or to

terminal 12 (unit active only when handset is raised).

Page 7- Manual FA01425-EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

TARGHA 200

Accessories

HTS

Recess-mounting box

Frame

Cable gland joints

Spacer

Screws

KHPS

Button

Microcontact

Button spring

KHPD

Buttons

Microcontacts

Button springs

HBP

Wall-mounted base

Hole cover

Cable gland joint

Joint

Screws and expansion plugs

HPP/6 – HPP/12D

Front plate

Microcontacts with

common call

Lighting assembly

Cable holders

Hole cover

󱫀

521 811 12 14

󱫂

󱫄

󱫆󱫈

󱫊󱫌

Page 8- Manual FA01425-EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Recessed installation

The HTS recessed box must be walled in

ﬂush at a suitable height, using the spacer

provided to prevent box deformation 󱫀.

In systems where the Larsen eect might

occur, the microphone can be mounted re-

motely 󱫆.

To remove the microphone from its hous-

ing, pry it o from its base using a small

screwdriver, taking care not to damage

the cabling 󱫂.

Before inserting the microphone into the

bottom of the back-box, use pliers to remove the part that is

highlighted 󱫄.

Insert the audio unit near the top of the back-box 󱫆.

Fit the microcontact (bottom right) into the correct housing 󱫈.

The front plate is equipped with a common call for the

microcontacts, to be used when other buttons are to be

installed (maximum of 4) 󱫊.

Insert the lighting unit in the relevant housing 󱫌.

Remove the two protective seals on the holes in the recessed

box and attach the back-box using the two screws provided 󱫎.

Make the connections and secure the cables using the cable

holder 󱫐.

The cable holder must be located near to the audio unit.

521 811 12 14

󱫎󱫐

󱫀󱫂

󱫄󱫆

Page 9- Manual FA01425-EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Wall-mounted installation

Fix the two hole covers to the base 󱫀.

Attach the recessed box (with 3 modules

or round Ø 65 mm) ﬂush with the wall

and at a suitable height; ﬁx the base to

the wall using the screws and expansion

plugs provided 󱫂.

In systems where the Larsen eect

might occur, the microphone can be

mounted remotely 󱫆.

To remove the microphone from its

housing, pry it o its base using a

small screwdriver, taking care not to

damage the cabling 󱫄.

Before inserting the microphone in the

bottom part of the back-box, use pliers

to remove the part that is highlighted 󱫆.

Insert the audio unit near the top of the

base 󱫆.

Fit the microcontact (bottom right) into

the correct housing 󱫈. The front plate

is equipped with a common call for

the microcontacts, to be used when

other buttons are to be installed

(maximum of 4) 󱫊.

Insert the lighting unit in the relevant

housing 󱫌.

Make the connections and secure the

cables using the cable holder 󱫌.

The cable holder must be located near

to the audio unit.

󱫊

521 811 12 14

󱫈󱫌

󱫀

󱫀󱫂

Page 10 - Manual FA01425-EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Button assembly

To write the desired information on the name card, take out the

card holder and the card 󱫀.

Personalised name cards up to a maximum of 2 mm thick can

be used.

Closing the front plate

To ﬁt the front plate, ﬁrst insert the up-

per part into the top and then, using a

2.5 hex key, tighten the locking screw

󱫀󱫂.
