Technical Characteristics

Materials: -Body: low-lead brass (<0.25% lead content)

-Shutter, seats and sliding guides: PPO

-Springs: stainless steel

-Seals: peroxide-cured EPDM

Suitable ﬂuids: water, 30% max glycol solution

Setting range (outlet temperature): 85–150°F (30–65°C)

Tolerance: ±3°F(±2°C)

Max. working pressure (static): 200 psi (14 bar)

Max. operating differential pressure (dynamic): 75 psi (5 bar)

Max. recommended differential pressure: 20 psi (1.5 bar)

Max. hot water inlet temperature: 200°F (93°C)

Max. inlet pressure ratio (H/C or C/H) for optimum performance: 2:1

Min. temperature difference between hot water inlet and mixed

water outlet for optimum performance: 27ºF (15ºC)

Min. ﬂow rate to ensure optimal performance: 1.0 GPM (3.8 L/min)

Lay length, hot to cold inlet: (½” & ¾” press connection) 3 5/8”

(1” press connection) 4 1/8”

Certiﬁed to: 1. ASSE 1017/CSA B125.3, certiﬁed by ICC-ES, ﬁle

PMG-1357

2. NSF/ANSI 372-2011, Drinking Water System

Components-Lead Content Reduction of Lead in

Drinking Water Act, California Health and Safety

Code 116875 S.3874, Reduction of Lead in

Drinking Water Act, certiﬁed by ICC-ES, ﬁle

PMG-1360.

Function

The Calefﬁ MixCal™ three-way thermostatic mixing valve is used in

systems producing domestic hot water or in hydronic and radiant

heating systems. With the unique mixing chamber design, MixCal™

produces very stable mixed water temperture as inlet temperatures

and pressures vary. Scale formation is minimized with anti-scale

polymer sliding surfaces, preventing siezing or erratic mixed

temperatures. O-ring seals made from durable peroxide-cured EPDM

resist wear from common water treatment additives such as chlorine

and chloramines.

Product range

521A Series Three-way thermostatic mixing valve:

“C” models include inlet check valves. “419, 519, 619” models include

outlet gauge adapter. Connections: union thread NPT male, sizes ½”,

¾”, 1”; union sweat, sizes ½”, ¾”, 1”; union press, sizes ½” , ¾”, 1”;

union PEX crimp, sizes ½” , ¾”, 1”.

MixCal™Adjustable three-way thermostatic mixing valve

521 series

38476.10

www.caleffi.com

INSTALLATION AND COMMISSIONING MANUAL

Leave this manual for the user.

CAUTION: If the thermostatic mixing valve is not installed, commissioned

and maintained properly, according to the instructions contained in this

manual, it may not operate correctly and may endanger the user.

CAUTION: Make sure that all the connecting pipework is water tight.

CAUTION: When making the water connections, make sure that

the pipwork connecting the MixCal™ thermostatic mixing valve is not

mechanically overstressed. Over time this could cause breakages, with

consequent water losses which, in turn, could cause harm to property and/

or people.

CAUTION: Water temperatures higher than 100ºF (38ºC) can be

dangerous. During the installation, commissioning and maintenance of

the MixCal™ thermostatic mixing valve, take the necessary precautions to

ensure that such temperatures do not endanger people.

CAUTION: To prevent any damage which will cause the electronic mixing

valve to not operate correctly, treat highly aggressive water before entering

the electronic mixing valve. Be sure water hardness is less than 10 grains.

CAUTION: If installed in an ASSE 1017 application, check valves

shall be used.

SAFETY INSTRUCTION

CAUTION: All work must be preformed by qualied personnel trained

in the proper application, installation, and maintenance of systems in

accordance with all applicable codes and ordinances.

This safety alert symbol will be used in this manual to draw attention to safety related

instructions. When used, the safety symbol means ATTENTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED! FAILURE TO FOLLOW THESE INSTRUCTIONS MAY

RESULT IN A SAFETY HAZARD.

ATTENTION: Lorsque vous effectuez les raccordements d'eau, assurez-

vous que la tuyauterie reliant le MixCal™ termostatico regolabile n'est pas

mécaniquement des overstressed. Au fil du temps, ceci pourrait causer des

ruptures, avec pour consequence des pertes en eau qui, à leur tour, peuvent

causer des dommages à la propriété et/ou les gens.

Ce symbole d'avertissement servira dans ce manuel à attirer l'attention sur la sécurité concernant

instructions. Lorsqu'il est utilisé, ce symbole signifie.

ATTENTION! DEVENEZ ALERTE ! VOTRE SÉCURITÉ EST EN JEU ! NE PAS SUIVRE CES

INSTRUCTIONS PEUT PROVOQUER UN RISQUE DE SECURITE.

ATTENTION: Tous les travaux doivent être effectués par du personnel

qualifié formé à la bonne application, installation et maintenance des systèmes

conformément aux codes et règlements locaux.

ATTENTION::Si le réducteur de pression, termostatico regolabile, n'est pas installé,

mis en service et entretenu correctement, selon les instructions contenues dans ce

manuel, il peut ne pas fonctionner correctement et peut mettre en danger l'utilisateur.

ATTENTION: S'assurer que tous les raccordements sont étanches.

ATTENTION: Les températures de l'eau supérieure à 100°F (38°C) peut

être dangereux. Au cours de l'installation, mise en service et l'entretien de

le réducteur de pression, le MixCal™ termostatico regolabile, prendre les

precautions nécessaires afin de s'assurer que de tells températures ne

compromettent pas les gens.

ATTENTION: Pour prévenir tout dommage qui provoque le mitigeur

électronique à ne pas fonctionner correctement, le traitement de l’eau très

agressive avant d’entrer dans la vanne de mélange électronique. Assurez-

vous que la dureté de l’eau est inférieure à 10 grains.

ATTENTION: S’il est installé dans un pays de ASSE1017 application, vériﬁez les

robinets doivent être utilisés.

CONSIGNE DE SÉCURITÉ

LAISSEZ CE MANUEL AVEC L’UTILISATEUR

COLD

HOT

MIX

COLD

HOT

MIX

Operating principle

The controlling element of the three-way

thermostatic mixing valve is a thermostatic

sensor fully immersed in the mixed water

outlet tube which, as it expands or contracts,

continuously establishes the correct proportion

of hot and cold water entering the valve. The

regulation of these ﬂows is by means of a

piston sliding in a cylinder between the hot

and cold water passages. Even when there

are pressure drops due to the drawing off of

hot or cold water for other uses, or variations

in the incoming temperature, the thermostatic

mixing valve automatically regulates the water

ﬂow to obtain the required temperature.

COLD

HOT

MIX

Inlet port check valve detail for 521 “AC” models

Flow curve

Flow should never exceed standards for pipe size and materials.

Kv = 2.6

0.1

0.023

0.23

0.046

0.069

0.02

0.05

0.2

0.5

0.115

2.3

0.46

0.69

1.15

∆p (ft of head)

G (l/min) (

gpm

)

4.6

6.9

11.5

0.01

0.1

0.02

0.03

0.05

0.2

0.3

0.5

(psi) (bar)

0.2

0.5

0.05

0.001

0.01

0.002

0.003

0.005

0.1

0.02

0.03

0.05

1.0

0.2

0.3

0.5

Cv = 3.0

9.2

0.092

0.92

0.04

0.4

0.004

0.04

0.4

115

161

2.0

5.0

190

100

140

Instantaneous production of hot water

Calefﬁ MixCal series 521 thermostatic mixing valves should not be used with boilers without storage

that give you instaneous production of domestic hot water. Their addition would compromise the

correct operation of the boiler itself.

Use

Calefﬁ MixCal series 521 thermostatic mixing valves are designed to be installed at the hot

water heater. The Calefﬁ Mix Cal series 521 valve cannot be used for tempering water temperature at

ﬁxtures as a point-of-use valve. They are not designed to provide scald protection or anti-chill service.

They should not be used where ASSE 1070 devices are required. Wherever a scald protection

feature is required, Calefﬁ series 5213 high performance mixing valve needs to be installed. For safety

reasons, it is advisable to limit the maximum mixed water temperature to 120ºF.

Installation

NOTE TO INSTALLER: The Calefﬁ MixCal series 521 thermostatic mixing valve should be installed

by qualiﬁed personnel, in accordance with local codes and ordinances. It is the responsibility of

the installer to properly select, install and adjust this thermostatic mixing valve as speciﬁed in these

instructions.

Before installing a Calefﬁ MixCal series 521 thermostatic mixing valve, the system must be

inspected to ensure that it’s operating conditions are within the range of the thermostatic mixing

valve checking, for example, the supply temperature, supply pressure, etc.

Systems where the Calefﬁ MixCal series 521 thermostatic mixing valve is to be installed

must be drained and cleaned out to remove any dirt or debris which may have accumulated during

installation. Failure to remove dirt or debris may affect performance and the manufacturer’s product

guarantee. The installation of ﬁlters of appropriate capacity at the inlet of the water from the mains

supply is always advisable. In area which are subject to highly aggressive water, arrangements must

be made to treat the water before it enters the valve.

Calefﬁ MixCal series 521 thermostatic mixing valves must be installed in accordance with the

diagrams in this manual, taking into account all current applicable standards.

Calefﬁ Mix Cal series 521 thermostatic mixing valves can be installed in any position, either vertical

or horizontal.

The following are shown on the mixer body:

– Hot water inlet, color red and marker “HOT”.

– Cold water inlet, color blue and marker “COLD”.

– Mixed water outlet, marker “MIX”.

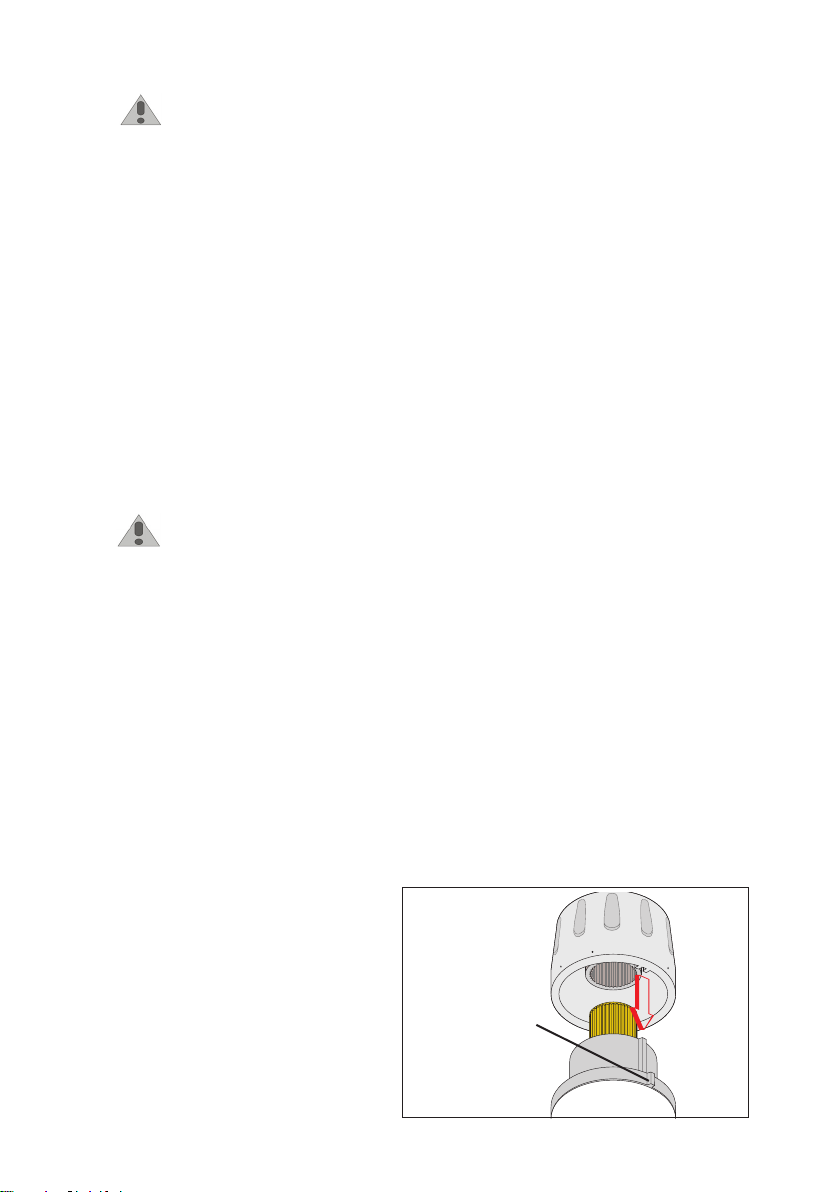

Locking the setting

Position the handle to the number required

with respect to the index point. Unscrew the

head screw, pull off the handle and reposition

it so that the handle ﬁts into the internal slot

of the knob. Tighten the head screw. Index

Point

Check valves

In order to prevent undersirable backsiphonage, separate check valves should be installed in systems

with code “521 A” model thermostatic mixing valves (these models do not contain integral check valves

in the hot and cold inlet ports). As a convenience for easier installations, the Calefﬁ code “521 AC”

model series thermostatic mixing valves include integral check valves in the hot and cold inlet ports.

NOTE TO INSTALLER: DO NOT TEST FIT OR INSTALL CHECK VALVES BEFORE SOLDERING. IF

INSTALLED, REMOVAL WILL REQUIRE DAMAGING THE CHECK VALVE AND IT WILL NO LONGER

BE USABLE.

The diagram below shows the order in which everything goes together. Note that the check valves

are installed on the hot and cold inlets, the mixed outlet does not require a check valve. Note that the

O-ring is installed on to the groove of the check valve.

After soldering the tailpieces into place, slide in the check valve into the tailpiece with o-ring going in

ﬁrst. It will click into place and then the screen will ﬁt into the groove of the tailpiece with the domed

end facing the mixing valve. Once the check valve and screen is installed, use the sealing washer

between the tailpiece and mixing valve body to create a seal and tighten down the union nut.

Commissioning

The special purpose of the thermostatic mixing valve must be commissioned in accordance with

current standards by qualiﬁed personnel using temperature measuring equipment. Calefﬁ codes

521419A, 521519A, and 521619A with integral outlet port temperature gauges provide a time-saving

temperature setting process to get close to the desired temperture. Use of a digital thermometer is

recommended for determining the ﬁnal setting of the mixed water temperature.

NOTE: Gauge adapters with 2” diameter, 20-210ºF scale, code NA10328 (1/2” sweat), NA10056

(3/4” sweat) or NA10058 (1” sweat) can be separately purchased and ﬁeld installed to the Calefﬁ

MixCal series 521 models sold without the integral gauge adapters.

After installation, the valve must be tested and commisioned in accordance with instructions given

below, taking into account current applicable standards.

1) Ensure that the system is clean and free from dirt or debris before commissioning the thermostatic

mixer.

2) It is recommended that the temperature is set using a suitable calibrated digital thermometer.

The valve must be commissioned by measuring the temperature of the mixed water emerging at the

point of use.

3) The maximum outlet temperature from the valve must be set taking account of the ﬂuctuations

due to simultaneous use. It is essential for these conditions to be stabilised before commissioning.

4) Adjust the temperature using the adjusting knob on the valve. For safety reasons. it is advisable to

limit the maximum mixed water temperature to 120ºF in domestic hot water systems.

41 3

VALVE BODY

UNION NUT, Quantity 3 per valve

UNION WASHER, Quantity 3 per valve

INLET PORT MALE TAILPIECE

WITH INTEGRAL CHECK VALVE

Quantity 2 per valve

INLET PORT CONIC FILTER,

Quantity 2 per valve

7OUTLET PORT TAILPIECE,

Quantity 1 per valve

5CHECK VALVE O-RING

2 3 6

(SWEAT TAILPIECE)

MIX

SUPPLY

HOTCOLD

MIX

BOILER

SUPPLY

MIX

Safety relief valve

Check valve

Isolation valve

Expansion vessel

Filter

Pump

WATER

HEATER

WATER

HEATER

CALEFFI

Radiant panels heating system

MIX

SUPPLY

HOTCOLD

MIX

BOILER

SUPPLY

MIX

Safety relief valve

Check valve

Isolation valve

Expansion vessel

Filter

Pump

WATER

HEATER

WATER

HEATER

CALEFFI

*MixCal series 521 thermostatic mixing valves with inlet check valves, “AC” models, can be used

instead of separately installed check valves.

MIX

SUPPLY

HOTCOLD

MIX

BOILER

SUPPLY

MIX

Safety relief valve

Check valve

Isolation valve

Expansion vessel

Filter

Pump

WATER

HEATER

WATER

HEATER

CALEFFI

Domestic hot water system

without recirculation

Domestic hot water system

with recirculation

CALEFFI

COLD

HOT

HOT/RED COLD/BLUE

MIX

SUPPLY

HOTCOLD

MIX

BOILER

SUPPLY

MIX

Safety relief valve

Check valve

Isolation valve

Expansion vessel

Filter

Pump

WATER

HEATER

WATER

HEATER

CALEFFI

Application Diagrams

Temperature adjustment

The temperature is set to the required value by means of the knob with a graduated scale, on the

top of the valve.

Pos. Min. 1 2 3 4 5 6 7 Max.

T (°F) 81 90 100 111 120 127 136 145 152

T (°C) 27 32 38 44 49 53 58 63 67

with: T

HOT = 155°F (68°C), with: T

cold = 55°F (13°C), P = 43 psi (13 bar)

Replacement ttings

Complete kit Valve size Connection Union Nut Tailpiece Washer

NA20640

½ inch

NPT male

F61008

R31981

F50055

NA20640C 59893A

NA20649 Sweat NA10002

NA20649C 59904A

NA20646 Press incl. w/ tailpc NA16264

NA20647 PEX crimp F61008 F0000492

NA20647A NA10484

NA20650

¾ inch

NPT male

F61008

31901A

F50055

NA20650C 59840A

NA20659 Sweat NA10003

NA20659C 59905A

NA20656 Press incl. w/ tailpc NA16264

NA20656A F0000698 NA10419

NA20657 PEX crimp F61008 F0000520

NA20657A NA10485

NA20660

1 inch

NPT male

incl. w/ tailpc

59817A

F50055

NA20660C 59894A

NA20669 Sweat 59834A

NA20669C 59906A

NA20666 Press NA16266

NA20667 PEX crimp F61008 F0000521

NA20667A NA10486

Replacement parts

Replacement body.

Meets requirements of

NSF/ANSI 372-2011.

Certiﬁed to: ASSE

1017/CSA B125.3,

Low lead, by ICC-ES

ﬁle PMG-1360.

ASSE 1017

521101A.........................1" male union thread

Point of distribution

mixed temperature

gauge adaptor ﬁts

MixCal™ 521 series

mixing valves. Threaded

union mounting

replaces existing mixed

outlet with ¾" or 1"

sweat pipe connection.

NA10328.........................½" sweat with gauge

NA10056.........................¾" sweat with gauge

NA10058..........................1" sweat with gauge

NA10358 ...............1" union thread with gauge

688003A...Replacement gauge w/ pocket well

R39591............................ Replacement gauge

Removable gauge ﬁts into temperature well.

Gauge dial is 2” diameter and scale from

30—210º F.

Troubleshooting

Under normal operating conditions the Calefﬁ 521 thermostatic mixing valve will provide a very high

level of performance. However, in some circumstances, where the following maintenance schedule

is not followed problems may arise.

Recommended maintenance schedule:

Tests should be conducted regularly to monitor the thermostatic mixing valve performance, as

deterioration of performance could indicate that the valve and/or the system require maintenance. If,

during these tests, the temperature of the mixed water has changed signiﬁcantly in comparison with

the previous test, the details given in the installation and commissioning sections should be checked

and maintenance conducted.

The following should be checked regularly to ensure that the optimum performance levels of the

valve are maintained. Check every 12 months at least, or more often if necessary.

1) Check and clean the system ﬁlters.

2) Check that any check valves positioned upstream of the Calefﬁ thermostatic mixing valve are

operating correctly, without problems caused by impuritites.

3) Limescale can be removed from internal components of the thermostatic mixing valve by

immersion in a suitable de-scaling ﬂuid.

4) When the components which can be maintained have been checked, commission the valve.

Symptoms Cause Corrective action

Hot water at the cold taps a) Operation of check valve is

hindered; Check valve is not

sealing correctly.

b) Check valves not ﬁtted.

- Replace faulty check valve

Fluctuating mixed water

temperature

a) Erratic supply temperatures at

the inlet of the valve.

b) Starvation of the water

supplies at the inlets of the valve.

c) Incorrect commissioning of the

valve.

- Restore inlet conditions within

the limits of the valve.

Erratic ﬂow of water from

the valve

a) Insufﬁcient water supplies

b) Fluctuations in the supply

pressures/temperatures.

c) Adverse effect created by other

draw off points on the system

- Stabilize inlet supply condi-

tions.

No ﬂow of water from the

valve

a) In-line ﬁlers blocked.

b) Insufﬁcient supply pressures.

c) Debris obstructing valve

operation.

- Clean ﬁlters

- Resore inlet supplies

- Clean debris or scale from

the valve.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de CALEFFI

CALEFFI

CALEFFI MixCal 521400A Guía

CALEFFI

CALEFFI 642 Series Manual de usuario

CALEFFI

CALEFFI 5261 Series Manual de usuario

CALEFFI

CALEFFI 2527 Series Manual de usuario

CALEFFI

CALEFFI 146 Series Guía

CALEFFI

CALEFFI 5350 Series Manual de usuario

CALEFFI

CALEFFI Z-one ZSR10 Series Manual de usuario

CALEFFI

CALEFFI 5335 Series Guía del usuario

CALEFFI

CALEFFI 521201 NTR Guía

CALEFFI

CALEFFI ThermoSetter 1164 Series Guía del usuario

CALEFFI

CALEFFI MixCal 521410A Guía

CALEFFI

CALEFFI QuickSetter+ 132 Series Manual de usuario

CALEFFI

CALEFFI 523160A Guía

CALEFFI

CALEFFI 5213 Series Manual de usuario

CALEFFI

CALEFFI 5218 Series Manual de usuario

CALEFFI

CALEFFI TankMixer 520 Series Manual de usuario

CALEFFI

CALEFFI QuickSetter+ 132 Series Manual de usuario

CALEFFI

CALEFFI 574 series Manual de usuario

CALEFFI

CALEFFI 252169A Guía

CALEFFI

CALEFFI Z-one ZVR10 Series Manual de usuario

CALEFFI

CALEFFI LEGIOMIX 6000 series Manual del propietario

CALEFFI

CALEFFI 574 series Manual de usuario

CALEFFI

CALEFFI 535H Series Guía del usuario

CALEFFI

CALEFFI ThermoBloc 281 Series Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
