Burkert 8025 Series Manual de usuario
Quickstart
Type 8025 / 8035
Flowmeter
English
We reserve the right to make technical changes without notice.
Technische Änderungen vorbehalten.
Subject to technical changes.
© Bürkert SAS, 2013
Quickstart 1312/0_EU-ML 00565666 ORIGINAL_FR
1. ABOUT THE QUICKSTART.........................................................................3
2. INTENDED USE ................................................................................................4
3. BASIC SAFETY INFORMATION ...............................................................4
4. GENERAL INFORMATION ...........................................................................6
5. DESCRIPTION OF THE NAME PLATE ..................................................6
6. TECHNICAL DATA ...........................................................................................7
7. INSTALLATION ...............................................................................................13
8. WIRING ...............................................................................................................20
9. INSTALLATION AND COMMISSIONING ...........................................49
10. MAINTENANCE AND TROUBLESHOOTING ................................ 55
11. PACKAGING, TRANSPORT ...................................................................55
13. DISPOSAL OF THE PRODUCT ........................................................... 56
3
About the Quickstart
Type 8025/8035 /
ATTENTION
Warns against a possible risk.
• Failure to observe this warning can result in substantial or minor
injuries.
NOTE
Warns against material damage.
• Failure to observe this warning may result in damage to the
device or system.
indicates additional information, advice or important
recommendations.
refers to information contained in this manual or in other
documents.
→Indicates a procedure to be carried out.
1.2. Definition of the word "device"
The word "device" used within this manual always refers to the flow-
meter type 8025 or 8035.
1. ABOUT THE QUICKSTART
The quickstart describes the life cycle of the device. Please keep this
manual in a safe place, accessible to all users and any new owners.
Important safety information.
Respect the safety instructions. Study in particular the chapters
entitled Intended Use and Basic Safety Instructions.
• The quickstart must be read and understood.
The quickstart explains how to install, set, and start-up the device.
A detailed description of the device can be found in the related
operating instructions on the delivered CD.
1.1. Symbols used
DANGER
Warns against an imminent danger.
• Failure to observe this warning can result in death or in serious
injury.
AVERTISSEMENT
Warns against a potentially dangerous situation.
• Failure to observe this warning can result in serious injury or even
death.
English
4
Intended use
Type 8025/8035 /
2. INTENDED USE
Use of the device that does not comply with the instructions
could present risks to people, nearby installations and the
environment.
• The compact version of the flowmeter type 8025 or 8035 is
designed to measure the flow rate of a liquid and to totalise the
volume of a liquid.
• The remote version of the flowmeter type 8025 is a transmitter
that must be connected to a 8020 or 8030 flow sensor with a
coil or a pulse output, only in "Low Power" version.
• This device must be protected against electromagnetic interfer-
ence, ultraviolet rays and, when installed outdoors, the effects of
climatic conditions.
• This device must be used in compliance with the characteristics
and commissioning and use conditions specified in the contrac-
tual documents and in the operating instructions.
• Requirements for the safe and proper operation of the device
are proper transport, storage and installation, as well as careful
operation and maintenance.
• Only use the device as intended.
→Observe any existing restraints when the device is exported.
3. BASIC SAFETY INFORMATION
This safety information does not take into account:
• any contingencies or occurences that may arise during installation,
use and maintenance of the devices.
• the local safety regulations for which the operating company
is responsible including the staff in charge of installation and
maintenance.
Danger due to high pressure in the installation.
• Stop the circulation of fluid, cut off the pressure and drain the
pipe before loosening the process connections.
Danger due to electrical voltage.
• Shut down the electrical power source of all the conductors and
isolate it before carrying out work on the system.
• Observe all applicable accident protection and safety regula-
tions for electrical equipment.
Danger due to high temperatures of the fluid.
• Use safety gloves to handle the device.
• Stop the circulation of fluid and drain the pipe before loosening
the process connections.
Danger due to the nature of the fluid.
• Respect the prevailing regulations on accident prevention and
safety relating to the use of hazardous products.
English
5
Basic safety information
Type 8025/8035 /
Various dangerous situations
To avoid injury take care:
• not to use the device for the measurement of gas flow rates.
• not to use the device in explosive atmospheres.
• not to use the device in an environment incompatible with the
materials it is made of.
• not to subject the device to mechanical loads (e.g. by placing
objects on top of it or by using it as a step).
• not to make any external or internal modifications to the device.
• to prevent any unintentional power supply switch-on.
• to ensure that installation and maintenance work are
carried out by qualified, authorised personnel in possession of
the appropriate tools.
• to guarantee a defined or controlled restarting of the process,
after a power supply interruption.
• to use the device only if in perfect working order and in compli-
ance with the instructions provided in the operating instructions.
• to observe the general technical rules when installing and using
the device.
NOTE
The device may be damaged by the fluid in contact with.
• Systematically check the chemical compatibility of the compo-
nent materials of the device and the fluids likely to come into
contact with it (for example: alcohols, strong or concentrated
acids, aldehydes, alkaline compounds, esters, aliphatic com-
pounds, ketones, halogenated aromatics or hydrocarbons,
oxidants and chlorinated agents).
NOTE
Elements / Components sensitive to electrostatic discharges
• This device contains electronic components sensitive to electro-
static discharges. They may be damaged if they are touched by
an electrostatically charged person or object. In the worst case
scenario, these components are instantly destroyed or go out of
order as soon as they are activated.
• To minimise or even avoid all damage due to an electrostatic
discharge, take all the precautions described in the EN 61340-
5-1 and 5-2 norms.
• Also ensure that you do not touch any of the live electrical
components.
English
6
General information
Type 8025/8035 /
4. GENERAL INFORMATION
4.1. Manufacturer's address and
international contacts
To contact the manufacturer of the device, use following address:
Bürkert SAS
Rue du Giessen
BP 21
F-67220 TRIEMBACH-AU-VAL
You may also contact your local Bürkert sales office.
The addresses of our international sales offices are available on the
internet at: www.burkert.com
4.2. Warranty conditions
The condition governing the legal warranty is the conforming use of
the device type 8025/8035 in observance of the operating condi-
tions specified in this manual.
4.3. Information on the Internet
You can find the operating instructions and technical data sheets
regarding the type 8025 or the type 8035 or at: www.burkert.com.
5. DESCRIPTION OF THE NAME
PLATE
FLOW SE35/8035 HALL SUPPLY: 12-36V ... 70 mA
Output: 1x4-20mA IP65
2xRel: 30V and 42V peak or 60V ... max.
S/N 11 026
00552726
W44MG
Made in France
12
67910
4
8
3
5
1. Measured quantity and type of the device
2. Type of sensor
3. Characteristics of the current output
4. Power supply and maximum of current consumption
5. Protection class of the device
6. Manufacturing code
7. Conformity logo
8. Specification of the relay outputs
9. Serial number
10. Order code
Fig. 1: Name plate of the 8025 / 8035 flowmeter
English
7
Technical data
Type 8025/8035 /
6. TECHNICAL DATA
The following technical data are relevant for a 8025 compact or a
8035 and for the remote 8025 connected to a Bürkert flow sensor
8020 / 8030 in a "Low Power" version only.
6.1. Conditions of use
Ambient temperature
• 8025 compact, 115/230 V AC,
not UR or CSA recognized
• 8035 compact, 115/230 V AC,
not UR or CSA recognized
• other versions, not UR or CSA
recognized
• UR and CSA recognized
versions
• -10 to 50 °C
• -10 to 50 °C
• -10 to 60 °C
• -10 to 40 °C
Air humidity < 80%, non condensated
Degree of pollution (UR and CSA
recognized versions)
Degree 2 according to EN
61010-1
Installation category (UR and CSA
recognized versions)
Category I according to
UL61010-1
Max. height above sea level 2000 m
Protection rating
• 8025 compact and 8035
• 8025 wall-mounted
• Housing, panel version
• non front parts, panel-mounted
version
According to EN 60529
• IP65, device wired and
cable glands tightened and
cover lid screwed tight.
• IP65, device wired, cable
glands tightened, cover lid
screwed tight and entry
item nuts of the cable
glands tightened at a
screwing torque of 1.5 Nm.
• IP65, installation com-
pleted and closed cabinet
• IP20
6.2. Conformity to standards and
directives
The device conforms to the EC directives through the following
standards:
• EMC: EN 61000-6-2, EN 61000-6-3, EN 550022
• LVD: EN 61010-1
• Environnemental testing: Vibration: EN 60068-2-6, Shock:
EN 60068-2-27.
English
8
Technical data
Type 8025/8035 /
Pressure: article 3§3 of the Pressure Directive 97/23/CE. Acc. to
the Pressure Directive 97/23/CE: the device can only be used in the
following cases (depending on the max. pressure, the DN of the pipe
and the fluid):
Type of fluid Conditions
8025 8035 1)
Fluid group 1, par.
1.3.a DN25 only DN ≤ 25 only
Fluid group 2 par. 1.3.a
DN ≤ 32
or DN > 32 and
PNxDN ≤ 1000
DN ≤ 32
or DN > 32 and
PNxDN ≤ 1000
Fluid group 1 par. 1.3.b
DN ≤ 25
or DN > 25 and
PNxDN ≤ 2000
PNxDN ≤ 2000
Fluid group 2 par. 1.3.b DN ≤ 400 DN ≤ 200
1) For the type 8035: S030 sensor-fitting, DN6 to DN65, in PP, PVC,
PVDF, brass or stainless steel.
The UL recognized devices with variable key PU01 comply with the fol-
lowing standards:
• UL 61010-1
• CAN/CSA-C22.2 n° 61010-1
6.3. General data
Pipe diameter
• 8025 flowmeter
• 8025 transmitter (remote
versions)
• 8035 flowmeter
• DN20 (except for the DN
specified p.15) to DN400
• DN06 to DN400
• DN06 to DN65
Type of fitting • S020, for a compact 8025
• S030, for a 8035
Type of fluid • liquid
• viscosity: max. 300 cSt
• rate of solid particles: max.
1%
Fluid temperature (compact ver-
sions)
• with fitting in PVC
• with fitting in PP
• with fitting in PVDF, stainless
steel or brass
The fluid temperature may be
restricted by the fluid pressure,
the material the flow sensor is
made of and the material the
S020 or S030 fitting used is
made of. See "Fig. 2" and "Fig.
3".
• 0 to +50 °C
• 0 to +80 °C
• -15 to +80 °C
English
9
Technical data
Type 8025/8035 /
Fluid pressure (compact ver-
sions)
• 8025 compact
• 8035 with S030 fitting in
plastic
• 8035 with S030 fitting in metal
The fluid pressure may be
restricted by the fluid tem-
perature, the material the flow
sensor is made of (only for the
compact 8025) and the material
the fitting used is made of. See
"Fig. 2" and "Fig. 3".
• PN10
• PN10
• PN16 (PN40 on request)
Flow rate measurement
• Measurement range
- Sensor with pulse output
(Hall)
- Sensor with a sinus output
(coil)
• Accuracy
- with a teach-in procedure
- with the K factor of the
fitting used
• Linearity 1)
• Repeatability 1)
- 0.3 m/s to 10 m/s
- 0.5 m/s to 10 m/s
- 1 % of the measured value
(at the value of the teach-in
flow rate)
- 2,5 % of the measured
value
• ±0,5 % of the full scale
• ±0,4 % of the measured value
1) Determined in the following reference conditions: medium = water, water
and ambient temperatures 20 °C, min. upstream and downstream distances
respected, appropriate pipe dimensions
10
9
8
7
6
5
4
3
2
1
0-15 0 +20 +40 +60
PVDF
PVDF (PN10)
PVC (PN10)
PP (PN10)
PVC + PP
11
P (bar)
T (°C)
+80
A
Metal
A: range of use

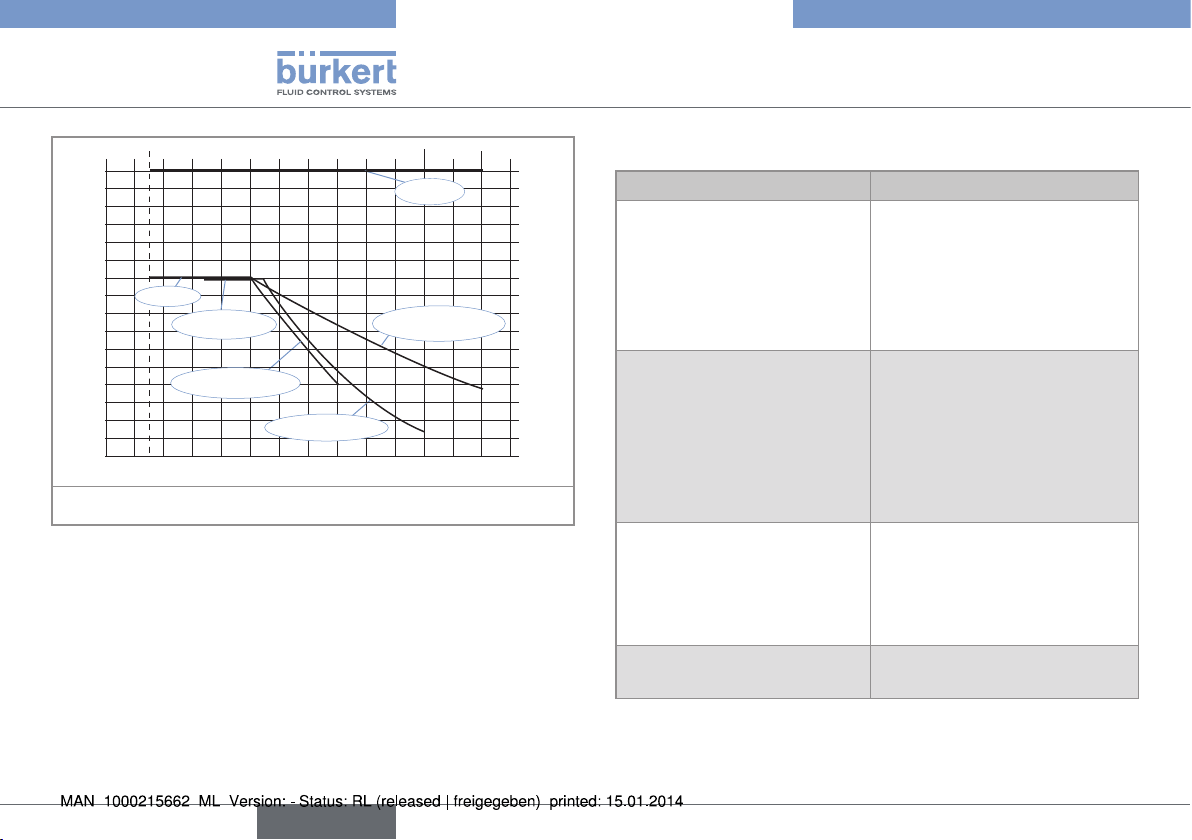

Fig. 2: Fluid temperature /pressure dependency curves for the
8025 compact version, depending on the material the
S020 fitting is made of
English
10
Technical data
Type 8025/8035 /
10
9
8
7
6
5
4
3
2
1
0
-30 -10 +10 +30 +50 +70 +90 +110
PVDF (PN10)
PVC (PN10)
PP (PN10)
PVC + PP
PVDF
16
15
14
13
12
11
A
P (bar)
T °C
A
Metal
A: range of use
Fig. 3: Fluid temperature /pressure dependency curves for the
8035 compact version, depending on the material the
S030 fitting is made of
6.4. Mechanical data
Part Material
Sensor holder - Paddle-wheel
• 8025, compact versions
• 8025, remote versions
• 8035
• PVDF
• Refer to the operating instruc-
tions of the remote sensor
• Refer to the operating instruc-
tions of the S030 sensor-fitting
Axis and bearings of the
paddle-wheel
• 8025, compact versions
• 8025, remote versions
• 8035
• Ceramics
• Refer to the operating instruc-
tions of the remote sensor
• Refer to the operating instruc-
tions of the S030 sensor-fitting
Seals
• 8025, compact versions
• 8025, remote versions
• FKM (EPDM delivered with the
device)
• Refer to the operating instruc-
tions of the remote sensor
Nut
• 8025, compact versions • PC
English
Otros manuales para 8025 Series
18
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Instrumento de medición de Burkert
Burkert
Burkert 8020 Manual de usuario
Burkert
Burkert 8025 Series Manual de usuario
Burkert
Burkert 8756 Manual de usuario
Burkert
Burkert Flowave 8098 Manual de usuario
Burkert
Burkert 8743 Manual de usuario
Burkert
Burkert 8025 Series Manual de usuario
Burkert
Burkert 8222 ELEMENT NEUTRINO Manual de usuario
Burkert
Burkert S030 Manual de usuario
Burkert
Burkert 8041 Manual de usuario
Burkert
Burkert 8203 Manual de usuario
Burkert
Burkert 8222 ELEMENT NEUTRINO Manual de usuario
Burkert
Burkert 8026 Manual de usuario
Burkert
Burkert FLOWave S Manual de usuario
Burkert
Burkert S020 Manual de usuario
Burkert
Burkert 8756 Manual de usuario
Burkert
Burkert 8006 Series Manual de usuario
Burkert
Burkert 8026 Manual de usuario
Burkert
Burkert 8202 ELEMENT Manual de usuario
Burkert
Burkert 8200 Series Manual de usuario
Burkert
Burkert 8032 Manual de usuario
Manuales populares de Instrumento de medición de otras marcas
Endress+Hauser
Endress+Hauser Proline Promag 50 Especificaciones técnicas
Siemens
Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas
KLINGER
KLINGER CMF V Series Manual de usuario
EXFO
EXFO FTB-2 Manual de operación y mantenimiento
Keysight
Keysight M8290A Manual de usuario
ADTEK
ADTEK MW-5 Manual de usuario
