Type2301

1 QUICKSTART

The Quickstart describes the entire life cycle of the device. Keep

these instructions in a location which is easily accessible to every

user and make them available to every new owner of the device.

Important safety information!

Read the Quickstart carefully and fully. In particular, pay

attention to section “Basic safety instructions” and “Intended

use”.

▶The Quickstart must be read and understood.

The Quickstart provides an exemplary description of the installation

and start-up of the device.

The detailed description of the device can be found in the oper-

ating instructions for Type2301.

The operating instructions can be found on the Internet at:

www.burkert.com

1.1 Denitionofterms/abbreviations

The term "device" used in these instructions always refers to the

Type2301 globe control valve.

The abbreviation "Ex" used in these instructions always

stands for "explosion-proof".

In these instructions, the unit bar stands for relative pressure.

The absolute pressure is stated separately in bar(abs).

English

Symbols

Type2301

2 SYMBOLS

DANGER!

Warns of an immediate danger.

▶Failure to observe these instructions will result in death or

serious injuries.

WARNING!

Warns of a potentially hazardous situation.

▶Failure to observe these instructions may result in serious

injuries or death.

CAUTION!

Warns of a potential danger.

▶Failure to observe these instructions may result in moderate

or minor injuries.

NOTE!

Warns of damage.

Important tips and recommendations.

Refers to information in these operating instructions or in

other documentation.

▶Designates instructions to avoid a danger.

→Highlights a procedure which you must carry out.

3 INTENDEDUSE

Unauthorised use of the Type2301 globe control valve may be

dangerous to people, nearby equipment and the environment.

▶The device is designed to control the ow of liquid and gaseous

media. It can only be operated in combination with a corre-

sponding control unit.

▶In potentially explosive environments, the Type2301 globe control

valve must only be used in accordance with the specications on

the separate Ex-type label. The additional information and safety

instructions relating to Ex areas enclosed with the device must

be adhered to when deploying the device.

▶Devices without a separate Ex type label must not be used in

the potentially explosive atmosphere.

▶To use the device, observe the permitted data, operating con-

ditions and application conditions. These specications can be

found in the contract documents, the operating instructions and

on the type label.

▶Prerequisites for safe and trouble-free operation are correct

transport, correct storage and installation as well as careful

operation and maintenance.

▶Use the device only in conjunction with third-party devices and

components recommended or approved by Bürkert.

▶Use the device only as intended. Non-intended use of the

device may be dangerous to people, nearby equipment and the

environment.

▶Protect device from harmful environmental inuences (radiation,

air humidity, fumes, etc.). For any matters requiring clarication,

contact the relevant sales department.

English

Basic safety instructions

Type2301

4 BASICSAFETYINSTRUCTIONS

These safety instructions do not take account of any

•contingencies or events which may occur during installation,

operation and maintenance of the devices;

•local safety regulations that are within the operator’s scope

of responsibility, including those relating to the installation

personnel.

DANGER!

Risk of injury due to high pressure and escaping medium!

▶Before working on the system or device, switch o the pres-

sure and vent or empty the lines.

Risk of injury due to electric shock. (with installed electrical

components)

▶Before working on the device or system, switch o the

power supply. Secure against reactivation.

▶Observe the applicable accident prevention and safety regu-

lations for electrical devices.

WARNING!

Risk of injury when opening the actuator!

The actuator contains a spring under tension. When the actuator is

opened, the spring will jump out and may cause injuries.

▶Do not open the actuator.

Risk of injury due to moving parts in the device!

▶Do not reach into openings in the device.

Danger due to loud noises.

▶Depending on the usage conditions, the device may generate loud

noises. Detailed information on the probability of loud noises is

available from the respective sales department.

▶Wear hearing protection when in the vicinity of the device.

CAUTION!

Risk of burns or re from hot device surfaces due to pro-

longed operation.

▶Only touch the device when wearing protective gloves.

▶Keep the device away from highly ammable substances and

media.

Discharge of medium if packing gland exhibits wear

▶Relief bore must be regularly inspected for any medium leakages.

▶If the medium is hazardous, secure the area around the leakage

to prevent risks.

General hazardous situations.

To prevent injuries, observe the following:

▶Secure device or system to prevent unintentional activation.

▶Only trained technicians may perform installation and main-

tenance work.

▶Perform installation work and maintenance work using suit-

able tools only.

English

General notes

Type2301

▶Following interruption of the process, ensure that the

process is restarted in a controlled manner. Observe the

sequence:

1. Apply electrical or pneumatic supply.

2. Charge with medium.

▶Use the device only when it is in perfect condition and in

accordance with the operating instructions.

▶For applications planning and operation of the device, observe

the plant-specic safety regulations.

▶The plant owner is responsible for the safe operation and

handling of the plant.

▶Observe the general rules of technology.

Please observe the following in order to protect against

damage to the device:

▶Feed only those media listed in chapter “7 Technical data” into

the medium ports.

▶Do not place the valve under mechanical stress (e.g. by placing

objects on it or standing on it).

▶Do not make any external modications to the valves. Do not

paint housing parts or screws.

▶The exhaust air can be contaminated by lubricants in the

actuator.

▶Transport, install and remove heavy device only with the aid of

a second person and using suitable tools.

5 GENERALNOTES

5.1 Contactaddresses

Germany

Bürkert Fluid Control Systems

Sales Centre

Christian-Bürkert-Str.13–17

D-74653 Ingelngen

Tel. +49(0)7940-1091111

Fax +49(0)7940-1091448

E-mail: [email protected]

International

You can also nd the contact addresses online at:

www.burkert.com

5.2 Warranty

A precondition for the warranty is that the device is used as

intended in consideration of the specied operating conditions.

5.3 InformationontheInternet

Operating instructions and data sheets for Type2301 can be found

online at: www.country.burkert.com

English

Structure and function

Type2301

6 STRUCTUREANDFUNCTION

The Type2301 globe control valve can only be used in

combination with the following control units:

Positioner Type8692, 8694, 8696 and8792

Process controller Type8693 and8793

6.1 Structure

The valve seats are screwed in. Reduced seat sizes are simple to

achieve by replacing the screw-in seats. The ow direction is always

below the valve seat.

6.2 Function

The valve seat is always closed against the medium ow. Spring

force (CFA) or pneumatic pilot pressure (CFB and CFI) generate

the closing force on the control cone. A spindle connected to the

actuator piston transmits the force.

6.2.1 Controlfunctions(CF)

WARNING!

For control function I – risk of pilot pressure failure!

With control functionI, the control unit and reset are pneumatic.

No dened position is reached during a pressure failure.

▶To ensure a controlled restart of the device, rst apply pilot

pressure and then activate the medium.

Closed by spring force in rest position.

Opened by spring force in rest position.

Actuating function via reciprocal pressurisation

6.2.2 Flowdirectionbelowseat

Depending on the variant, the valve is closed against the medium

ow either with spring force (CFA) or pilot pressure (CFB and CFI).

Because the medium pressure is below the control cone, it helps

open the valve.

WARNING!

Valve leak if there is too little minimum pilot pressure or high

medium pressure!

Minimum pilot pressure for CFB and CFI that is too low, or failing

to meet the permitted medium pressure, can cause a leak in the

valve seat.

▶Adhere to minimum pilot pressure.

▶Do not exceed the medium pressure (see chapter “Pressure

ranges”).

English

Structure and function

Type2301

CFB/CFI

CFA

Flow direction

1 2

Marking on the

housing

Fig. 1: Flowdirectionbelowseat(idleon/o,closingagainstmedium)

7 TECHNICALDATA

7.1 Conformity

The Type2301 globe control valve conforms to the EU directives as

per the EU Declaration of Conformity (if applicable).

7.2 Standards

The applied standards, which are used to demonstrate conformity with

EUDirectives, are listed in the EU-type examination certicate and/or

the EUDeclaration of Conformity (if applicable).

According to Pressure Equipment Directive observe the following

operating conditions:

Housing size DN Maximum pressure for compressible uids

of Group1 (dangerous gases and vapours

according to Art. 3, No.1.3, lettera, rst

dash)

DN65 15bar

DN80 12.5bar

DN100 10bar

English

Structure and function

Type2301

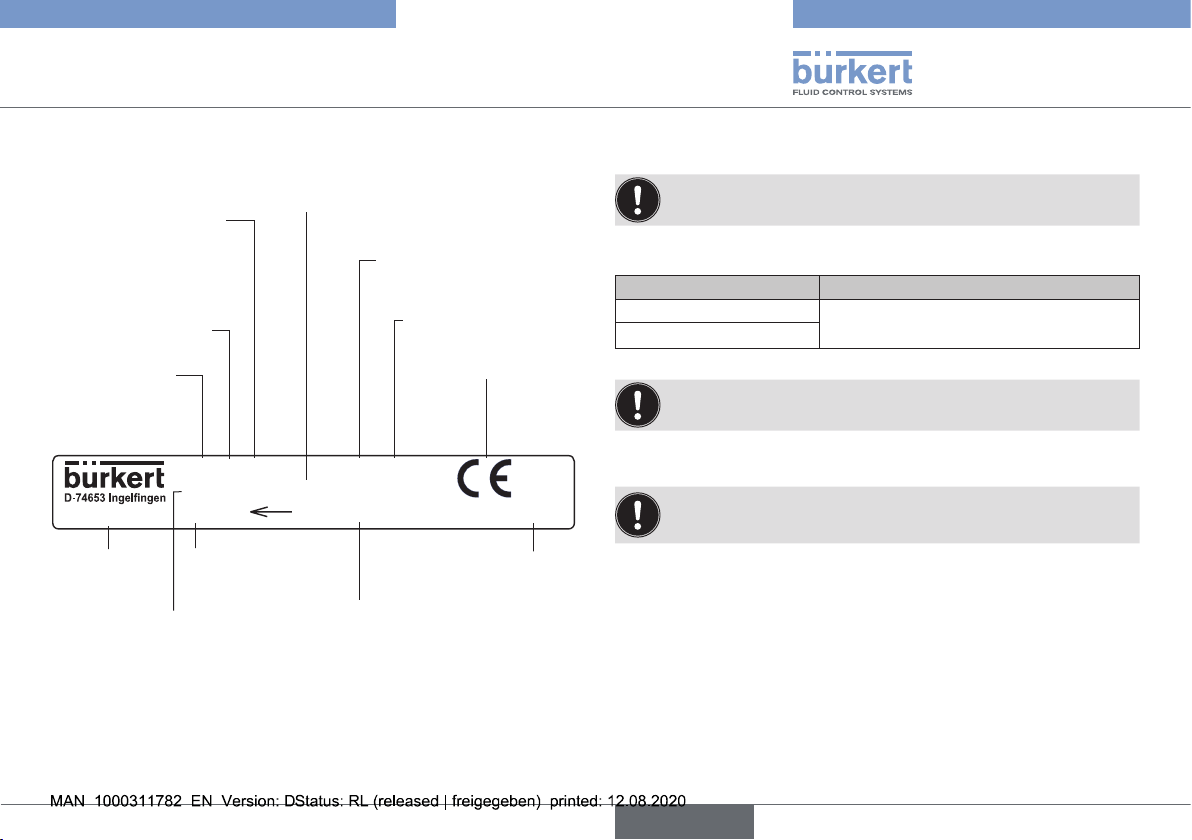

7.3 Typelabel

00297969

2301 B PTFE Kvs4,3 lin

PS 16bar Tmed -10...+130°C

Flow 1 2W17AL

see manual for derating

CE marking

Permitted medium

temperature

Control character-

istic form (linear)

Type

Control function

(CF)

Seal material

Identication

number of the

device

Flow direction

Permitted medium

pressure

Manufacturer

date (encrypted)

For derating, please

refer to the operating

instructions.

Flow capacity in serial

conditions

7.4 Operatingconditions

Note the permitted ranges on the device type label!

7.4.1 Actuatortemperatureranges

Actuator size [mm] Environment1)

ø50, 70 –10 – +60°C2)

–10 – +100°C3)

ø90, 130

Tab. 1: Actuatortemperatureranges

1) Whenusingacontrolunit,themax.Ambienttemperatureof

thiscomponentmustbenotedandadheredto.

2) Pilotairconnectoraspush-inconnector

3) Controlairconnectorasthreadedbushing

The globe control valve is suitable for steam

sterilisation.

7.4.2 Valveseatsealtemperaturerange

Recommendation for the valve seat seal of leak classIII andIV:

Steel/steel.

Valve seat seal for leak classVI

For medium temperatures up to max. 130°C: PTFE

For medium temperature over 130°C: PEEK

English

Structure and function

Type2301

Derating pressure and temperature ranges

Usage limits of the valve (derating medium pressure)

Temperature Medium pressure

–10 – +50 °C 25bar

100°C 24.5bar

150°C 22.4bar

200°C 20.3bar

230°C 19bar

Tab. 2: DeratingthemediumpressureasperDINEN12516-1/PN25

Temperature Medium pressure

–29 – +38 °C 19bar

50°C 18.4bar

100°C 16.2bar

150°C 14.8bar

200°C 13.7bar

230°C 12.7bar

Tab. 3: DeratingthemediumpressureASMEB16.5/ASMEB16.34

CI.150

Temperature Medium pressure

–10 – +50 °C 14bar

100°C 14bar

150°C 13.4bar

200°C 12.4bar

230°C 11.7bar

Tab.4: DeratingthemediumpressureasperJISB222010K

Usage limits of medium and ambient temperature

0 20 40 60 80 100 120 140 160 180 200 220

110

100

Medium temperature [°C]

Ambient temperature [°C]

Fig. 2: DeratingELEMENTANTG50,70,90,130

English

Otros manuales para 2301 Series

Tabla de contenidos

Otros manuales de Unidad de control de Burkert

Burkert

Burkert 6213 Manual de usuario

Burkert

Burkert 2106 Manual de usuario

Burkert

Burkert 2006 Manual de usuario

Burkert

Burkert 1094 Standard Manual de usuario

Burkert

Burkert 2103 Series Manual de usuario

Burkert

Burkert 7012 Series Manual de usuario

Burkert

Burkert Magnetventil 6013 Manual de usuario

Burkert

Burkert 6027 Manual de usuario

Burkert

Burkert 2063 Manual de usuario

Burkert

Burkert 6511 Manual de usuario

Burkert

Burkert Type 2000 Manual de usuario

Burkert

Burkert 2030 Manual de usuario

Burkert

Burkert 6650 Manual de usuario

Burkert

Burkert 3280 Manual de usuario

Burkert

Burkert PTB 07 ATEX 2063 X Manual de usuario

Burkert

Burkert 2031 Manual de usuario

Burkert

Burkert 8695 Series Manual de usuario

Burkert

Burkert 2101 Manual de usuario

Burkert

Burkert 8681 Manual de usuario

Burkert

Burkert 2031 INOX Manual de usuario

Burkert

Burkert 2712 Series Manual de usuario

Burkert

Burkert 2030 Manual de usuario

Burkert

Burkert 2301 Series Manual de usuario

Burkert

Burkert 6027 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
