Sfera Proximity Reader

353200

Sfera Proximity Reader

User and installation manual

Contents

Sfera Proximity Reader

User and installation manual

General information 4

Warnings and recommendations 5

Regulatory warnings 5

Front view 6

Back view 7

Installation 8

Mounting 8

Disassembling 10

Use of the device 12

Device configuration 12

Manager master badge 13

New manager master badge 13

Deleting the manager master badge 15

Passepartout badge 16

New passepartout badge 16

Deleting passepartout badges 18

Resident badge 19

New resident badge (M= 00) 19

Deleting resident badges (M=00) 21

New apartment master badge (M= 01) 23

Deleting the apartment master badge (M=01) 25

New resident badge (M= 01) 26

Deleting resident badges (M=01) 28

Reset 28

Configuration using the software 29

Connection to the PC 29

Sfera Proximity Reader

User and installation manual

General information

The Sfera Proximity Reader must only be used with BTicino 2 wire digital systems.

Front covers that may be used with the Sfera BTicino Proximity reader:

Front cover 353205

Front cover 353201/02/03

Sfera Proximity Reader

User and installation manual

Warnings and recommendations

It is important to read this manual carefully before proceeding with the installation.

The warranty becomes automatically void in case of negligence, improper use, tampering by

unauthorised personnel.

Regulatory warnings

Read carefully before use and keep for future reference

Touching the units with wet hands is forbidden

Using liquid cleaners or aerosols is forbidden

Blocking the ventilation openings is forbidden

Modifying the devices is forbidden

Removing protective parts from the devices is forbidden

Installing the units near liquids and powders is forbidden

Installing the units near heat sources is forbidden

Installing the units near harmful gases, metal dusts or similar is forbidden

Fastening the units on unsuitable surfaces is forbidden

Risk of devices falling because the surface on which they are installed collapses

or inappropriate installation.

Switch the power supply OFF before any work on the system

Caution: Installation, configuration, starting-up and maintenance must be

performed exclusively by qualified personnel.

Check that the wall installation has been carried out correctly

Lay out the wires respecting the standards in force

Connect the power supply wires as indicated

Use only the items indicated in the technical specifications for any system

expansions

Sfera Proximity Reader

User and installation manual

1. Programming reset pushbutton.

2. Mini-USB programming connector.

3. Red LED on steady: access denied, or

programming error.

4. Green LED on steady: access granted, or

programming successful.

5. Antenna.

Front view

Sfera Proximity Reader

User and installation manual

3 2 1

1. Connection to the door lock (CP-P1)

and tamper (CP-P2 – future application)

pushbutton.

2. Local relay contacts.

3. Connection to the BUS.

4. Connector for the connection to

subsequent modules.

5. Connector for the connection to previous

modules.

6. Configurator sockets.

Back view

Sfera Proximity Reader

User and installation manual

Installation

Caution: Installation, configuration, starting-up and maintenance must be performed

exclusively by qualified personnel.

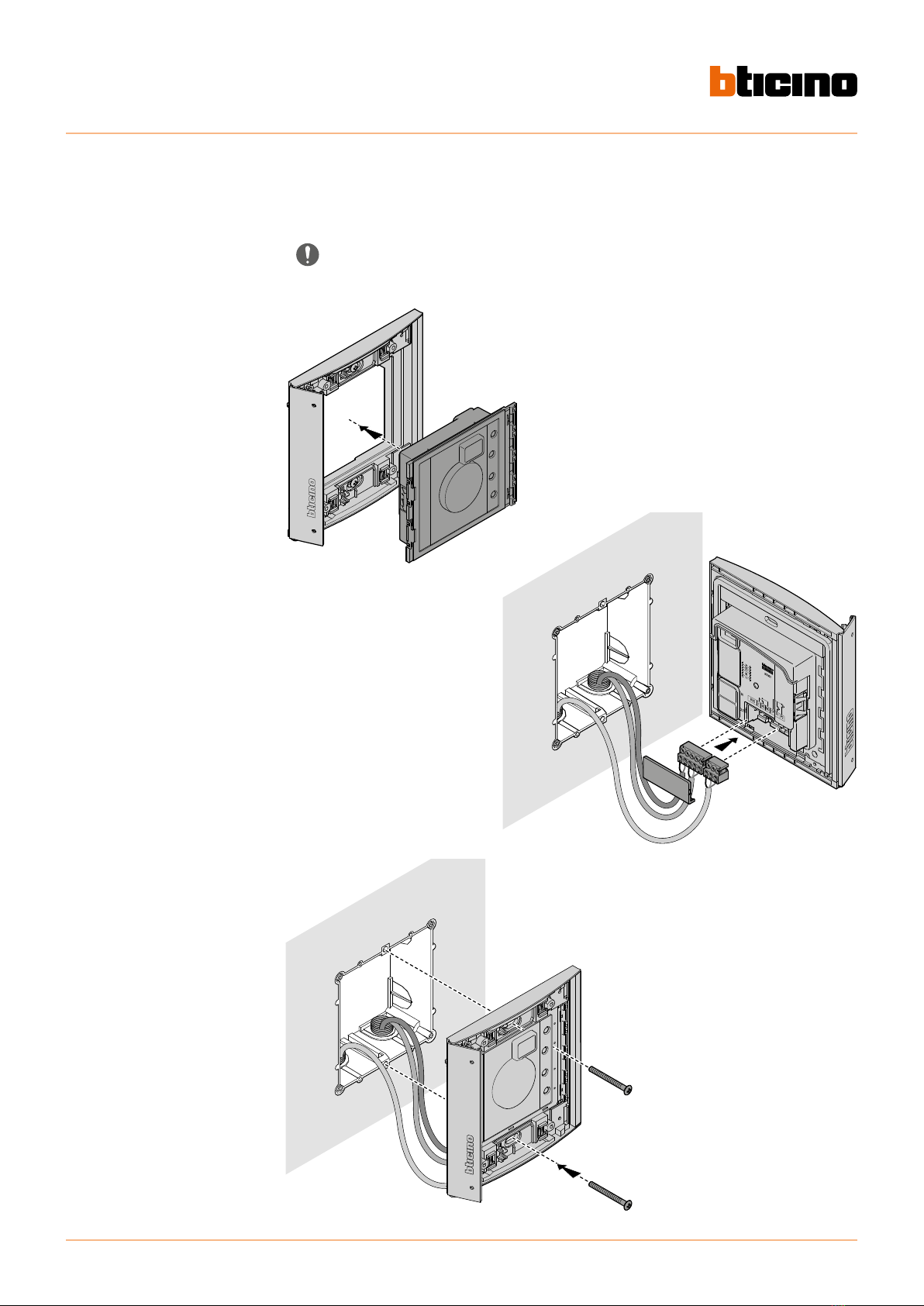

Mounting

Sfera Proximity Reader

User and installation manual

Sfera Proximity Reader

User and installation manual

Disassembling
