BT Cordless Headset H55

UK’s best selling phone brand†

Quick Set-up and User Guide

Important – please read ﬁrst

• Only use the line cord, power supply, cables and rechargeable battery pack

supplied with your product.

• Make sure the power supply is connected to a known working socket.

• Connect your headset base to the power supply and allow the battery to

charge for at least 3 hours before connecting to a telephone line.

• To make sure you get the best range and reception from your headset,

avoid interference by placing the base away from large metal objects such

as fridge freezers and microwave ovens or electronic products such as

computers and TVs.

If you need some help, call us on 0800 218 2182* or go to bt.com/producthelp

PSTN line cord

Desk phone

connection cable

Line splitter

USB cable

Battery pack

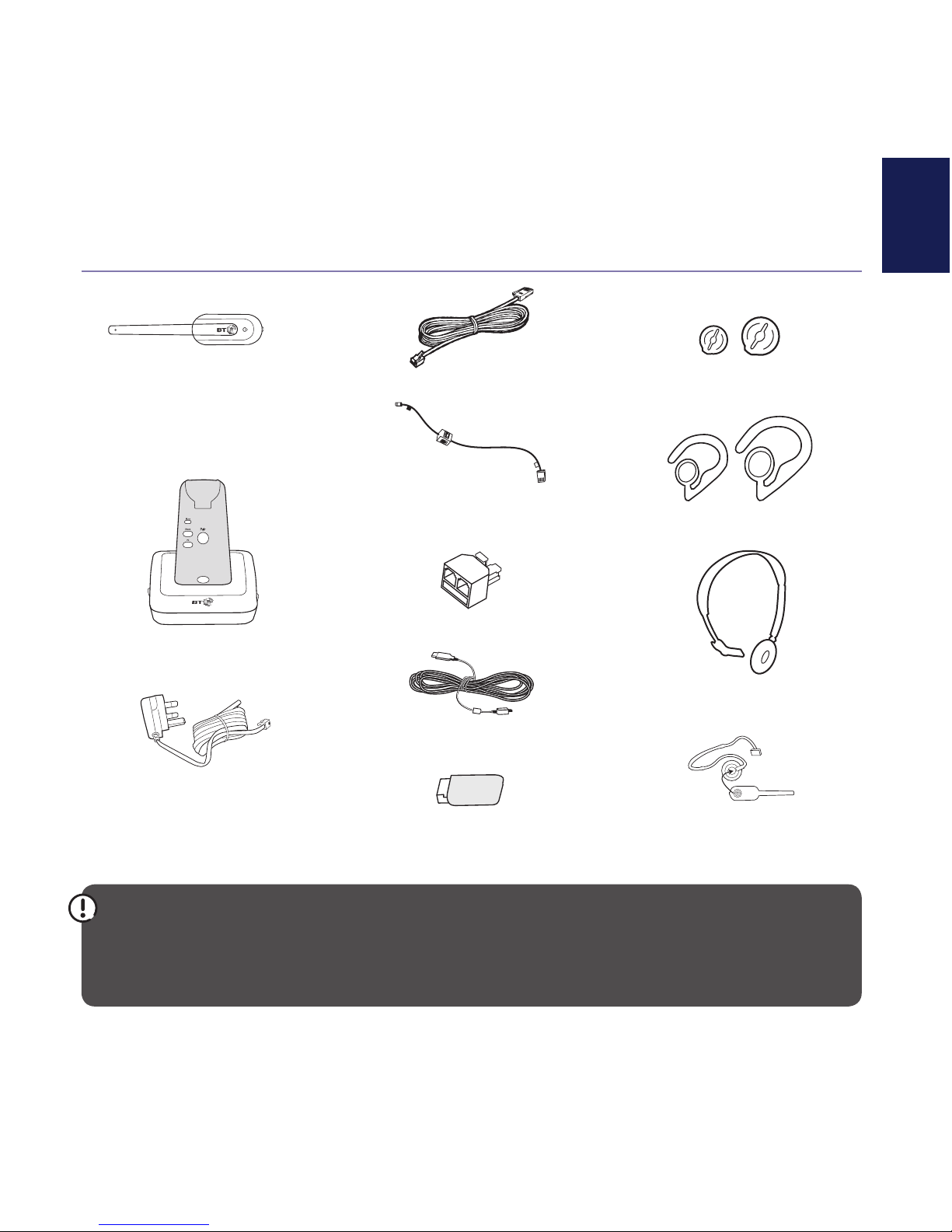

Check box contents

Cordless headset

with medium-sized

earbud attached

Headset base

Mains power adaptor

(item code 069858)

2 earbuds

2 over-the-ear hooks

Over-the-head band

Behind-the- neck band

Important

Only use the mains power adaptor, cables and rechargeable battery supplied in this box or this

product might not work. Any replacement rechargeable battery must be of the same type. BT

accepts no responsibility for damage caused to your product if you use any other type of battery.

If you need some help, call us on 0800 218 2182* or go to bt.com/producthelp

4Quick set-up guide

Where to put your

headset base

• Make sure it’s at least a

metre away from other

electrical appliances to

avoid interference.

• Don’t place in a bathroom

or other humid area or near

excessive heat sources,

moisture, low temperatures

or dust sources.

• Don’t place near noise

sources such as a window

with trafﬁc outside,

motors, microwave ovens,

refrigerators or ﬂuorescent

lighting.

• The product works by

sending radio signals

between the base and the

headset. The strength of the

signal depends on where you

position the base. Putting it

as high as possible can help

give you the best signal.

IMPORTANT

Don’t try to make calls until

the headset battery is fully

charged.

1 Plug in

1. Plug the mains power

adaptor into the

socket marked

Power on the back

of the base.

2. Plug the other end

into the wall power

socket and switch on.

If you need some help, call us on 0800 218 2182* or go to bt.com/producthelp

Quick set-up guide 5

The base should be plugged

into the mains power socket at

all times.

The battery is permanently

attached to the battery

compartment cover (known as

the battery pack). Do not try

to separate them from each

other.

Only use the supplied

rechargeable battery

pack otherwise you may

damage your product. For a

replacement battery pack,

please call the Helpline on

0800 218 2182*.

Talk/Standby time

Under ideal conditions, the

headset battery should give

up to 8 hours of talk time or

115hrs standby on a single

charge. (This doesn’t mean you

can unplug the base or leave

the headset for this length of

time without charge). When

the headset is not in use ,

recharge it by mounting it on

the headset base.

5Quick set-up guide

2 Install the battery

1. Insert the battery pack into the battery

compartment.

2. Press the battery pack down gently until it clicks

into place.

If you need some help, call us on 0800 218 2182* or go to bt.com/producthelp

Quick set-up guide6 Quick set-up guide6

Please note that new

rechargeable batteries don’t

reach full capacity until they’ve

been in normal use for several

days.

Battery low warning

The red light on the top of

the headset will ﬂash every

10 seconds when the headset

is not mounted on the base

to indicate that the battery is

low. If the battery completely

runs out the light will turn off

altogether. You must recharge

the battery by mounting the

headset on the base before

you can use the headset again.

Battery performance

To keep the battery in the best

condition, leave the headset

off the base for a few hours at

a time.

Running the batteries right

down at least once a week

will help them last as long as

possible.

3 Charge

1. Insert the headset into the magnetic charging

mount on the base and leave to charge for at least

3 hours before use. The light will illuminate red

to indicate that the battery is charging.

If you ever need to remove the battery pack,

simply insert your ﬁngernail into the grooves on

the side and pull the battery pack out.

4 Connect the headset base

You can use your headset to receive calls through

your telephone line with or without connecting it

to a phone. However, to make a call you will need

to connect to a phone ﬁrst. You can also connect

to a computer to make and receive VoIP calls.

If you need some help, call us on 0800 218 2182* or go to bt.com/producthelp

Quick set-up guide 7Quick set-up guide 7

After charging your headset

for the ﬁrst time, subsequent

charging time for the battery is

approximately 2 hours.

The charge capacity of

rechargeable batteries will go

down over time, which will

reduce the talk and standby

times. Eventually they’ll

need replacing. For details

on how to get a replacement

battery, call the Helpline on

0800 218 2182*. Before

removing the battery pack

for replacement, remove any

headset attachment (earbud

excluded) ﬁrst.

Using your headset on a

broadband line?

If so, you need to ﬁt an ADSL

microﬁlter between the phone

line cord and the phone

socket. You can get BT ADSL

microﬁlters from bt.com/shop

If you use BT Inﬁnity you will not

need to use an ADSL microﬁlter.

For other types of broadband,

please check with your provider

if a microﬁlter is required.

Connect your headset directly to a telephone line

(to receive calls only)

Make sure the Corded Handset Connected

switch on the side of the base is set to NO, see

page 38. With this set-up you will only be able to

receive calls using your headset. If you also want

to make calls with your headset you will need to

connect to the telephone line via a phone, see

page 8 for instructions.

Connect one end to

the PSTN socket on

the headset base and

the other to your

telephone wall socket.

PSTN connection

If you need some help, call us on 0800 218 2182* or go to bt.com/producthelp

Quick set-up guide8 Quick set-up guide8

You will need to use the

included line splitter to

connect your headset base

and your phone to the same

telephone line wall socket.

The headset base and headset

do not have external ringers.

When you receive calls, the

headset earpiece will ring. If

you have phones connected to

the same telephone line as the

headset base, the ringers on

those phones will ring to alert

you of an incoming call.

Connect your headset and cordless or corded

phone to the same telephone line wall socket

(to make or receive calls)

Menu Calls

ADSL microﬁlter (not

included) is required if

using your headset on

a broadband line.

Telephone line cord

Plug one end into the

headset base PSTN

socket and the other

into the line splitter.

Line splitter

Plug directly into

the telephone

wall socket or an

ADSL microﬁlter

if required.

Connect another

telephone cable

between the phone

and the line splitter.

PSTN connection

If you need some help, call us on 0800 218 2182* or go to bt.com/producthelp

Quick set-up guide 9Quick set-up guide 9

You will also need to set the

Corded Handset Connected

switch on the side of the

headset base to YES, see

page 38.

For Cisco / Avaya / BT Converse

phones where a dedicated

headset port is given, connect

the desk phone connect cable

directly to your desk phone.

For more detailed help on

connecting to a BT Converse

2100 or 2300 phone, see page

45 of the Help section.

If you’ve connected to a corded phone you need

to connect your headset to the corded handset

on your phone:

07900 124456

NEW

3. Plug the other end

of the corded phone

connection cable into the

handset socket on your

corded phone.

1. Plug one end of the

corded phone connection

cable provided into the

Desk Phone socket on the

back of the headset base.

Unplug the curly handset cord

from the handset socket of the

corded phone and plug it into

the socket on the desk phone

connection cable provided.

Desk phone connection

If you need some help, call us on 0800 218 2182* or go to bt.com/producthelp

Quick set-up guide10

Connect your headset to your computer for

VoIP calls

1. Plug the small connector on the end of the USB

cable provided into the USB port marked

on the side of the base (you will need to lift the

port cover ﬁrst).

2. Plug the other end into the USB port on your computer.

3. Wait for your operating system to indicate that

it has recognised the headset (by a sound or

pop-up window).

Quick set-up guide10

You can use your headset

for VoIP (Voice over IP) calls

through your computer. You

can use any software program

that supports VoIP, to make

and receive calls.

1 2

USB connection

If you need some help, call us on 0800 218 2182* or go to bt.com/producthelp
