Brother P-touch PT-2450 Manual de usuario
P-touch
PARTS REFERENCE LIST
MODEL: PT-2450
NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)
Note : No orders without Parts Code or Tool No. can be accepted.
[ Example ]
(4) (1) (2) (3)
REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS
Revision No. : marked on the printed circuit board.
B55L097 - 101 A
Design change indication
Specification No.
Pattern alteration No.
Circuit board No.
2. Design-changed parts:
When the parts are changed, any one of the following symbols is indicated in the REMARKS column.
CHNG#A : compatible between old and new
CHNG#B : replaceable from old to new
CHNG#D : incompatible
ADD : newly established
3. The original of this list was made based on the information available in August, 2001.
4. Parts are subject to change in design without prior notice.
CONTENTS
1 . RUBBER KEY...........................................................................................1
2 . POWER SUPPLY PCB.............................................................................1
3 . PRINT MECHANISM ................................................................................3
4 . COVERS ..................................................................................................5
5 . MAIN PCB................................................................................................7
6 . SENSORS................................................................................................9
7 . PRINTED MATTER ..................................................................................9
8 . ATTACHMENTS.....................................................................................11
9 . PACKING MATERIALS...........................................................................11
-1-
MODEL PT-2450 8V2-362-102
1 . RUBBER KEY
MODEL PT-2450 8V2-362-003
2 . POWER SUPPLY PCB
-2-
1 . RUBBER KEY
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LA5727001 1RUBBER 51 KEY 2450 GE, GRAY1395 (DEU)
1LA5741001 1RUBBER 51 KEY 2450 UK, GRAY1395 (CHE/DNK/ESP/FIN/GBR/IRL/ITA/NLD/NOR/
SWE/ZAF)
1LA5745001 1RUBBER 51 KEY 2450 FR, GRAY1395 (FRA)
1LA5749001 1RUBBER 51 KEY 2450 BG, GRAY1395 (BEL/PRT)
MODEL PT-2450 8V2-362-003
2 . POWER SUPPLY PCB
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1-2 B55L108-2 LA5738001 1POWER SUPPLY PCB ASSY 2450
1W00325001 1JACK, HEC0470
2UN0999000 1FUSE, 125V4A
MODEL PT-2450 8V2-362-102
-3-
MODEL PT-2450 8V2-362-045
3 . PRINT MECHANISM
-4-
3 . PRINT MECHANISM
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LA5680001 1CHASSIS ASSY 2300
2LA5686001 1DC MOTOR ASSY 2300F
3LA5687001 1ENCODE GEAR 2300
4UN3640001 4SCREW, PAN 1.7X2.5
5LA5688001 1HEAD ASSY, KV1801-26B
6 060300415 1 SCREW, BIND M3X4
7LA4711001 1ROLLER HOLDER ASSY 240
8LA4886001 1ROLLER RELEASE LEVER 1750
9LA4887001 1ROLLER HOLDER RELEASE ROD
10 LA4888001 1ROLLER HOLDER RELEASE SPRING
11 048020346 1 RETAINING RING, E2
12 LA6151001 1 CUTTER ASSY (SP)
13 0A4300605 1SCREW, PAN (S/P WASHER) M3X6
14 UT0252001 1CUTTER MOVING GEAR
15 UT0254000 2CUTTER DOUBLE GEAR
16 LA5692001 1CUTTER MOTOR ASSY F
17 062020305 2 SCREW, PAN M2X3
18 LA0305001 1ACTUATOR 2400
19 UB3733001 1WASHER 2.6
20 UT1466001 1FULL CUTTER SENSOR PRO ASSY
21 UT0855001 1SCREW, PAN M1.7X6
22 LA5751001 1PHOTO INTERRUPTER ASSY 2300
MODEL PT-2450 8V2-362-045
-5-
MODEL PT-2450 8V2-362-061

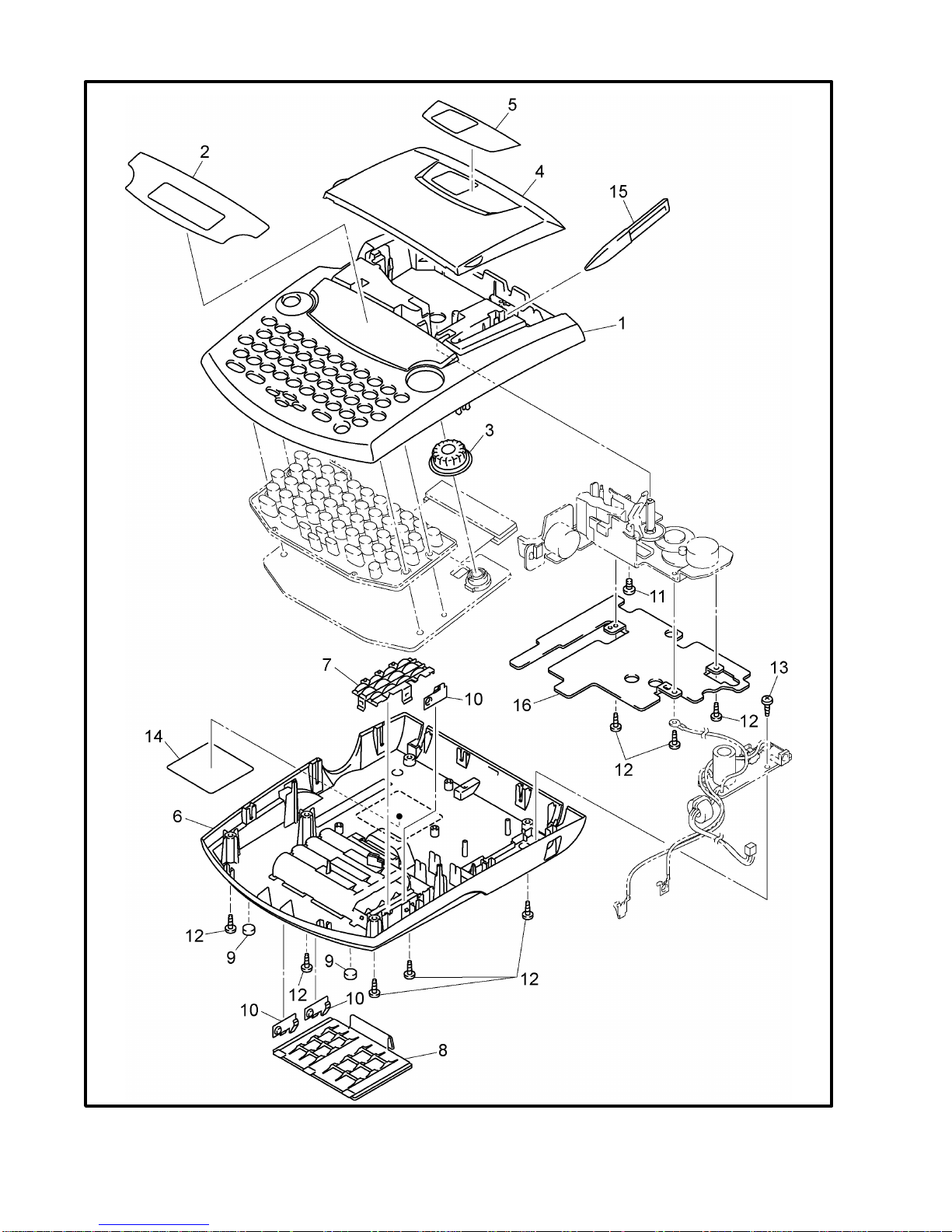

4 . COVERS
-6-
4 . COVERS
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LA5728001 1UPPER COVER 2450 GE, SILVER1585 (DEU)
1LA5742001 1UPPER COVER 2450 UK, SILVER1585 (BEL/CHE/ESP/FIN/GBR/IRL/ITA/NLD/NOR/
PRT/SWE/ZAF)
1LA5746001 1UPPER COVER 2450 FR, SILVER1585 (FRA)
2LA5729001 1LCD PANEL 2450 GE (DEU)
2LA5743001 1LCD PANEL 2450 UK (BEL/CHE/ESP/FIN/GBR/IRL/ITA/NLD/NOR/PRT/SWE/ZAF)
2LA5747001 1LCD PANEL 2450 FR (FRA)
3LA5730001 1NAVI DIAL 2450 GE (DEU)
3LA5744001 1NAVI DIAL 2450 UK (BEL/CHE/ESP/FIN/GBR/IRL/ITA/NLD/NOR/PRT/SWE/ZAF)
3LA5748001 1NAVI DIAL 2450 FR (FRA)
4LA5697001 1CASSETTE COVER 2300, BLUE6350
5LA5731001 1TAPE PANEL 2450
6LA5732001 1BOTTOM COVER 2450, GRAY1593
7LA1136002 1BLIND COVER 2200, WHITE1397
8LA1053001 1BATTERY LID 2400, GRAY1593
9LA5753001 2LOWER FOOT 2300
10 UB3719000 3BATTERY TERMINAL
11 060300415 1 SCREW, BIND M3X4
12 085270817 8 TAPTITE, BIND B M2.6X8
13 085270615 1 TAPTITE, BIND B M2.6X6
14 LA5734001 1CAUTION LABEL 2450 EC
15 LA4896001 1PEELER-STICK
16 LA6503000 1SHIELD PLATE 2450
MODEL PT-2450 8V2-362-061
-7-
MODEL PT-2450 8V2-362-101
5 . MAIN PCB
