Brother P-touch E110 Manual de usuario

English

User’s Guide

E11

GETTING STARTED

Installing Power Supply and Tape Cassette

With the LCD facing down, open the Cassette

Cover by pressing the grooved tab and

pushing the cover in the direction of the

arrow, as illustrated.

When replacing batteries or tape cassettes,

make sure the power is turned off.

This P-touch labelling machine requires six

AAA alkaline batteries or six fully-charged

Ni-MH batteries, not included.

Print Head

Tape Cutter LeverCassette Cover

Thank you for purchasing a Brother P-touch labelling machine!

Use your new Brother P-touch labelling machine to create a wide variety of custom, self-adhesive labels.

This P-touch labelling machine uses Brother TZe or HGe tapes. TZe and HGe tape cassettes are available in many colours

and sizes. For a complete list of tapes compatible with your P-touch labelling machine, visit us at www.brother.com

Please read this guide, and the included Product Safety Guide, before using this P-touch labelling machine. After reading this

guide, keep it in a safe place.

English

User’s Guide

E11

Ver. 0

Insert the Tape Cassette following the drawing

marked inside the case. Gently press the

Cassette into the P-touch labelling machine

until it locks into place.

• Make sure your Tape Cassette is marked or .

• Use only Brother TZe or HGe tapes with this machine.

Close the Cassette Cover and gently press

until it locks into place.

NOTE

If you prefer to use the optional AC Adapter

(AD-24ES) instead of using batteries:

1. Insert the Power Adapter cord into the

AC Adapter Socket on the side of the P-touch

labelling machine.

2. Insert the Power Adapter into an earthed AC

electrical socket.

Tape Exit Slot

Toothed Wheel

Cutter Edge

End of Tape

Tape Guides

AC Adapter Socket

NOTE

• The LCD displays one row of 15 characters; however, the text you enter can be up to 80 characters

in length.

LCD

1. Size

2. Cursor

3. Shift

4. Caps

5. Cable Wrap

6. Cable Flag

7. Faceplate

8. Label Length

If a specific label length

has been selected, also

appears.

• Label length displayed on the LCD may differ slightly from the actual printed label length.

NOTE

• When selecting settings or lengths, press the Space key to return to the default value.

Keyboard

1. Menu key

2. Power key

3. Cursor key: Left (Use with the

Shift key to go to top of the text.)

4. Escape key

5. OK key

6. Cable Wrap key

7. Text key

8. Character keys

9. Shift key

10. Caps key

11. Accent key

12. Tape Cutter lever

13. Clear key

14. Print key

15. Preview key

16. Cursor key: Right (Use with

the Shift key to go to end of

the text.)

17. Cable Flag key

18. Faceplate key

19. Serialise key

20. Backspace key

21. Enter key

22. Symbols key

23. Space key

Pressing the Preview key displays a preview of the label, and may differ from the actual label when

printed.

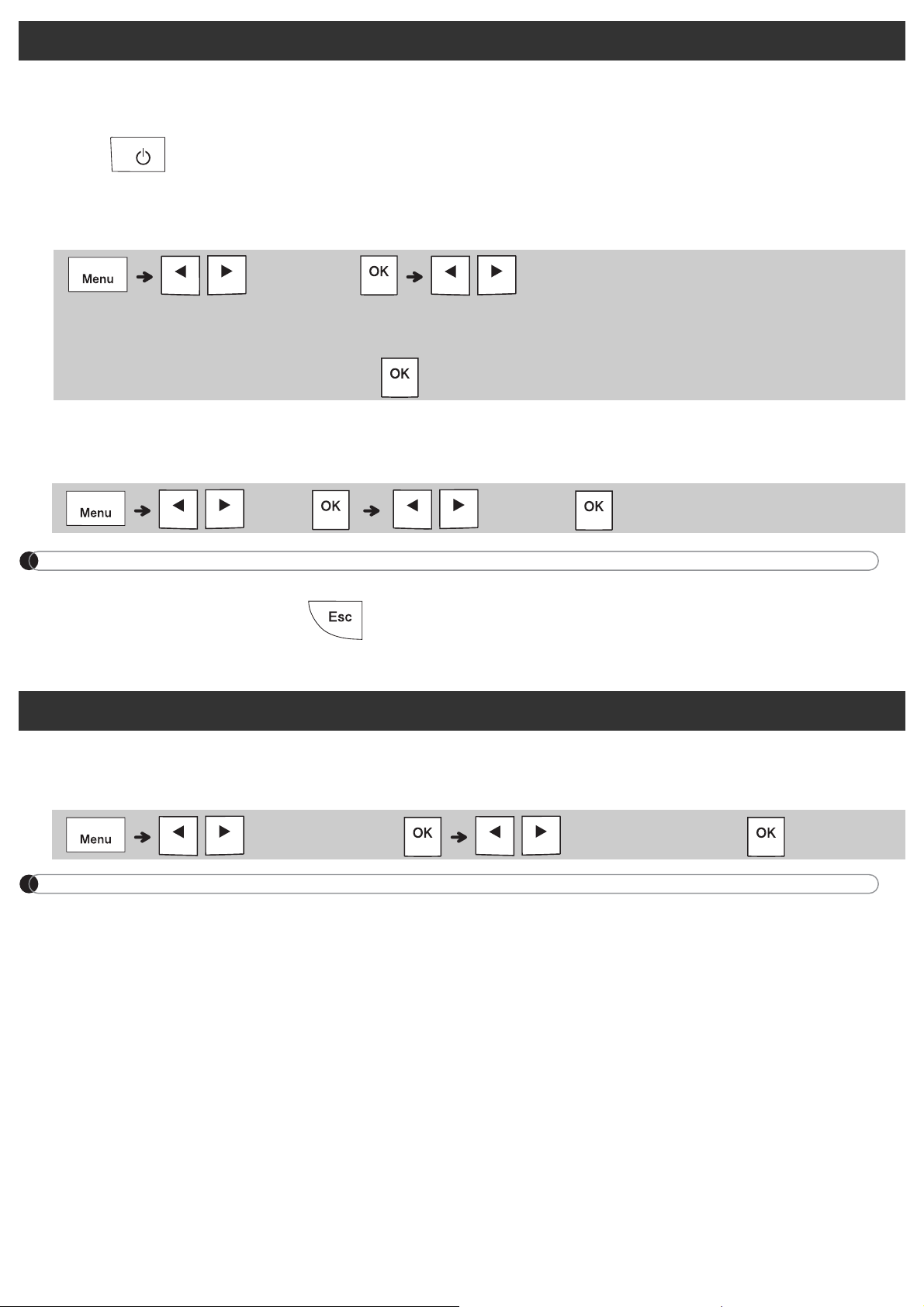

1Turn on your P-touch labelling machine.

Supply power using six AAA batteries or the optional AC Adapter (AD-24ES), and then

press to turn on the power.

2Set the language.

The default setting is [English].

3Set the unit of measurement.

The default setting is [mm].

NOTE

• The P-touch labelling machine automatically turns off if it is inactive for five minutes.

• To cancel any operation, press .

• To return to the default setting, press the Space key.

Use this function to set LCD brightness. There are five levels from [-2] (darkest) to [+2] (brightest).

The default setting is [0].

NOTE

• To return to the default setting, press the Space key.

Initial Settings

/[Language] /

[English/Español/Français/Hrvatski/Italiano/Magyar/Melayu/Nederlands/Norsk/

Polski/Português/Portug. (BR)/Românã/Slovenski/Slovenský/Suomi/Svenska/

Türkçe/Čeština/Dansk/Deutsch]

/[Unit] /[inch/mm]

Contrast

/[LCD contrast]

/[-2 / -1 / 0/ +1 / +2]

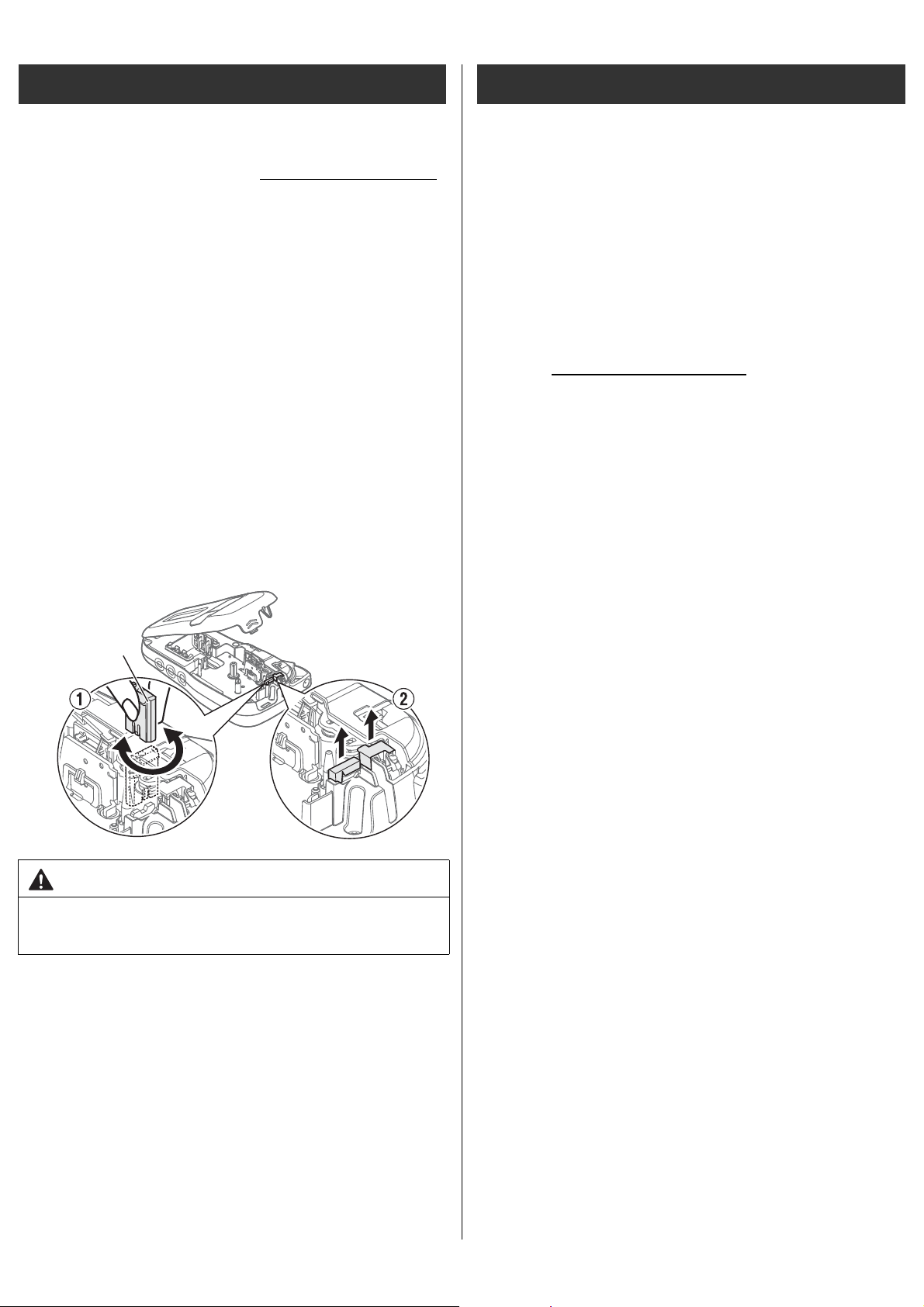

If the cutter blade becomes blunt after repetitive

use and the tape cannot be cut cleanly, rotate the

cutter board as shown in the illustration 1.

If you still have difficulties, replace with a new

cutter unit (stock no. TC-4) from an authorised

Brother reseller.

Replacing the Cutter Unit

1. Remove the two sections of the Cutter Unit

(green) in the direction of the arrows as

illustrated below 2.

2. Install a new Cutter Unit. Push it in gently

until it locks into place.

*1 Visit support.brother.com for the latest

information about the recommended

batteries.

Supplies and Accessories

Cassettes: Visit the Brother Solutions

Center at support.brother.com

for the latest information about

consumables.

AC Adapter: AD-24ES

Cutter Unit: TC-4 (replacement)

WARNING

Do not touch the cutter blade directly with your

fingers.

Cutter Board

Specifications

Dimensions:

(W x D x H)

Approx. 109(W) X 202(D) X 55(H) mm

Weight: Approx. 400 g

(without batteries and tape cassette)

Power supply: Six AAA alkaline batteries (LR03)

Six AAA Ni-MH batteries (HR03) *1

Optional AC Adapter (AD-24ES)

Tape cassette: Brother P-touch TZe tape widths:

3.5 mm, 6 mm, 9 mm, 12 mm

Brother HGe tape widths:

6 mm, 9 mm, 12 mm

BASIC USAGE

You can enter a maximum of 80 characters

and spaces for each text label.

To cancel any operation, press .

Switching Upper Case / Lower Case

Creating Two-Line Tapes

Move the cursor to where you want to start

the next line and press . Use either 9 mm

or 12 mm tape for two-line printing.

NOTE

• The return symbol ( ) appears when you press

the Enter key .

Entering Tabs

The tab symbol appears when you insert

a tab in the text.

Changing Tab Length

• To return to the default tab length, press the

Space key.

• Please note: the default length varies based

on your tape size.

Cursor Keys

To move to the end of your text:

To move to the beginning of your text:

Entering Accented Characters

• See the Accented Characters table in this

guide.

• The order of accented characters varies

based on the language you selected.

Entering Text

Upper case

( ON)

Lower case

( OFF)

Line 1 The image

Line 2

Caps

/ [Tab]

/ [Tab Length]

/ [Auto / 0-100mm]

- / /

Changing Label Length

NOTE

• The lock symbol appears when you set

a specific tape length.

• To return to the default length (Automatic,

based on text length), press the Space key.

Clearing Text and Settings

To delete individual letters and spaces,

press .

To delete all text:

To delete all text and settings:

You can save and reuse the text and settings

for up to nine different labels. Each tape holds

up to 80 characters (including spaces). Assign

a number (1-9) to each saved file so you can

reuse it, and edit or overwrite stored files as

needed.

Saving a new file

NOTE

• When saving a file, if you reuse a number

that is already assigned to another file,

[Overwrite OK?] appears on the LCD.

To overwrite the previously-saved file,

press . To cancel without saving,

press .

Printing a saved file

Opening a saved file

/ [Label Length]

/ [Auto / 30-300mm]

/ [Text Only]

/ [Text&Format]

Saving Tapes Files

(Enter text) / [File]

/ [Save] /

/ [File]

/ [Print] /

/ [File]

/ [Open] /

1Press to select the settings to enter

the text.

2Press / to select the settings.

Emphasise text using underlines or a frame.

Entering Symbols

• See the Symbols table in this guide.

• To cancel operation, press .

• Select History to view up to seven

recently-used symbols.

• You can also insert Symbols by pressing the

shortcut keys, as shown below.

Text Key

(Select an item)

Size Large

Medium

Small

Style Normal

Bold

Outline

Shadow

Italic

I+Bold

I+Outline

I+Shadow

Vertical

V+Bold

Width Normal

× 2

× 1/2

Underline and Frame

/ [Undl/Frame]

/ (Select a frame type)

Symbols Key

(Select category)

(Select a symbol)

Punctuation Space

key Currency

History Greek

Brackets Electrical

Bullets Datacom

Super/

Subscript AV/Security

Mathematics Safety

Arrows
