Start Here

Quick Setup Guide

USA/CAN Version 0

MFC-J6510DW

MFC-J6710DW

Please read Safety and Legal booklet first before you set up your machine. Then, please read this Quick Setup

Guide for the correct setup and installation.

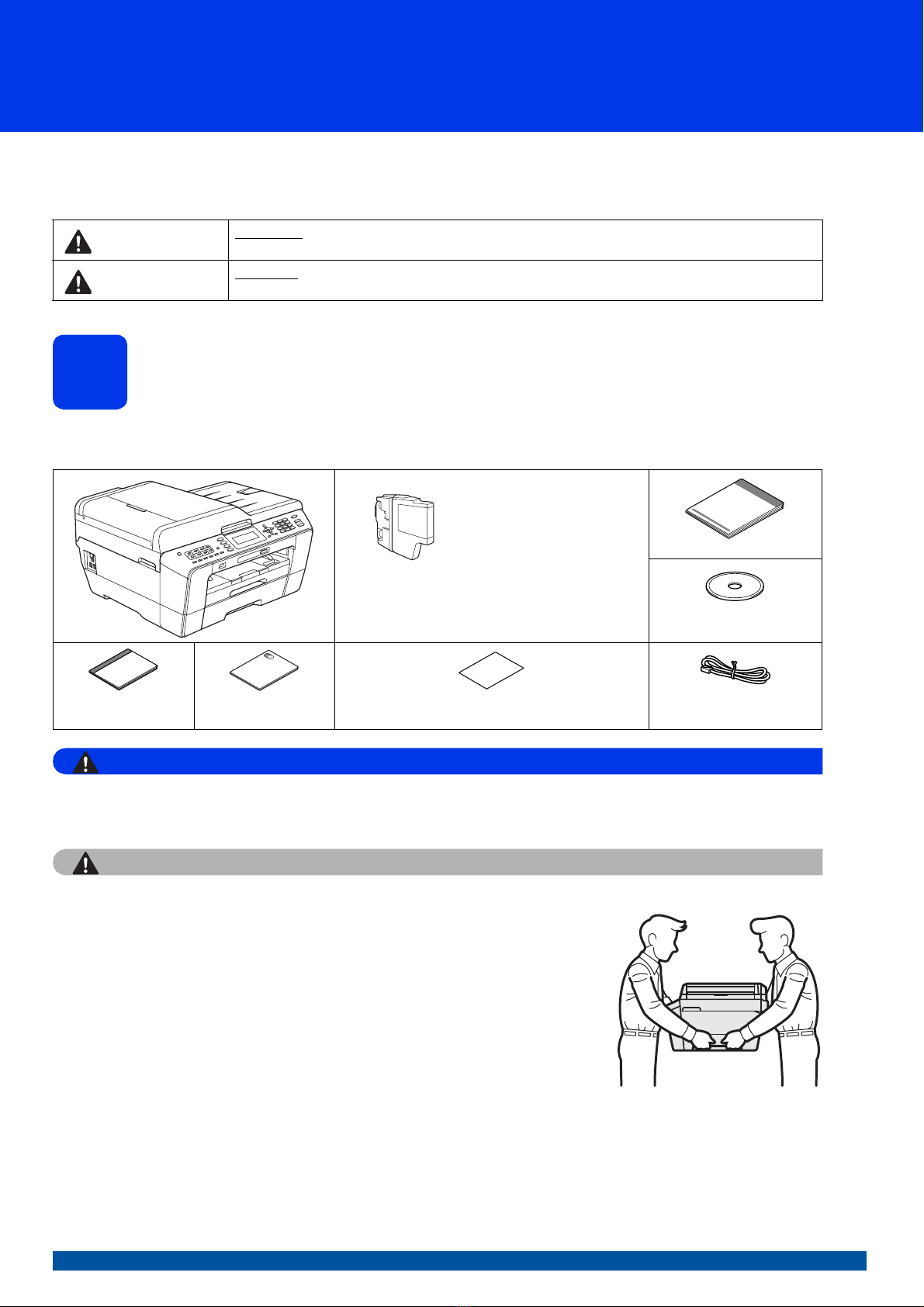

Unpack the machine and check the components

Most of the illustrations in this Quick Setup Guide show the MFC-J6710DW.

The components included in the box may differ depending on your country.

WARNING

Plastic bags are used in the packing of your machine. Plastic bags are not toys. To avoid the danger

of suffocation, keep these bags away from babies and children and dispose of them properly.

CAUTION

(For MFC-J6710DW)

To prevent injuries when moving or lifting this machine, make sure to

use at least two people. Be careful not to pinch your fingers when you

set the machine back down.

aRemove the protective tape and film covering the machine, and also from

the LCD.

bMake sure you have all components.

WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injuries.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injuries.

Starter Ink

Cartridges

Black

Yellow

Cyan

Magenta Quick Setup Guide

Installation CD-ROM

Documentation CD-ROM

Basic User’s Guide Safety and Legal

booklet

Product Registration Sheet (USA only) Telephone Line Cord

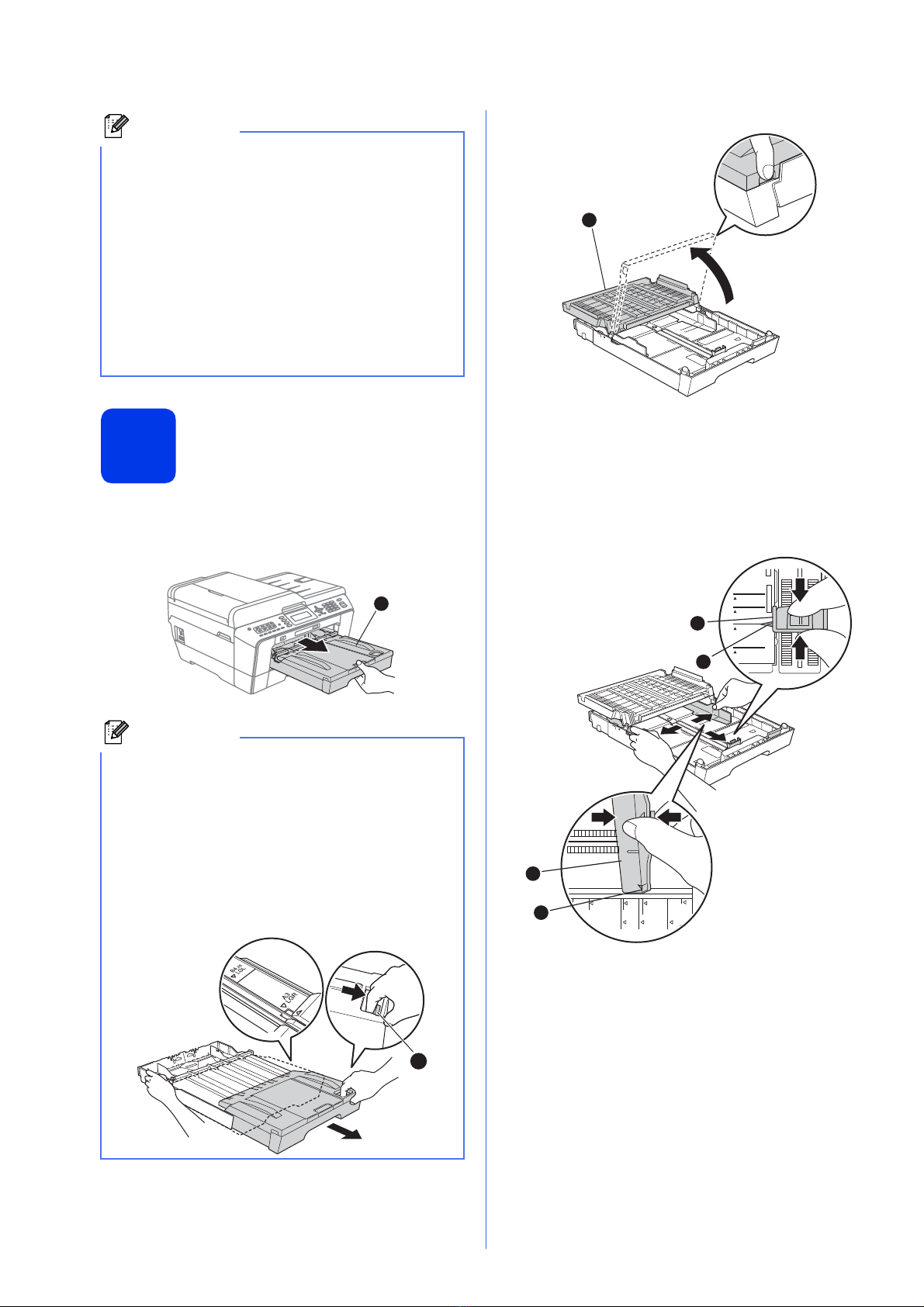

Load plain Letter/A4

paper

aPull the paper tray (For MFC-J6710DW, paper

tray #1, the upper tray) acompletely out of the

machine.

bOpen the output paper tray cover a.

cWith both hands, gently press and slide the

paper length guide aand then the paper side

guides bto fit the paper size.

Make sure that the triangular marks con the

paper length guide aand paper side guides b

line up with the mark for the paper size you are

using.

Note

• Save all packing materials and the box in case

for any reason you must ship your machine.

• You need to purchase the correct interface

cable for the interface you want to use (for USB

or network connection).

USB cable

It is recommended to use a USB 2.0 cable (Type

A/B) that is no more than 6 feet (2 meters) long.

Network cable

Use a straight-through Category5 (or greater)

twisted-pair cable for 10BASE-T or 100BASE-TX

Fast Ethernet Network.

Note

• When you use Legal, A3 or Ledger size paper,

press the universal guide release button aas

you slide out the front of the paper tray (For

MFC-J6710DW, tray #1).

• When you load a different paper size in a tray,

you will need to change the paper size setting

in the machine at the same time. (See Paper

Size and Type in chapter 2 of the Basic User’s

Guide.)

LT R

EXE

B5JIS

EXE

Photo 2LL

4×6in

10×15cm

A4 B4JIS

LT R

LGL

LGR

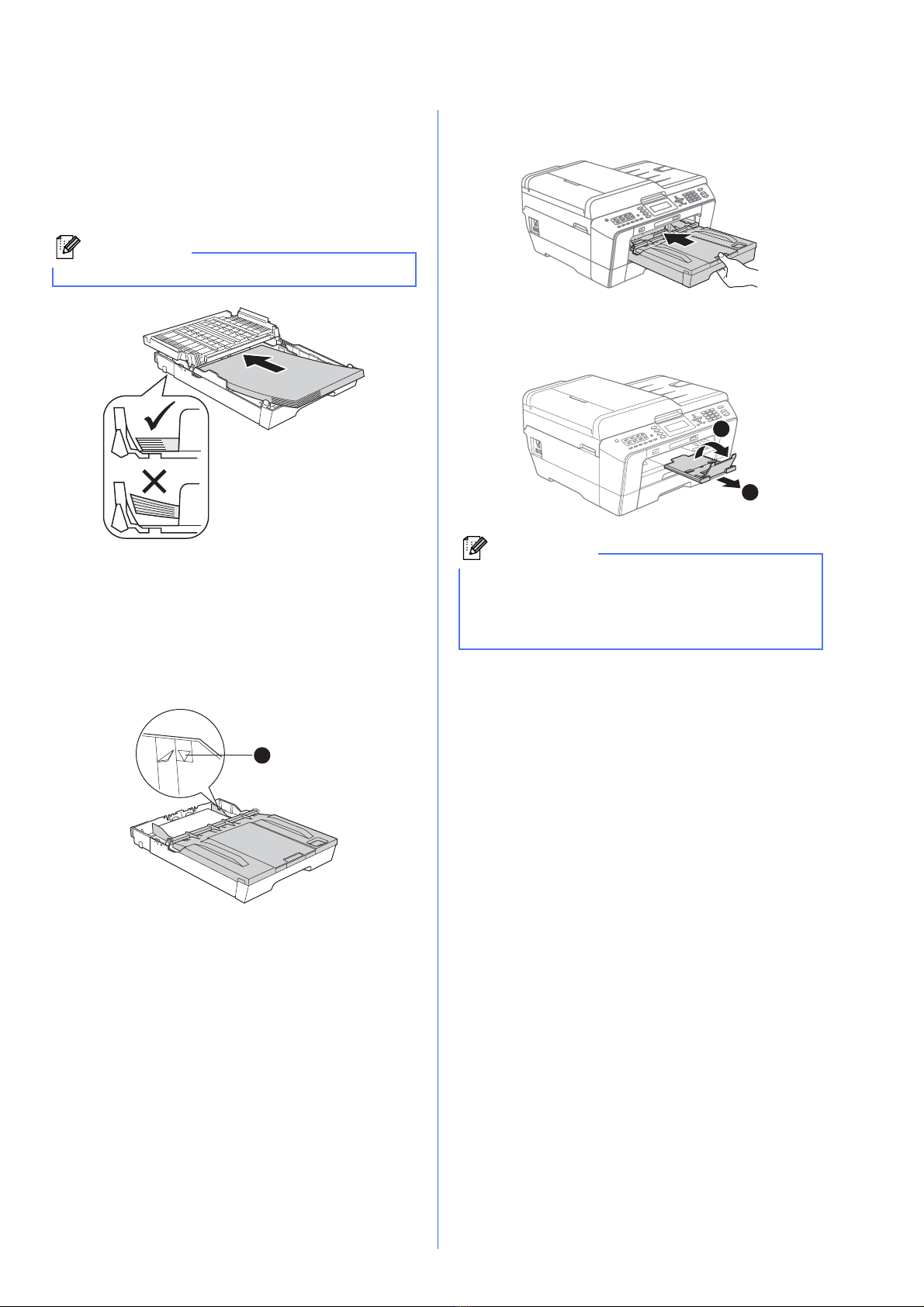

dFan the stack of paper well to avoid paper jams

and misfeeds.

eGently put the paper into the paper tray (For

MFC-J6710DW, tray #1) print side down and

top edge first.

fGently adjust the paper side guides to the

paper with both hands. Make sure that the

paper side guides touch the edges of the

paper.

gClose the output paper tray cover. Check that

the paper is flat in the tray and below the

maximum paper mark a.

hSlowly push the paper tray completely into the

machine.

iWhile holding the paper tray in place, pull out

the paper support auntil it clicks, and then

unfold the paper support flap b.

Note

DO NOT push the paper in too far.

Note

(For MFC-J6710DW)

For information about tray #2 (the lower tray), see

Loading paper in paper tray #2 in chapter 2 of the

Basic User’s Guide.

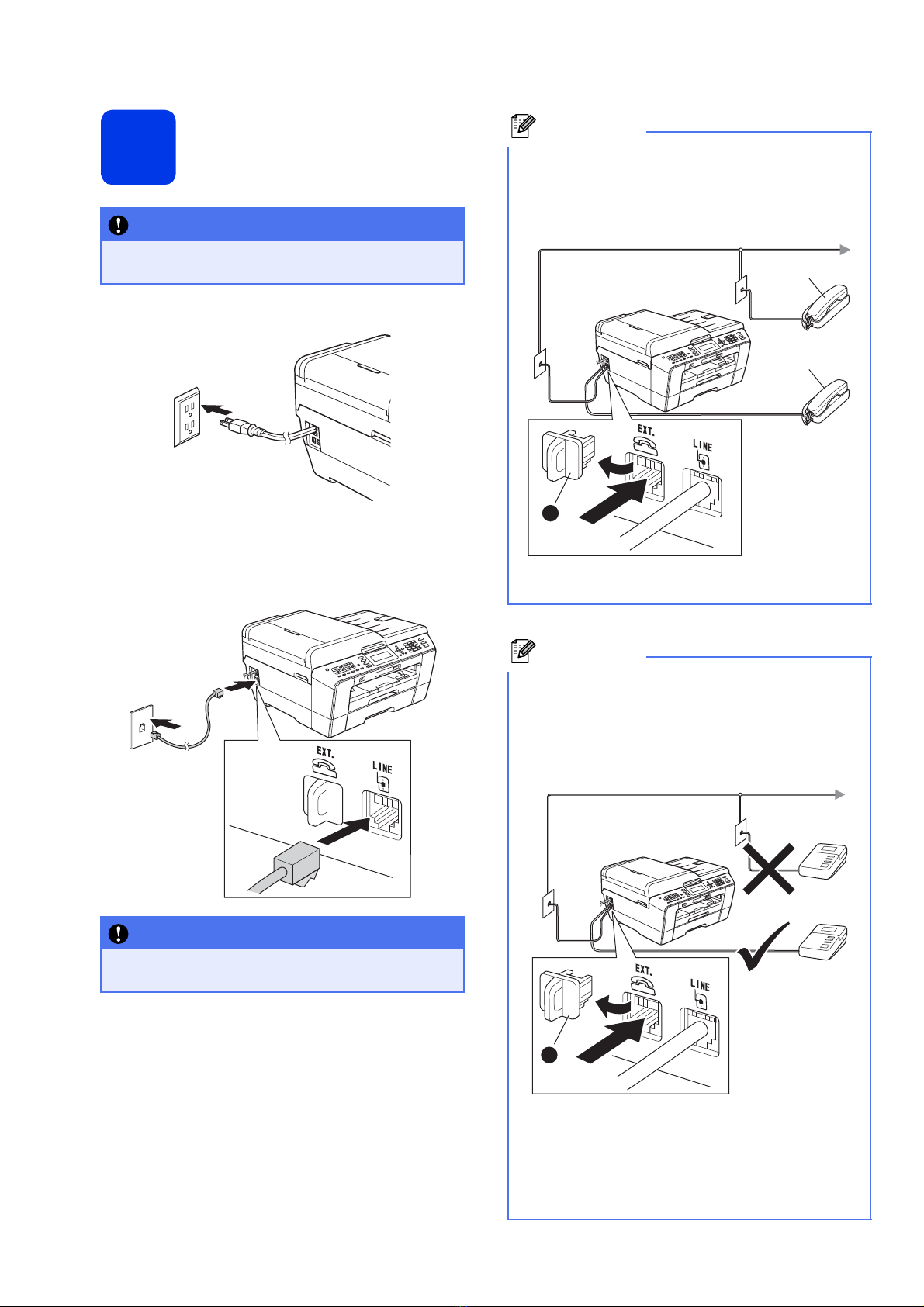

Connect the power cord

and telephone line

aConnect the power cord.

bConnect the telephone line cord. Connect one

end of the telephone line cord to the jack on the

machine marked LINE and the other end to a

modular wall jack.

IMPORTANT

DO NOT connect the USB cable yet (if you are

using a USB cable).

IMPORTANT

The telephone line cord MUST be connected

to the jack on the machine marked LINE.

Note

If you are sharing one telephone line with an

external telephone, connect it as shown below.

Before you connect the external telephone,

remove the protective cap afrom the EXT. jack

on the machine.

1 Extension telephone

2 External telephone

Note

If you are sharing one telephone line with an

external telephone answering machine, connect it

as shown below.

Before you connect the external telephone

answering machine, remove the protective cap a

from the EXT. jack on the machine.

Set the receive mode to External TAD if you

have an external answering machine. See

Choose the correct Receive Mode on page 9. For

additional details, see Connecting an external

TAD (telephone answering device) in chapter 6 of

the Basic User’s Guide.

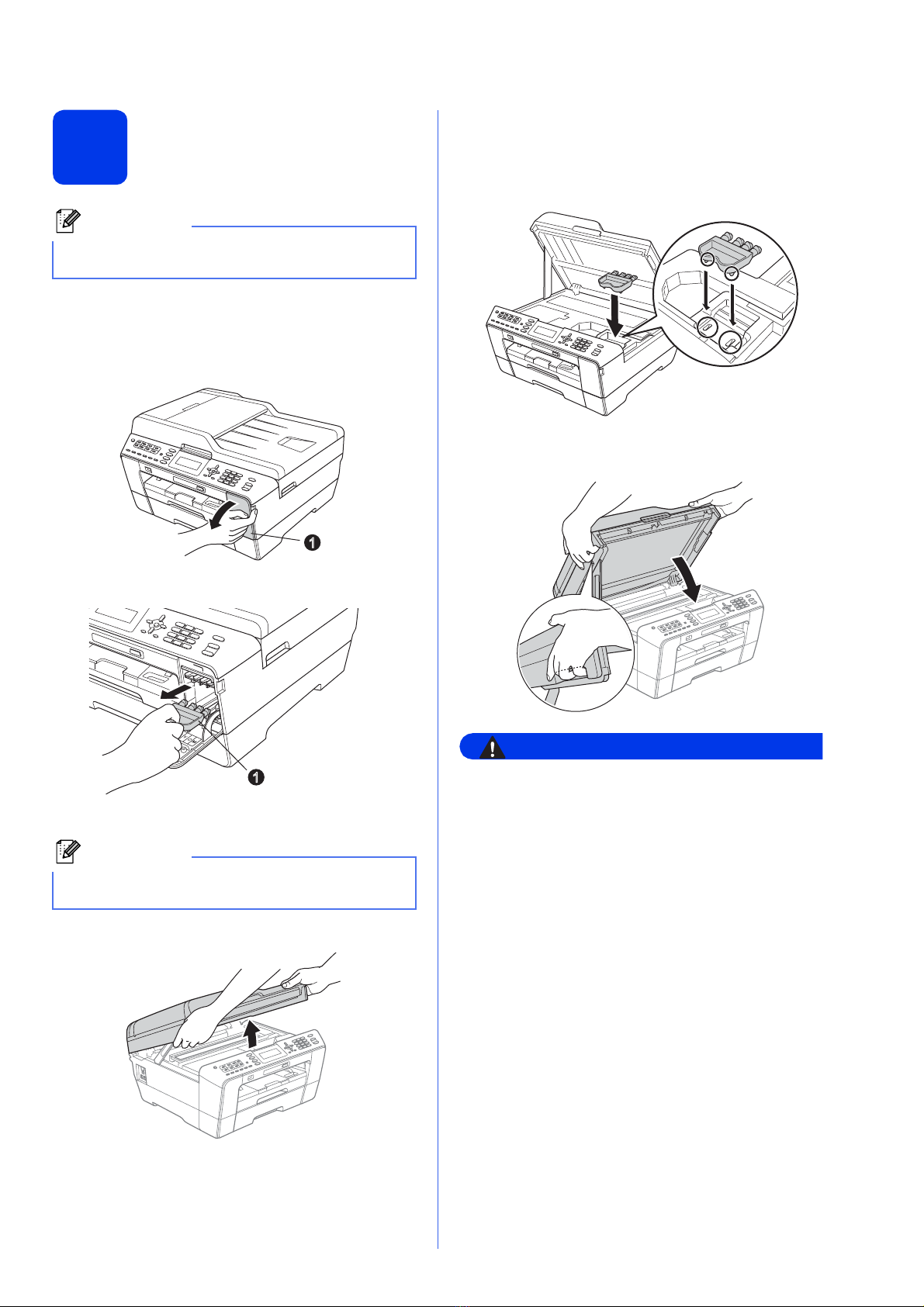

Install the ink cartridges

aMake sure that the power is turned on.

The LCD shows No Ink Cartridge.

bOpen the ink cartridge cover a.

cRemove the orange protective part a.

dLift the scanner cover into the open position.

eStore the orange protective part in the holder

inside the machine as shown.

Make sure that the two projections on the

bottom of the orange protective part fit in the

two slots in the holder.

fGently close the scanner cover using the finger

holds on each side.

WARNING

Be careful not to trap your fingers under the

scanner cover.

Always use the finger holds provided on each

side of the scanner cover when opening and

closing it.

Note

Make sure you install the Starter Ink Cartridges

included with your machine first.

Note

Do not throw away the orange protective part.

You will need it if you transport the machine.

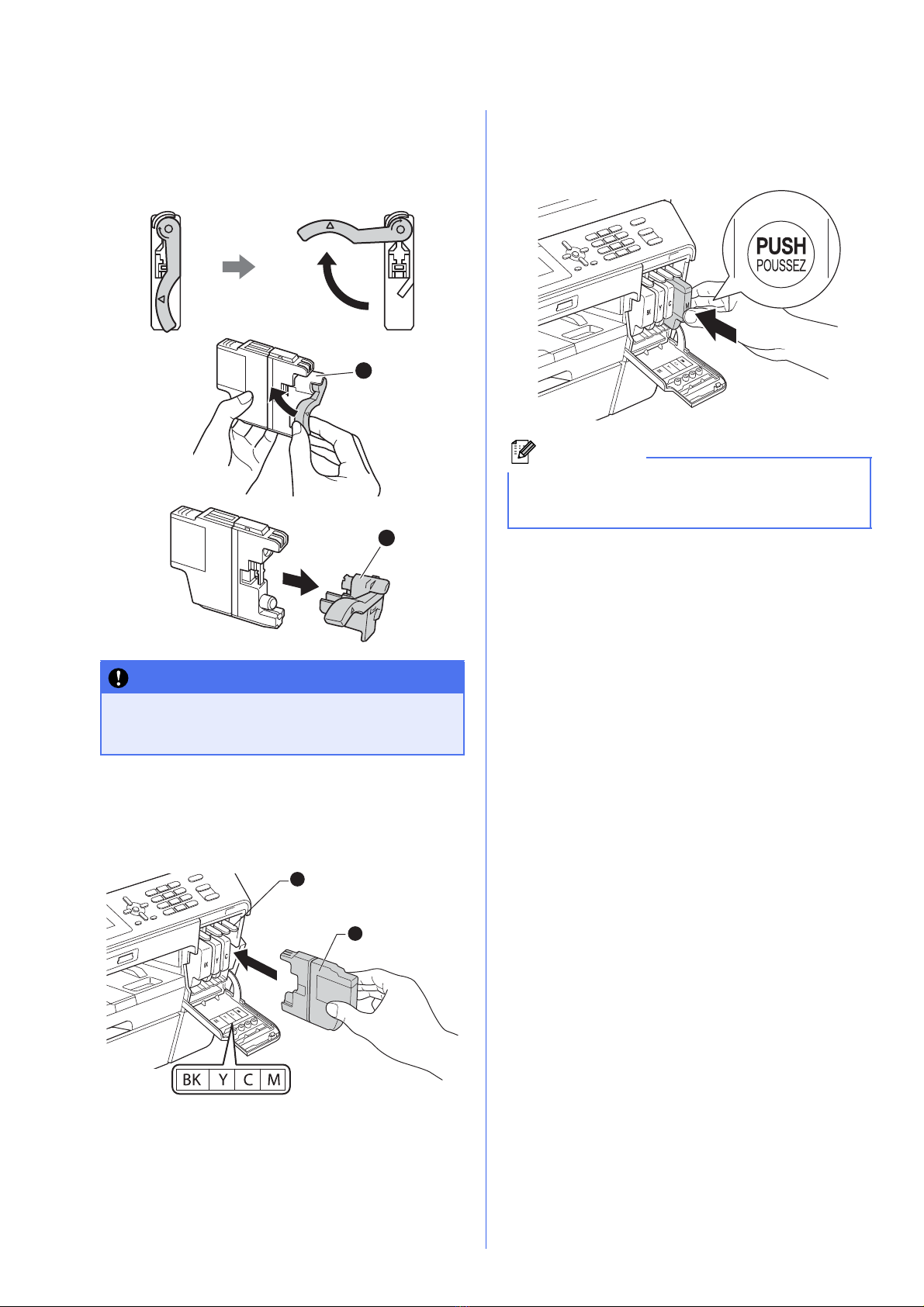

gUnpack the ink cartridge.

Turn the green release lever on the orange

protective packing aclockwise until it clicks to

release the vacuum seal. Then remove the

orange protective packing aas shown.

hTake care to match the color of the lever a

with the cartridge color b, as shown in the

diagram below.

Install each ink cartridge in the direction of the

arrow on the label.

iGently push the back of the ink cartridge

marked “PUSH” until it clicks. After all the ink

cartridges are installed close the ink cartridge

cover.

IMPORTANT

DO NOT shake the ink cartridges. If ink stains

your skin or clothing, wash with soap or

detergent at once.

Note

The machine will prepare the ink tube system for

printing. This process will take approximately four

minutes. Do not turn off the machine.

CAUTION

If ink gets in your eyes, wash it out with water at

once and call a doctor if you are concerned.

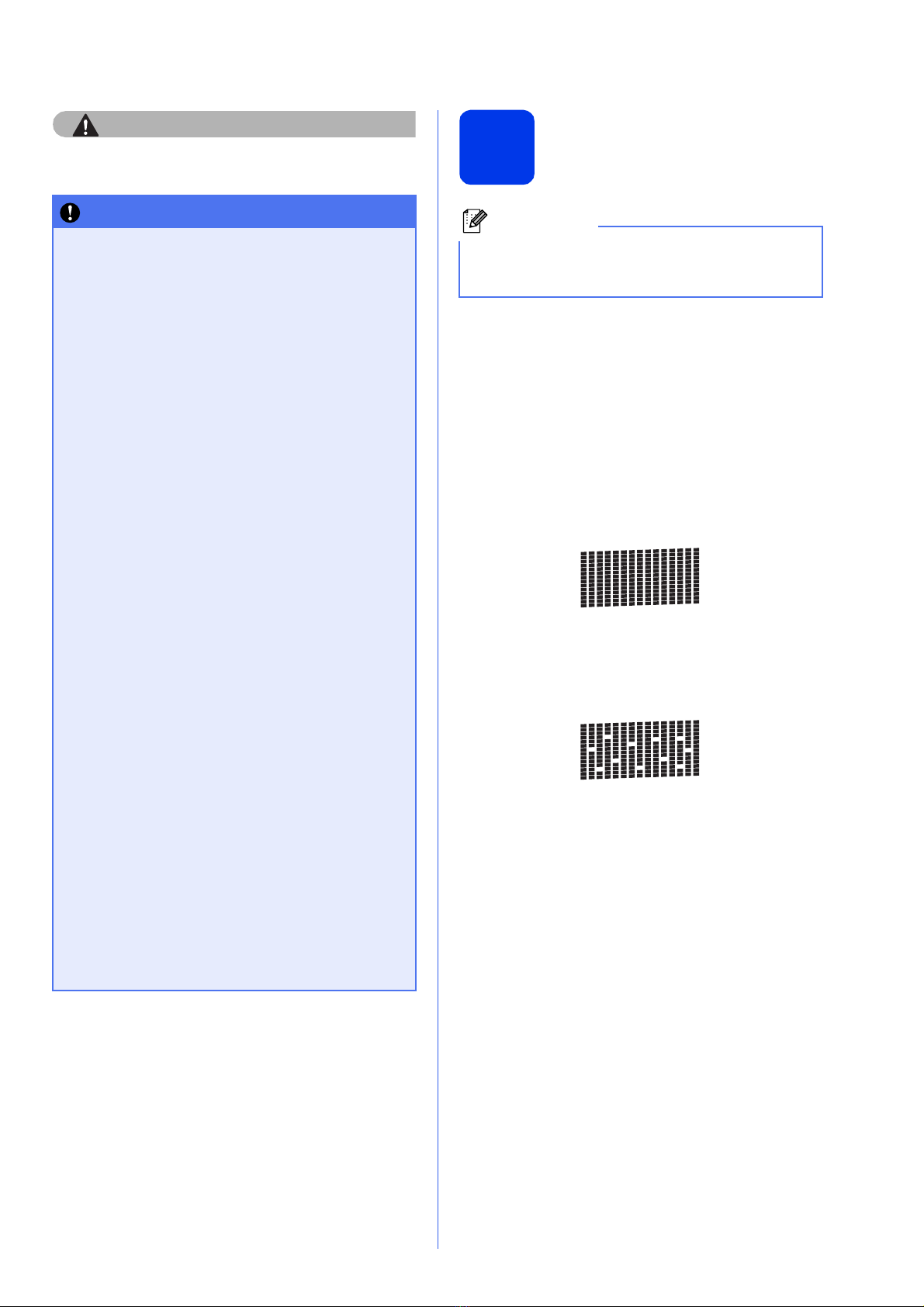

Check the print quality

aWhen the preparation process has finished, the

LCD shows Set Paper and Press Start.

Press Color Start.

bCheck the quality of the four color blocks on the

sheet. (black/yellow/cyan/magenta)

cIf all lines are clear and visible, press 1(Yes)

on the dial pad to finish the quality check and

go to step 6.

If you can see missing short lines, press 2(No)

on the dial pad and follow the steps on the

LCD.

IMPORTANT

• DO NOT take out ink cartridges if you do not

need to replace them. If you do so, it may

reduce the ink quantity and the machine will

not know the quantity of ink left in the

cartridge.

• DO NOT repeatedly insert and remove the

cartridges. If you do so, ink may seep out of

the cartridge.

• If you mix the colors by installing an ink

cartridge in the wrong position, clean the

print head several times after correcting the

cartridge installation. (See Cleaning the

print head in Appendix A of the Basic User’s

Guide.)

• Once you open an ink cartridge, install it in

the machine and use it up within six months

of installation. Use unopened ink cartridges

by the expiration date written on the

cartridge package.

• DO NOT dismantle or tamper with the ink

cartridge, this can cause the ink to leak out

of the cartridge.

• Brother strongly recommends that you do

not refill the ink cartridges provided with

your machine. We also strongly recommend

that you continue to use only Genuine

Brother Brand replacement ink cartridges.

Use or attempted use of potentially

incompatible ink and/or cartridges in the

Brother machine may cause damage to the

machine and/or may result in unsatisfactory

print quality. Our warranty coverage does

not apply to any problem that is caused by

the use of unauthorized third party ink

and/or cartridges. To protect your

investment and obtain premium

performance from the Brother machine, we

strongly recommend the use of Genuine

Brother Supplies.

Note

Make sure you put paper in the paper tray (For

MFC-J6710DW, tray #1, the upper tray) for the

initial setup.

Poor

Set the paper settings

For your machine to produce the best print quality and

feed the correct paper size, the paper type and size

must be set to match the paper in the tray.

For details on the types and sizes of paper supported,

See Paper Size and Type in chapter 2 of the Basic

User’s Guide.

aWhen the LCD shows to set the paper size and

paper type, press Tray Setting or Paper

Setting (depending on your model).

b(For MFC-J6710DW)

Press aor bto choose Tray#1 or Tray#2.

Press OK.

cPress aor bto choose Paper Type or

Paper Size.

dPress dor cto choose the type or size of paper

you are using.

Press OK.

e(For MFC-J6710DW)

Press aor bto choose Complete to go back to

the previous level.

Press OK.

fPress aor bto choose Complete.

Press OK.

Choose your language

(if needed)

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Local Language.

Press OK.

dPress aor bto choose your language.

Press OK.

ePress Stop/Exit.

Note

(For MFC-J6710DW)

You can change the default tray the machine will

use for printing copies or received faxes. (See

Tray use in Copy mode or Tray use in Fax mode

in chapter 2 of the Basic User’s Guide.)

Note

To cancel, press Stop/Exit. You can set the

paper settings later.

Choose the correct Receive Mode

The correct Receive Mode is determined by the external devices and telephone subscriber services (Voice Mail,

Distinctive Ring, etc.) you have (or will be using) on the same line as the Brother machine.

For details, see Using Receive Modes in chapter 5 of the Basic User’s Guide.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Receive Mode.

dPress dor cto choose the receive mode.

Press OK.

ePress Stop/Exit.

Will you be using a Distinctive Ring number for receiving faxes?

Brother uses the term “Distinctive Ring” but telephone companies may have other names for this service such

as Custom Ringing, RingMaster, Personalized Ring, Teen Ring, Ident-A-Call, and Smart Ring. See Distinctive

Ring in chapter 6 of the Basic User’s Guide for instruction on setting up your machine using this feature.

Will you be using Voicemail on the same telephone line as your Brother machine?

If you have Voice Mail on the same telephone line as your Brother machine, there is a strong possibility that

Voice Mail and the Brother machine will conflict with each other when receiving incoming calls. See Voice Mail

in chapter 6 of the Basic User’s Guide for instructions on setting up your machine using this service.

Will you be using a Telephone Answering Device on the same telephone line as your Brother machine?

Your external telephone answering device (TAD) will automatically answer every call. Voice messages are

stored on the external TAD and fax messages are printed. Choose External TAD as your receive mode. See

the instructions below. For additional information see Connecting an external TAD (telephone answering

device) in chapter 6 of the Basic User’s Guide.

Will you be using your Brother machine on a dedicated fax line?

Your machine automatically answers every call as a fax. Choose

Fax Only

as your receive mode. See the

instructions below.

Will you be using your Brother machine on the same line as your telephone?

Do you want to receive voice calls and faxes automatically?

The Fax/Tel receive mode is used when sharing the Brother machine and your telephone on the same

line. Choose Fax/Tel as your receive mode. See the instructions below. For additional information see

Fax/Tel in chapter 5 of the Basic User’s Guide for instructions on setting up and using this receive mode.

Important Note: You cannot receive voice messages on either Voice Mail or an answering machine

when choosing the Fax/Tel mode.

Do you expect to receive very few faxes?

Choose Manual as your receive mode. You control the phone line and must answer every call yourself.

See the instructions below.

Note

If the Receive Mode option is not displayed, make sure the Distinctive Ring feature is set to Off. (See Turning

off Distinctive Ring in chapter 6 of the Basic User’s Guide.)

Set the date and time

The machine displays the date and time, and if you

set up the station ID, it will add it to each fax you send.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Date&Time.

Press OK.

dEnter the last two digits of the year on the dial

pad, and then press OK.

eEnter the two digits for the month on the dial

pad, and then press OK.

fEnter the two digits for the day on the dial pad,

and then press OK.

gPress aor bto choose 12h Clock or 24h

Clock, and then press OK.

hEnter the time on the dial pad, and then press

OK.

i(12h Clock only)

Press aor bto choose AM or PM, and then press

OK.

jPress Stop/Exit.

Set your Station ID

You should store your name and fax number to be

printed on all fax pages that you send.

For details, see Entering Text in Appendix C of the

Basic User’s Guide.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Station ID.

Press OK.

dEnter your fax number (up to 20 digits) on the

dial pad, and then press OK.

eEnter your name (up to 20 characters) using

the dial pad, and then press OK.

fPress Stop/Exit.

(e.g. Enter 11for 2011.)

Date&Time

Year:20

Input & Press

Date&Time

12 or 24 ?

Select & Press

12h Clock

24h Clock

Date&Time

AM or PM ?

Select & Press

Note

• See the following chart for entering your name.

• If you need to enter a character that is on the

same key as the character before, press cto

move the cursor to the right.

• If you entered a character incorrectly and want

to change it, press dor cto move the cursor to

the incorrect character, press Clear.

Press

key

One

time

Two

times

Three

times

Four

times

Five

times

2ABC2A

3DEF3D

4GH I 4G

5JKL5J

6MNO6M

7PQRS 7

8TUV8T

9WX Y Z 9

Note

If you make a mistake and want to start again,

press Stop/Exit and go back to a.

Otros manuales para MFC-J6510DW

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Brother

Brother

Brother MFC-9450CDN Manual de usuario

Brother

Brother DCP-J772DW Manual de usuario

Brother

Brother DCP-395CN Manual de usuario

Brother

Brother MFC-J6935DW Manual de usuario

Brother

Brother MFC-9840CDW Manual de usuario

Brother

Brother Work Smart MFC-J470dw Instrucciones de montaje

Brother

Brother MFC 240C - Color Inkjet - All-in-One Manual de usuario

Brother

Brother MFC-8480DN Manual de usuario

Brother

Brother MFC-9460CDN Manual de usuario

Brother

Brother DCP-8110D Instrucciones de montaje

Brother

Brother MFC-J6920DW Instrucciones de montaje

Brother

Brother DCP-110C Manual de usuario

Brother

Brother MFC 5890CN - Color Inkjet - All-in-One Manual de usuario

Brother

Brother MFC 5490CN - Color Inkjet - All-in-One Manual de usuario

Brother

Brother DCP-J315W Manual de usuario

Brother

Brother MFC-9660 Manual de usuario

Brother

Brother MFC-9840CDW Manual de usuario

Brother

Brother MFC-J425W Manual de usuario

Brother

Brother DCP-J100 Manual de usuario

Brother

Brother DCP-L2550DW Manual de usuario

Brother

Brother Work Smart MFC-J650dw Manual

Brother

Brother HL-P2500 Manual de usuario

Brother

Brother DCP-L8400CDN Manual de operación y mantenimiento

Brother

Brother MFC-5200C Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario

Copystar

Copystar CS 4551ci Manual de usuario

Konica Minolta

Konica Minolta Magicolor 4650EN Manual de usuario
