Brother MFC-8680DN Manual de usuario

Laser FAX/MFC

PARTS REFERENCE LIST

MODEL:

DCP-8080DN / DCP-8085DN /

MFC-8480DN / MFC-8680DN /

MFC-8880DN /MFC-8881DNHY

MFC-8890DW

Read this list thoroughly before maintenance work.

Keep this list in a convenient place for quick and easy reference at all times.

January 2009

PL-FAX160

8C5D11

Ver. P-1

NOTE FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it is necessary to mention the following items;

(1) Code

(2) Q'ty

(3) Description

(4) Symbol ( PCB No. etc )

Note: Orders without Parts Code or Tool No. can not be accepted.

< Example >

REF.NO. CODE Q’TY DESCRIPTION SYMBOL REMARK

2. Design-changed parts :

If any of the parts is changed, one of the following symbols is indicated in the REMARK column.

CHG(chg) : The parts is changed to a new parts.

ADD(add) : The parts is newly added.

DEL(del) : The parts is deleted.

Symbol in capital letters indicates the latest parts change information in the page.

3. Parts change will be informed by the Parts change information.

4. Parts are subject to change in design without prior notice.

COUNTRIES

U.S.A. ----- USA CHILE ----- CHL

CANADA ----- CAN POLAND ----- POL

GERMANY ----- GER ASIA ----- ASA

UNITED KINGDOM ----- UK GULF ----- GUL

FRANCE ----- FRA BRAZIL ----- BRA

BELGIUM ----- BEL KOREA ----- KOR

NETHERLANDS ----- NLD INDIA ----- IND

SWITZERLAND ----- CHE RUSSIA ----- RUS

AUSTRIA ----- AUS AUSTRALIA ----- ARL

ITALY ----- ITA NEW ZEALAND ----- NZ

CHINA ----- CHN PAN-NORDIC

PHILIPPINES ----- PHL (NORWAY/FINLAND/DENMARK/SWEDEN) ----- PND

TURKEY ----- TUR IBERIA (SPAIN/PORTUGAL) ----- IBR

ARGENTINA ----- ARG EEU-GENERAL ----- EEU

(1) (4)

(3)

(2)

CONTENTS

1. FRAME L & DRIVE UNIT..................................................................... 1

2. FRAME UNIT........................................................................................ 3

3. LASER UNIT ........................................................................................ 5

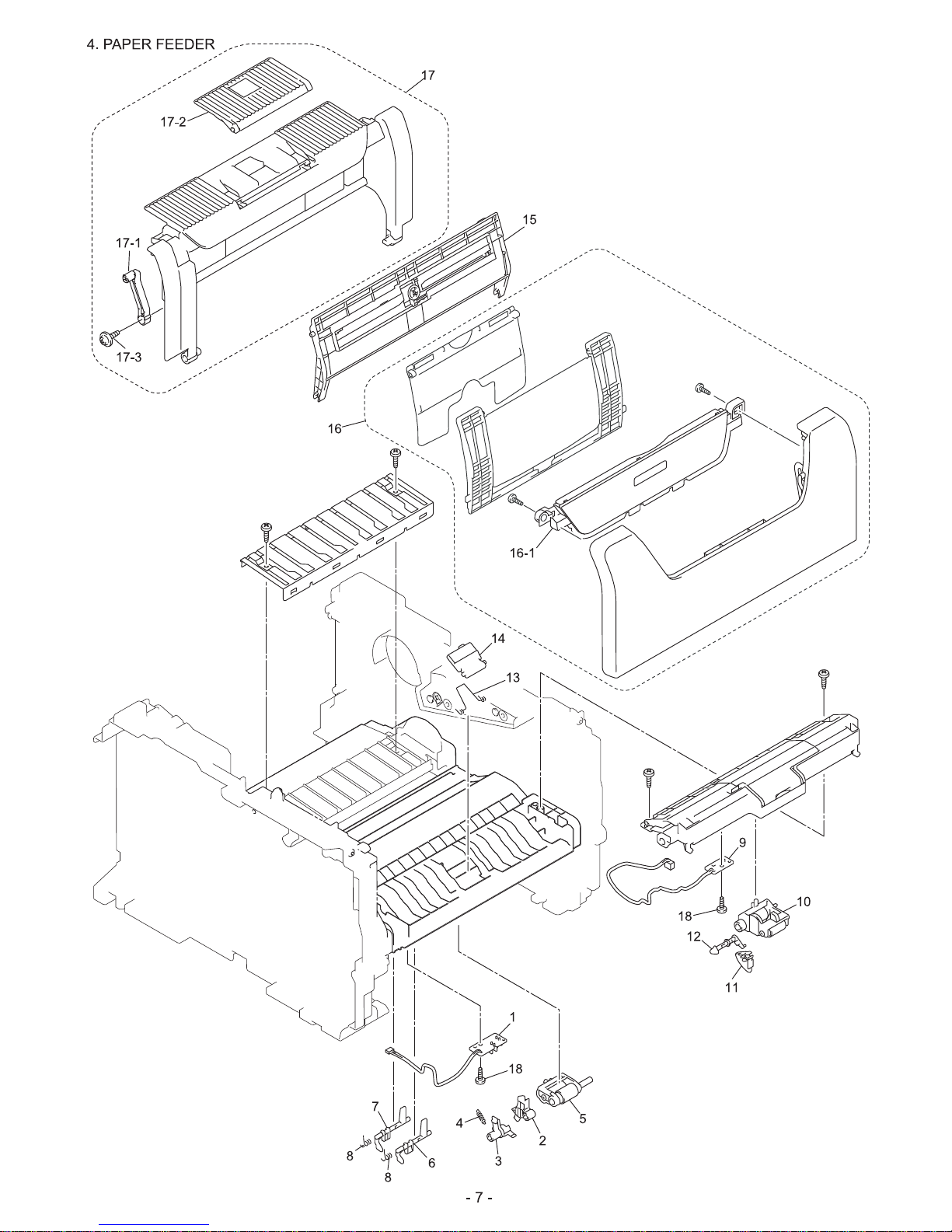

4. PAPER FEEDER.................................................................................. 7

5. DUPLEX ............................................................................................... 9

6. PAPER TRAY..................................................................................... 11

7. FUSER UNIT ...................................................................................... 13

8. COVERS............................................................................................. 15

9. SCANNER .......................................................................................... 17

10. ADF 1.................................................................................................. 19

11. ADF 2 ................................................................................................ 21

12. PANEL................................................................................................ 23

13. PCB .................................................................................................... 25

14. ACCESSORIES.................................................................................. 27

15. PRINTED MATERIALS ......................................................................30

16. PACKING MATERIALS......................................................................32

17. OTHERS.............................................................................................35

1. FRAME L & DRIVE UNIT

- 1 -

1-1

1-7 1-8

1-3

1-10

1-12 1-13

1-9

1-20

1-11

1-2

1-14

1-17

1-18

1-16

1-4

1-19 1-18

1-18

1-15

1-6 1-5

1-21

1-22

1-23

1-24

LIST1(FRAME L&DRIVE UNIT)

REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARKS

1 LS7238001 1 MAIN FRAME L UNI

1-1 LU7214001 1 DEVELOP JOINT

1-2 LM5047001 1 MAIN MOTOR ASSY A

1-3 LM5048001 1 FUSER GEAR 39 H/R DRIVE

1-4 LM5058001 1 REGISTER SOLENOID ASSY

1-5 LM5062001 1 MP SOLENOID ASS

1-6 LM5067001 1 T1 SOLENOID ASS

1-7 LJ9935001 1 TONER SENSOR PCB ASSY

1-8 UL9037001 1 PT SENSOR HOLDER

1-9 LJ993800

1 RELAY FRONT PCB ASS

1-10 LJ9940001 1 FRONT COVER SW ASSY

1-11 LJ9942001 1 RELAY REAR PCB ASS

1-12 LM5085001 1 NEW TONER ACTUATOR

1-13 LM5086001 1 NEW TONER ACTUATOR SPRING

1-14 LJ7403001 1 RUBBER FOOT

1-15 LJ9945001 1 CONNECTOR

1-16 LM5011001 1 EJECTOR SOLENOID

1-17 08732061

4 TAPTITE CUP S M3x6

1-18 08531101

3 TAPTITE BIND B M3x10

1-19 08531101

1 TAPTITE BIND B M3x10

1-20 LG4518001 1 THERMISTOR ASSY

1-21 LM5043001 1 DEV GEAR 37R JOINT DRIVE

1-22 LM5080001 1 DRIVE RELEASE LINK

1-23 LM5079001 1 DRIVE RELEASE CAM add

1-24 08721061

1 TAPTITE CUP B M2X6 add

2 LM5104001 1 GEAR 17 MP ROLLER DRIVE

3 LM5103001 1 GEAR 20 T1 ROLLER DRIVE

4 LM5102001 1 GEAR 17 FEED ROLLER DRIVE add

5 LM5051001 1 DX GEAR 15 TRAY DRIVE

8C5D11/8C5D16/8C5D41/

8C5D51/8C5D56/8C5D61 DCP8080DN/DCP8085DN/MFC8480DN/

MFC8680DN/MFC8880DN/MFC8881DNHY/MFC8890DW

- 2 -

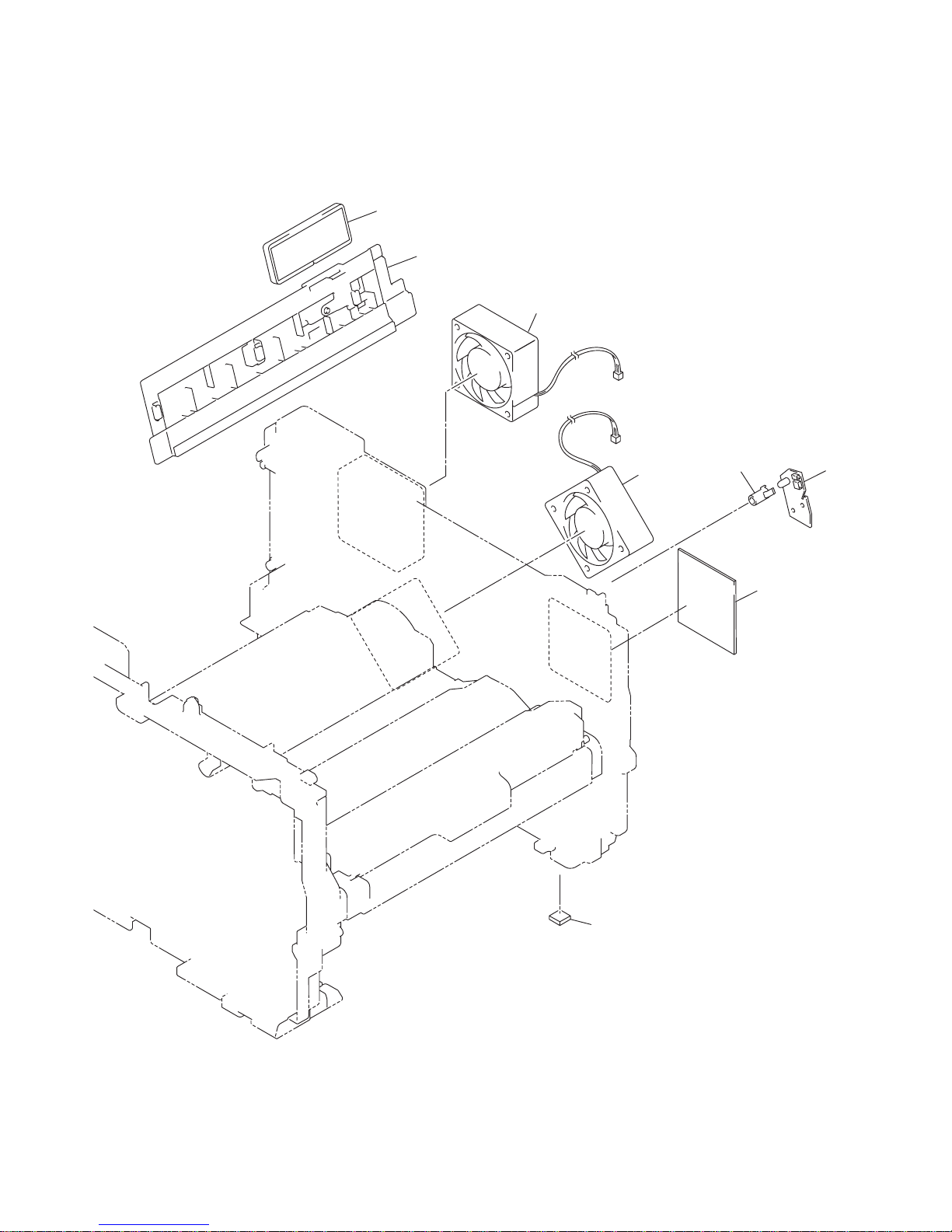

2. FRAME UNIT

- 3 -

LIST2(FRAME UNIT)

REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARKS

1 LV0282001 1 TONER LED PCB ASSY

2 LM4267001 1 LED HOLDER

3 LJ7403001 1 RUBBER FOOT

4 LU7141001 1 FILTER ASSY

5 LM5114001 1 FAN MOTOR 60 UNIT LV

6 LU7032001 1 FAN MOTOR 60 UNIT

7 LM6655001 1 AIR DUCT ASSY AL

8 LT0963001 1 WIRELESS PCB, MFC8890DW CHG

8C5D11/8C5D16/8C5D41/

8C5D51/8C5D56/8C5D61

DCP8080DN/DCP8085DN/MFC8480DN/

MFC8680DN/MFC8880DN/MFC8881DNHY/MFC8890DW

- 4 -

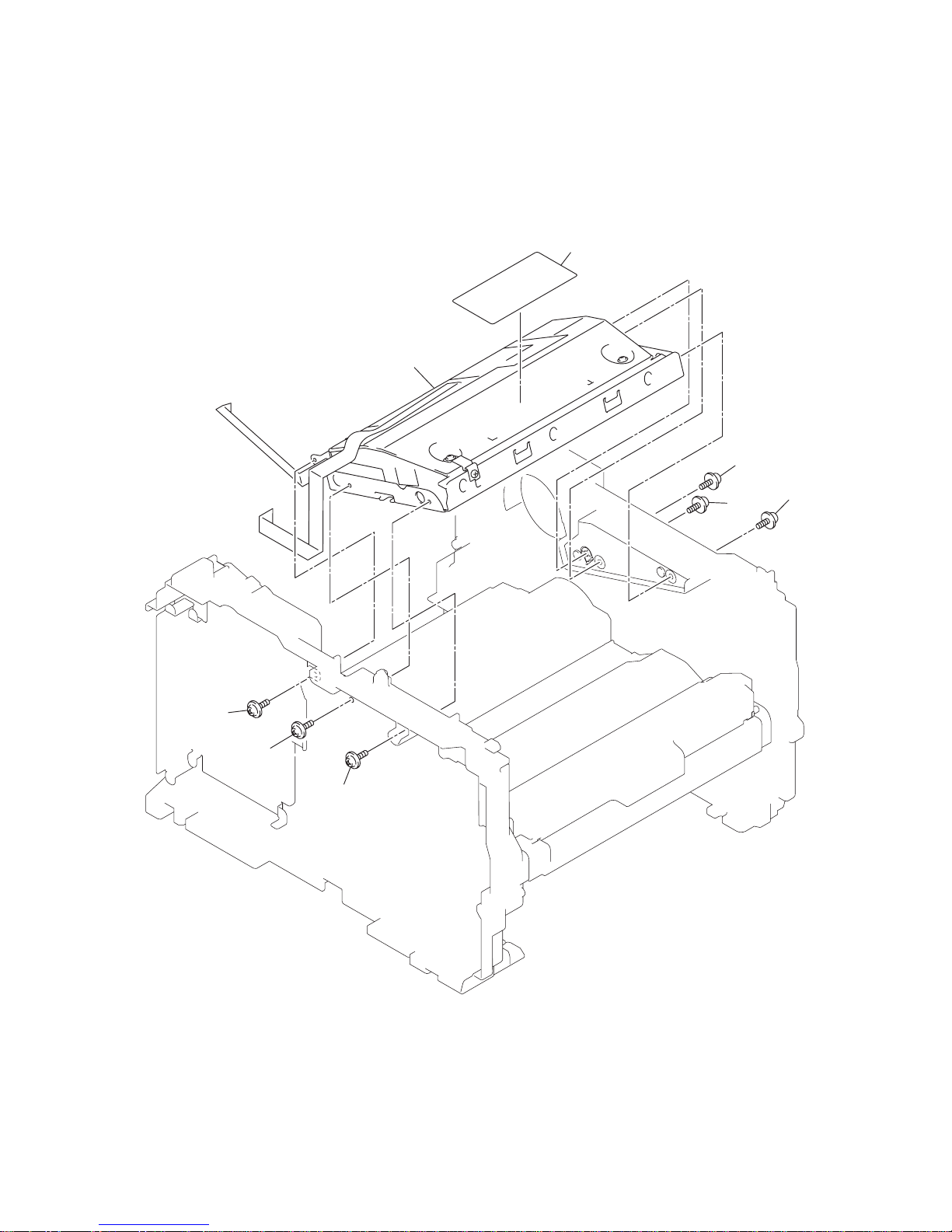

3. LASER UNIT

- 5 -

LIST3(LASER UNIT)

REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARKS

1 LU7176001 1 LASER UNIT

(

)



2 08732061

6 TAPTITE, CUP S M3X6

3 LJ0908001 1 LASER CAUTION LABEL EXCEPT FOR CHN

3UL7931001 1 LASER CAUTION LABEL FOR CHN

8C5D11/8C5D16/8C5D41/

8C5D51/8C5D56/8C5D61

DCP8080DN/DCP8085DN/MFC8480DN/

MFC8680DN/MFC8880DN/MFC8881DNHY/MFC8890DW

- 6 -
