Briggs & Stratton BPW3500 Guía de configuración

BPW3500

Illustrated Parts List

Model No. HPP1780-0, BPW3500

Manual No. 191806A Revision C (04/24/2007)

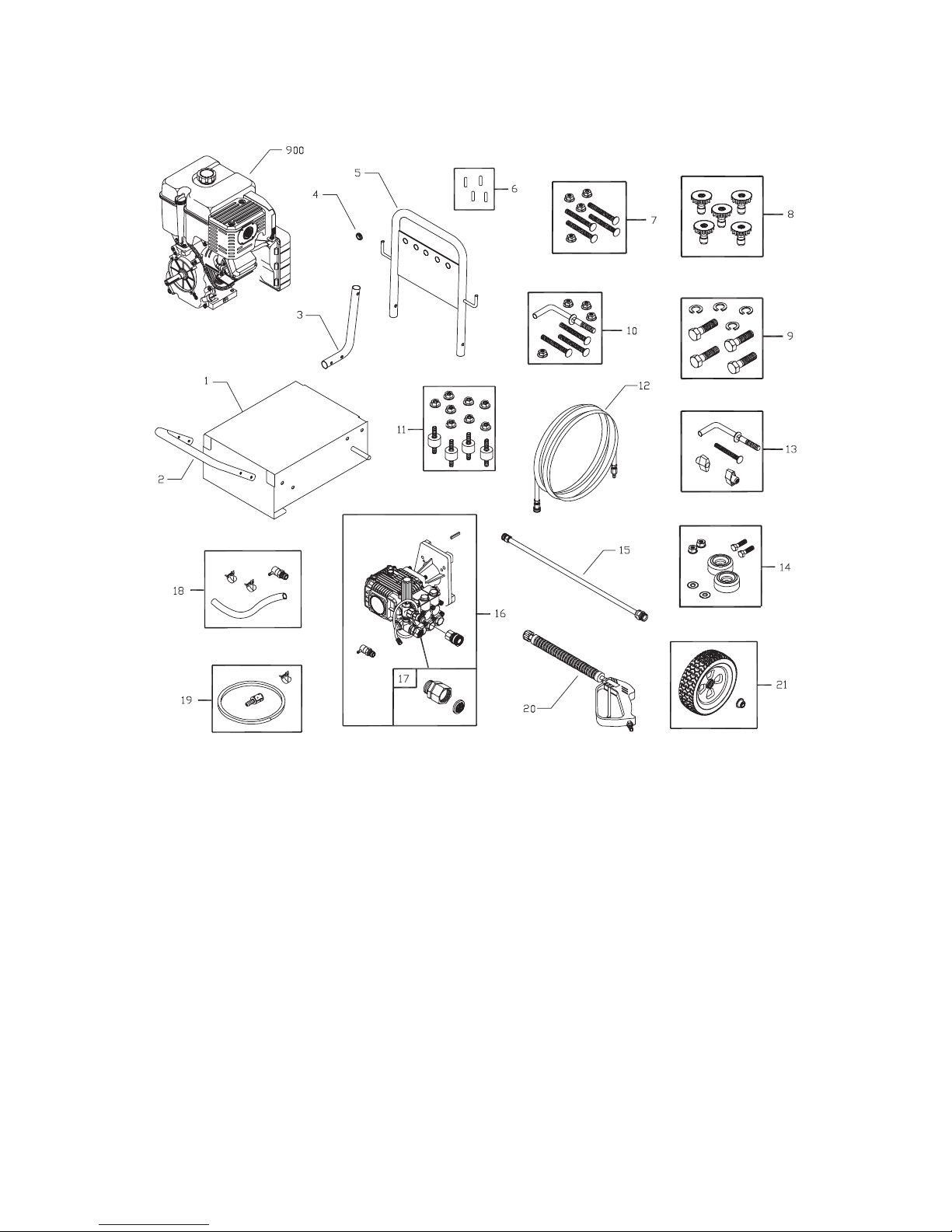

Exploded View and Parts List — Main Unit

Item Part # Description

1 A189641GS BASE

2 BB1982GS BUMPER

3 BB1981GS HANDLE, Lower

4 30809GS GROMMET

5 B190293GS HANDLE

6 192126GS KIT, Vinyl Cap

7 192129GS KIT, Lower Handle Hardware

8 B4847GS KIT, Nozzles

191903A Nozzle, QC, Red

191903B Nozzle, QC, Yellow

191903C Nozzle, QC, Green

191903D Nozzle, QC, White

191903ZZ Nozzle, QC, Black

9 192132GS KIT, Pump Mounting Hardware

10 192130GS KIT, Bumper Mounting Hrdwr

11 192134GS KIT, Engine Mounting Hrdwre

12 B4805GS HOSE

13 187978GS KIT, Upper Handle Hardware

14 192553GS KIT, Vibration Mount

15 200595GS EXTENSION, QC

16 195110GS ASSY, Pump

195016GS Valve, Thermal Relief

63281GS Key

95458GS Quick Connect

Item Part # Description

17 192135GS KIT, Garden Hose Inlet

18 192136GS KIT, Thermal Relief

19 192168GS KIT, Chemical Hose

20 B1436BGS GUN

21 192124GS KIT, Wheel

190146GS Pushnut

900 § ENGINE

Items Not Illustrated

191806GS MANUAL, Operator’s

MS6669 MANUAL, Engine

BB3061BGS OIL BOTTLE

6048 KIT, O-Ring Maintenance

87815GS GOGGLES

192015GS FITTING, Hose

192139GS KIT, Decal, Srv

Optional Accessories

6039 PUMP SAVER

§ - Contact Engine Manufacturer

material may be reproduced or transmitted in any form by any means without the express written

permission of Briggs & Stratton Power Products Group, LLC.

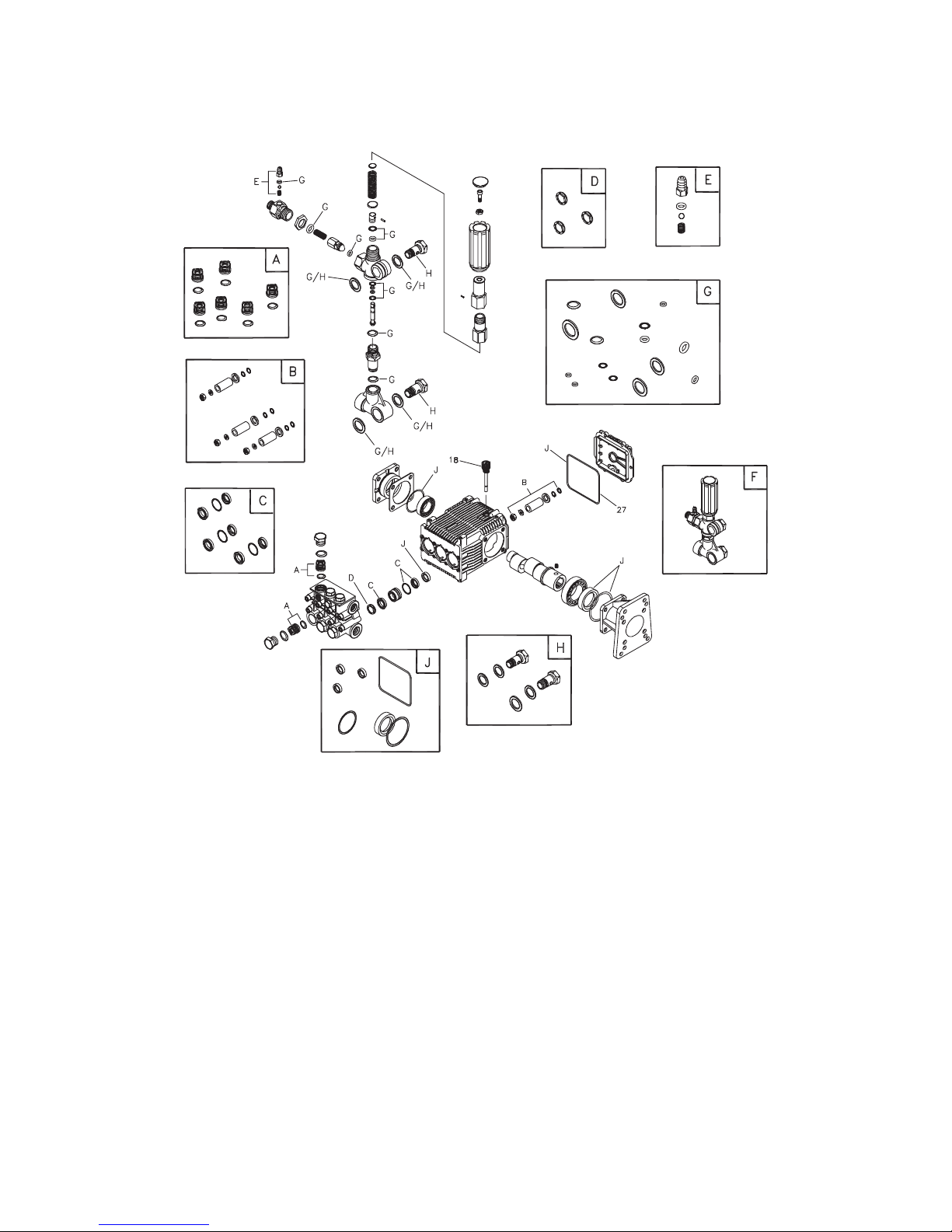

Exploded View and Parts List — Pump

Item Part # Description

18 198849GS CAP, Oil Dipstick

27 116B2126GS O-RING, Square

A 200B1410GS KIT, VALVE

B 193990GS KIT, PISTON

C 203B2327GS KIT, WATER SEALS

D 204B1410GS KIT, SUPPORT RINGS

E 192914GS KIT, HOSE TAIL

F 153B2126GS UNLOADER, Complete

G 193991GS KIT, O-RINGS

H 199894GS KIT, BOLTS

J 202B1410GS KIT, OIL SEALS

Items Not Illustrated

B2384GS FILTER, Inlet

Optional Accessories

100515GS PUMP SAVER

186452GS FILTER, Inlet Bag of 10

6033 OIL BOTTLE, Pump

NOTE: Item letters A - J are service kits and include all

parts shown within the box.
