Briggs & Stratton 020225-0 Guía de configuración

Illustrated Parts List

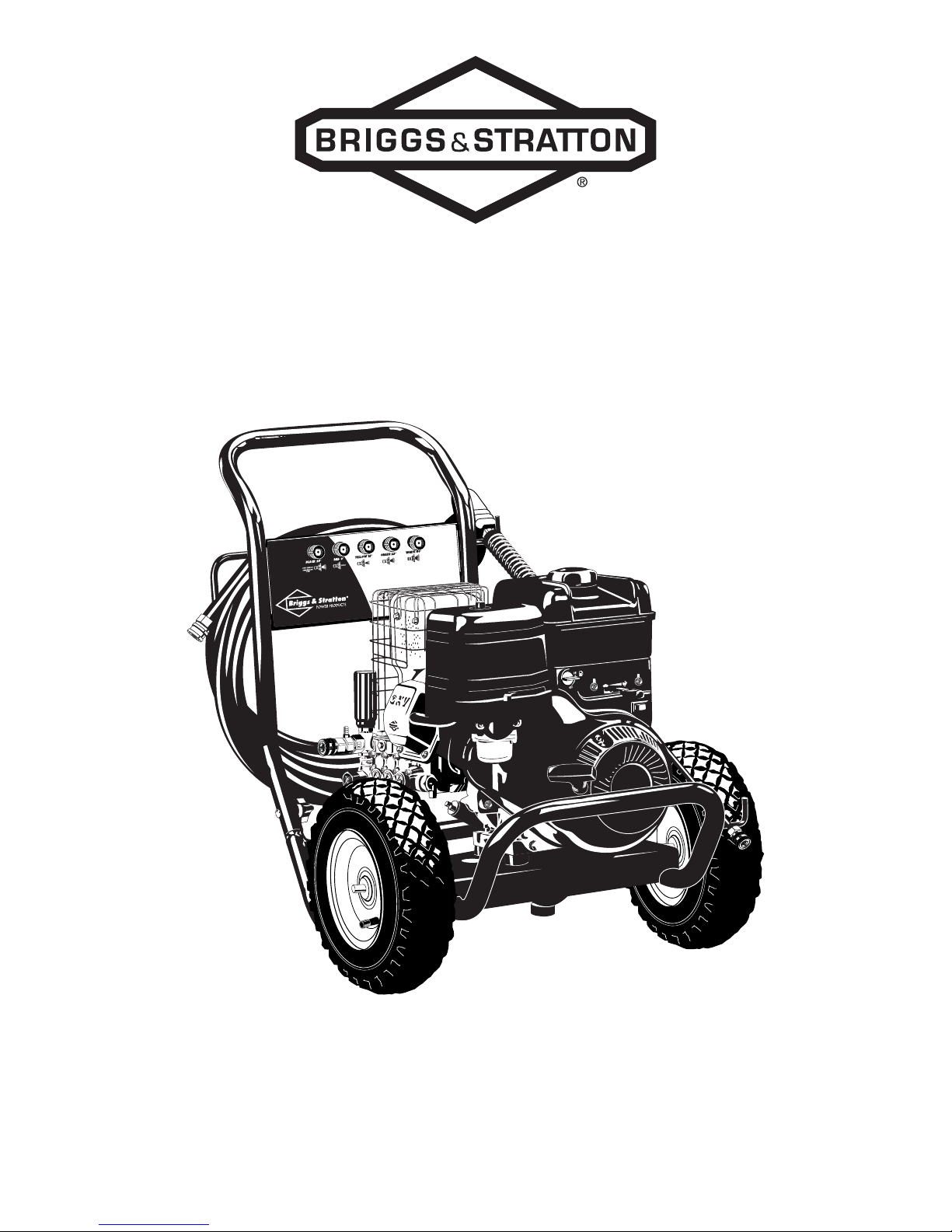

Model No. 020225-0 (3200 PSI Pressure Washer) Manual No. 203764A Revision C (11/07/2007)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

3200 PSI / 220 BAR

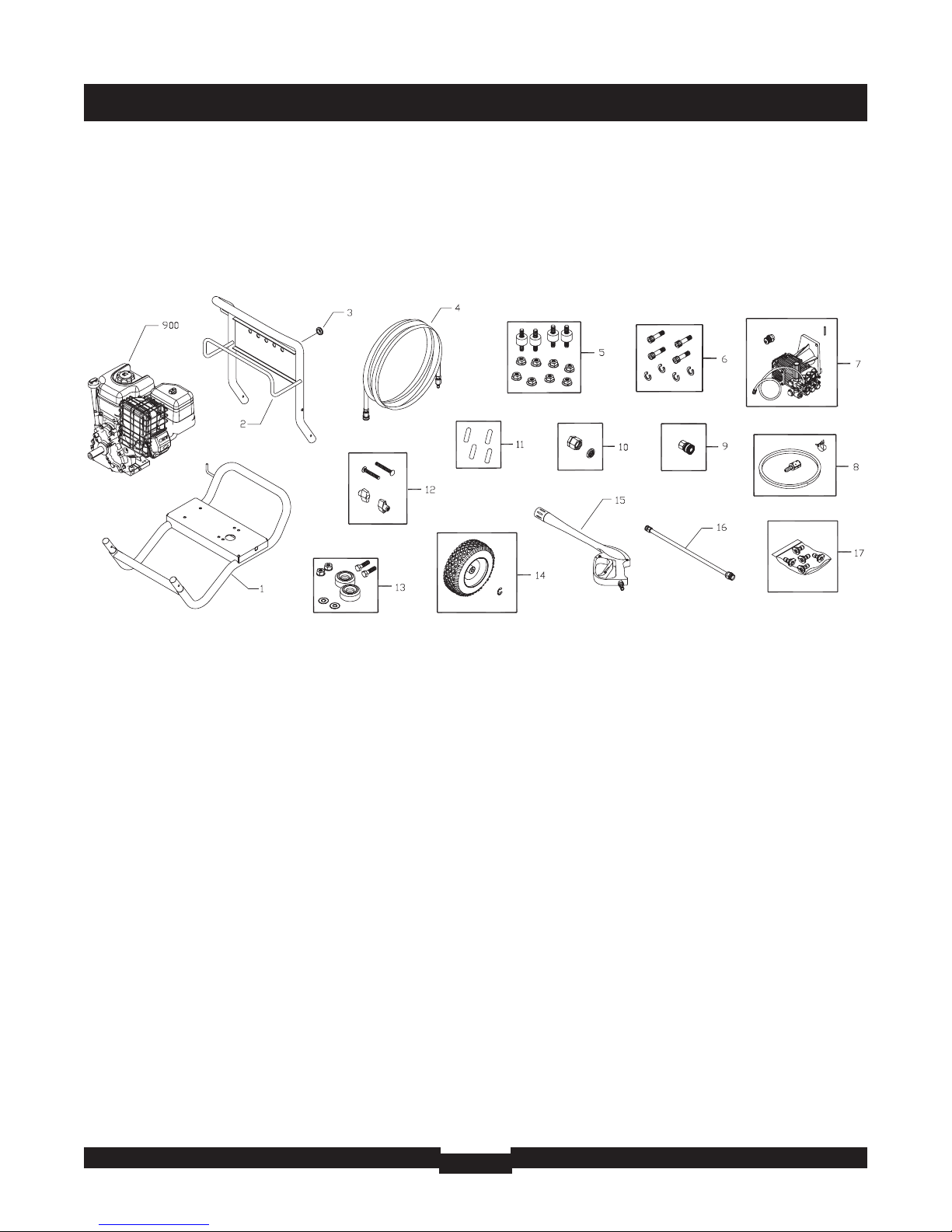

EXPLODED VIEW AND PARTS LIST

Item Part # Description

1 M194424GS BASE

2 M196133GS HANDLE

3 30809GS GROMMET

4 B4805GS HOSE, 50’

5 192134GS KIT, Engine Mounting Hardware

6 192132GS KIT, Pump Mounting Hardware

7 194036GS ASSY, Pump

195016GS Valve, Thermal Relief

63281GS Key

8 192796GS KIT, Chemical Hose/Filter

9 95458GS QUICK CONNECT

10 194004GS KIT, Garden Hose Inlet

11 192126GS KIT, Vinyl Cap

12 B2203GS KIT, Handle Fastening

13 192310GS KIT, Vibration Mount

14 194411GS KIT, Wheel

191265GS E-Ring

15 B3263AGS GUN

16 193814GS EXTENSION, QC

17 196233GS KIT, Spray Tips

195983AGS Nozzle, QC, Red

Item Part # Description

195983BGS Nozzle, QC, Yellow

195983CGS Nozzle, QC, Green

195983DGS Nozzle, QC, White

195851ZZGS Nozzle, QC, Black

900 § ENGINE

Items Not Illustrated

203764GS MANUAL, Operator’s

MS3778 MANUAL, Engine

191267RGS AXLE

95456GS QUICK CONNECT, Male

96016GS QUICK CONNECT, Female, Plastic

192014GS FITTING, 1/2

192015GS FITTING, 3/4

195463GS KIT, Decals, Service

Optional Accessories

6048 KIT, O-Ring

6039 PUMP SAVER

§ - Contact Engine Manufacturer

EXPLODED VIEW AND PARTS LIST - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

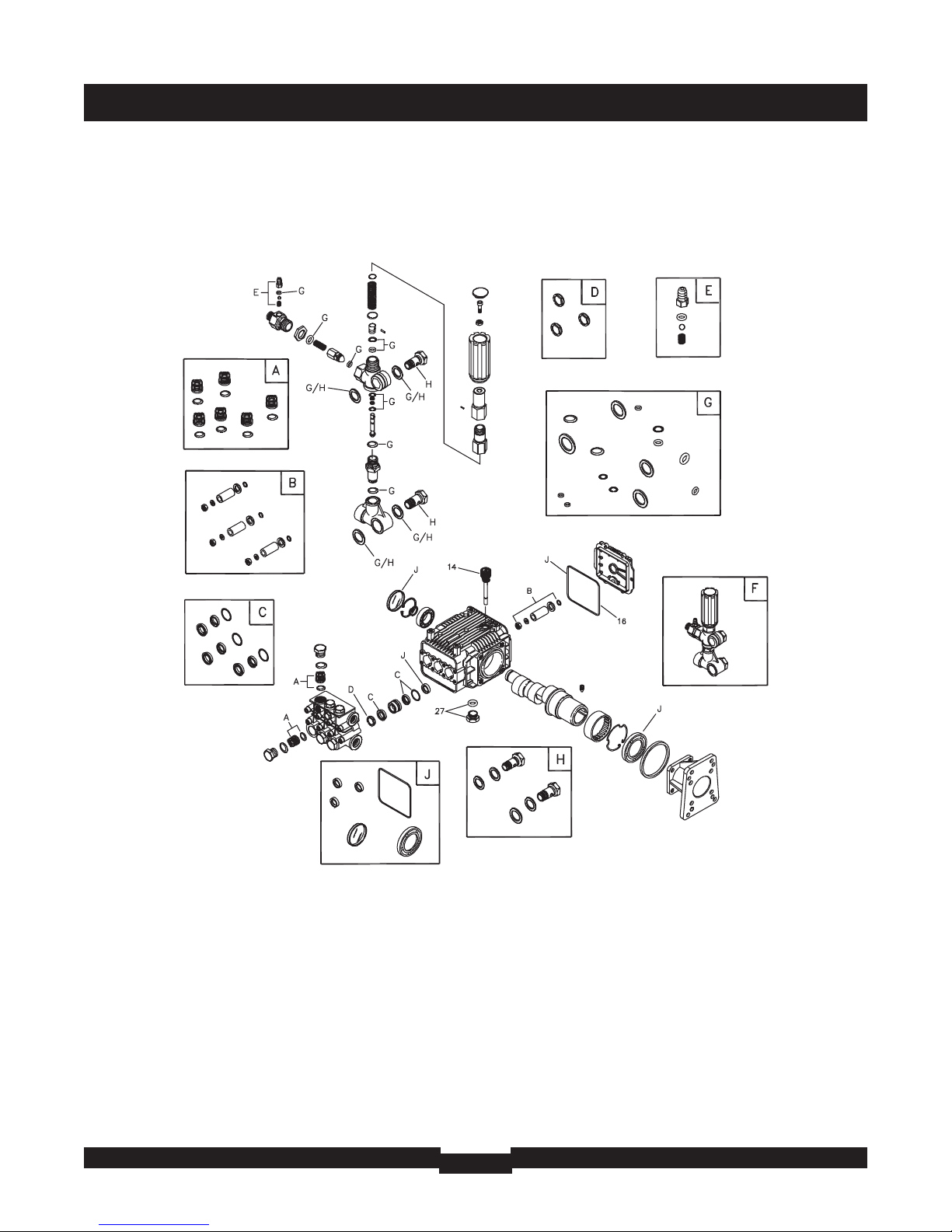

EXPLODED VIEW AND PARTS LIST

Item Part # Description

14 198849GS CAP, Oil Dipstick

16 116B2126GS O-RING, Square

27 203034GS KIT, DRAIN PLUG

A 50087628PGS KIT, VALVE

B 201B2126GS KIT, PISTON

C 203B2126GS KIT, WATER SEALS

D 204B2126GS KIT, SUPPORT RINGS

E 192914GS KIT, HOSE TAIL

F 153B2126GS UNLOADER, Complete

G 193991GS KIT, O-RINGS

H 199894GS KIT, BOLTS

J 202B2126GS KIT, OIL SEALS

Items Not Illustrated

B2384GS FILTER, Inlet

Optional Accessories

100515GS PUMP SAVER

6033 OIL BOTTLE, Pump

NOTE: Items A - J are service kits and include all parts

shown within the box.

EXPLODED VIEW AND PARTS LIST - PUMP
