Illustrated Parts List

Questions?

Help is just a moment away!

Find your Briggs and Stratton

distributor in our distributor

locator map at

www.briggsandstratton.com

or contact your local Briggs and

Stratton dealer for further

information.

Perguntas?

O auxílio está a poucos passos!

Procure o fornecedor de serviços

authrizados mais próximo em nosso

mapa de fornecedores em

www.briggsandstratton.com

ou entre em contato com seu

representante local da Briggs &

Stratton para obter mais

informações.

Preguntas?

La ayuda es justa un momento lejos!

Encuentre su Briggs y Stratton

distribuidor en nuestro mapa del

localizador de distribuidor en

www.briggsandstratton.com

o avise su Briggs y Stratton el

comerciante local para la información

adicional.

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A. Manual No. 196382A

Revision B (06/20/2007)

Model

030218

3500 Watt Portable Generator

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

3500 Watt Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 M194779GS KIT, Cradle (Includes 20, 31 & 55)

2 194150GS MOUNT, Vibration

3 67989GS NUT, M8 Flange Serrated

4 186058AGS HOUSING, Engine Adapter

5 NSP ASSY, Alternator (see page 4)

6 * NUT, Hex, M8 - 1.25

7 195398GS TPHMS, M8 - 1.25 x 35

8 96796GS WASHER, 8.4 x 22.2 x 3

9 * WASHER, 5/16 - M8 Lock

10 * HHCS, 5/16-24 x 3/4, SEMS

11 24823GS HHCS, 5/16-24 x 7-7/8" Lg

12 * HHCS, M8 - 1.25 x 25

13 * HHCS, M6 - 1.0 x 12

14 191785GS BRACKET, Muffler

15 697815 GASKET, Exhaust

17 188301GS MUFFLER

18 * SHCS, M6 - 1.0 x 20

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 194153GS KIT, Vibration Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

23 86292GS SCREW, 10-16 x 3/4, Self Drill

24 191790GS SHIELD, Heat

25 191190GS CAP

26 74908GS TAPTITE, M5-0.8 x 10 Lg

31 191436GS DECAL, Caution Hot Muffler

34 195422GS COVER, RBC, Plastic w/Cap

35 195207GS KIT, Hose Formed

37 B2153GS HHCS, 12 - 14 x 7/8" Self Driller

40 194398GS KIT, Fuel Tank Hardware (Includes

Qty 4)

Item Part # Description

41 192980GS KIT, Valve, Tank Fuel Service

44 197553GS ASSY., Tank, Fuel Service (Includes

Items 41, 50, 51, 52 & 53)

45 B4363GS GAUGE, Fuel

48 195373GS WIRE, Ground

50 191437GS DECAL, Fuel Level

51 197157GS DECAL, Warning

52 189235GS DECAL, Operating Instructions

53 202997GS DECAL, Warning, CO

55 197798GS DECAL, Fuel Shut Off

58 196796GS ASSY, Control Panel

59 * NUT, Palnut

900 § ENGINE

Parts Not Illustrated

196382GS MANUAL, Operator’s

43483GS PLUG, 250V, 20Amp

MS3790 MANUAL, Engine

202180GS DECAL, Family, CA, EVP

197554GS KIT, Decals Service

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

3500 Watt Portable Generator

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 191685GS ROTOR

3 191686AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197GS)

5 86308GS HHCS, M6 - 1.0 x 115 SEMS

6 91825GS ASSEMBLY, Holder, Rectifier/Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS ASSY, Wire, Ground

13 194274GS HARNESS, Wire, Power

14 65791GS BEARING

3500 Watt Portable Generator

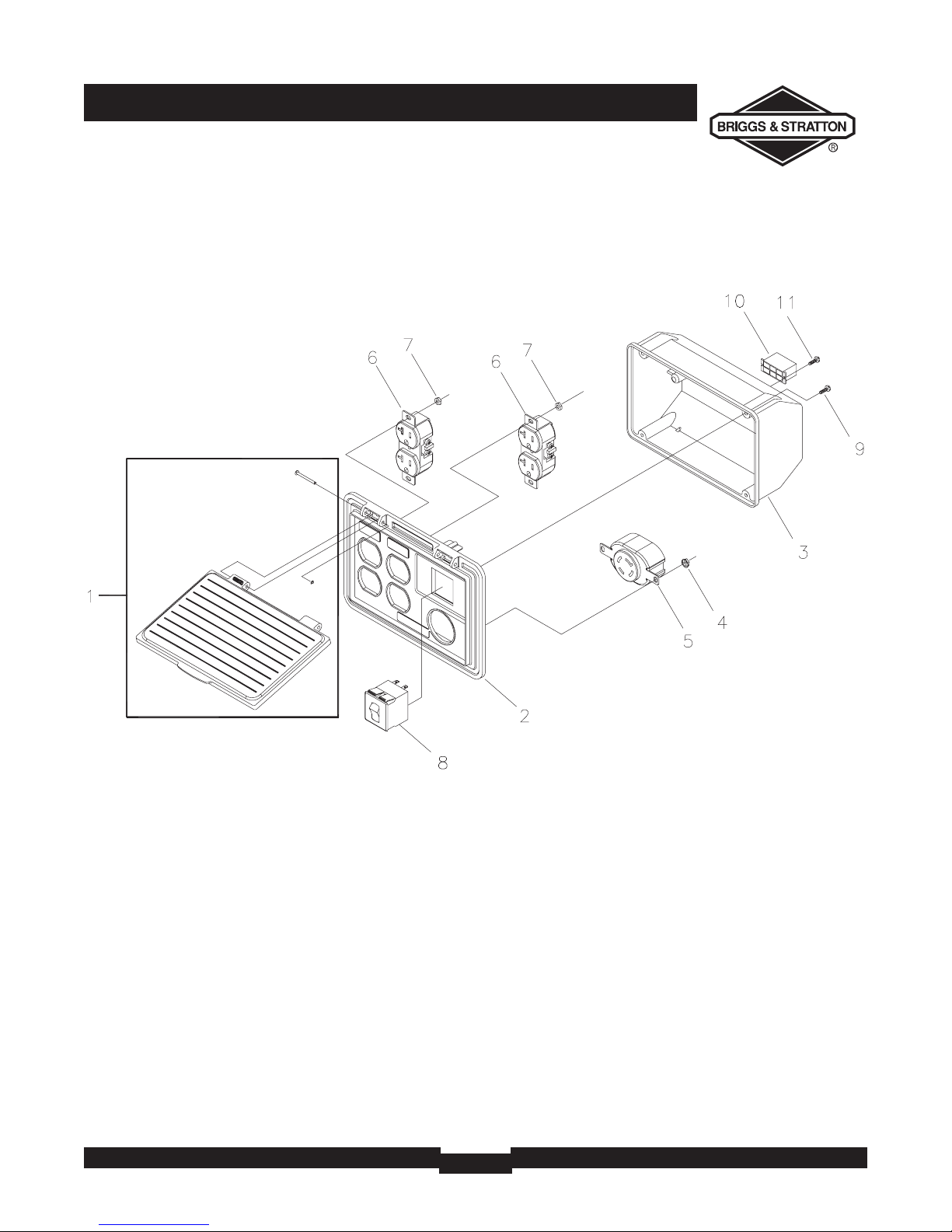

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 195112GS ASSY, Control Lid Panel

2 196506CGS CONTROL PANEL, Compact

3 192274GS BOX, Rear Cover

4 * NUT, Palnut, Pushnut, 3/16

5 68867GS OUTLET, 120/240V Locking, 20A

6 63025GS OUTLET, 120V, 15A, Duplex

7 * NUT, Palnut, Pushnut, 5/32

8 191479CGS BREAKER, 15, 2P

9 192241GS SCREW, Tapping, 3.5 x 14

10 22694GS HOUSING, Receptacle

11 82308GS SCREW, Tapping, STC 3 x 18

* - Items without part numbers are common fasteners and are

available at your local hardware store.
