PRO8000 Portable Generator

Illustrated Parts List

Model 030382 Manual No. 204729A Revision A (01/24/2008)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Exploded Views and Parts Lists

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

2BRIGGSandSTRATTON.COM

Exploded Views and Parts Lists

Item Part # Description

1 B204637GS CRADLE (Includes Items 20 & 31)

2 38353GS MOUNT, Vibration

3 56893GS CRIMPTITE, 10-24 x 1/2

4 190220GS ADAPTER, Engine

5 NSP ASSY., Alternator (see page 5)

6 * NUT, Hex, M8 - 1.25

7 62265GS GROMMET

8 96796GS WASHER, 8.4 x 22.2 x 3

9 194208GS KIT, Alt to Heat Shield Hardware

10 190274BGS SBHCS, 3/8-16 x 1"

11 25254GS HHCS 5/16-24 x 9-7/8

12 189302BGS WIRE, #16, Red

13 * HHCS, M8 - 1.25 x 16

14 * WASHER, Shakeproof, Ext. 5/16

15 * WASHER, Shakeproof, Ext. M6

16 B77304GS SUPPORT, Engine

17 75246GS TAPTITE, 3/8 - 16 x 1-1/4

18 195404GS ASSY, Stepper Motor

19 J93074GS SUPPORT, Heatshield

20 B4986GS DECAL, Ground

21 194155GS KIT, Vibration Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

24 194950GS ASSY., Heat Shield

25 191190GS CAP

26 74908GS TAPTITE, M5 - 0.8 x 10

27 * HHCS, M8 - 1.25 x 20

28 * WASHER, 5/16 M8 Lock

29 * HHCS, M8-1.25 x 25

30 194543GS KIT, Throttle Linkage Hardware

31 200310GS DECAL, Exhaust Warning

32 * NUT, 1/4 - 20

33 * WASHER, 1/4 Lock

34 195422GS COVER, RBC Plastic w/Cap

35 791745 KIT, Hose, Fuel

37 B2153GS SCREW, Self Driller, 12-14 x 7/8

38 192376GS SCREW, 12 - 24 x 1/2 Thread Forming

39 B4300GS HHS, Trilobular, 1/4 - 20 x 1/2

40 198221GS KIT, Fuel Tank Hardware (Includes Qty

41 193272GS VALVE, Fuel

43 B4769GS CONTACTOR, Starter

44 196035GS ASSY., Tank Fuel (Includes Items 41,

50, 51, 52, 55, 56 & 65)

45 189135GS CAP, Tank Fuel

47 77395GS LOCKNUT, M6

48 195373GS WIRE, Ground

49 95920GS LINKAGE, Stepper Motor to Bell Crank

Item Part # Description

50 188333GS DECAL, Instruction, Fuel

51 194984GS DECAL, Warning

52 94480GS DECAL, Operating Instructions

54 95349GS PLATE, Adjust

55 197797GS DECAL, Fuel Shutoff

56 202997GS DECAL, Warning, CO

57 189759GS KIT, Fuel Valve Repair

58 202526GS ASSY. Control Panel

59 * WASHER, Ext #10, Shakeproof

60 J193512GS SUPPORT, Tray Battery

61 95348GS BRACKET, Bell Crank

62 95921GS LINKAGE, Bell Crank to Throttle

63 96717GS SPRING

65 192724GS GAUGE, Gas

68 J195680GS TRAY, Battery

69 193043GS BATTERY

70 * HHCS, M6 -1.0 x 12

71 * HHCS, 3/8 - 16 x 3/4

72 * WASHER, 3/8, Lock

73 * NUT, 3/8 - 16

74 193347GS KIT, Hardware Battery

75 280623 TUBING, Fuel line

76 185939GGS WIRE, #55 Black

78 189302EGS WIRE, #13 Red

900 § ENGINE

Parts Not Illustrated

204729GS MANUAL, Operator’s

BB3061GS BOTTLE, Oil (Qty 1)

BB3061BGS BOTTLE, Oil (Qty 1)

B4177GS CHARGER, Battery

202179GS DECAL, Family, CA EVP

205487GS KIT, Decal Service

43438GS PLUG, 120/240V, 30A 4P

100523GS PLUG, 125V, 30A 3P

65787GS CABLE, Battery Charge

690661 SCREW, Tapping Hex

392390 ARRESTER, Spark

692099 ASSY., Muffler

691513 BRACKET, Muffler

692056 SCREW

690898 CLAMP, Muffler

692539 SCREW

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

PARTS LIST - MAIN UNIT

Exploded Views and Parts Lists

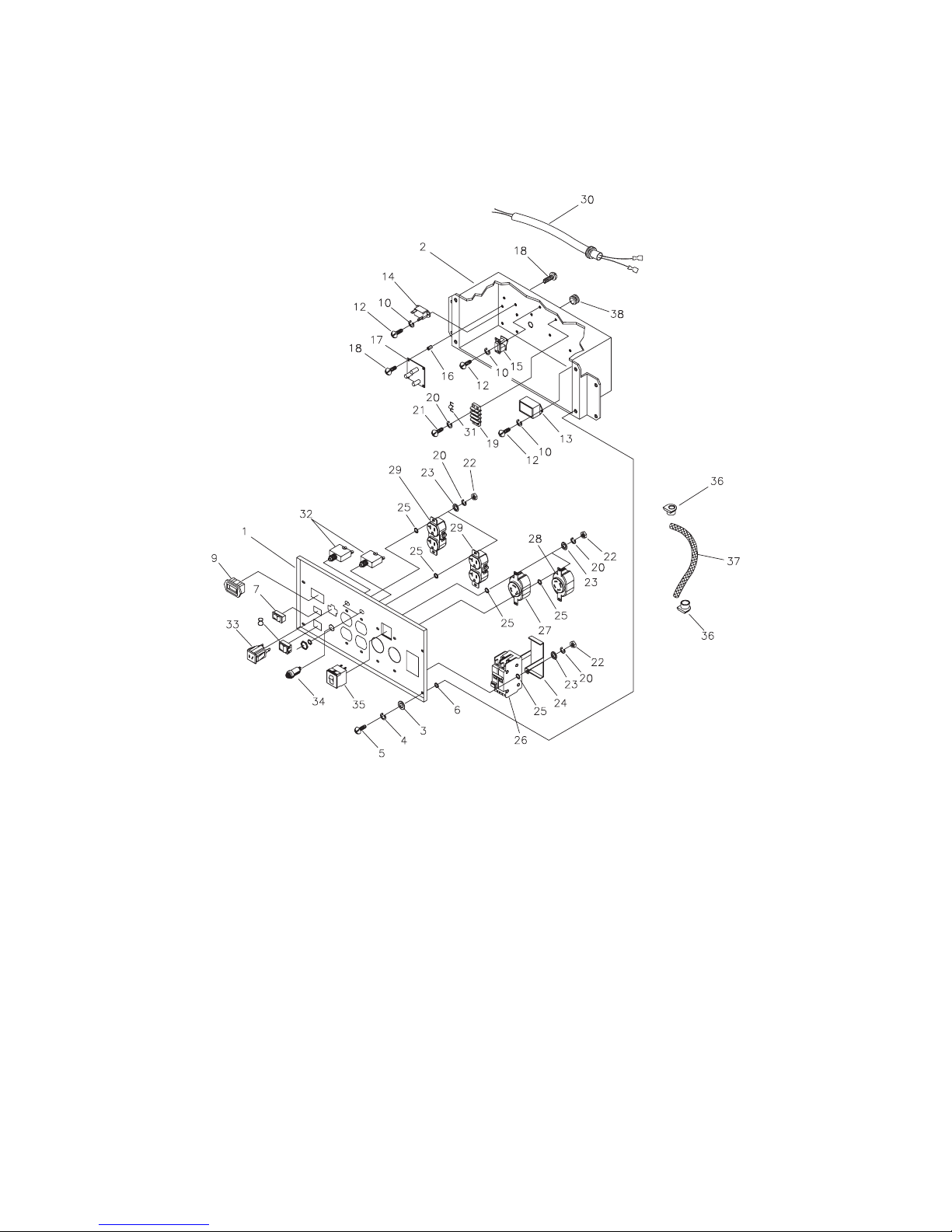

CONTROL PANEL EXPLODED VIEW & PARTS LIST

Item Part # Description

1 B195397GS PANEL, Control

2 B192837GS BOX, Control Panel

3 * WASHER, Flat, #10 - M5

4 * LOCKWASHER, M5

5 * PPHMS, M5 - 0.8 x 12

6 * WASHER, M6 - 1/4, Int. Shakeproof

7 82538GS SWITCH, Rocker

8 192855GS SWITCH, Rocker

9 202602GS HOUR METER

10 * LOCKWASHER, M3

11 * NUT, M3 - 0.5

12 * PHMS, M3 - 0.5 x 10

13 77314GS THERMAL, Relay

14 87962GS BREAKER, Circuit, 10A, 12V

15 84028GS TRANSFORMER, Idle Control

16 64525GS STANDOFF, Hex, 3/4"

17 195406GS PCB, Idle Control, 10KW

18 * PHTS, 6 - 32 x 3/8"

19 92953GS TERMINAL, Block

20 * LOCKWASHER, M4

21 * PPHMS, M4 - 0.7 x 20

Item Part # Description

22 * NUT, M4 - 0.7

23 * WASHER, Flat, M4

24 192931GS BRACKET, GFCI Breaker

25 * WASHER, Shakeproof, Int. #8

26 192828EGS BREAKER, Circuit, GFCI, 40A

27 68868GS OUTLET, 120V, 30A

28 43437GS OUTLET, 120/240V, 30A

29 68759GS OUTLET, 120V, 20A, Duplex

30 194953GS HARNESS, Wire

31 193597GS JUMPER, Terminal Block

32 202394GS BREAKER, Circuit, 20A with hardware

33 90418GS OUTLET, 12VDC, Snap

34 B4694GS JACK, Coaxial

35 202033GS BREAKER, Circuit, 30A, 2P

36 188632GS BOOT, Rubber Wire Outlet

37 77043BGS CONDUIT, Flex, .50 I.D. x 9.5

38 62265GS GROMMET

* - Items without part numbers are common fasteners and

are available at your local hardware store.

4BRIGGSandSTRATTON.COM

Exploded Views and Parts Lists

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 192938GS ROTOR

3 192937AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197GS)

5 66449LGS HHCS, M6 - 1.0 x 190 SEMS

6 66386GS ASSY, Holder, Rectifier/Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 * LOCKWASHER, 1/4 - M6

9 81917GS PIN, Roll, 4mm x 10

10 65795GS RECTIFIER, Battery Charge

11 66849CGS TAPTITE, M5 - 0.8 x 30

12 * WASHER, Shakeproof, Ext. #10

13 189769GS REGULATOR, Voltage-AVR

14 65791GS BEARING

* - Items without part numbers are common fasteners and

are available at your local hardware store.

ALTERNATOR EXPLODED VIEW & PARTS LIST

Exploded Views and Parts Lists

WHEEL KIT EXPLODED VIEW & PARTS LIST

Item Part # Description

1 203273GS WHEEL

2 * WASHER, 5/8"

3 191267TGS AXLE

4 191265GS E-RING

5 205135GS ASSY, Brake

6 * SCREW, 1/4-20 x 3/8

7 B193200GS ASSY, Handle w/Grip

198669GS GRIP

8 * WASHER, Flat, 5/16 - M8

9 * NUT, M8 - 1.25, Nylok

10 * HHCS, M8 - 1.25 x 45

11 * WASHER, 1.2 x 0.346 x 0.03, Nylon

12 B4135GS PIN, Handle

Items Not Illustrated

205183GS SUBKIT, Hardware

* - Items without part numbers are common fasteners and are

available at your local hardware store.

6BRIGGSandSTRATTON.COM
